420 - Husqvarna Automower Robotic Lawn Mower (2016-02) BLADE MOTOR & CUTTING EQUIPMENT Parts Diagram

Automower Robotic Lawn Mower

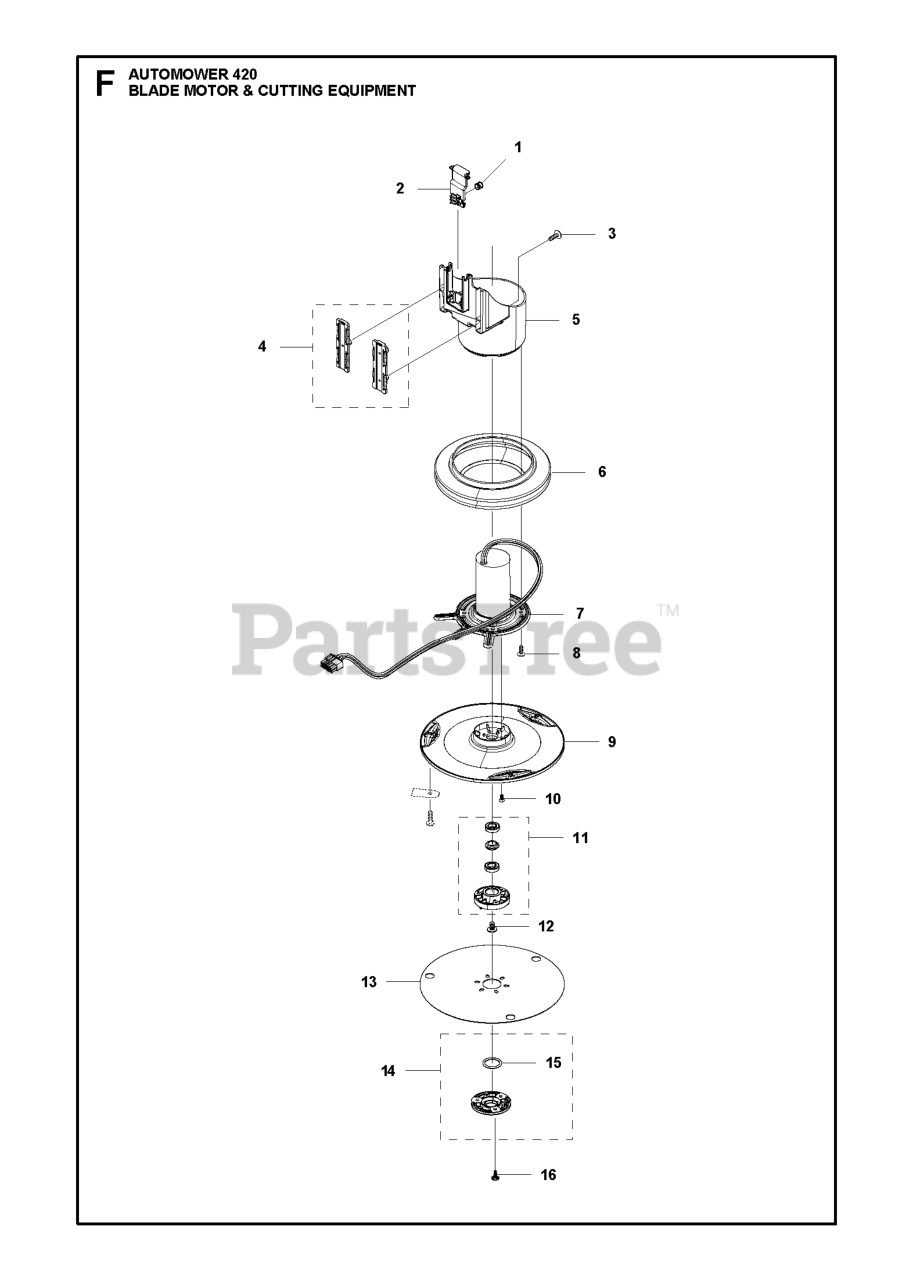

BLADE MOTOR & CUTTING EQUIPMENT Parts Diagram

  • Title

8

Husqvarna 575543314

SCREW 14MM

$4.99

$

In Stock, Qty 17

0

12

Husqvarna 535076001

SCREW

$4.99

$

In Stock, Qty 17

0

1

Husqvarna 580624401

SPRING LINK

$4.99

$

Usually ships in 3-10 days

0

14

Husqvarna 587449601

COVER KIT BEARING

$11.99

$

Usually ships in 3-10 days

0

5

Husqvarna 579564501

HOUSING CUTTING MOTOR

$22.99

$

Usually ships in 3-10 days

0

4

Husqvarna 581621801

BEARING KIT

$7.99

$

Usually ships in 3-10 days

0

15

Husqvarna 585297501

O-RING 20X2,5 MM

$4.99

$

In Stock, only 1 left!

0

2

Husqvarna 579564601

LINK MOTOR HOUSING

$5.99

$

In Stock, only 1 left!

0

16

Husqvarna 575543314

SCREW 14MM

$4.99

$

In Stock, Qty 17

0

9

Husqvarna 587378101

CUTTING DISC

$31.99

$

In Stock, only 2 left!

0

3

Husqvarna 575543314

SCREW 14MM

$4.99

$

In Stock, Qty 17

0

7

Husqvarna 587381401

MOTOR ASSY JE

$113.99

$

Usually ships in 3-10 days

0

11

Husqvarna 588421701

BEARING HOUSING ASSY SPARE PAR
(Superseded to 588421702)

$26.99

$

In Stock, only 3 left!

0

10

Husqvarna 535130501

SCREW
(Superseded to 535130502)

$4.99

$

In Stock, only 2 left!

0

13

Husqvarna 587378001

SKID PLATE

$39.99

$

In Stock, only 2 left!

0

6

Husqvarna 579666403

BELLOWS CUTTING SYSTEM

$17.99

$

Usually ships in 3-10 days

0
