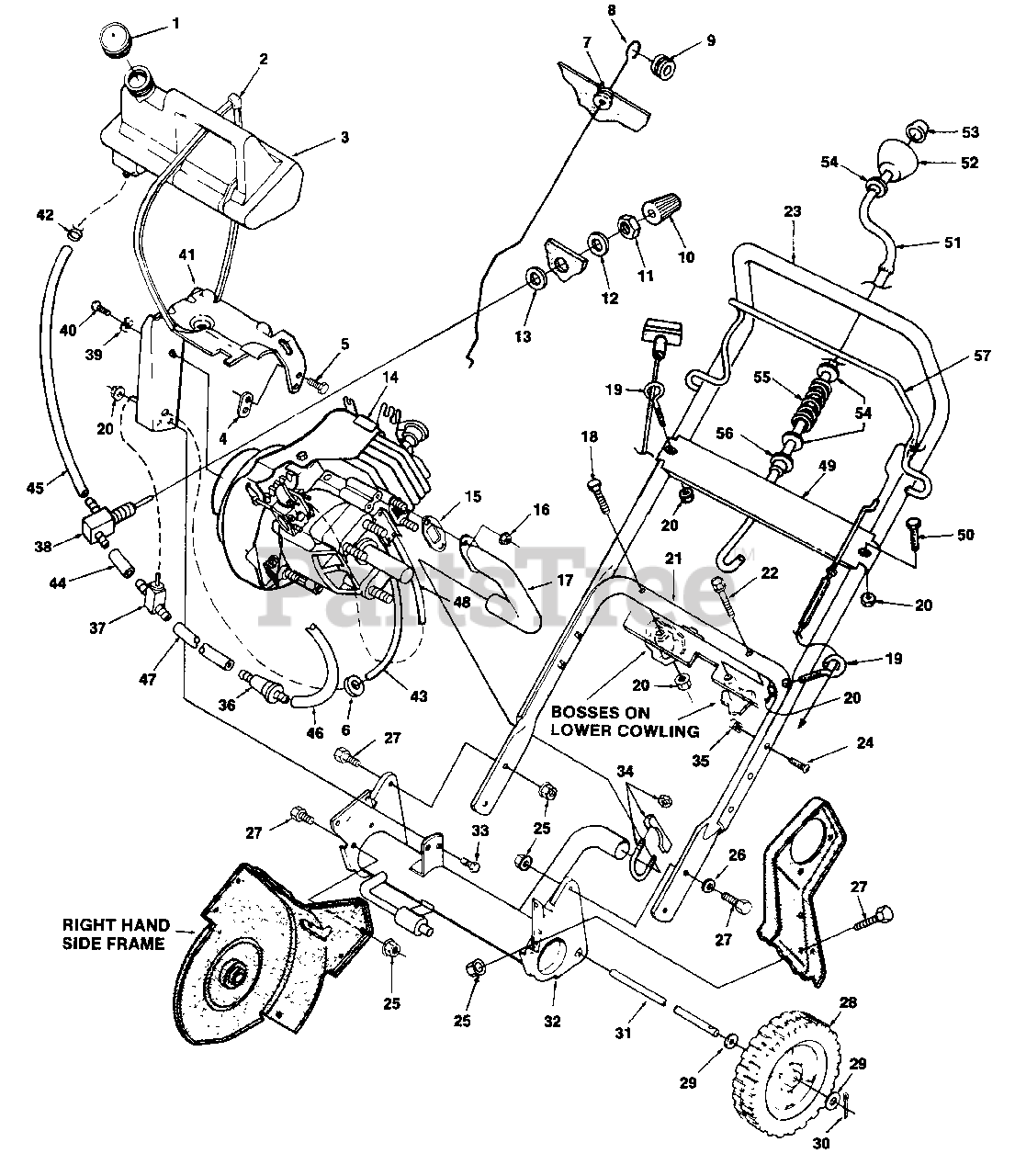

420 E (UT-35021) - Homelite Snow Thrower Handles and Tank Parts Diagram

Snow Thrower

Handles and Tank Parts Diagram

  • Title

1

Homelite JA181572

CAP-Tank

$

$

Not available

2

Homelite JA991118

TIE-Strap

$

$

Currently unavailable

3

Homelite JA397369

TANK-Fuel

$

$

Currently unavailable

4

Homelite JA375993

SPACER

Note: 420 only

$

$

Currently unavailable

5

Homelite JA416911

SCREW-Thd. forming #10-24 x 3/4

$

$

Currently unavailable

6

Homelite JA990722

GROMMET

$

$

Currently unavailable

7

Homelite JA991206

GROMMET

$

$

Currently unavailable

8

Homelite JA992559

ROD-Choke

$

$

Currently unavailable

9

Homelite JA991427

GROMMET

$

$

Not available

10

Homelite JA375994

KNOB-Shut-Off

$

$

Currently unavailable

11

Homelite JA443816

NUT-Hex 7/16-20

$

$

Currently unavailable

12

Homelite JA447218

WASHER-Lock 7/16

$

$

Currently unavailable

13

Homelite JA453013

WASHER-Flat 7/16
(Superseded to 84047)

$

$

Not available

14

Homelite JA991599

SHORT BLOCK

$

$

Currently unavailable

15

Homelite JA994490

GASKET-Manifold

$

$

Currently unavailable

16

Homelite JA444808

NUT-Hex 5/16-18

$

$

Currently unavailable

17

Homelite JA990940

MANIFOLD- Exhaust

$

$

Currently unavailable

18

Homelite JA400116

SCREW-Hex hd. Cap 1/4-20 x 1 1/2

$

$

Not available

19

Homelite JA992745

BOLT-Eye

$

$

Currently unavailable

20

Homelite JA445768

NUT-Flange 1/4-20

$

$

Not available

21

Homelite JA991699

HANDLE-Lower

$

$

Currently unavailable

22

Homelite JA409718

SCREW-Hex washer #10-16 x 1 1/2

$2.49

$

Usually ships in 3-7 days

0

23

Homelite JA992583

HANDLE-Upper

$

$

Currently unavailable

24

Homelite JA375510

SCREW-Phil Pan hd. 4/16-20 x 1 1/2

$

$

Currently unavailable

25

Homelite JA445775

NUT-Flange 5/16-18
(Superseded to UP06674)

$

$

Not available

26

Homelite JA453009

WASHER-Flat 5/16 (left side only)
(Superseded to UP07173)

$

$

Not available

27

Homelite JA400184

SCREW-Hex 5/16-18 x 5/8
(Superseded to UP03381)

$

$

Not available

28

Homelite JA124080

WHEEL & TIRE

$

$

Currently unavailable

29

Homelite JA453011

WASHER-Flat
(Superseded to PS84010)

$

$

Not available

30

Homelite JA460014

PIN-Cotter

$

$

Not available

31

Homelite JA375429

SHAFT-Axle

$

$

Currently unavailable

32

Homelite JA992825

MUFFLER

$

$

Currently unavailable

33

Homelite JA400104

SCREW-Hex 1/4-20 x 1/2
(Superseded to UP03379)

$

$

Not available

34

Homelite JA990799

CLAMP- Muffler

$

$

Not available

35

Homelite JA445264

RETAINER

$

$

Currently unavailable

36

Homelite JA992940

FILTER-Fuel

$

$

Currently unavailable

37

Homelite JA990801

FITTING-Fuel

$

$

Currently unavailable

38

Homelite JA375995

VALVE

$

$

Not available

39

Homelite JA454023

WASHER-Lock 4/16

$3.49

$

Usually ships in 3-7 days

0

40

Homelite JA400102

BOLT-Hex 4/16-20 x 3/8

$5.49

$

Usually ships in 3-7 days

0

41

Homelite JA397370

BRACKET-Fuel tank

$

$

Currently unavailable

42

Homelite JA472801

CLAMP

$

$

Currently unavailable

43

Homelite JA990803

TUBE-Rubber 17"

$

$

Currently unavailable

44

Homelite JA990807

TUBE-Rubber (cut to 1 1/2")

$

$

Not available

45

Homelite JA990807

TUBE-Rubber (cut to 7 1/4")

$

$

Not available

46

Homelite JA990807

TUBE-Rubber (cut to 8")

$

$

Not available

47

Homelite JA990803

TUBE-Rubber (cut to 13 1/2")

$

$

Currently unavailable

48

Homelite JA990803

TUBE-Rubber (cut to 11 1/4")

$

$

Currently unavailable

49

Homelite JA992578

BRACE- Handle

$

$

Currently unavailable

50

Homelite JA400114

BOLT- Hex hd.
(Superseded to UP05933)

$

$

Not available

51

Homelite JA992585

CRANK- Chute Adj.

$

$

Currently unavailable

52

Homelite JA375017

KNOB- Chute

$

$

Not available

53

Homelite JA445258

CAP- Push on

$

$

Not available

54

Homelite JA455051

WASHER- Flat
(Superseded to PS84010)

$

$

Not available

55

Homelite JA991628

SPRING- Comp.

$

$

Currently unavailable

56

Homelite 12639

BUSHING- Nylon

$

$

Not available

57

Homelite JA992734

BAIL
(Superseded to JA994083)

$

$

Currently unavailable
