420 E (UT-35021-A) - Homelite Snow Thrower Housing and Chute Parts Diagram

Snow Thrower

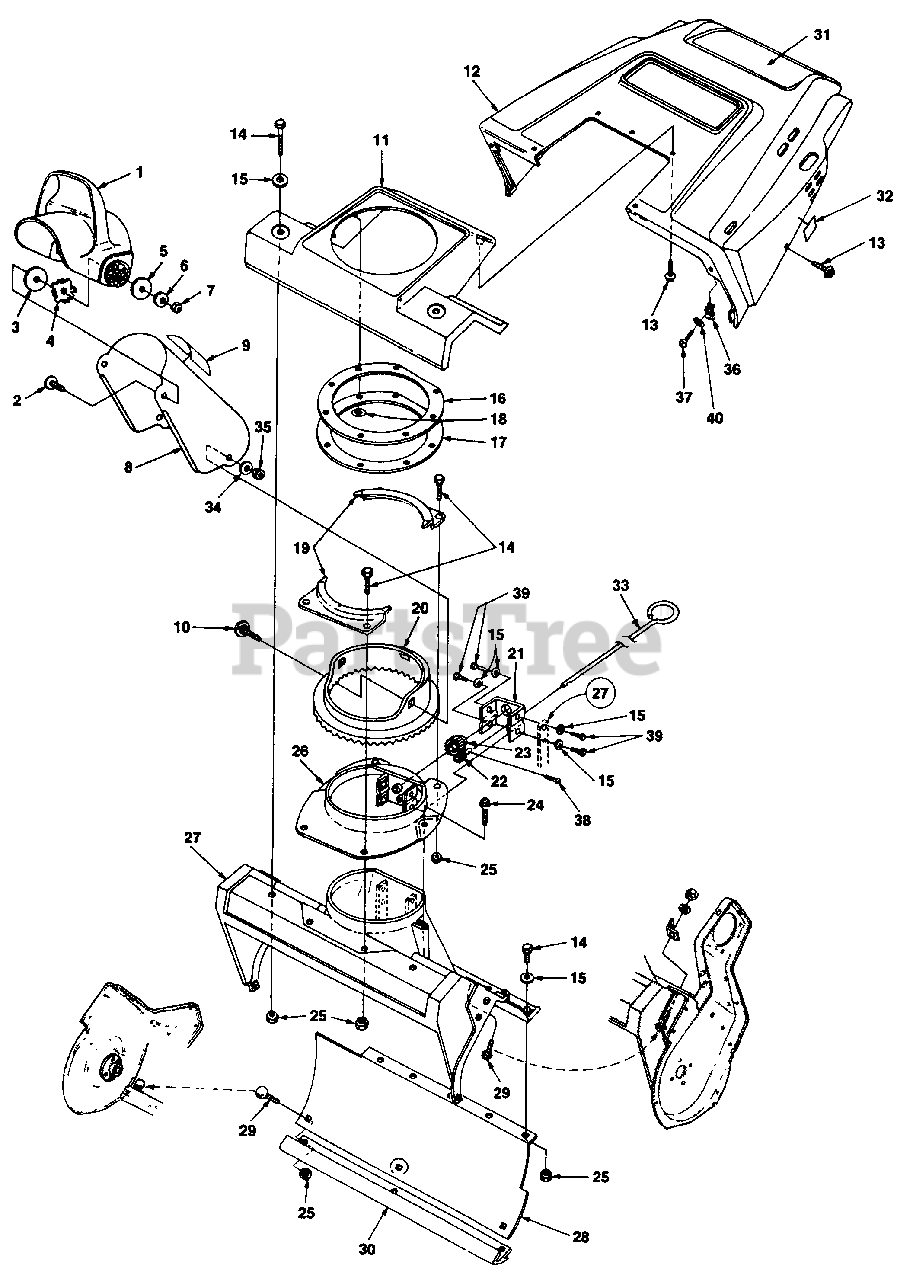

Housing and Chute Parts Diagram

  • Title

1

Homelite JA991555

DEFLECTOR

$

$

Currently unavailable

2

Homelite JA440082

BOLT- Carr. 5/16-18 x 1"

$

$

Currently unavailable

3

Homelite JA991626

WASHER- Flat rubber

$

$

Currently unavailable

4

Homelite JA991556

WASHER- Octagon

$

$

Currently unavailable

5

Homelite JA455061

WASHER- Flat 5/16"

$

$

Currently unavailable

6

Homelite JA991627

WASHER- Belleville

$

$

Currently unavailable

7

Homelite JA445775

NUT- Flange 5/16-18
(Superseded to UP06674)

$

$

Not available

8

Homelite JA991715

CHUTE (w/decals)

Note: Includes #9

$

$

Currently unavailable

9

Homelite JA991648

DECAL- Warning

$

$

Currently unavailable

10

Homelite JA440076

BOLT- Square neck 5/16-18 x 5/8"

$

$

Currently unavailable

11

Homelite JA991995

COWLING- Transition

$

$

Currently unavailable

12

Homelite JA992608

COWLING- Upper

Note: Incl. #31 & #32

$

$

Currently unavailable

13

Homelite 82409

SCREW- Thd. forming #10 x 5/8"

$

$

Not available

14

Homelite JA400108

SCREW- Hex 1/4-20 x 3/4"
(Superseded to 80052)

$

$

Not available

15

Homelite JA453023

WASHER- Plain 1/4"
(Superseded to 678013001)

$1.99

$

Usually ships in 3-7 days

0

16

Homelite JA991566

GASKET- Chute

$

$

Currently unavailable

17

Homelite JA991692

RETAINER- Gasket

$

$

Currently unavailable

18

Homelite JA445524

NUT- Push on

$

$

Currently unavailable

19

Homelite JA991694

RETAINER

$

$

Currently unavailable

20

Homelite JA991551

BASE- Chute

$

$

Currently unavailable

21

Homelite JA991695

BRACKET- Gear

$

$

Not available

22

Homelite JA991811

DRIVE- Gear

$

$

Currently unavailable

23

Homelite JA991559

GEAR- Idler

$

$

Currently unavailable

24

Homelite JA991629

SCREW- Plastite #12-14 x 1"

$

$

Currently unavailable

25

Homelite JA445768

NUT- Flange 1/4-20

$

$

Not available

26

Homelite JA992506

PLATE- Chute base

$

$

Currently unavailable

27

Homelite JA994008

HOUSING- Auger

$

$

Currently unavailable

28

Homelite JA991609

SCOOP

$

$

Currently unavailable

29

Homelite JA441606

BOLT- Carr. Sq. Neck 1/4-20 x 3/4"

$

$

Not available

30

Homelite JA991601

SCRAPER- Bar

$

$

Not available

31

Homelite JA994073

DECAL- Console

$

$

Currently unavailable

32

Homelite JA992354

DECAL- Warning

$

$

Not available

33

Homelite JA992584

ROD- Crank adj.

$

$

Currently unavailable

34

Homelite JA446134

WASHER- Lock 5/16"
(Superseded to 653671)

$4.49

$

Usually ships in 3-7 days

0

35

Homelite JA443106

NUT- Hex 5/16-18
(Superseded to 81018)

$

$

Not available

36

Homelite JA445277

U-CLIP- #10

$4.99

$

Usually ships in 3-7 days

0

37

Homelite JA409718

SCREW- Hex Hd. #10-16 x 1 1/2"

$2.49

$

Usually ships in 3-7 days

0

38

Homelite JA460028

PIN- Cotter 1/8 dia.

$

$

Currently unavailable

39

Homelite JA409908

SCREW- Hex hd. 1/4-20 x 5/8"

$3.99

$

Usually ships in 3-7 days

0

40

Homelite JA452002

WASHER- Flat #10

$

$

Not available
