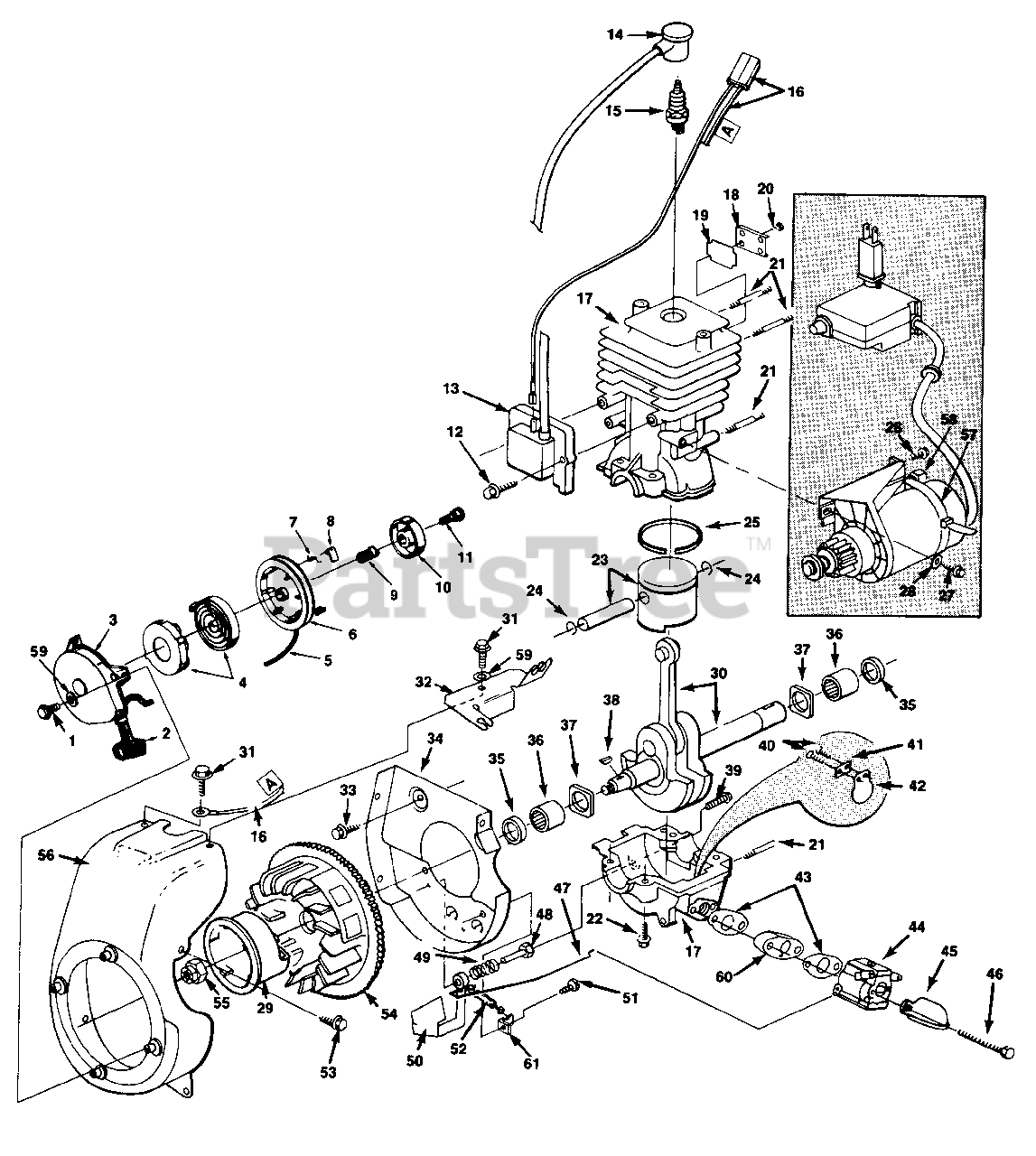

420 E (UT-35021-A) - Homelite Snow Thrower Engine Parts Diagram

Snow Thrower

Engine Parts Diagram

  • Title

Homelite JA518835

REWIND STARTER ASSEMBLY- (Complete)

Note: Incl. 2 thru 11

$

$

Currently unavailable

1

Homelite 80044

SCREW- Hex Hd. 1/4-20 x 1/2"

$

$

Not available

2

Homelite JA546003

HANDLE- Pull Rope

$

$

Currently unavailable

3

Homelite JA518833

HOUSING ASSEMBLY

$

$

Currently unavailable

4

Homelite JA500790

SPRING & KEEPER ASSEMBLY

$

$

Not available

5

Homelite JA569945

ROPE- 75"

$9.99

$

Usually ships in 3-7 days

0

6

Homelite JA535031

PULLEY

$

$

Currently unavailable

7

Homelite JA545999

SPRING- Dog

$

$

Currently unavailable

8

Homelite JA313663

DOG

$

$

Currently unavailable

9

Homelite JA546001

SPRING- Brake

$

$

Currently unavailable

10

Homelite JA546002

RETAINER

$

$

Currently unavailable

11

Homelite JA546000

SCREW

$

$

Currently unavailable

12

Homelite JA416908

SCREW- Thd. rolling
(Superseded to JA416911)

$

$

Currently unavailable

13

Homelite A97567A

MODULE- Ignition

$

$

Currently unavailable

14

Homelite A33055

COVER- Spark

$

$

Not available

15

Homelite 96455

SPARK PLUG (CJ8Y)

$

$

Not available

16

Homelite A95577

LEAD- Electrical

$

$

Currently unavailable

17

Homelite A95542A

CYLINDER & CRANKCASE

Note: Incl. 18, 19, 20, 21, & 22

$

$

Currently unavailable

18

Homelite 96220

COVER- Cylinder

$

$

Not available

19

Homelite 96221

GASKET

$

$

Not available

20

Homelite 95922

SCREW- Thd. rolling 8-32 x 5/16"
(Superseded to 660624001)

$

$

Not available

21

Homelite 97375

STUD- Thd. rolling

$

$

Not available

22

Homelite 88071

SCREW- Sems hex hd. 1/4-20 x 1 1/2"

$

$

Not available

23

Homelite A95598

PISTON & PIN ASSEMBLY

Note: Incl. 24 & 25

$

$

Currently unavailable

24

Homelite 64742

RING- Pin retaining

$

$

Not available

25

Homelite 95512

PISTON- Ring

$

$

Not available

26

Homelite JA416911

SCREW- 10-24 x 3/4"

Note: 420E only

$

$

Currently unavailable

27

Homelite JA990764

SCREW- 12-24 x 5/8"

Note: 420E only

$

$

Currently unavailable

28

Homelite JA990763

WASHER

Note: 420E only

$2.49

$

Usually ships in 3-7 days

0

29

Homelite JA994052

HUB- Starter

$

$

Not available

30

Homelite A97725A

CRANKSHAFT ASSEMBLY

$

$

Currently unavailable

31

Homelite 82456

SCREW- Thd. forming 1/4-20 x 1"

$

$

Not available

32

Homelite 97830A

BRACKET

$

$

Currently unavailable

33

Homelite 82459

SCREW- Thd. forming 10-24

$

$

Not available

34

Homelite 955003

PLATE- Fan housing

$

$

Currently unavailable

35

Homelite 95510

SEAL-Shaft

$

$

Not available

36

Homelite 76167S

BEARING- Needle

$

$

Currently unavailable

37

Homelite 95509A

WASHER- Thrust

$

$

Not available

38

Homelite 75078

KEY- Woodruff
(Superseded to UP07068)

$

$

Not available

39

Homelite 88066

SCREW 8-32 x 3/4"
(Superseded to UP07656)

$

$

Not available

40

Homelite 82498

SCREW #8 x 1"

$

$

Not available

41

Homelite 95594

STOP- Reed

$

$

Not available

42

Homelite 58775

REED VALVE

$

$

Not available

43

Homelite 93505B

GASKET- Carburetor

$

$

Currently unavailable

44

Homelite JA994056

CARBURETOR

$

$

Currently unavailable

45

Homelite 95561

SHIELD- Carburetor

$

$

Not available

46

Homelite 82525

SCREW-Thd. forming 10-24

$

$

Not available

47

Homelite 00448

THROTTLE ROD

$

$

Not available

48

Homelite 974581

PIN-Pivot

$

$

Not available

49

Homelite 97031A

SPRING

$

$

Not available

50

Homelite 96007

VANE-Governor

$

$

Not available

51

Homelite 80853

SCREW-Tap pan head #8 x 1/4"

$

$

Not available

52

Homelite 95513

SPRING-Extension

$13.99

$

Usually ships in 3-7 days

0

53

Homelite 82404

SCREW-Tap hex hd. #10 x 3/8"

$

$

Not available

54

Homelite 95519A

ROTOR

$

$

Currently unavailable

55

Homelite 81104

NUT- Hex 7/16-20

$

$

Not available

56

Homelite A004491

HOUSING-Fan

$

$

Not available

57

Homelite JA991118

STRAP-Tie

$

$

Currently unavailable

58

Homelite JA990758

NUT- Hex 5-16 x 18

$

$

Currently unavailable

59

Homelite 83009

WASHER- Lock

$8.49

$

Usually ships in 3-7 days

0

60

Homelite 00356

SPACER- Carb.

$

$

Not available

61

Homelite 00447

TAB- Gov. Adj.

$

$

Not available
