420 E (UT-35021-A) - Homelite Snow Thrower Electric Starter Parts Diagram

Snow Thrower

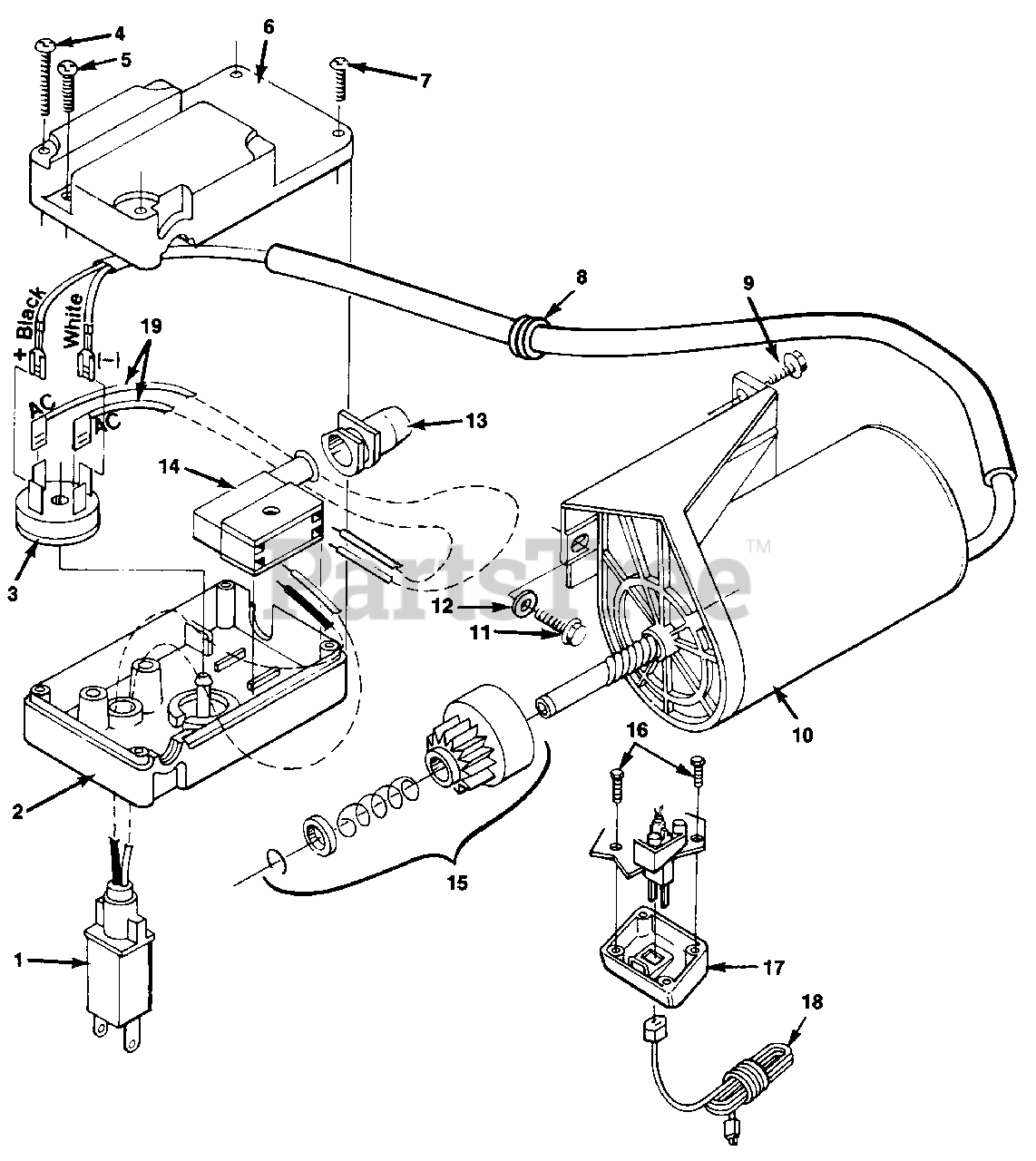

Electric Starter Parts Diagram

  • Title

1

Homelite 95548

PLUG-Electrical

$

$

Not available

2

Homelite 95544

HOUSING-Electrical start

$

$

Not available

3

Homelite 95575

RECTIFIER

$

$

Not available

4

Homelite 82400

SCREW-Thd. forming #8-16 x 1 1/4"

$

$

Not available

5

Homelite JA416903

SCREW-Thd. forming

$2.49

$

Usually ships in 3-7 days

0

6

Homelite 95545

COVER-Electric start

$

$

Not available

7

Homelite 82376

SCREW-Thd. forming #8 x 1/2"
(Superseded to 660669001)

$1.49

$

In Stock, only 3 left!

0

8

Homelite 97831

GROMMET

$7.49

$

Usually ships in 3-7 days

0

9

Homelite JA416911

SCREW-Thd. forming

$

$

Currently unavailable

10

Homelite JA992635

MOTOR- Pinion end plate

Note: Incl. #8 & 15

$

$

Currently unavailable

11

Homelite JA990764

SCREW-Thd. forming 12-24 x 5/8"

$

$

Currently unavailable

12

Homelite JA990763

WASHER

$2.49

$

Usually ships in 3-7 days

0

13

Homelite 95549

BOOT-Switch

$

$

Not available

14

Homelite 95547A

SWITCH-Electric starter
(Superseded to A00859)

$

$

Currently unavailable

15

Homelite A96414

PINION

$

$

Not available

16

Homelite JA375508

SCREW #10 x 3/4"

$

$

Currently unavailable

17

Homelite JA392495

COVER-Starter

$

$

Currently unavailable

18

Homelite JA992791

CORD SET

$

$

Currently unavailable

19

Homelite A95576A

LEAD- Electrical

$

$

Currently unavailable
