420 E (UT-35021-A) - Homelite Snow Thrower Auger and Drive Parts Diagram

Snow Thrower

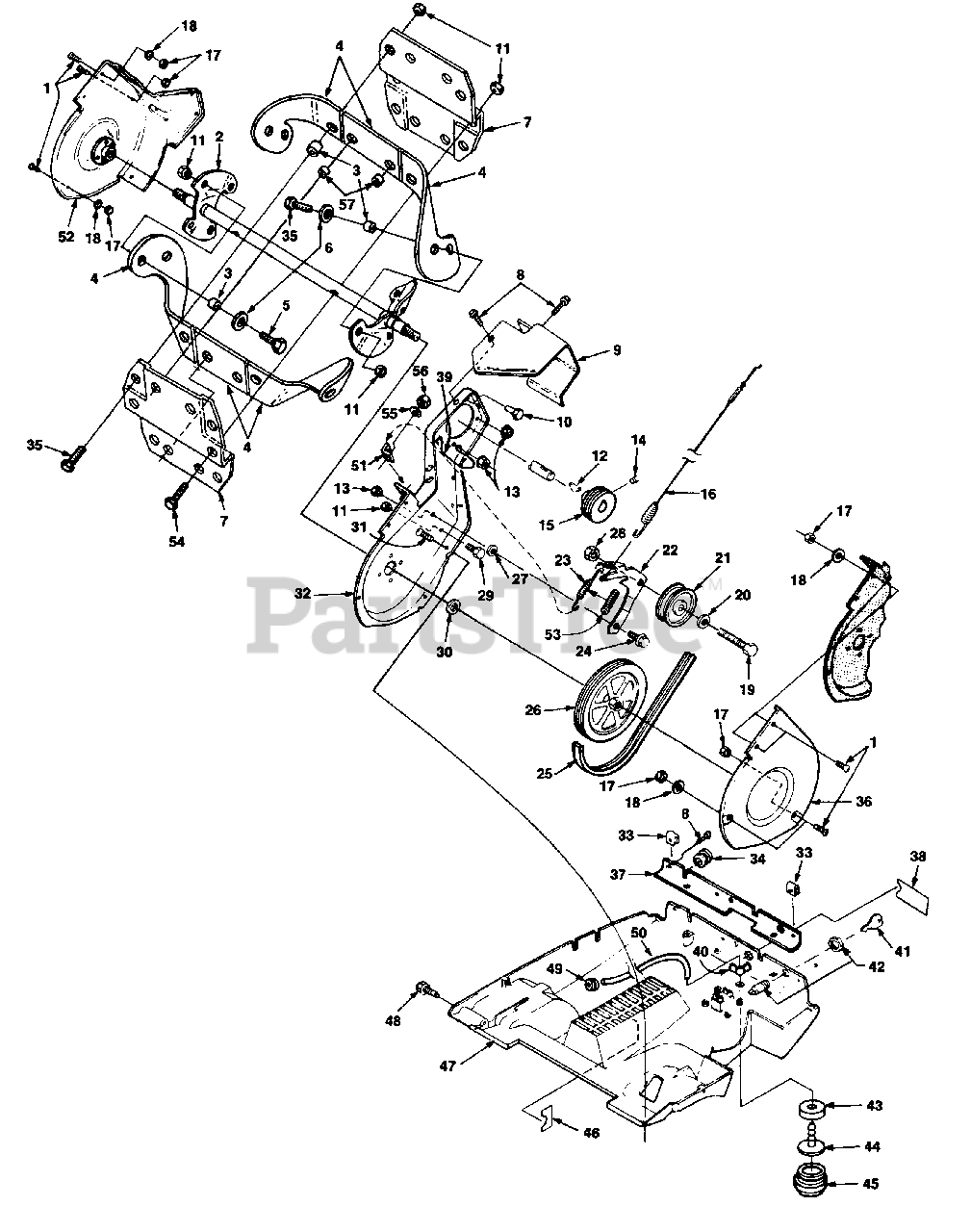

Auger and Drive Parts Diagram

  • Title

1

Homelite JA403912

SCREW- Phillips #10-24 x 5/8"

$

$

Not available

2

Homelite JA992532

SHAFT- Auger

$

$

Currently unavailable

3

Homelite JA992531

SPACER

$

$

Currently unavailable

4

Homelite JA994093

BLADE- Auger (set of 2)

Note: Incl. #3, 57 & 7

$

$

Currently unavailable

5

Homelite JA400108

SCREW- Hex 1/4-20 x 3/4"
(Superseded to 80052)

$

$

Not available

6

Homelite JA453023

WASHER- Plain 1/4"
(Superseded to 678013001)

$1.99

$

Usually ships in 3-7 days

0

7

Homelite JA994076

CLAMP- Plate

$

$

Currently unavailable

8

Homelite JA375508

SCREW- #10 x 3/4"

$

$

Currently unavailable

9

Homelite JA991608

SHIELD- Belt

$

$

Currently unavailable

10

Homelite JA990758

NUT- 5/16-18

$

$

Currently unavailable

11

Homelite JA445768

NUT- Flange 1/4-20

$

$

Not available

12

Homelite JA463107

KEY- 5/8 x 5/32"

$

$

Not available

13

Homelite JA445775

NUT- Flange 5/16-18
(Superseded to UP06674)

$

$

Not available

14

Homelite JA415511

SCREW- Set 1/4-20 x 3/8"

$

$

Currently unavailable

15

Homelite JA994072

PULLEY- Drive

$

$

Currently unavailable

16

Homelite JA992586

CABLE & SPRING

$

$

Currently unavailable

17

Homelite JA375506

NUT-#10-24

$

$

Not available

18

Homelite JA990798

WASHER- Retaining
(Superseded to UP03867)

$

$

Not available

19

Homelite JA400266

SCREW- Hex hd. 3/8-16 x 1 1/2"

$

$

Currently unavailable

20

Homelite JA453011

WASHER- Flat 3/8"
(Superseded to PS84010)

$

$

Not available

21

Homelite JA375435

PULLEY

$

$

Currently unavailable

22

Homelite JA991622

ARM- Idler

$22.99

$

Usually ships in 3-7 days

0

23

Homelite JA991442

SPRING- Extension

$

$

Not available

24

Homelite JA375431

BOLT

$

$

Not available

25

Homelite JA990812

BELT- Drive

$

$

Not available

26

Homelite JA990815

PULLEY- Driven

$

$

Currently unavailable

27

Homelite JA313810

WASHER

$3.49

$

Usually ships in 3-7 days

0

28

Homelite JA444850

NUT- Hex 3/8-16
(Superseded to JA993711)

$

$

Not available

29

Homelite JA400106

SCREW- 1/4-20 x 5/8"

$

$

Currently unavailable

30

Homelite JA375439

SPACER

$

$

Currently unavailable

31

Homelite JA408881

SCREW- Plastite 1/4-10 x 5/8" Rd. Hd.

$

$

Not available

32

Homelite JA990583

FRAME- Left side

$260.99

$

Usually ships in 3-7 days

0

33

Homelite JA445210

NUT- Speed #10

$20.99

$

Usually ships in 3-7 days

0

34

Homelite JA991643

GROMMET- Metal

$

$

Currently unavailable

35

Homelite JA400110

SCREW- Hex 1/4-20 x 7/8"

$

$

Currently unavailable

36

Homelite JA991727

GUARD- Belt

$

$

Currently unavailable

37

Homelite JA992498

BRACKET- Control panel

$

$

Currently unavailable

38

Homelite JA991677

DECAL- Electric start

Note: 420E only

$

$

Currently unavailable

39

Homelite JA991666

GUIDE- Belt

$

$

Not available

40

Homelite JA445612

NUT- Wing 1/4-20

$4.99

$

Usually ships in 3-7 days

0

41

Homelite JA343060

KEY- Ignition (set of 2)

$

$

Not available

42

Homelite JA130641

SWITCH- Ignition
(Superseded to GP578238)

$45.99

$

Usually ships in 3-7 days

0

43

Homelite JA990756

CUP- Fuel primer

$

$

Currently unavailable

44

Homelite JA990754

FITTING- Fuel primer

$

$

Currently unavailable

45

Homelite JA990755

BULB- Fuel primer

$

$

Currently unavailable

46

Homelite JA991011

DECAL- Fuel valve

$

$

Currently unavailable

47

Homelite JA992611

COWLING- Lower

Note: Incl. #38 & #46

$

$

Currently unavailable

48

Homelite JA409908

SCREW- 1/4-20 x 5/8"

$3.99

$

Usually ships in 3-7 days

0

49

Homelite JA990722

GROMMET

$

$

Currently unavailable

50

Homelite JA990803

TUBE- Rubber

$

$

Currently unavailable

51

Homelite JA375942

CLIP- Spring

$

$

Currently unavailable

52

Homelite JA990829

FRAME- Right side

$

$

Currently unavailable

53

Homelite JA991795

COVER- Spring

$

$

Not available

54

Homelite JA400114

SCREW- Hex hd. 1/4-20 x 1 1/4"
(Superseded to UP05933)

$

$

Not available

55

Homelite JA446130

WASHER- Lock 1/4"

$

$

Not available

56

Homelite JA443102

NUT- Hex 1/4-20
(Superseded to JA993730)

$

$

Not available

57

Homelite JA991568

SPACER

$

$

Currently unavailable
