420 E (UT-35017) - Homelite Snow Thrower Handles and Tank Parts Diagram

Snow Thrower

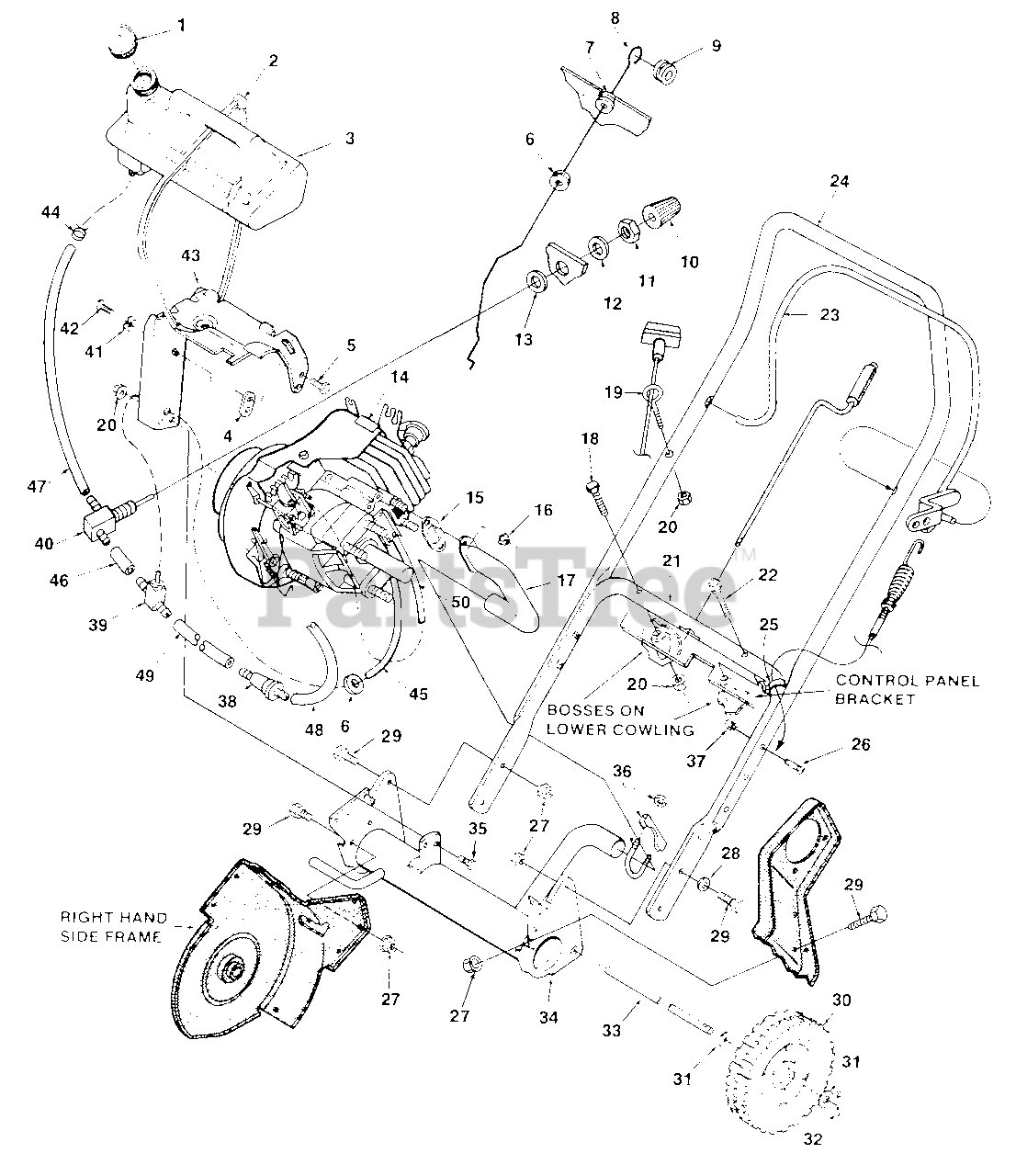

Handles and Tank Parts Diagram

  • Title
1

$

$

Not available

2

Homelite JA991118

TIE-Strap

$

$

Currently unavailable

3

Homelite JA397369

TANK-Fuel

$

$

Currently unavailable

4

Homelite JA375993

SPACER

Note: 420 only

$

$

Currently unavailable

5

Homelite JA416911

SCREW-Thd. forming #10-24 x 3/4

$

$

Currently unavailable

6

$

$

Currently unavailable

7

$

$

Currently unavailable

8

Homelite JA990819

ROD-Choke

$21.99

$

Usually ships in 3-7 days

0

9

$

$

Not available

10

Homelite JA375994

KNOB-Shut-Off

$

$

Currently unavailable

11

Homelite JA443816

NUT-Hex 7/16-20

$

$

Currently unavailable

12

Homelite JA447218

WASHER-Lock 7/16

$

$

Currently unavailable

13

Homelite JA453013

WASHER-Flat 7/16
(Superseded to 84047)

$

$

Not available

14

Homelite JA991599

SHORT BLOCK

$

$

Currently unavailable

15

Homelite JA994490

GASKET-Manifold

$

$

Currently unavailable

16

Homelite JA444808

NUT-Hex 5/16-18

$

$

Currently unavailable

17

Homelite JA990940

MANIFOLD- Exhaust

$

$

Currently unavailable

18

Homelite JA400116

SCREW-Hex hd. Cap 1/4-20 x 1 1/2

$

$

Not available

19

$

$

Currently unavailable

20

Homelite JA445768

NUT-Flange 1/4-20

$

$

Not available

21

Homelite JA991699

HANDLE-Lower

$

$

Currently unavailable

22

Homelite JA409718

SCREW-Hex washer #10-16 x 1 1/2

$2.49

$

Usually ships in 3-7 days

0

$

$

Currently unavailable

24

Homelite JA991569

HANDLE-Upper

$

$

Currently unavailable

25

Homelite JA991636

TIE-Cable

$

$

Not available

26

Homelite JA375510

SCREW- Phil. Pan Hd. 1/4-20 x 1 1/2

$

$

Currently unavailable

27

Homelite JA445775

NUT-Flange 5/16-18
(Superseded to UP06674)

$

$

Not available

28

Homelite JA453009

WASHER-Flat 5/16
(Superseded to UP07173)

$

$

Not available

29

Homelite JA400182

SCREW-Hex 5/16-18 x 5/8

$

$

Not available

30

Homelite JA124080

WHEEL & TIRE

$

$

Currently unavailable

31

Homelite JA453011

WASHER-Flat 13/32
(Superseded to PS84010)

$

$

Not available

32

Homelite JA460014

PIN-Cotter 3/32 x 3/4"

$

$

Not available

33

Homelite JA375429

SHAFT-Axle

$

$

Currently unavailable

34

$

$

Currently unavailable

35

Homelite JA400104

SCREW-Hex 1/4-20 x 1/2
(Superseded to UP03379)

$

$

Not available

36

Homelite JA990799

CLAMP- Muffler

$

$

Not available

37

$

$

Currently unavailable

38

Homelite JA992940

FILTER-Fuel

$

$

Currently unavailable

39

Homelite JA990801

FITTING-Fuel

$

$

Currently unavailable

$

$

Not available

41

Homelite JA454023

WASHER-Lock 1/4"

$3.49

$

Usually ships in 3-7 days

0

42

Homelite JA400102

BOLT- Hex 1/4-20 x 3/8

$5.49

$

Usually ships in 3-7 days

0

43

Homelite JA397370

BRACKET-Fuel tank

$

$

Currently unavailable

$

$

Currently unavailable

45

Homelite JA990803

TUBE-Rubber 17"

$

$

Currently unavailable

46

Homelite JA990807

TUBE-Rubber (cut to 1 1/2")

$

$

Not available

47

Homelite JA990807

TUBE-Rubber (cut to 7 1/4")

$

$

Not available

48

Homelite JA990807

TUBE-Rubber (cut to 8")

$

$

Not available

49

Homelite JA990807

TUBE-Rubber (cut to 13 1/2")

$

$

Not available

50

Homelite JA990803

TUBE-Rubber (cut to 10 1/4")

$

$

Currently unavailable
