420 (317-440-100) - Cub Cadet 20" Snow Thrower Engine (1987) Tec 4.0 HP-Hssk40-5555 Parts Diagram

20" Snow Thrower Engine

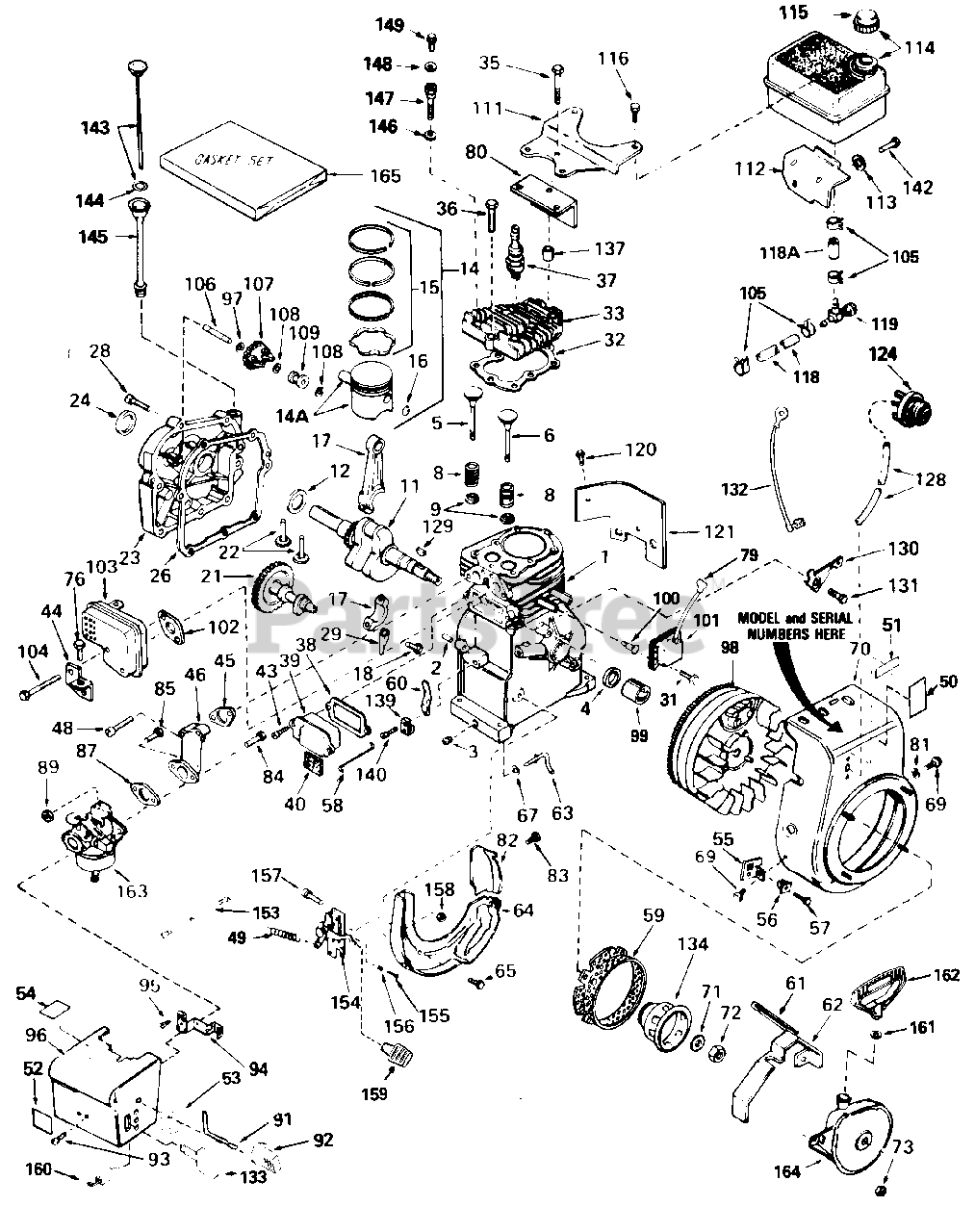

Tec 4.0 HP-Hssk40-5555 Parts Diagram

  • Title

1

Cub Cadet TC-330148

Cylinder Ass'y.

Note: (Incl. Nos. 2, 3 & 4)

$

$

Currently unavailable

2

Cub Cadet TC-26727

Pin, Dowel

$1.99

$

In Stock, Qty 5

0

3

Cub Cadet TC-27642

Plug, Sq. Hd. Pipe, 1/4-18 (Oil Drain)

$1.99

$

In Stock, only 3 left!

0

4

Cub Cadet TC-32600

Seal, Oil

$

$

Not available

5

Cub Cadet TC-32644A

Valve, Intake (Std.)

Note: (Incl. No. 9)

$9.99

$

In Stock, only 2 left!

0

Cub Cadet TC-32645A

Valve, Intake (1/32" Oversize)

Note: (Incl. No. 9)

$

$

Currently unavailable

6

Cub Cadet TC-29313C

Valve, Exhaust (Std.)

Note: (Incl. No. 9)

$

$

Not available

Cub Cadet TC-29315C

Valve, Exhaust (1/32" Oversize)

Note: (Incl. No. 9)

$

$

Not available

8

Cub Cadet TC-31672

Spring, Valve

$1.99

$

In Stock, Qty 14

0

9

Cub Cadet TC-31673

Cap, Lower Valve Spring

$1.99

$

In Stock, only 1 left!

0

11

Cub Cadet TC-34734A

Crankshaft Ass'y.

$156.99

$

In Stock, only 1 left!

0

12

Cub Cadet TC-32323

Washer, Thrust

$8.49

$

In Stock, only 1 left!

0

14

Cub Cadet TC-34851

Piston, Pin & Ring Ass'y. (Std.)

Note: (Incl. Nos. 14A, 15 & 16)

$

$

Not available

Cub Cadet TC-34852

Piston, Pin & Ring Ass'y. (.010 Oversize)

Note: (Incl. Nos. 14A, 15 & 16)

$

$

Not available

Cub Cadet TC-34853

Piston, Pin & Ring Ass'y. (.020 Oversize)

Note: (Incl. Nos. 14A, 15 & 16)

$

$

Not available

14A

Cub Cadet TC-32603B

Piston & Pin Ass'y. (Std.)

Note: (Incl. No. 16)

$

$

Not available

Cub Cadet TC-32604B

Piston & Pin Ass'y. (.010 Oversize)

Note: (Incl. No. 16)

$

$

Not available

Cub Cadet TC-32605B

Piston & Pin Ass'y. (.020 Oversize)

Note: (Incl. No. 16)

$

$

Not available

15

Cub Cadet TC-34854

Ring Set, Piston (Std.)

$

$

Not available

Cub Cadet TC-34855

Ring Set, Piston (.010 Oversize)

$

$

Not available

Cub Cadet TC-34856

Ring Set, Piston (.020 Oversize)

$

$

Currently unavailable

16

Cub Cadet TC-20381

Ring, Piston Pin Retaining

$1.99

$

In Stock, Qty 7

0

17

Cub Cadet TC-32875

Rod Ass'y., Connecting
(Superseded to TC-32875B)

Note: (Incl. Nos. 18 & 29)

$47.99

$

In Stock, only 1 left!

0

18

Cub Cadet TC-32610A

Screw, Connecting Rod

$1.99

$

In Stock, Qty 6

0

21

Cub Cadet TC-33158

Camshaft (Compression Release)

$46.99

$

Usually ships in 3-12 days

0

22

Cub Cadet TC-27241

Lifter, Valve

$

$

Currently unavailable

23

Cub Cadet TC-34674A

Cover, Cylinder

Note: (Incl. Nos. 24 & 106)

$

$

Not available

24

Cub Cadet TC-27897

Seal, Oil

$8.49

$

In Stock, only 3 left!

0

26

Cub Cadet TC-27677

Gasket, Cylinder Cover

Note: (Included in Gasket Set, Ref. No. 165)

$

$

Not available

28

Cub Cadet TC-650488

Screw, Hex Hd. Sems, 1/4-20 x 1 1/4

$1.99

$

Usually ships in 3-12 days

0

29

Cub Cadet TC-32654

Dipper, Oil

$

$

Currently unavailable

31

Cub Cadet TC-650814

Screw, Hex Hd. Sems, 10-24 x 1
(Superseded to TC-651007)

$1.99

$

In Stock, only 4 left!

0

32

Cub Cadet TC-33015

Gasket, Cylinder Head

Note: (Included in Gasket Set, Ref. No. 165)

$2.99

$

Usually ships in 3-12 days

0

33

Cub Cadet TC-33016

Head, Cylinder

$

$

Not available

35

Cub Cadet TC-650694A

Screw, Hex Flange Hd., 5/16-18 x 2

$3.49

$

In Stock, Qty 20+

0

36

Cub Cadet TC-6021A

Screw, Hex Flange Hd., 5/16-18 x 11/2

$1.99

$

In Stock, only 3 left!

0

37

Cub Cadet TC-33636

Spark Plug (Champion J-8C or Equivalent)
(Superseded to 759-3331)

$3.99

$

In Stock, only 2 left!

0

38

Cub Cadet TC-31619

Gasket, Valve Spring Cover

Note: (Included in Gasket Set, Ref. No. 165)

$0.99

$

Usually ships in 3-12 days

0

39

Cub Cadet TC-31337

Breather Ass'y.

Note: (Incl. Nos. 38 & 40)

$

$

Not available

40

Cub Cadet TC-31410

Element, Breather

$1.99

$

In Stock, Qty 20+

0

43

Cub Cadet TC-650128

Screw, Fil. Hd. Sems, 10-24 x 1/2

$5.49

$

In Stock, only 2 left!

0

44

Cub Cadet TC-33333

Bracket, Carburetor Cover

$3.99

$

Usually ships in 3-12 days

0

45

Cub Cadet TC-32649

Gasket, Intake

Note: (Included in Gasket Set, Ref. No. 165)

$0.99

$

Usually ships in 3-12 days

0

46

Cub Cadet TC-32859

Pipe, Intake

$

$

Currently unavailable

48

Cub Cadet TC-650664

Screw, Fil. Hd. Sems, 1/4-20 x 1-19/32

$

$

Currently unavailable

49

Cub Cadet TC-31426

Spring, Extension

$3.99

$

In Stock, Qty 20+

0

50

Cub Cadet TC-550223

Decal, Name

$

$

Not available

51

Cub Cadet TC-34144

Decal, Primer (Bilingual)

$

$

Currently unavailable

52

Cub Cadet TC-34346

Decal, Instruction
(Superseded to TC-36261)

$

$

Not available

53

Cub Cadet TC-35282

Decal, Instruction (Bilingual)

$2.49

$

In Stock, Qty 5

0

54

Cub Cadet TC-34414

Decal, Warning (Bilingual)

$

$

Not available

55

Cub Cadet TC-34126

Bracket, Grommet Mounting

$1.99

$

Usually ships in 3-12 days

0

56

Cub Cadet TC-28545

Grommet, Plastic

$1.99

$

In Stock, Qty 5

0

57

Cub Cadet TC-650643

Screw, Pan Hd. Self-Tap, 8-18 x 3/8

$

$

Not available

58

Cub Cadet TC-32698

Link, Governor-to-Throttle

$1.99

$

Usually ships in 3-12 days

0

59

Cub Cadet TC-35354

Screen, Starter Cup

$

$

Not available

60

Cub Cadet TC-31510

Lever, Governor

$

$

Not available

61

Cub Cadet TC-32576

Seal, Snow Guard

$

$

Currently unavailable

62

Cub Cadet TC-34127

Guard, Starter

$

$

Currently unavailable

63

Cub Cadet TC-31334

Rod Governor

$5.49

$

In Stock, only 1 left!

0

64

Cub Cadet TC-33342

Baffle, Blower Housing

$

$

Currently unavailable

65

Cub Cadet TC-650561

Screw, Hex Washer Hd. Durlok, 1/4-20 x 5/8

$1.99

$

In Stock, only 2 left!

0

67

Cub Cadet TC-28277

Washer, Flat

$1.99

$

In Stock, only 4 left!

0

69

Cub Cadet TC-29212

Screw, Hex Hd. Sems, 1/4-28 x 7/16

$

$

Currently unavailable

70

Cub Cadet TC-34813A

Housing, Blower

$

$

Not available

71

Cub Cadet TC-650815

Washer, Belleville

$1.99

$

In Stock, Qty 10

0

72

Cub Cadet TC-650816

Nut, Flywheel

$4.49

$

In Stock, Qty 6

0

73

Cub Cadet TC-29752

Nut & Lockwasher Assy'., 1/4-28

$1.99

$

In Stock, Qty 5

0

76

Cub Cadet TC-650735

Screw, Hex Hd. Sems Taptite, 10-24 x 3/8

$1.99

$

In Stock, only 2 left!

0

79

Cub Cadet TC-610118

Cover, Spark Plug

$6.49

$

In Stock, only 4 left!

0

80

Cub Cadet TC-33344

Baffle, Heat

$5.49

$

In Stock, only 1 left!

0

81

Cub Cadet TC-650168

Washer, Flat

$1.99

$

Usually ships in 3-12 days

0

82

Cub Cadet TC-33341

Extension, Baffle

$

$

Not available

83

Cub Cadet TC-650701

Screw, Hex Washer Hd. Shakeproof Self-Drilling, 8-18 x 7/16

$

$

Currently unavailable

84

Cub Cadet TC-6201

Screw, Hex Hd., 1/4-28 x 7/8

$

$

Currently unavailable

85

Cub Cadet TC-650870

Screw, Hex Hd., 1/4-28 x 1-11/16

$1.99

$

In Stock, Qty 5

0

87

Cub Cadet TC-26756

Gasket, Carburetor

Note: (Included in Gasket Set, Ref. No. 165)

$2.99

$

In Stock, Qty 10

0

89

Cub Cadet TC-29752

Nut & Lockwasher Ass'y., 1/4-28

$1.99

$

In Stock, Qty 5

0

91

Cub Cadet TC-34582

Rod, Choke

$5.49

$

In Stock, only 1 left!

0

92

Cub Cadet TC-35438

Knob, Choke

$3.99

$

In Stock, only 1 left!

0

93

Cub Cadet TC-650257

Screw, Pan Hd. Sems, 8-32 x 5/16

$1.49

$

In Stock, Qty 18

0

94

Cub Cadet TC-34583

Bracket, Choke
(Superseded to TC-34583A)

$12.99

$

In Stock, Qty 7

0

95

Cub Cadet TC-28820

Screw, Fil. Hd. Sems, 10-32 x 1/2
(Superseded to TC-651081)

$4.49

$

Usually ships in 3-12 days

0

96

Cub Cadet TC-35072

Cover, Carburetor
(Superseded to TC-35072B)

$

$

Not available

97

Cub Cadet TC-30590A

Washer, Flat

$1.99

$

In Stock, Qty 7

0

98

Cub Cadet TC-611081

Flywheel (w/Ring Gear)

$

$

Not available

99

Cub Cadet TC-34080

Spacer, Flywheel

$1.99

$

In Stock, only 2 left!

0

100

Cub Cadet TC-650872

Stud, Solid State

$

$

Not available

101

Cub Cadet TC-34443A

Solid State Ass'y.
(Superseded to TC-34443D)

$44.99

$

Usually ships in 3-12 days

0

102

Cub Cadet TC-26754

Gasket, Muffler

Note: (Included in Gasket Set, Ref. No. 165)

$

$

Not available

103

Cub Cadet TC-32648A

Muffler
(Superseded to TC-35771A)

$32.99

$

In Stock, only 1 left!

0

104

Cub Cadet TC-650327

Screw, Fil. Hd. Sems, 1/4-20 x 21/2
(Superseded to TC-650327A)

$6.99

$

In Stock, Qty 13

0

105

Cub Cadet TC-26460

Clamp, Fuel Line

$1.49

$

In Stock, Qty 10

0

106

Cub Cadet TC-30574

Shaft, Mechanical Governor

$

$

Not available

107

Cub Cadet TC-30591

Gear Ass'y., Governor

Note: (Incl. No. 97)

$13.99

$

In Stock, only 1 left!

0

108

Cub Cadet TC-29193

Ring, Retaining

$1.99

$

In Stock, only 4 left!

0

109

Cub Cadet TC-30588A

Spool, Governor

$1.99

$

In Stock, only 4 left!

0

111

Cub Cadet TC-28371B

Bracket, Fuel Tank-Upper

$

$

Not available

112

Cub Cadet TC-34182

Bracket, Fuel Tank-Lower

$13.99

$

Usually ships in 3-12 days

0

113

Cub Cadet TC-650675

Washer, Flat

$

$

Currently unavailable

114

Cub Cadet TC-34711

Tank Ass'y., Fuel

Note: (Incl. No. 115)

$

$

Not available

115

Cub Cadet TC-34210

Cap, Fuel Tank

$8.49

$

In Stock, Qty 12

0

116

Cub Cadet TC-650665

Screw, Hex Washer Hd. Sems, Self-Tap, 1/4-14 x 718

$1.99

$

Usually ships in 3-12 days

0

118

Cub Cadet TC-30705

Line, Fuel

$16.99

$

In Stock, only 4 left!

0

118A

Cub Cadet TC-29774

Line, Fuel

$34.99

$

In Stock, Qty 6

0

119

Cub Cadet TC-32961

Valve, Fuel Shut-Off
(Superseded to TC-35857)

$13.99

$

Usually ships in 3-12 days

0

120

Cub Cadet TC-650128

Screw, Fil. Hd. Sems, 10-24 x 1/2

$5.49

$

In Stock, only 2 left!

0

121

Cub Cadet TC-29745

Extension, Blower Housing

$

$

Currently unavailable

124

Cub Cadet TC-34814

Primer Ass'y.

$14.99

$

Usually ships in 3-12 days

0

128

Cub Cadet TC-32180C

Line, Primer

$6.99

$

In Stock, Qty 9

0

129

Cub Cadet TC-610961

Key, Flywheel

$1.49

$

In Stock, Qty 20+

0

130

Cub Cadet TC-34212

Bracket, Hold Down

$

$

Currently unavailable

131

Cub Cadet TC-30200

Screw, Hex Washer Hd. Self-Tap Sems, 10-24 x 9/16

$1.49

$

In Stock, Qty 10

0

132

Cub Cadet TC-35234

Wire, Ground

$

$

Not available

133

Cub Cadet TC-35062

Key, Ignition

$3.99

$

In Stock, only 2 left!

0

134

Cub Cadet TC-34694

Cup, Starter

$11.99

$

Usually ships in 3-12 days

0

137

Cub Cadet TC-28212

Spacer

$1.99

$

In Stock, Qty 5

0

139

Cub Cadet TC-31335

Clamp, Governor Lever

$1.99

$

In Stock, only 3 left!

0

140

Cub Cadet TC-650548

Screw, Hex Washer Hd., 8-32 x 5/16

$

$

Not available

142

Cub Cadet TC-650805

Screw, Hex Hd. w/Belleville Washer, 1/4-20 x 11/16

$

$

Currently unavailable

143

Cub Cadet TC-34676

Dipstick

Note: (Incl. No. 144)

$

$

Not available

144

Cub Cadet TC-33590

"O" Ring

$1.99

$

In Stock, only 1 left!

0

145

Cub Cadet TC-33893A

Tube, Oil Fill

$

$

Not available

146

Cub Cadet TC-650691

Washer, Flat

$1.99

$

Usually ships in 3-12 days

0

147

Cub Cadet TC-650818

Screw, Special Hex Hd., 5/16-18x1-l/2

$3.99

$

In Stock, only 2 left!

0

148

Cub Cadet TC-8345

Washer, Flat

$

$

Currently unavailable

149

Cub Cadet TC-30688

Screw, Hex Hd., Sems, 1/4-20 X 1/2

$

$

Not available

153

Cub Cadet TC-35285

Wire, Ground

$

$

Not available

154

Cub Cadet TC-33858A

Control Ass'y., Speed
(Superseded to TC-36677)

Note: (Incl. Nos. 155 thru 158)

$47.99

$

In Stock, only 1 left!

0

155

Cub Cadet TC-650549

Screw, Fil. Hd., 5-40 x 7/16
(Superseded to TC-651029)

$1.99

$

In Stock, only 2 left!

0

156

Cub Cadet TC-31342

Spring, Compression

$5.99

$

In Stock, only 1 left!

0

157

Cub Cadet TC-650139

Screw, Fil. Hd. Sems, 8-32 x 1/2

$1.99

$

In Stock, only 4 left!

0

158

Cub Cadet TC-30322

Locknut, Hex "Keps," 8-32

$1.99

$

Usually ships in 3-12 days

0

159

Cub Cadet TC-35440

Knob, Control

$3.99

$

In Stock, only 1 left!

0

160

Cub Cadet TC-610973

Terminal Ass'y.

$3.99

$

In Stock, only 1 left!

0

161

Cub Cadet TC-650168

Washer, Flat

$1.99

$

Usually ships in 3-12 days

0

162

Cub Cadet TC-590574

Handle, Starter (Mitten Grip)

$5.49

$

In Stock, only 1 left!

0

163

Cub Cadet TC-632113

Carburetor
(Superseded to TC-632113A)

Note: (Incl. No. 87)

$121.99

$

Usually ships in 3-12 days

0

164

Cub Cadet TC-590576

Starter Ass'y., Rewind

$

$

Not available

165

Cub Cadet TC-33240

Gasket Set

Note: (Incl. Items Marked)

$

$

Not available
