420 (317-440-100) - Cub Cadet 20" Snow Thrower (1987) Snow Thrower Part 2 Parts Diagram

20" Snow Thrower

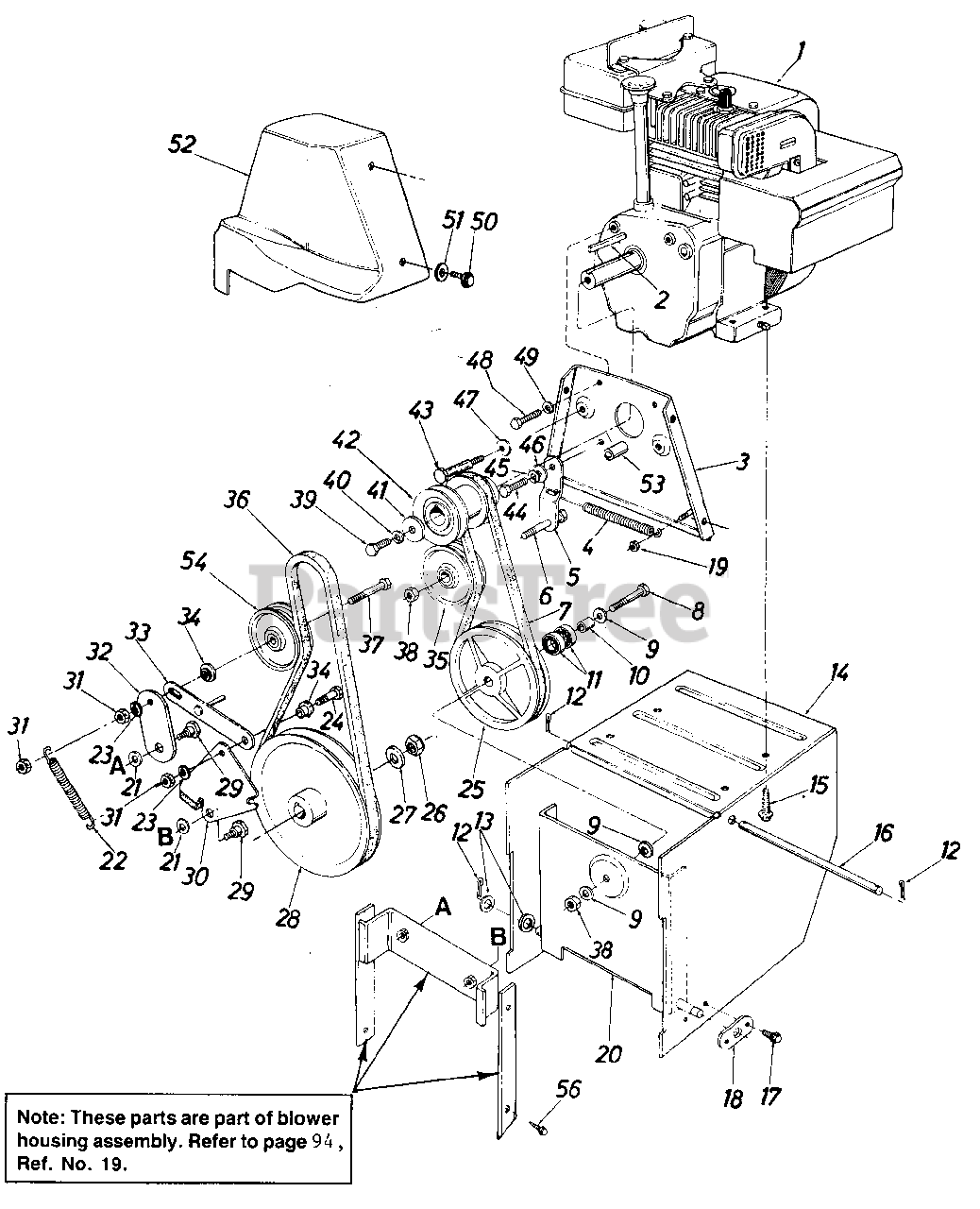

Snow Thrower Part 2 Parts Diagram

  • Title

1

Note: ENGINE

$

$

Not available

2

Cub Cadet 714-0133

KEY-SQ 3/16X1.50

Note: (420 and 524)

$4.99

$

In Stock, Qty 12

0

3

Cub Cadet 05872

PLATE ASSY-ENG

$

$

Currently unavailable

4

Cub Cadet 732-0429

SPRING-EXTENSION
(Superseded to 932-0429A)

$8.99

$

In Stock, Qty 20+

0

5

Cub Cadet 05896

BRACKET-IDLER

$

$

Not available

6

Cub Cadet 710-0191

SCREW 3/8-24X1.25 GR5

$4.99

$

In Stock, Qty 9

0

7

Cub Cadet 754-0256

BELT-V 3/8 X 29
(Superseded to 954-0256)

$47.99

$

In Stock, only 1 left!

0

8

Cub Cadet 710-0459

SCREW-HEX 3/8-24 X 1.50 GR.5
(Superseded to 710-0459A)

$6.99

$

In Stock, Qty 8

0

9

Cub Cadet 736-0105

WASHER-BELL .400 ID X .88 X .060

$4.49

$

In Stock, Qty 20+

0

10

Cub Cadet 711-0396

SPACER

$11.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 741-0155

BEARING-BALL
(Superseded to 941-0155)

$23.99

$

In Stock, Qty 13

0

12

Cub Cadet 714-0507

PIN-COTTER-3/32 DIA X .75

$4.49

$

In Stock, Qty 12

0

13

Cub Cadet 736-0272

WASHER-FL .510 X .995 X .060

$4.99

$

In Stock, Qty 20+

0

14

Cub Cadet 05874

FRAME ASSY

Note: Color Code 498

$

$

Currently unavailable

15

Cub Cadet 710-0502

SCREW-HEX SLF TAP 3/8 X 1 3/8
(Superseded to 710-0502A)

$6.99

$

In Stock, only 2 left!

0

16

Cub Cadet 738-0497

SHAFT

$

$

Currently unavailable

17

Cub Cadet 710-0599

SCREW-HEX WASH SF TAPP

$4.49

$

In Stock, Qty 20+

0

18

XXX

$

$

Not available

15

Cub Cadet 710-0502

SCREW-HEX SLF TAP 3/8 X 1 3/8
(Superseded to 710-0502A)

$6.99

$

In Stock, only 2 left!

0

16

Cub Cadet 738-0497

SHAFT

$

$

Currently unavailable

17

Cub Cadet 710-0599

SCREW-HEX WASH SF TAPP

$4.49

$

In Stock, Qty 20+

0

18

Cub Cadet 05897

BRACKET-AXLE

$

$

Not available

19

Cub Cadet 712-0107

NUT-HEX CENTER L-1/4-20
(Superseded to 912-0107)

$4.99

$

In Stock, only 1 left!

0

20

Cub Cadet 05878

BRACKET ASSY-PULLEY SUP

$

$

Currently unavailable

21

Cub Cadet 736-0219

WASHER-BELL .3/8ID X 1.12OD X .030
(Superseded to 936-0219)

$4.49

$

Usually ships in 3-6 days

0

22

Cub Cadet 732-0550

SPRING-EXTENSION

$

$

Not available

23

Cub Cadet 736-0169

WASHER-LOCK-3/8

$3.99

$

In Stock, Qty 20+

0

24

Cub Cadet 710-0723

SCREW-HEX-3/8-16 X 1.250

$4.99

$

In Stock, only 3 left!

0

25

Cub Cadet 05921

PULLEY-DRIVE

Note: (Incl. Reference #11)

$

$

Not available

26

Cub Cadet 712-0923

NUT-HEX CENTER L-5/8-18

$6.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 736-0116

WASHER-FL-.635 ID X .93 OD X .060
(Superseded to 936-0116)

$6.99

$

In Stock, only 1 left!

0

28

Cub Cadet 756-0344

PULLEY

$81.99

$

Usually ships in 3-6 days

0

Cub Cadet 756-0418

PULLEY

Note: (826)

$

$

Not available

29

Cub Cadet 738-0281

SCREW-SHLD .625 DIA X .163

Note: (3/8-16)

$10.99

$

In Stock, only 2 left!

0

30

Cub Cadet 784-5061

BRACKET-BRAKE

Note: (420 & 524)

$

$

Not available

Cub Cadet 784-5048

BRACKET ASSY-BRAKE

Note: (826)

$

$

Not available

31

Cub Cadet 712-0342

NUT-HEX JAM 3/8-18
(Superseded to 912-3008)

$4.99

$

In Stock, Qty 16

0

32

Cub Cadet 05895

BRACKET-IDLER

$

$

Not available

33

Cub Cadet 05870

LINK ASSY-BRAKE

$

$

Currently unavailable

34

Cub Cadet 738-0347

SPACER-SHLD
(Superseded to 938-0347)

$10.99

$

Usually ships in 3-6 days

0

35

Cub Cadet 756-0137

PULLEY-IDLER-FLAT-2 1/4 OD X 3/4

$

$

Not available

36

Cub Cadet 754-0257

BELT-V 3/8 X 38 SL
(Superseded to 954-0257)

Note: (420 & 524)

$36.99

$

In Stock, only 2 left!

0

Cub Cadet 754-0282

BELT-V 1/2 X 38.7
(Superseded to 954-0282)

Note: (826)

$47.99

$

In Stock, only 4 left!

0

37

Cub Cadet 710-0756

SCREW-HEX 3/8-16 X 2.250

$

$

Not available

38

Cub Cadet 712-0116

NUT-HEX INS L-3/8-24

$4.99

$

In Stock, Qty 6

0

39

Cub Cadet 710-0459

SCREW-HEX 3/8-24 X 1.50 GR.5
(Superseded to 710-0459A)

$6.99

$

In Stock, Qty 8

0

40

Cub Cadet 736-0169

WASHER-LOCK-3/8

$3.99

$

In Stock, Qty 20+

0

41

Cub Cadet 736-0247

WASHER-FL-HOND .410ID X 1.255X.162

Note: (420 & 524)

$9.49

$

In Stock, Qty 12

0

Cub Cadet 07386

WASHER-FL

Note: (826)

$

$

Not available

42

Cub Cadet 756-0421

PULLEY

Note: (420 & 524)

$

$

Not available

Cub Cadet 756-0241

PULLEY-ENGINE
(Superseded to 756-0241B)

Note: (826)

$99.99

$

In Stock, only 4 left!

0

43

Cub Cadet 738-0215

SCREW-SHLD .498 DIA X 3.00
(Superseded to 738-0215A)

Note: (420 & 524)

$9.49

$

Usually ships in 3-6 days

0

Cub Cadet 711-0769

STUD

Note: (826)

$

$

Not available

44

Cub Cadet 710-0117

SCREW-HEX SPECIAL 5/16-24X1.0
(Superseded to 710-0888)

$4.49

$

In Stock, Qty 20+

0

45

Cub Cadet 736-0119

WASHER-LOCK-5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

46

Cub Cadet 748-0234

SPACER-SHLD

$4.49

$

In Stock, Qty 20+

0

47

Cub Cadet 736-0105

WASHER-BELL .400 ID X .88 X .060

$4.49

$

In Stock, Qty 20+

0

48

Cub Cadet 710-0237

SCREW-HEX 5/16-24 X .62

$4.49

$

In Stock, only 1 left!

0

49

Cub Cadet 736-0119

WASHER-LOCK-5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

50

Cub Cadet 710-0599

SCREW-HEX WASH SF TAPP

$4.49

$

In Stock, Qty 20+

0

51

Cub Cadet 736-0173

WASHER-FL-.28 ID X .74 OD X .063

$4.49

$

In Stock, Qty 20+

0

52

Cub Cadet 731-0642

COVER-BELT

$31.99

$

Usually ships in 3-6 days

0

53

Cub Cadet 750-0456

SPACER

Note: (420 & 524)

$4.49

$

In Stock, Qty 20+

0

54

Cub Cadet 756-0225

PULLEY-IDLER-FLAT W/FLANGES

$

$

Not available

56

Cub Cadet 710-0623

SCREW-HEX WASH SF TAPP 3/8 X 3/4

$4.49

$

In Stock, Qty 20+

0

Cub Cadet 725-0954

KEY-STARTER-TEC
(Superseded to TC-35062)

Note: (Not Shown)

$3.99

$

In Stock, only 4 left!

0
