42 - Husqvarna Chainsaw (SN: 20014000001 & Above) CARBURETOR DETAILS Parts Diagram

Chainsaw

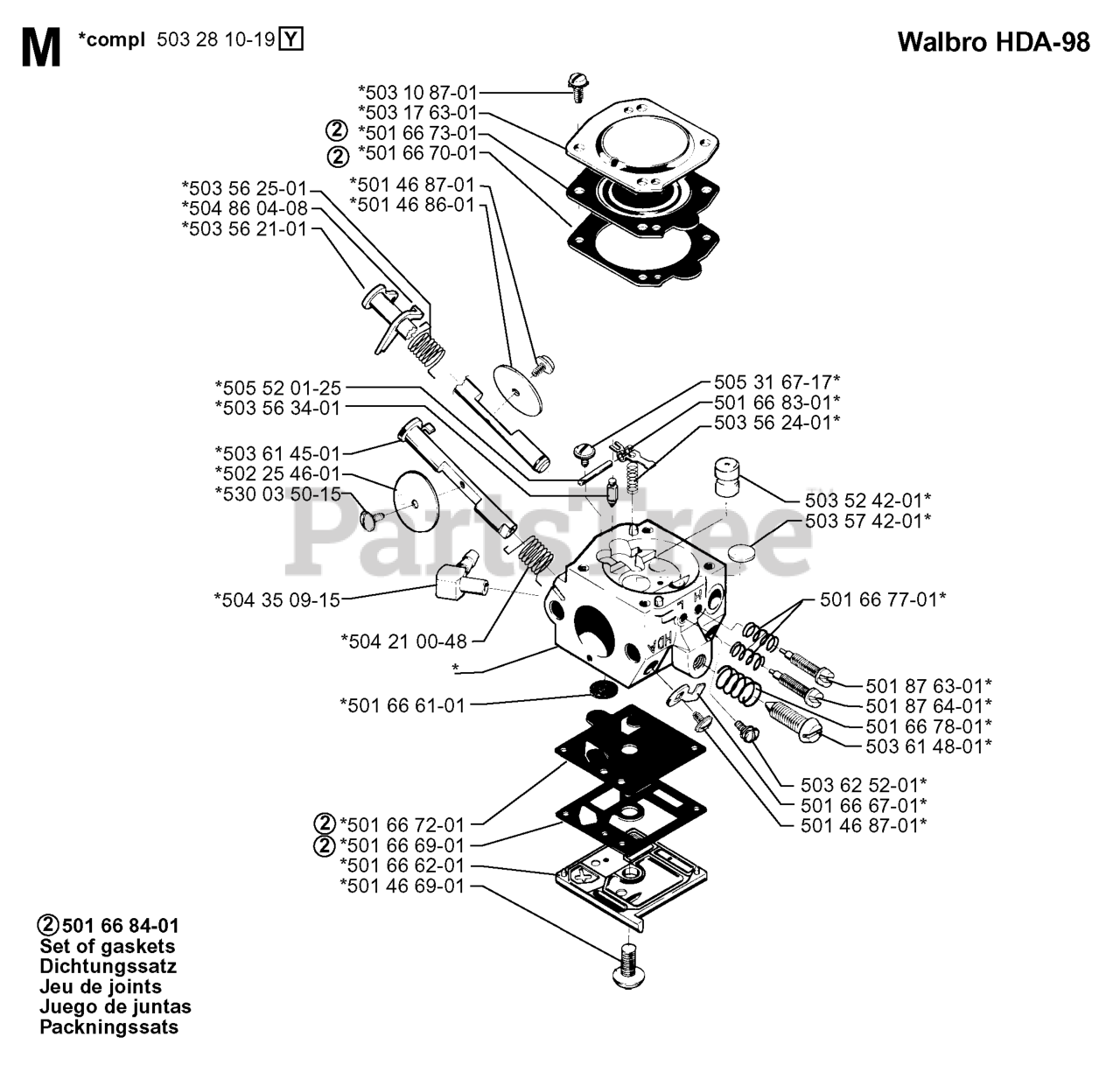

CARBURETOR DETAILS Parts Diagram

  • Title

503 56 24-01

Husqvarna 503562401

SPRING

$7.99

$

In Stock, only 2 left!

0

504 35 09-15

Husqvarna 504350915

Nipple

$

$

Not available

501 46 87-01

Husqvarna 501468701

SCREW

$7.99

$

In Stock, only 1 left!

0

503 56 34-01

Husqvarna 503563401

INLET NEEDLE

$17.99

$

In Stock, Qty 10

0

501 66 73-01

Husqvarna 501667301

METERING DIAPHRAGM

Note: 501 66 84-01 SET OF GASKETS

$74.99

$

In Stock, only 1 left!

0

504 21 00-48

Husqvarna 504210048

THROTTLE SPRING

$

$

Not available

503 10 87-01

Husqvarna 503108701

RP SCREW W/ WASHER
(Superseded to 503584601)

$4.99

$

In Stock, only 4 left!

0

501 46 86-01

Husqvarna 501468601

CHOKE SHUTTER
(Superseded to 507430749)

$3.99

$

Usually ships in 3-10 days

0

503 61 48-01

Husqvarna 503614801

IDLE SPEED SCREW

$

$

Not available

503 56 25-01

Husqvarna 503562501

SPRING
(Superseded to 537158101)

$11.99

$

Usually ships in 3-10 days

0

501 66 70-01

Husqvarna 501667001

GASKET, METERING SIDE

Note: 501 66 84-01 SET OF GASKETS

$7.99

$

In Stock, only 3 left!

0

501 66 83-01

Husqvarna 501668301

LEVER

$17.99

$

Usually ships in 3-10 days

0

530 03 50-15

Husqvarna 530035015

SCREW SHUTTERS

$

$

Not available

505 52 01-25

Husqvarna 505520125

FULCRUM PIN

$7.99

$

In Stock, only 3 left!

0

501 66 77-01

Husqvarna 501667701

SPRING

$9.49

$

In Stock, only 3 left!

0

501 87 63-01

Husqvarna 501876301

NEEDLE HIGH SPEED

$

$

Not available

501 66 69-01

Husqvarna 501666901

GASKET, PUMP SIDE

Note: 501 66 84-01 SET OF GASKETS

$17.99

$

In Stock, Qty 6

0

503 61 45-01

Husqvarna 503614501

THROTTLE SHAFT

$

$

Not available

501 87 64-01

Husqvarna 501876401

NEEDLE IDLE

$

$

Not available

501 66 78-01

Husqvarna 501667801

SPRING
(Superseded to 530035121)

$3.99

$

Usually ships in 3-10 days

0

501 66 61-01

Husqvarna 501666101

FUEL INLET SCREEN

$14.99

$

In Stock, Qty 5

0

503 62 52-01

Husqvarna 503625201

SCREW

$

$

Not available

501 66 62-01

Husqvarna 501666201

COVER, PUMP SIDE

$6.99

$

Usually ships in 3-10 days

0

503 56 21-01

Husqvarna 503562101

Choke Shaft

$

$

Not available

501 66 67-01

Husqvarna 501666701

THROTTLE STOP

$

$

Not available

503 52 42-01

Husqvarna 503524201

NOZZLE

$

$

Not available

502 25 46-01

Husqvarna 502254601

THROTTLE FLAP

$

$

Not available

504 86 04-08

Husqvarna 504860408

LEVER CHOKE FAST IDLE
(Superseded to 537158201)

$4.99

$

Usually ships in 3-10 days

0

503 17 63-01

Husqvarna 503176301

COVER METERING DIAPHR.

$5.99

$

In Stock, only 2 left!

0

503 28 10-19

Husqvarna 503281019

CARBURETOR CPL HDA-98 WALBRO

$198.48

$

Usually ships in 3-10 days

0

503 57 42-01

Husqvarna 503574201

WELCH PLUG

$7.99

$

In Stock, only 4 left!

0

501 66 72-01

Husqvarna 501667201

FUEL PUMP DIAPHRAGM
(Superseded to 502254701)

Note: 501 66 84-01 SET OF GASKETS

$22.99

$

In Stock, only 2 left!

0

505 31 67-17

Husqvarna 505316717

SCREW

$7.99

$

In Stock, Qty 6

0

501 46 69-01

Husqvarna 501466901

SCREW

$9.49

$

In Stock, Qty 5

0
