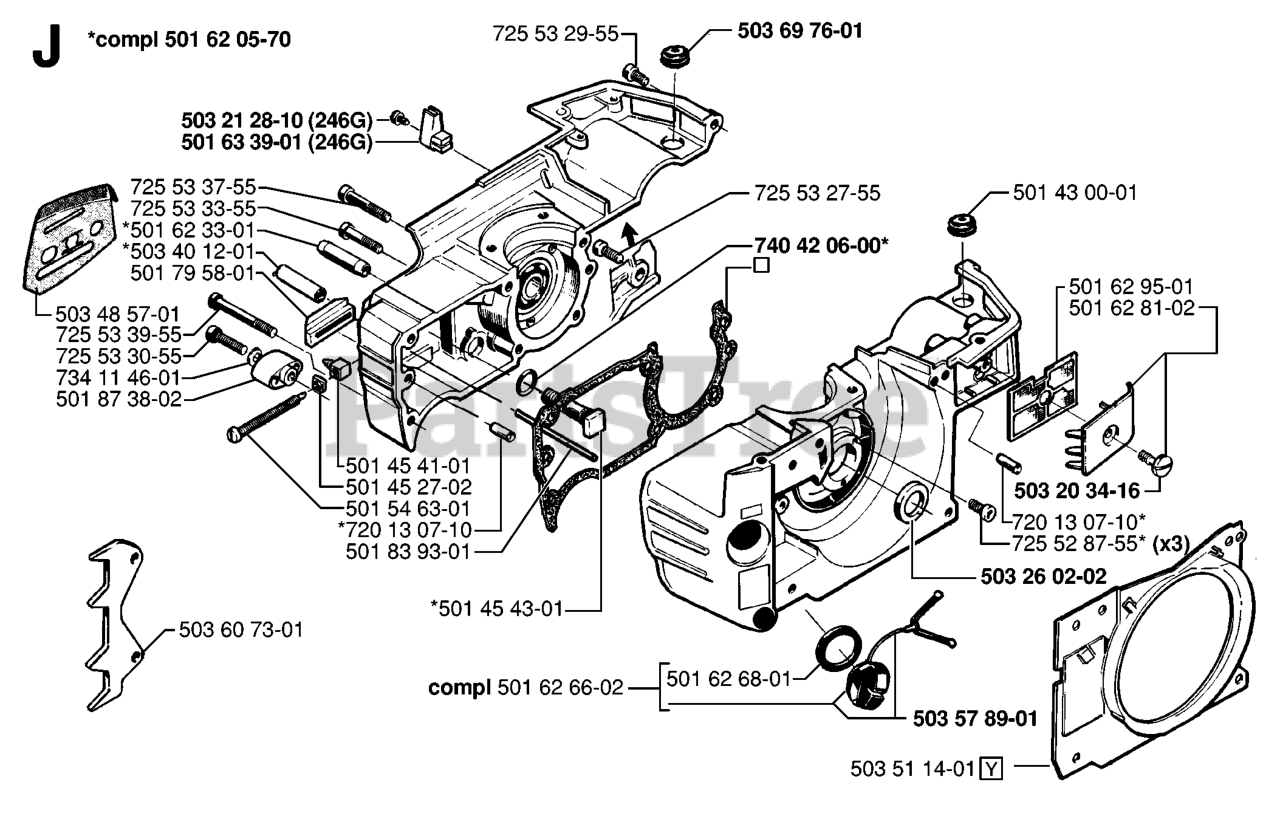

42 - Husqvarna Chainsaw (SN: 19982300001 - 20014000000) CRANKCASE Parts Diagram

Chainsaw

CRANKCASE Parts Diagram

  • Title
734 11 46-01

Husqvarna 734114601

WASHER
(Superseded to 819070816)

$6.99

$

In Stock, only 1 left!

0

501 62 05-70

$

$

Not available

501 45 43-01

$7.49

$

In Stock, only 2 left!

0

501 62 68-01

Husqvarna 501626801

OILCAP GASKET

$7.49

$

In Stock, only 1 left!

0

503 20 34-16

Husqvarna 503203416

SCREW
(Superseded to 503215316)

$4.99

$

In Stock, only 4 left!

0

501 83 93-01

$

$

Not available

725 52 87-55

Husqvarna 725528755

SCREW MC6S 4X8

$3.49

$

In Stock, only 2 left!

0

720 13 07-10

Husqvarna 720130710

PIN 5X14
(Superseded to 720130752)

$8.99

$

Usually ships in 3-10 days

0

501 45 41-01

$6.99

$

In Stock, Qty 11

0

503 51 14-01

Husqvarna 503511401

AIR CONDUCTOR

$

$

Not available

725 53 39-55

Husqvarna 725533955

SCREW MC6S 5X40
(Superseded to 503200240)

$6.49

$

In Stock, only 2 left!

0

503 57 89-01

$9.99

$

In Stock, Qty 15

0

501 62 81-02

$

$

Not available

725 53 27-55

Husqvarna 725532755

SCREW MC6S 5X12

$6.49

$

In Stock, only 3 left!

0

503 26 02-02

Husqvarna 503260202

SEALING RING

$18.99

$

In Stock, Qty 5

0

503 69 76-01

$5.99

$

In Stock, only 2 left!

0

725 53 29-55

Husqvarna 725532955

SCREW MC6S 5X16

$7.99

$

In Stock, Qty 20+

0

501 62 33-01

Husqvarna 501623301

GUIDE BAR LOCATING PIN

$4.99

$

Usually ships in 3-10 days

0

740 42 06-00

Husqvarna 740420600

O-RING 8X1.6

$3.99

$

In Stock, only 2 left!

0

501 45 27-02

$4.99

$

In Stock, Qty 6

0

503 60 73-01

Husqvarna 503607301

FELLING DOG

$

$

Not available

725 53 33-55

Husqvarna 725533355

SCREW MC6S 5X25

$6.49

$

In Stock, Qty 19

0

725 53 30-55

Husqvarna 725533055

SCREW MC6S 5X18

$

$

Not available

501 87 38-02

Husqvarna 501873802

CHAIN CATCHER

$7.99

$

Usually ships in 3-10 days

0

501 62 95-01

$

$

Not available

725 53 37-55

Husqvarna 725533755

SCREW MC6S 5X35

$6.49

$

In Stock, Qty 6

0

501 43 00-01

$6.49

$

Usually ships in 3-10 days

0

503 48 57-01

Husqvarna 503485701

PROTECTION PLATE

$

$

Not available

501 79 58-01

$8.99

$

In Stock, only 1 left!

0

503 21 28-10

Husqvarna 503212810

SCREW

Note: 246G

$3.99

$

In Stock, Qty 11

0

501 62 66-02

$13.99

$

Usually ships in 3-10 days

0

503 40 12-01

Husqvarna 503401201

SPRING PIN CPL

$

$

Not available

501 63 39-01

Husqvarna 501633901

INSULATING PIECE

Note: 246G

$

$

Not available

501 54 63-01

$5.99

$

In Stock, Qty 5

0
