42 - Husqvarna Chainsaw (SN: 19982300001 - 20014000000) CARBURETOR & AIR FILTER Parts Diagram

Chainsaw

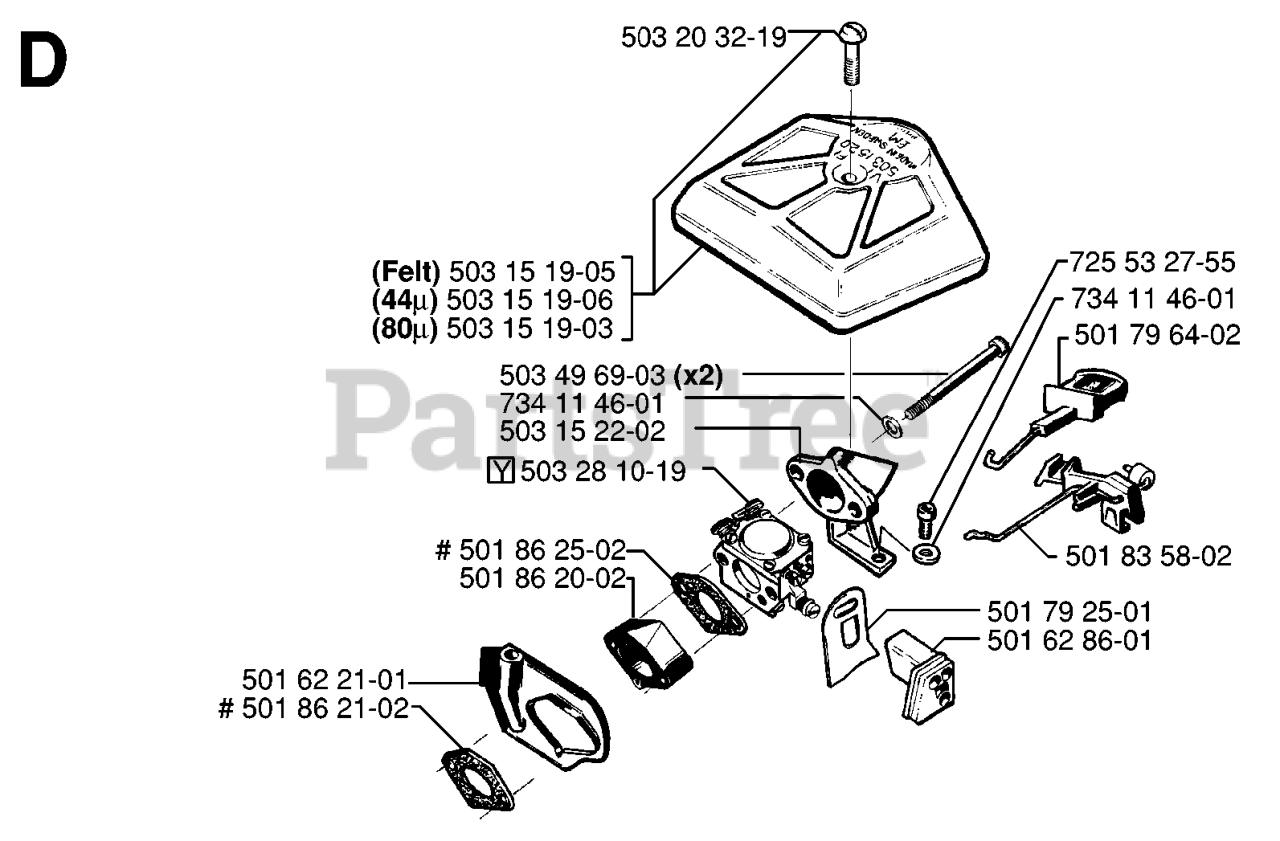

CARBURETOR & AIR FILTER Parts Diagram

  • Title

501 86 25-02

Husqvarna 501862502

GASKET

$

$

Not available

501 86 21-02

Husqvarna 501862102

GASKET

$

$

Not available

501 62 21-01

Husqvarna 501622101

SEAL COLLAR

$

$

Not available

734 11 46-01

Husqvarna 734114601

WASHER
(Superseded to 819070816)

$6.99

$

In Stock, only 1 left!

0

503 15 22-02

Husqvarna 503152202

FILTER HOLDER

$

$

Not available

503 20 32-19

Husqvarna 503203219

SCREW

$

$

Not available

501 86 20-02

Husqvarna 501862002

SPACER

$

$

Not available

503 15 19-03

Husqvarna 503151903

AIR FILTER

$

$

Not available

725 53 27-55

Husqvarna 725532755

SCREW MC6S 5X12

$6.49

$

In Stock, only 3 left!

0

501 83 58-02

Husqvarna 501835802

THROTTLE ROD

$

$

Not available

501 79 64-02

Husqvarna 501796402

CHOKE CONTROL

$

$

Not available

501 62 86-01

Husqvarna 501628601

SLEEVE

$

$

Not available

503 15 19-05

Husqvarna 503151905

AIR FILTER

Note: FELT

$40.99

$

Usually ships in 3-10 days

0

503 49 69-03

Husqvarna 503496903

SCREW

$

$

Not available

503 15 19-06

Husqvarna 503151906

AIR FILTER

$

$

Not available

503 28 10-19

Husqvarna 503281019

CARBURETOR CPL HDA-98 WALBRO

$198.48

$

Usually ships in 3-10 days

0

501 79 25-01

Husqvarna 501792501

HEAT GUARD

$

$

Not available
