42 - Husqvarna Chainsaw (1994-04) Crankcase Parts Diagram

Chainsaw

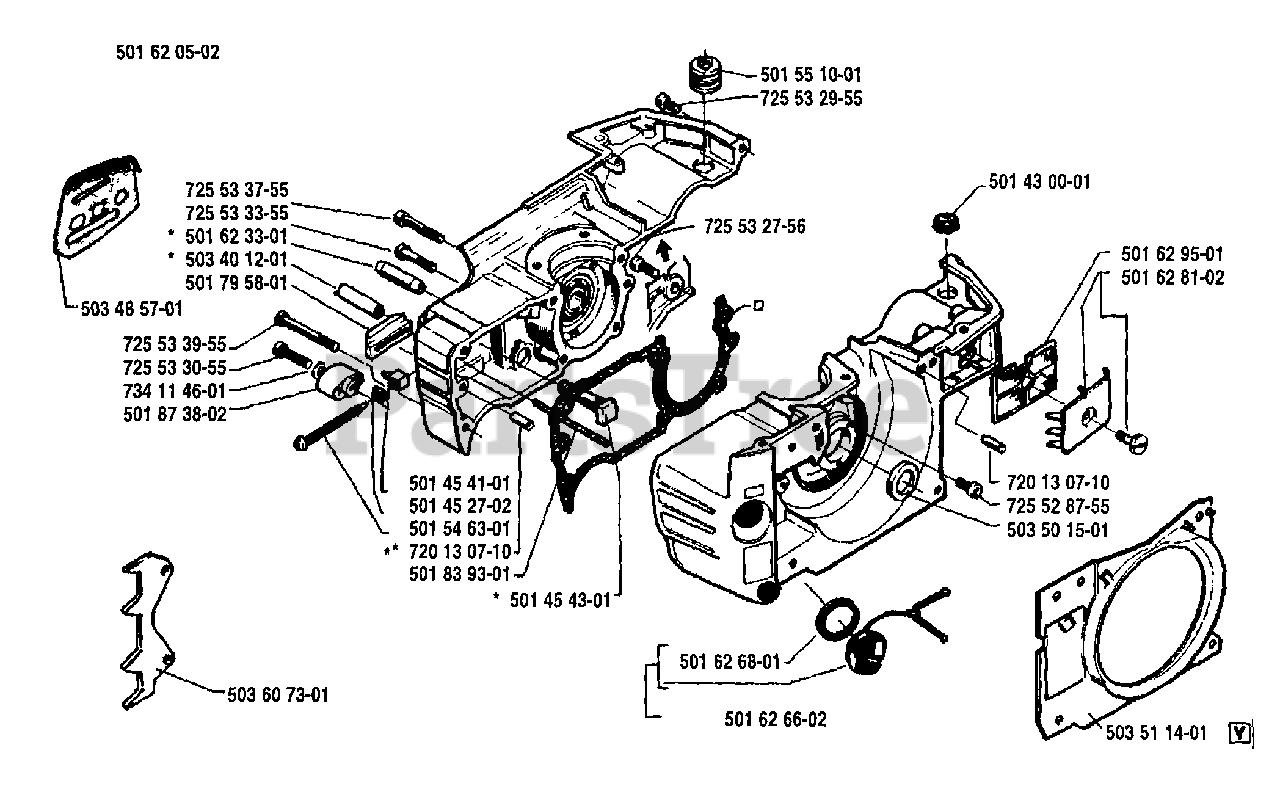

Crankcase Parts Diagram

  • Title
501620502

Husqvarna 501620502

CRANK CASE W/BEARING
(Superseded to 501620570)

$

$

Not available

725533755

Husqvarna 725533755

SCREW MC6S 5X35

$6.49

$

In Stock, Qty 5

0

725533355

Husqvarna 725533355

SCREW MC6S 5X25

$6.49

$

In Stock, Qty 17

0

501623301

Husqvarna 501623301

GUIDE BAR LOCATING PIN

$4.99

$

Usually ships in 3-10 days

0

503401201

Husqvarna 503401201

SPRING PIN CPL

$

$

Not available

501795801

$8.99

$

In Stock, only 2 left!

0

503485701

Husqvarna 503485701

PROTECTION PLATE

$

$

Not available

725533955

Husqvarna 725533955

SCREW MC6S 5X40
(Superseded to 503200240)

$6.49

$

In Stock, only 2 left!

0

725533055

Husqvarna 725533055

SCREW MC6S 5X18

$

$

Not available

734114601

Husqvarna 734114601

WASHER
(Superseded to 819070816)

$6.99

$

In Stock, only 1 left!

0

501873802

Husqvarna 501873802

CHAIN CATCHER

$

$

Not available

501454101

$6.99

$

In Stock, Qty 6

0

501452702

$4.99

$

In Stock, Qty 20+

0

501546301

$5.99

$

In Stock, only 2 left!

0

720130710

Husqvarna 720130710

PIN 5X14
(Superseded to 720130752)

$8.99

$

Usually ships in 3-10 days

0

501839301

$

$

Not available

501454301

$7.49

$

In Stock, only 2 left!

0

503607301

Husqvarna 503607301

FELLING DOG

$

$

Not available

501626801

Husqvarna 501626801

OILCAP GASKET

$7.49

$

In Stock, only 1 left!

0

501626602

$13.99

$

In Stock, only 1 left!

0

503511401

Husqvarna 503511401

AIR CONDUCTOR

$

$

Not available

720130710

Husqvarna 720130710

PIN 5X14
(Superseded to 720130752)

$8.99

$

Usually ships in 3-10 days

0

725528755

Husqvarna 725528755

SCREW MC6S 4X8

$3.49

$

In Stock, only 2 left!

0

503501501

Husqvarna 503501501

SEALING
(Superseded to 503260202)

$18.99

$

In Stock, Qty 5

0

501551001

$

$

Not available

725532955

Husqvarna 725532955

SCREW MC6S 5X16

$7.99

$

In Stock, Qty 20+

0

501430001

$6.49

$

Usually ships in 3-10 days

0

725532756

Husqvarna 725532756

SCREW MC6S 5X12
(Superseded to 725532755)

$6.49

$

In Stock, Qty 11

0

501629501

$

$

Not available

501628102

$

$

Not available
