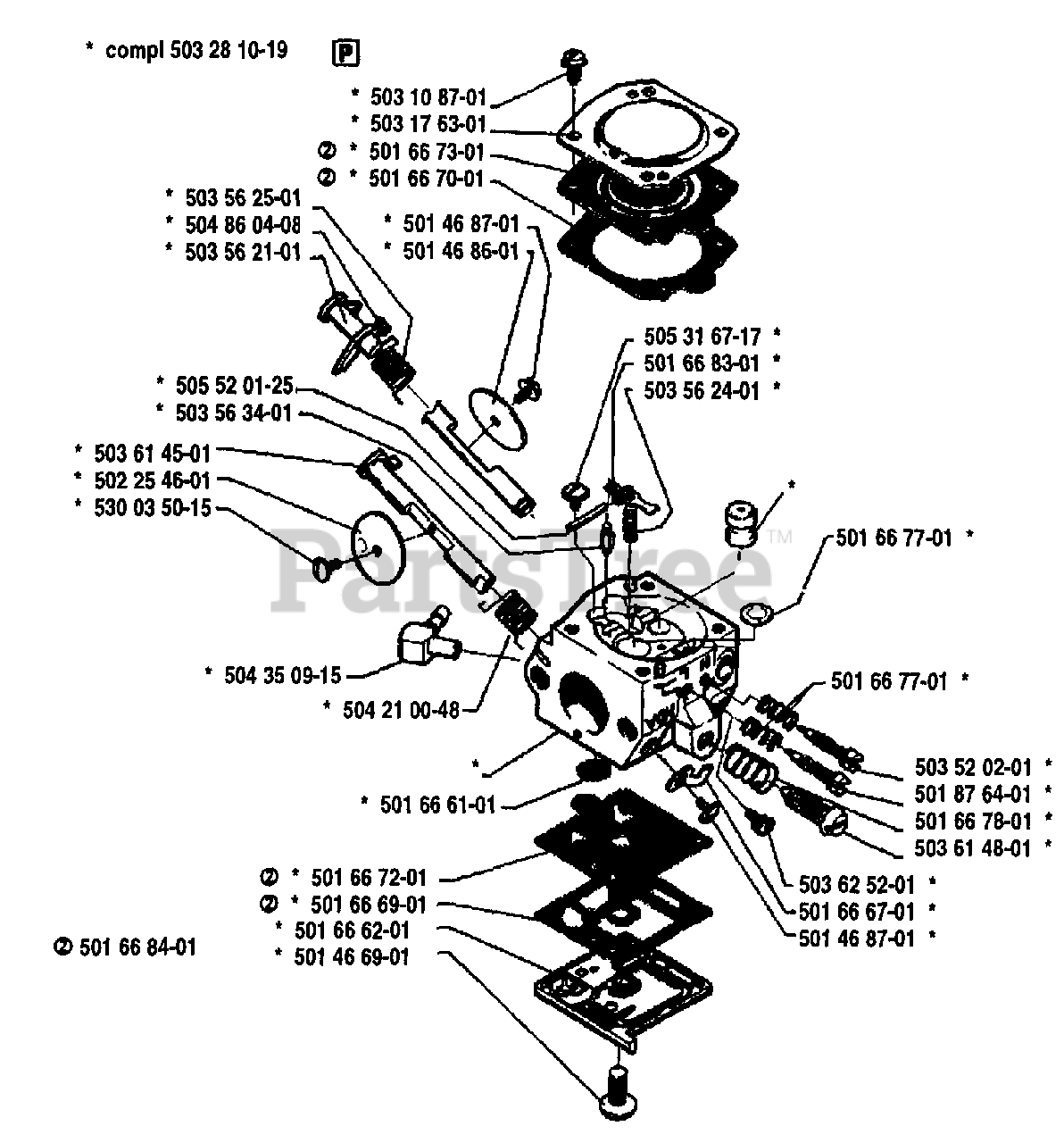

42 - Husqvarna Chainsaw (1992-03) Carburetor Parts Parts Diagram

Chainsaw

Carburetor Parts Parts Diagram

  • Title
503281019

Husqvarna 503281019

CARBURETOR CPL HDA-98 WALBRO

$198.48

$

Usually ships in 3-10 days

0

503108701

Husqvarna 503108701

RP SCREW W/ WASHER
(Superseded to 503584601)

$4.99

$

In Stock, only 4 left!

0

503176301

Husqvarna 503176301

COVER METERING DIAPHR.

$5.99

$

In Stock, only 2 left!

0

501667301

Husqvarna 501667301

METERING DIAPHRAGM

$74.99

$

In Stock, only 1 left!

0

501667001

Husqvarna 501667001

GASKET, METERING SIDE

$7.99

$

In Stock, only 3 left!

0

503562501

Husqvarna 503562501

SPRING
(Superseded to 537158101)

$11.99

$

Usually ships in 3-10 days

0

504860408

Husqvarna 504860408

LEVER CHOKE FAST IDLE
(Superseded to 537158201)

$4.99

$

Usually ships in 3-10 days

0

503562101

Husqvarna 503562101

CHOKE SHAFT

$

$

Not available

501468701

$7.99

$

In Stock, only 1 left!

0

501468601

Husqvarna 501468601

CHOKE SHUTTER
(Superseded to 507430749)

$3.99

$

Usually ships in 3-10 days

0

505520125

Husqvarna 505520125

FULCRUM PIN

$7.99

$

In Stock, only 3 left!

0

503563401

Husqvarna 503563401

INLET NEEDLE

$17.99

$

In Stock, Qty 10

0

503614501

Husqvarna 503614501

THROTTLE SHAFT

$

$

Not available

502254601

Husqvarna 502254601

THROTTLE FLAP

$

$

Not available

530035015

Husqvarna 530035015

SCREW SHUTTERS

$

$

Not available

504350915

$

$

Not available

504210048

Husqvarna 504210048

THROTTLE SPRING

$

$

Not available

501666101

Husqvarna 501666101

FUEL INLET SCREEN

$14.99

$

In Stock, Qty 5

0

501667201

Husqvarna 501667201

FUEL PUMP DIAPHRAGM
(Superseded to 502254701)

$22.99

$

In Stock, only 2 left!

0

501666901

Husqvarna 501666901

GASKET, PUMP SIDE

$17.99

$

In Stock, Qty 6

0

501666201

Husqvarna 501666201

COVER, PUMP SIDE

$6.99

$

Usually ships in 3-10 days

0

501466901

$9.49

$

In Stock, Qty 5

0

501668401

Husqvarna 501668401

REPAIR KIT DIAPHRAGM SET

$20.99

$

In Stock, only 1 left!

0

501468701

$7.99

$

In Stock, only 1 left!

0

501666701

Husqvarna 501666701

THROTTLE STOP

$

$

Not available

503625201

$

$

Not available

503614801

Husqvarna 503614801

IDLE SPEED SCREW

$

$

Not available

501667801

Husqvarna 501667801

SPRING
(Superseded to 530035121)

$3.99

$

Usually ships in 3-10 days

0

501876401

Husqvarna 501876401

NEEDLE IDLE

$

$

Not available

503520201

Husqvarna 503520201

NEEDLE, HIGH SPEED
(Superseded to 501876301)

$

$

Not available

501667701

$9.49

$

In Stock, only 3 left!

0

501667701

$9.49

$

In Stock, only 3 left!

0

503562401

$7.99

$

In Stock, only 2 left!

0

501668301

$17.99

$

Usually ships in 3-10 days

0

505316717

$7.99

$

In Stock, Qty 6

0
