42 - Husqvarna Chainsaw (1988-10) Piston/Cylinder Parts Diagram

Chainsaw

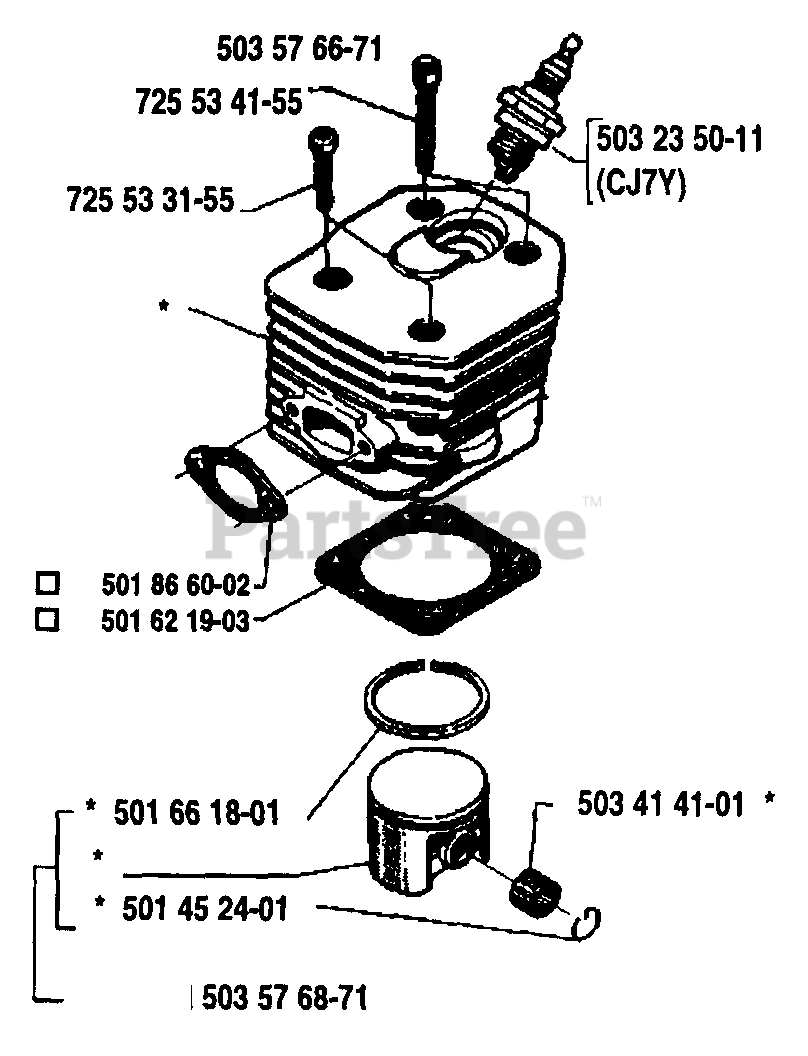

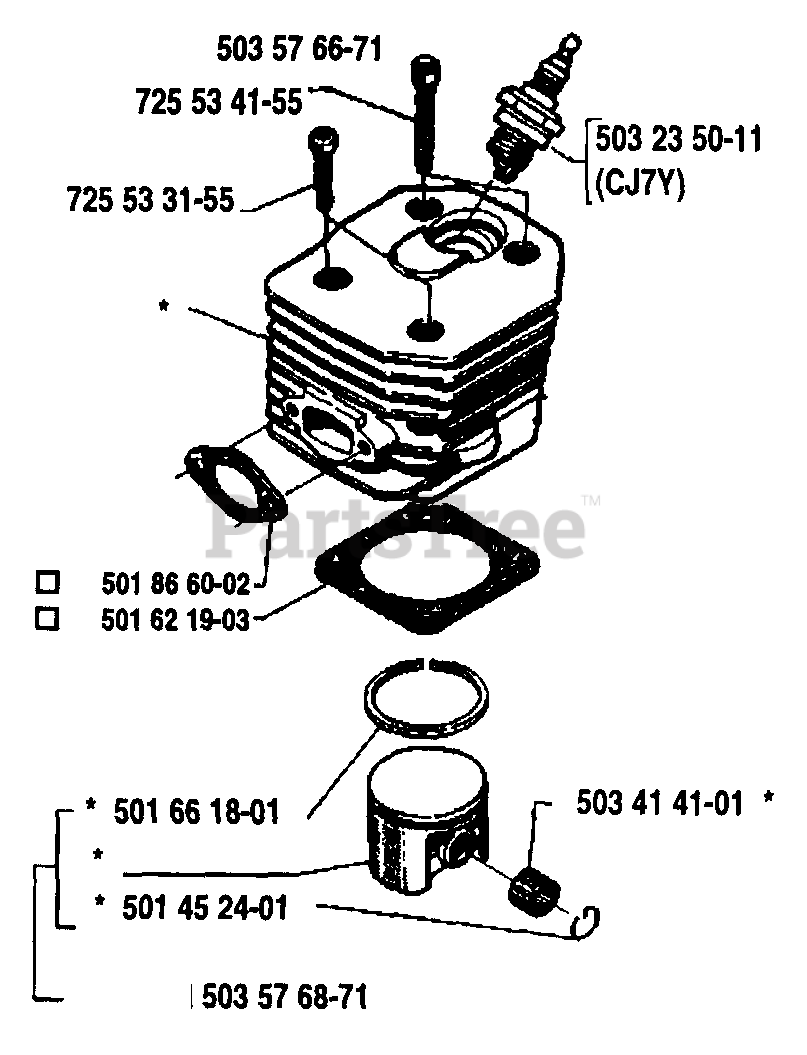

Piston/Cylinder Parts Diagram

  • Title
503576671

Husqvarna 503576671

CYLINDER CPL
(Superseded to 503576673)

$

$

Not available

725534155

Husqvarna 725534155

SCREW MC6S 5X50

$5.99

$

In Stock, Qty 7

0

725533155

Husqvarna 725533155

SCREW MC6S 5X20
(Superseded to 525824902)

$6.49

$

In Stock, only 2 left!

0

503235011

Husqvarna 503235011

SPARK PLUG NGK BPM7A
(Superseded to 952030150)

$3.49

$

In Stock, Qty 20+

0

501866002

Husqvarna 501866002

GASKET
(Superseded to 501866003)

$5.99

$

In Stock, only 1 left!

0

501621903

Husqvarna 501621903

GASKET
(Superseded to 503729901)

$4.99

$

Usually ships in 3-10 days

0

501661801

Husqvarna 501661801

PISTON RING
(Superseded to 503289005)

$31.99

$

In Stock, only 3 left!

0

501452401

Husqvarna 501452401

LOCKING RING
(Superseded to 737441000)

$6.49

$

Usually ships in 3-10 days

0

503576871

Husqvarna 503576871

PISTON CPL

$

$

Not available

503414101

Husqvarna 503414101

SUPPORT BUSHING

$24.99

$

Usually ships in 3-10 days

0
