42-16BE01 (246-H) - Toro Yard Tractor (SN: 020000001 - 029999999) (1992) FENDER AND SEAT ASSEMBLY Parts Diagram

Yard Tractor

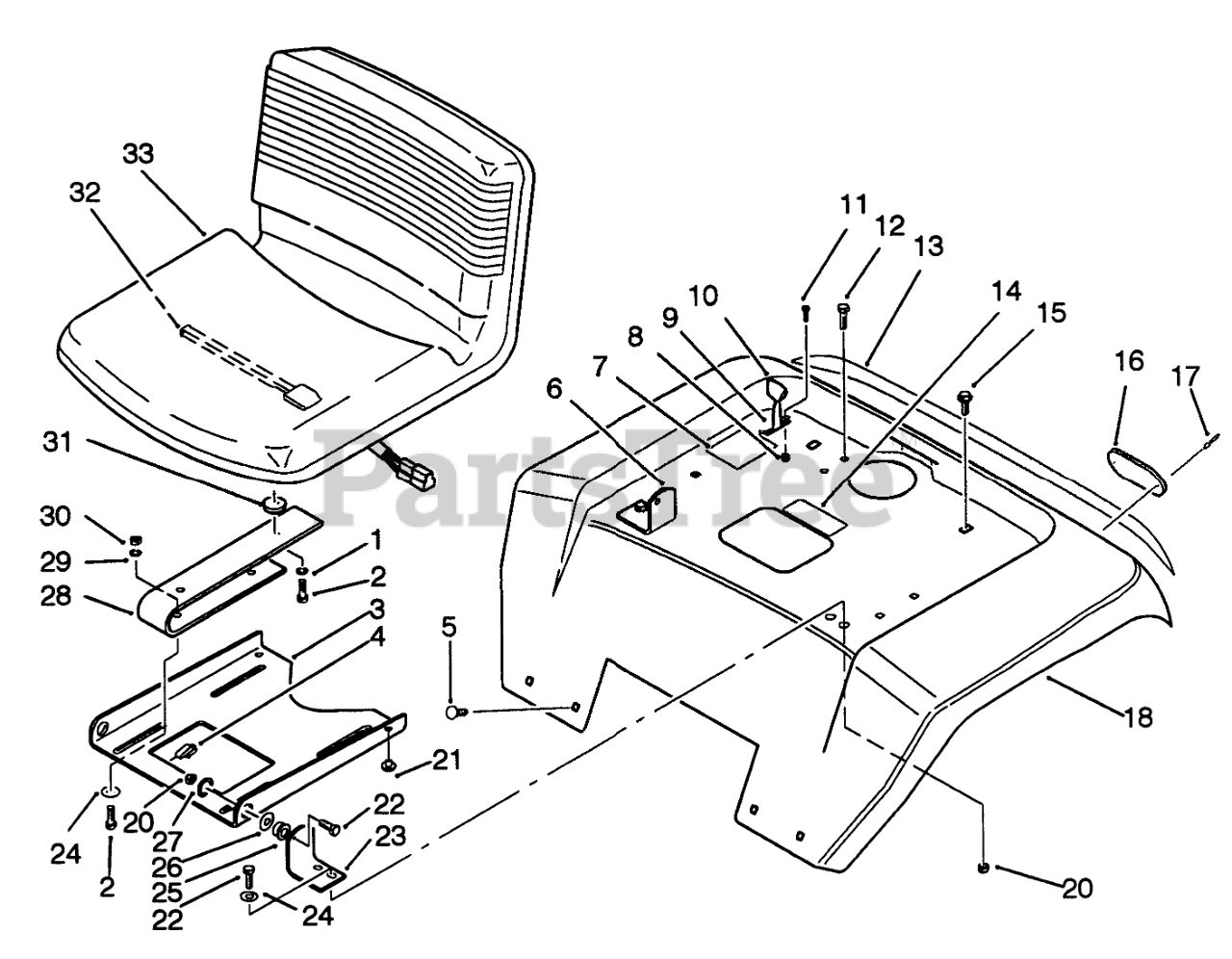

FENDER AND SEAT ASSEMBLY Parts Diagram

  • Title
1

Toro 920082

Lockwasher
(Superseded to 325-34)

$3.99

$

In Stock, only 2 left!

0

2

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

3

Toro 78-2990

Plate-SeatPivot
(Superseded to 78-2990-03)

$

$

Not available

4

Toro 111392

J-CLIP

$2.49

$

Usually ships in 3-6 days

0

5

Toro 3230-23

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

6

Toro 79-0950

Bracket-Pivot RH
(Superseded to 79-0950-03)

$

$

Not available

7

Toro 114442

DECAL-PUSH

$

$

Not available

8

Toro 915740

Nut
(Superseded to 3296-2)

$2.49

$

In Stock, Qty 20+

0

9

Toro 116124

CONTROL-PUSH VALVE

$87.99

$

Usually ships in 3-6 days

0

10

Toro 108917

KNOB-THROTTLE

$3.49

$

In Stock, only 1 left!

0

11

Toro 78-8710

SCREW

$0.99

$

Usually ships in 3-6 days

0

12

Toro 909019

Screw-Hex Hd.

$

$

Not available

13

Toro 117760

DECAL-FENDER

$60.99

$

Usually ships in 3-6 days

0

14

Toro 116235

DECAL-DANGER

$

$

Not available

15

Toro 926720

Screw
(Superseded to 9264964)

$1.49

$

Usually ships in 3-6 days

0

16

Toro 108547

Reflector
(Superseded to 106557)

$

$

Not available

17

Toro 109193

Poprivet
(Superseded to 3290-282)

$0.99

$

In Stock, Qty 8

0

18

Toro 78-2521

WLDMT-FENDER R
(Superseded to 92-6349)

$708.99

$

Usually ships in 3-6 days

0

20

$

$

Currently unavailable

21

Toro 103887

BUMPER-RUBBER

$4.49

$

In Stock, only 3 left!

0

22

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

23

Toro 79-0970

BRKT-PIVOT L.H. B
(Superseded to 79-0970-03)

$

$

Not available

24

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

25

Toro 105503

BUSHING

$1.49

$

In Stock, Qty 7

0

26

Toro 920271

WASHER-SPECIAL

$1.99

$

Usually ships in 3-6 days

0

27

Toro 79-0420

WASHER-SPRING

$

$

Not available

28

Toro 110920

Seat Spring
(Superseded to 110920-03)

$195.99

$

Usually ships in 3-6 days

0

29

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

30

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

31

Toro 109989

SPACER-NYLON

$5.49

$

In Stock, only 2 left!

0

32

Toro 38-1420

SWITCH-SEAT

$

$

Not available

33

Toro 79-0670

SEAT V-510

$

$

Not available
