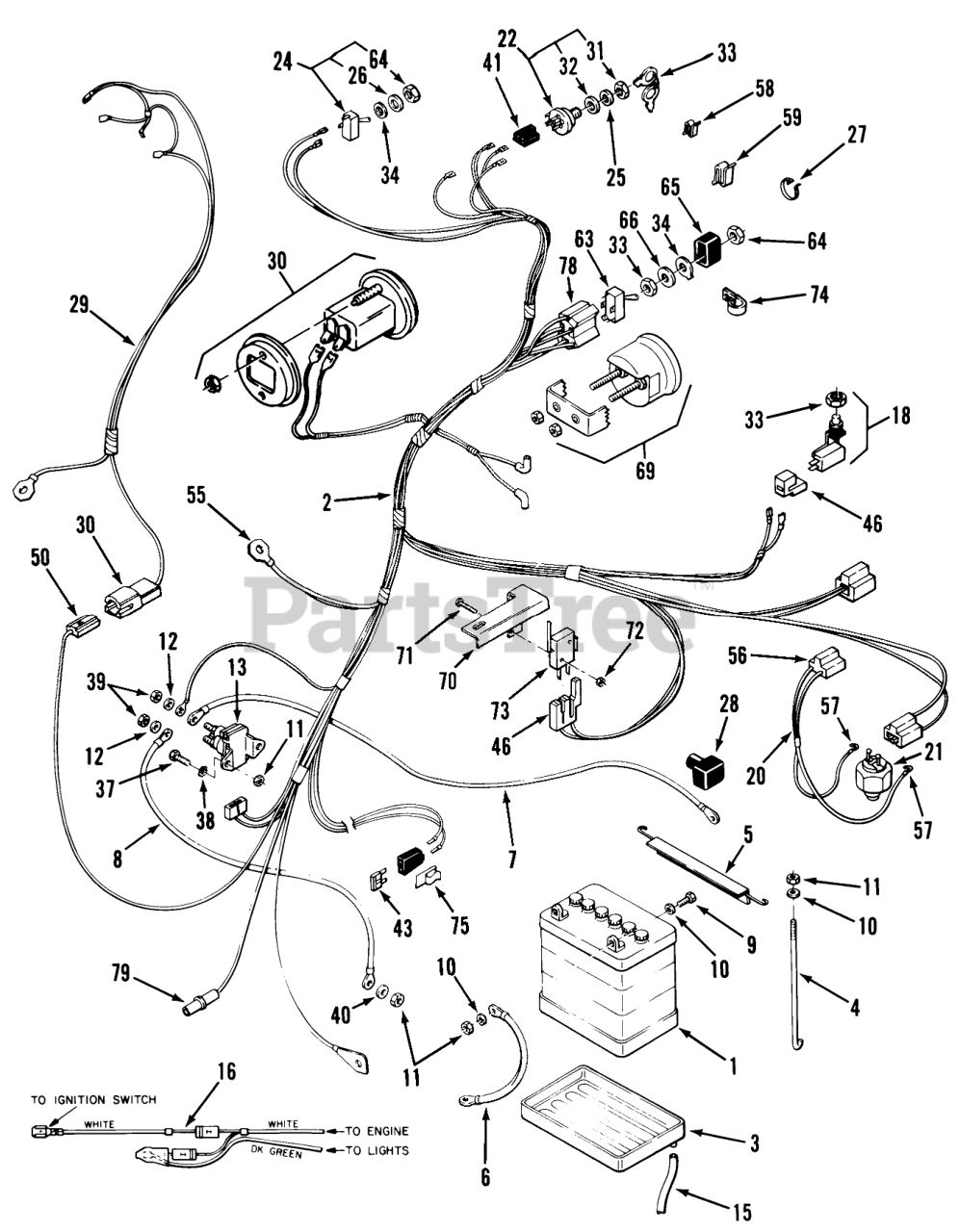

42-11B501 (211-5) - Toro Yard Tractor (1989) Electrical System Parts Diagram

Yard Tractor

Electrical System Parts Diagram

  • Title
1

Toro 104962

See Supercession: 105-1692
(Superseded to 105-1692)

$

$

Not available

2

Toro 113872

DISCONTINUED

$

$

Not available

2

Toro 112897

DISCONTINUED

$

$

Not available

2

Toro 114854

WIRING-HARNESS & DIA

$530.99

$

Usually ships in 3-6 days

0

2

Toro 114899

DISCONTINUED

$

$

Not available

3

Toro 106948

TRAY-BATTERY

$11.99

$

In Stock, only 2 left!

0

4

$10.99

$

In Stock, only 2 left!

0

5

Toro 113010

HOLDDOWN-BATTERY

$27.99

$

In Stock, only 3 left!

0

6

Toro 111078

WIRE -BLACK

$27.99

$

Usually ships in 3-6 days

0

7

Toro 111076

WIRE - 14" BLACK

$

$

Not available

8

Toro 111682

DISCONTINUED

$

$

Not available

9

Toro 908003

See Supercession: 321-4
(Superseded to 321-4)

$1.49

$

In Stock, Qty 20+

0

10

Toro 920007

See Supercession: 3256-22
(Superseded to 3256-22)

$0.99

$

In Stock, Qty 20+

0

11

Toro 915111

See Supercession: 3217-5
(Superseded to 3217-5)

$0.99

$

In Stock, Qty 8

0

12

Toro 920081

See Supercession: 3253-3
(Superseded to 325-33)

$14.99

$

In Stock, only 4 left!

0

13

Toro 110167

See Supercession: 740207
(Superseded to 740207)

$34.99

$

In Stock, only 3 left!

0

15

Toro 114721

TUBE-BATTERY DRAIN

$

$

Not available

16

Toro 113977

DIODE-KIT SERVICE

$

$

Not available

18

Toro 114240

See Supercession: 112418
(Superseded to 112418)

$60.99

$

In Stock, only 3 left!

0

20

Toro 111364

ASSY WIRING HARNESS

$

$

Not available

21

Toro 111365

SWITCH (N.C.-TRANS)

$

$

Not available

22

Toro 111215

See Supercession: 103991
(Superseded to 103991)

$55.99

$

In Stock, only 2 left!

0

23

Toro 111220

See Supercession: 62-7770
(Superseded to 62-7770)

$4.99

$

In Stock, Qty 20+

0

23

Toro 111214

DISCONTINUED

$

$

Not available

24

Toro 102138

SWITCH-LIGHTS

$40.99

$

Usually ships in 3-6 days

0

25

Toro 920262

See Supercession: 9202624
(Superseded to 9202624)

$8.99

$

Usually ships in 3-6 days

0

26

Toro 920259

Washer
(Superseded to 9202594)

$0.99

$

In Stock, only 4 left!

0

27

Toro 100571

DISCONTINUED

$

$

Not available

28

Toro 109553

See Supercession: 28-8080
(Superseded to 28-8080)

$23.99

$

Usually ships in 3-6 days

0

29

Toro 111943

DISCONTINUED

$

$

Not available

29

Toro 115204

DISCONTINUED

$

$

Not available

30

Toro 113469

GAUGE-HOURMETER

$446.99

$

Usually ships in 3-6 days

0

31

$7.49

$

In Stock, only 1 left!

0

32

Toro 920160

See Supercession: 9201604
(Superseded to 9201604)

$0.99

$

In Stock, only 3 left!

0

33

Toro 105805

See Supercession: 218-498
(Superseded to 218-498)

$0.99

$

In Stock, only 2 left!

0

34

Toro 102950

TAB-WASHER

$2.49

$

In Stock, only 1 left!

0

37

Toro 960151

See Supercession: 3234-13
(Superseded to 3234-13)

$1.49

$

In Stock, only 4 left!

0

38

Toro 920122

DISCONTINUED

$

$

Not available

39

Toro 915234

See Supercession: 3218-1
(Superseded to 3218-1)

$1.49

$

In Stock, only 4 left!

0

40

Toro 920081

See Supercession: 3253-3
(Superseded to 325-33)

$14.99

$

In Stock, only 4 left!

0

41

Toro 105302

See Supercession: 32160-014
(Superseded to 32160-014)

$5.99

$

In Stock, only 2 left!

0

43

Toro 109355

FUSE-BLADE, 15 AMP

$3.99

$

Usually ships in 3-6 days

0

46

Toro 111498

CONNECTOR BODY

$5.49

$

In Stock, only 3 left!

0

50

Toro 104926

CONNECTOR BODY ELECT

$4.49

$

In Stock, only 2 left!

0

56

Toro 110459

CONNECTOR BODY *B

$1.99

$

In Stock, only 2 left!

0

57

Toro 105306

TERMINAL-TAB RCPT

$3.99

$

Usually ships in 3-6 days

0

58

Toro 8830

CLIP

$2.49

$

In Stock, Qty 5

0

59

Toro 3023

DISCONTINUED

$

$

Not available

63

Toro 112929

Electric Clutch Switch (includes items 33, 34 64) 208, 211

$138.99

$

Usually ships in 3-6 days

0

64

Toro 113179

*DISC**

$

$

Not available

65

Toro 113050

COVER-PTO SWITCH

$

$

Not available

66

Toro 920242

WASHER-FLAT

$6.49

$

Usually ships in 3-6 days

0

69

Toro 110741

DISCONTINUED
(Superseded to 117176)

$

$

Not available

70

Toro 114437

DISCONTINUED

$

$

Not available

71

Toro 910948

See Supercession: 9109484
(Superseded to 9109484)

$0.99

$

In Stock, Qty 10

0

72

Toro 915732

See Supercession: 9157324
(Superseded to 9157324)

$1.49

$

In Stock, Qty 7

0

73

Toro 111332

SWITCH

$12.99

$

In Stock, only 2 left!

0

74

Toro 105490

CLAMP

$

$

Not available

75

$8.49

$

Usually ships in 3-6 days

0

78

Toro 105303

CONNECTOR 5 WAY

$5.49

$

Usually ships in 3-6 days

0

79

Toro 518075

DISCONTINUED

$

$

Not available
