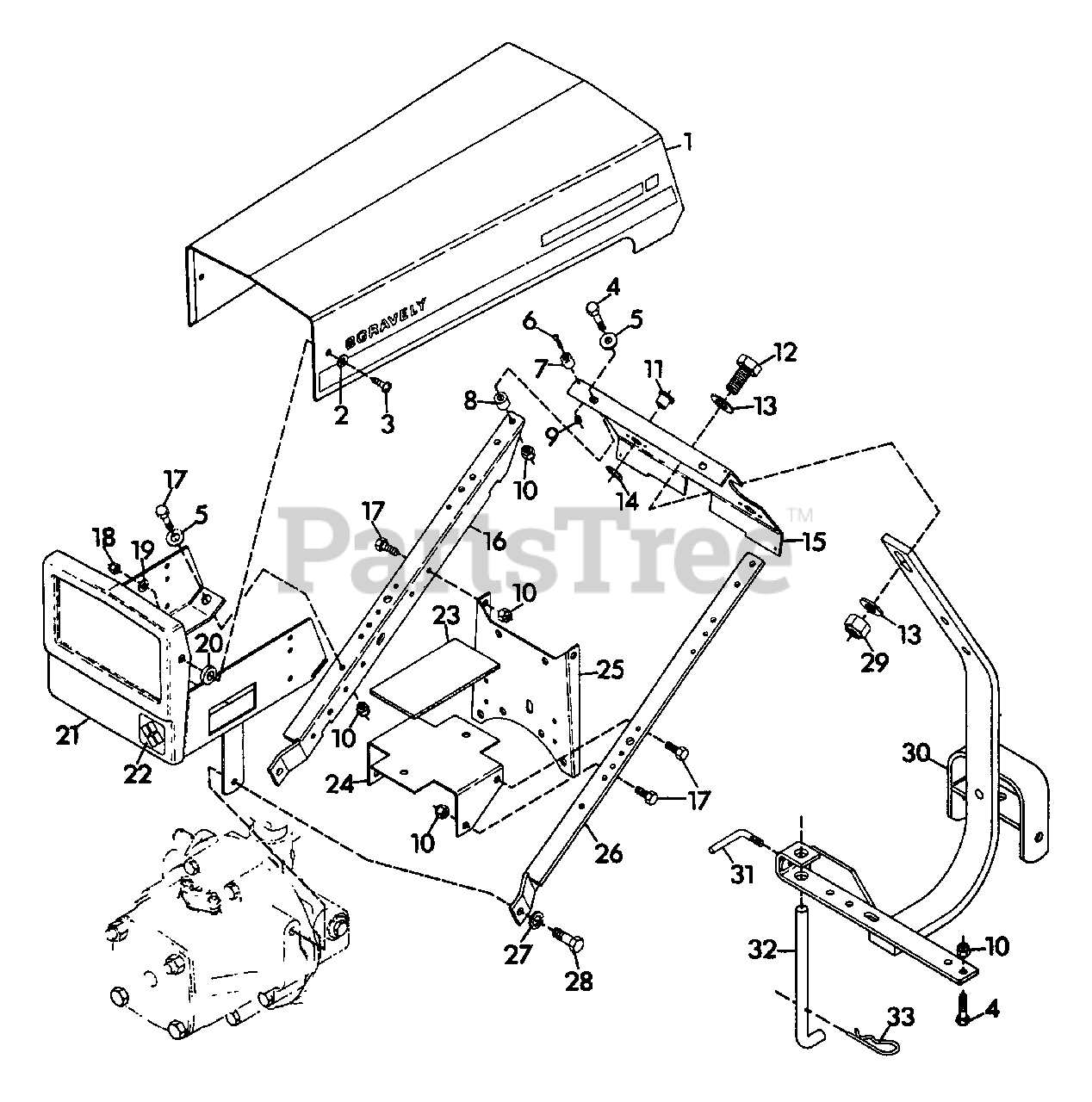

41905 - Gravely Walk-Behind 2-Wheel Tractor, 12hp, 4-Speed, Manual Start Frame Parts Diagram

Walk-Behind 2-Wheel Tractor, 12hp, 4-Speed, Manual Start

Frame Parts Diagram

  • Title

1

Gravely 041651

Assembly, Hood
(Superseded to 68513000)

$

$

Not available

2

Gravely 120392

Washer, Flat .281 x .625 x .065
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

3

Gravely 160556

Screw, Machine 1/4-20 x 1.00 PHD
(Superseded to 06113600)

$

$

Not available

4

Gravely 180126

Bolt, Hex 3/8-16 x 1.50
(Superseded to 05901928)

$1.49

$

In Stock, Qty 15

0

5

Gravely 120394

Washer, Flat .406 x .812 x .065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

6

Gravely 159341

Screw, Machine 6-32 x .625 PHD
(Superseded to 06110700)

$1.99

$

Usually ships in 4-12 days

0

7

Gravely 018183

Bumper
(Superseded to 07017400)

$

$

Not available

8

Gravely 043922

Bushing, Reverse Idler
(Superseded to 08553700)

$5.99

$

In Stock, only 1 left!

0

9

Gravely 427254

Nut, Machine Lock 6-32
(Superseded to 06538900)

$

$

Not available

10

Gravely 456004

Nut, Lock 3/8-16
(Superseded to 06500831)

$2.49

$

In Stock, only 3 left!

0

11

Gravely 034738

Bushing, .513 x .750 x .625
(Superseded to 05521100)

$2.49

$

In Stock, only 3 left!

0

12

Gravely 271723

Bolt, Hex 5/8-11 x 2.00
(Superseded to 05968100)

$3.49

$

Usually ships in 4-12 days

0

13

Gravely 421879

Washer, Flat .656 x 1.250 x .100
(Superseded to 06430300)

$3.99

$

Usually ships in 4-12 days

0

14

Gravely 034237

Ring, Retaining

$

$

Not available

15

Gravely 041767

Plate, Silk Screen (Manual Start)
(Superseded to 58500700)

Note: (Manual Start)

$

$

Not available

15

Gravely 040872

Plate, Silk Screen (Electric Start)
(Superseded to 58500600)

Note: (Electric Start)

$

$

Not available

16

Gravely 040618

Support, Handlebar R.H.
(Superseded to 08543100)

$

$

Not available

17

Gravely 180121

Bolt, Hex 3/8-16 x .875
(Superseded to 05932600)

$2.49

$

In Stock, only 1 left!

0

18

Gravely 419454

Nut, Lock 1/4-20
(Superseded to 06500832)

$4.99

$

Usually ships in 4-12 days

0

19

Gravely 446354

Washer, Flat .313 x .875 x .065
(Superseded to 06430700)

$2.99

$

Usually ships in 4-12 days

0

20

Gravely 041622

Bushing, Hood
(Superseded to 08567200)

$23.99

$

Usually ships in 4-12 days

0

21

Gravely 040409

Weldment, Battery Bracket
(Superseded to 08561100)

$

$

Not available

22

Gravely 010697

Decal
(Superseded to 05216500)

$

$

Not available

23

Gravely 041075

Pad, Gas Tank
(Superseded to 08602600)

$

$

Not available

24

Gravely 041997

Bracket, Tank Support
(Superseded to 08548500)

$22.99

$

Usually ships in 4-12 days

0

25

Gravely 040629

Bracket
(Superseded to 08543300)

$

$

Not available

26

Gravely 040619

Support, Handlebar L. H.
(Superseded to 08543200)

$

$

Not available

27

Gravely 120384

Washer, Lock 1/2 Reg.
(Superseded to 06300115)

$1.49

$

In Stock, Qty 16

0

28

Gravely 180173

Bolt, Hex 1/2-13 x 1.00
(Superseded to 05901715)

$2.49

$

In Stock, Qty 7

0

29

Gravely 418692

Nut, Lock 5/8-11
(Superseded to 06540700)

$3.99

$

In Stock, only 2 left!

0

30

Gravely 040819

Weldment, Hitch 10 and 12 Hp
(Superseded to 08544200)

$

$

Not available

31

Gravely 013457

Handle, Adjusting
(Superseded to 08597900)

$102.99

$

In Stock, only 1 left!

0

32

Gravely 034062

Stand, Kick
(Superseded to 08536500)

$51.99

$

Usually ships in 4-12 days

0

33

Gravely 010405

Pin, Hair
(Superseded to 06714000)

$2.99

$

In Stock, Qty 6

0

Gravely 044129

Decal, 10
(Superseded to 05211700)

Note: NS

$

$

Not available

Gravely 044130

Decal, 12
(Superseded to 05211800)

Note: NS

$

$

Not available

Gravely 044131

Decal, 16
(Superseded to 05211900)

Note: NS

$

$

Not available

Gravely 044074

Decal, Side Stripe
(Superseded to 07703800)

Note: NS

$

$

Not available

Gravely 043003

Decal, Gravely Logo
(Superseded to 05210700)

Note: NS

$

$

Not available

Gravely 043417

Decal, 6 Lead
(Superseded to 05211200)

Note: NS

$

$

Not available

Gravely 043418

Decal, 8 Lead
(Superseded to 05211300)

Note: NS

$

$

Not available

Gravely 044075

Decal, Professional
(Superseded to 20802400)

Note: NS

$

$

Not available
