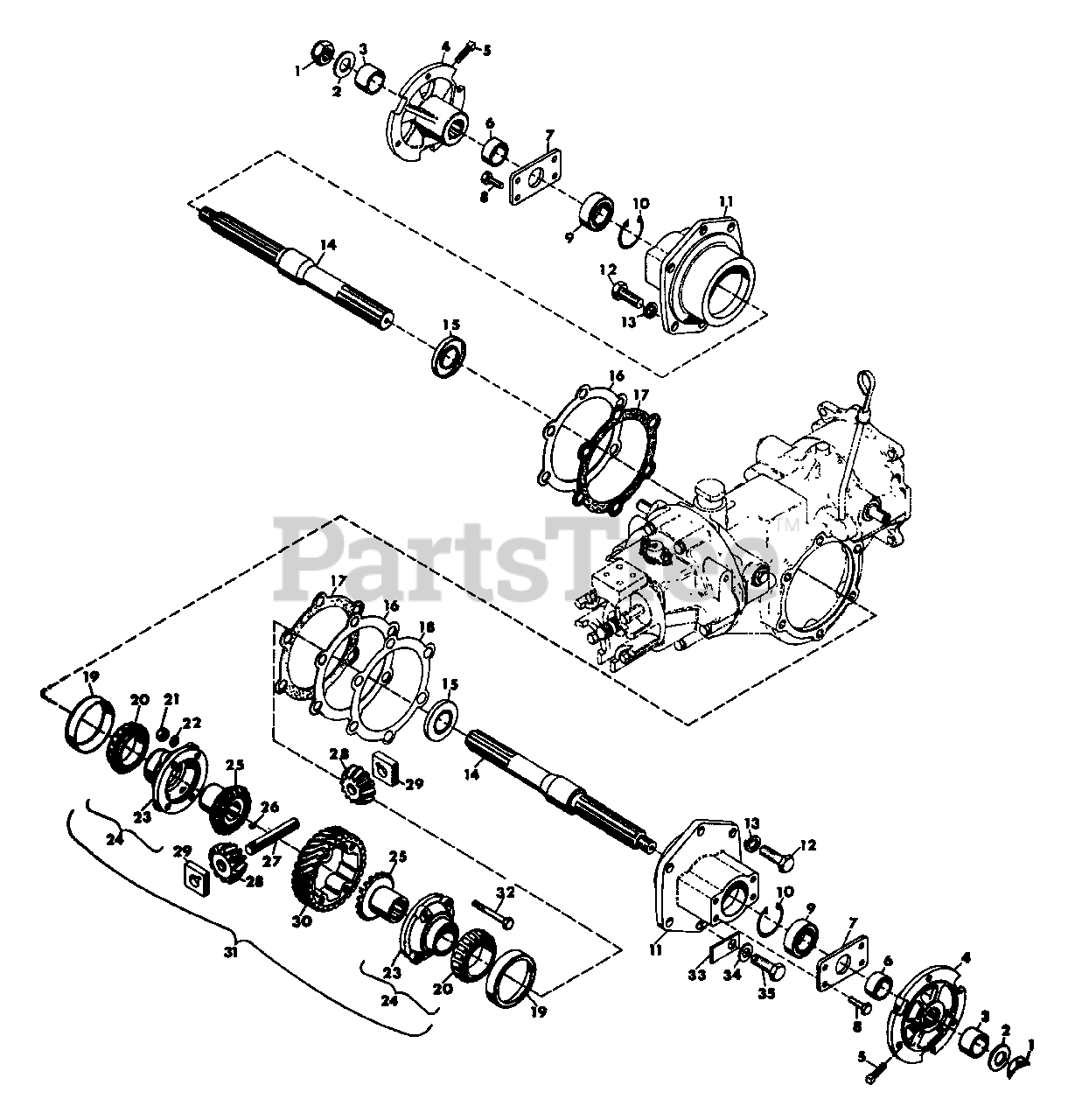

41902 - Gravely Walk-Behind 2-Wheel Tractor, 8hp, 2-Speed, Manual Start Standard Differential Parts Diagram

Walk-Behind 2-Wheel Tractor, 8hp, 2-Speed, Manual Start

Standard Differential Parts Diagram

  • Title

1

Gravely 022502

Nut-Hex 3/4-10 Light Thin
(Superseded to 06537900)

$15.99

$

Usually ships in 4-12 days

0

2

Gravely 131017

Washer, Flat .812 x 1.469 x .134
(Superseded to 06426000)

$1.49

$

In Stock, Qty 20+

0

3

Gravely 022512

Spacer
(Superseded to 08525200)

$25.99

$

Usually ships in 4-12 days

0

4

Gravely 022507

Hub, Wheel
(Superseded to 58501600)

$541.99

$

Usually ships in 4-12 days

0

5

Gravely 426913

Screw, Set 7/16-14 x 1.00
(Superseded to 21069400)

$

$

Not available

6

Gravely 022501

Spacer
(Superseded to 08524600)

$

$

Not available

7

Gravely 022503

Plate, End
(Superseded to 08524800)

$16.99

$

Usually ships in 4-12 days

0

8

Gravely 180120

Bolt-Hex 3/8-16 x .750
(Superseded to 05901702)

$1.49

$

In Stock, Qty 20+

0

9

Gravely 032050

Bearing-Ball 1.00 x 2.00 x .562
(Superseded to 05416000)

$14.99

$

In Stock, only 3 left!

0

10

Gravely 022497

Ring-Retaining 2.00 Bore
(Superseded to 05714200)

$2.99

$

In Stock, Qty 5

0

11

Gravely 022495

Housing, Axle
(Superseded to 08524200)

$

$

Not available

12

Gravely 180173

Bolt-Hex 1/2-13 x 1.00
(Superseded to 05901715)

$2.49

$

In Stock, Qty 7

0

13

Gravely 120384

Washer-Lock 1/2 Reg.
(Superseded to 06300115)

$1.49

$

In Stock, Qty 16

0

14

Gravely 022493

Axle-Straight
(Superseded to 08524000)

$

$

Not available

15

Gravely 022506

Seal-Oil 1.188 x 2.00 x .250
(Superseded to 05616400)

$21.99

$

In Stock, only 2 left!

0

16

Gravely 012595

Shim-Axle Housing .005
(Superseded to 08589700)

$

$

Not available

17

Gravely 012597

Gasket-Axle Housing
(Superseded to 08556700)

$8.99

$

In Stock, only 2 left!

0

18

Gravely 012596

Shim-Axle Housing .020

$

$

Not available

19

Gravely 012130

Cup, Roller Bearing
(Superseded to 05428200)

$39.99

$

Usually ships in 4-12 days

0

20

Gravely 012131

Cone, Roller Bearing
(Superseded to 05428300)

$39.99

$

Usually ships in 4-12 days

0

21

Gravely 120368

Nut, Hex 5/16-24
(Superseded to 06522800)

$2.49

$

Usually ships in 4-12 days

0

22

Gravely 138358

Washer, Lock 5/16 Internal Tooth

$

$

Not available

23

Gravely 022504

Housing, Differential
(Superseded to 08524900)

$

$

Not available

24

Gravely 022561

Assembly, Differential Housing
(Superseded to 21159600)

$

$

Not available

25

Gravely 006709

Gear, Differential Bevel
(Superseded to 08577700)

$

$

Not available

26

Gravely 271089

Key, Woodruff .125 x .375 Hard
(Superseded to 06609200)

$2.99

$

Usually ships in 4-12 days

0

27

Gravely 012556

Pin, Spider Pinion
(Superseded to 08589200)

$

$

Not available

28

Gravely 006708

Gear, Spider Bevel
(Superseded to 08577600)

$

$

Not available

29

Gravely 022505

Block, Drive
(Superseded to 08525000)

$

$

Not available

30

Gravely 013498

Gear, 6 Lead Worm
(Superseded to 08500300)

$382.99

$

Usually ships in 4-12 days

0

31

Gravely 022554

Assembly, Differential Standard 6 Lead
(Superseded to 21159300)

$

$

Not available

32

Gravely 181623

Bolt, Hex 5/16-24 x 2.75
(Superseded to 05937200)

$3.49

$

Usually ships in 4-12 days

0

33

Gravely 012594

Washer, Oil Drain
(Superseded to 06432900)

$2.49

$

In Stock, only 1 left!

0

34

Gravely 120396

Washer, Flat .531 x 1.062 x .095
(Superseded to 06401015)

$0.99

$

In Stock, Qty 20+

0

35

Gravely 013624

Bolt, Hex 1/2-13 x 1.00 Nylon Insert
(Superseded to 05941200)

$

$

Not available
