419 (196-419-100) - Cub Cadet Front PTO Kit (1986) att Front PTO Kits Parts Diagram

Front PTO Kit

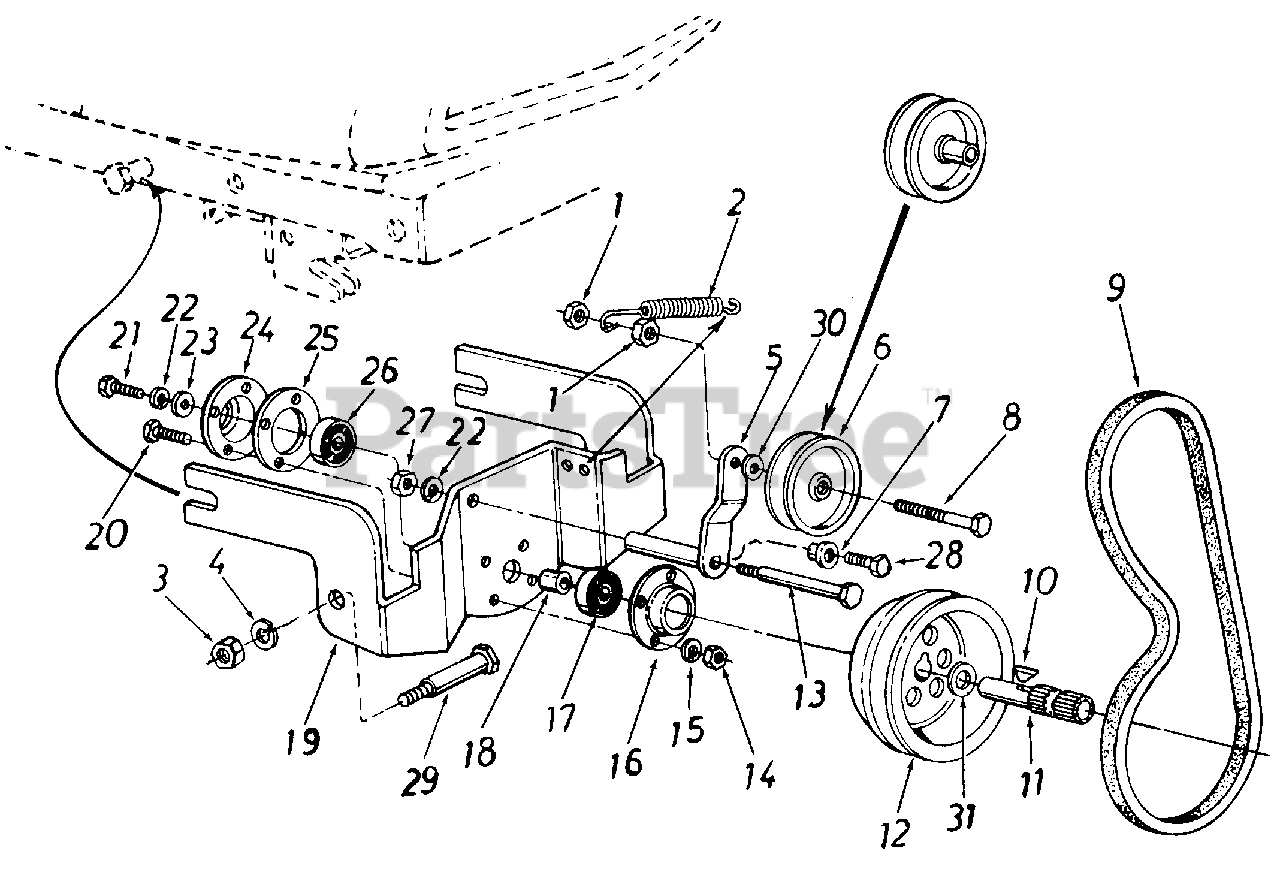

Front PTO Kits Parts Diagram

  • Title

1

Cub Cadet 712-0266

Hex Cent. L.-Jam Nut 3/8-16 Thd.
(Superseded to 712-0266A)

$3.99

$

In Stock, Qty 20+

0

2

Cub Cadet 732-0470

Extension Spring .54" x 5.25" Lg.
(Superseded to 932-0470A)

$9.99

$

In Stock, only 4 left!

0

3

Cub Cadet 712-0342

Hex Jam Nut 3/8-16 Thd.
(Superseded to 912-3008)

$4.99

$

In Stock, Qty 16

0

4

UNKNOWN

$

$

Not available

5

Cub Cadet 784-5070

Idler Brk't. 1.5 x 4.5" Lg. (418)

$

$

Currently unavailable

Cub Cadet 784-5114

Idler Brk't. Ass'y. (419)

$

$

Not available

6

Cub Cadet 756-0137

Fl.-ldler w/Flanges 2.25" O.D. (418)

$

$

Not available

Cub Cadet 756-0311

Fl.-ldler w/Flanges 4.00" O.D. (419)

$

$

Not available

7

Cub Cadet 738-0609

Shld. Spacer .680 Dia. x .170 (418)

$

$

Currently unavailable

8

Cub Cadet 710-0427

Hex Bolt 3/8-16 x 2.00" Lg.*
(Superseded to 710-3144)

$4.49

$

In Stock, Qty 20+

0

9

Cub Cadet 754-0154

"V"-Belt 1/2 x 37.0" Lg. (418)
(Superseded to 954-0154)

$38.99

$

In Stock, only 2 left!

0

Cub Cadet 754-0284

"V"-Belt 5/8 x 41.0" Lg. (419)

$

$

Not available

10

Cub Cadet 714-0126

#9 Hi-Pro Key 3/16 x 3/4" Dia.

$4.99

$

In Stock, Qty 13

0

11

Cub Cadet 738-0600

Spline Shaft 3.94" Lg.

$

$

Not available

12

Cub Cadet 756-0442

5/8" Pulley .790" I.D. x 7.0" O.D. (418)

$

$

Not available

Cub Cadet 756-0440

5/8" Pulley .790" I .D. x 6.50" O.D. (419)

$

$

Not available

13

Cub Cadet 738-0129

Shoulder Bolt .498" Dia. x 2.0" Lg. (419)

$11.99

$

In Stock, only 1 left!

0

14

Cub Cadet 712-0123

Hex Nut 5/16-24 Thd.*
(Superseded to 912-3057)

$6.99

$

In Stock, only 3 left!

0

15

Cub Cadet 736-0119

L.-Wash. 5/16" I.D.*
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

16

Cub Cadet 08253

Bearing Shield
(Superseded to 08253B)

$19.99

$

In Stock, only 1 left!

0

17

Cub Cadet 741-0919

Ball Bearing .787" I.D. x 1.85" O.D.
(Superseded to 941-0919B)

$21.99

$

In Stock, Qty 20+

0

18

Cub Cadet 750-0456

Spacer 1.0" O.D. x .790" I.D. x.350" Lg.

$4.49

$

In Stock, Qty 20+

0

19

Cub Cadet 784-5065

PTO Support Brk't. (418)

$

$

Currently unavailable

Cub Cadet 784-5114

PTO Support Bracket (419)

$

$

Not available

20

Cub Cadet 710-0117

Hex Bolt 5/16-24 x 1.00" Lg.*
(Superseded to 710-0888)

$4.49

$

In Stock, Qty 20+

0

21

Cub Cadet 710-0591

Hex L.-Bolt 3/8-24 x 1.00" Lg.

$4.49

$

In Stock, only 1 left!

0

22

Cub Cadet 736-0169

L.-Wash. 3/8" I.D.*

$3.99

$

In Stock, Qty 20+

0

23

Cub Cadet 736-0247

Bell.-Wash. .400" I.D. x 1.25" 0. D.

$9.49

$

In Stock, Qty 14

0

24

Cub Cadet 15296

Open Bearing Housing 1.85" I.D.
(Superseded to 15296A)

$8.99

$

In Stock, only 2 left!

0

25

Cub Cadet 09164

Reinforcement Plate
(Superseded to 09164A-0637)

$33.99

$

In Stock, only 2 left!

0

26

Cub Cadet 741-0919

Ball Bearing .787" I.D. x 1.85"
(Superseded to 941-0919B)

$21.99

$

In Stock, Qty 20+

0

27

Cub Cadet 712-0342

Hex Jam Nut 3/8-16 Thd. (418)
(Superseded to 912-3008)

$4.99

$

In Stock, Qty 16

0

Cub Cadet 712-0241

Hex Nut 3/8-14 Thd. (419)

$4.49

$

In Stock, Qty 13

0

28

Cub Cadet 710-0514

Hex Bolt 3/8-16 x 1.0" Lg. (Grade 5)

Note: (418)

$4.49

$

In Stock, Qty 20+

0

29

Cub Cadet 738-0414

Shld. Bolt. 498" Dia.

$

$

Not available

30

Cub Cadet 736-0258

Fl.-Wash. .38" I.D. x 1.00" O.D.

$4.49

$

In Stock, only 2 left!

0

31

Cub Cadet 736-0316

Fl.-Wash. .78" I.D. x 1.59" O.D. (419)

$4.49

$

In Stock, Qty 20+

0
