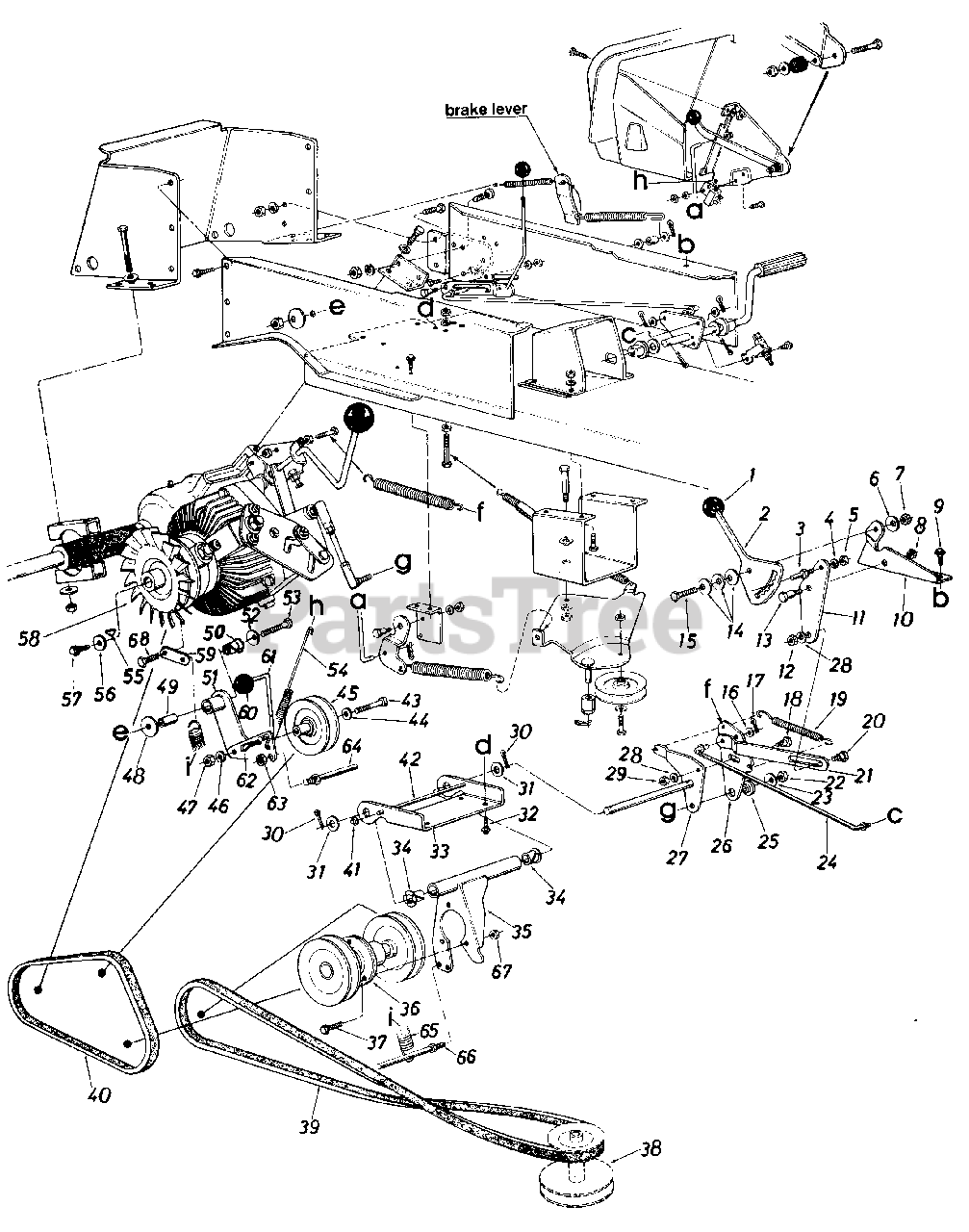

4185-71 (147-853-016) - Statesman Garden Tractor (1987) (Southern States) Parts03 Parts Diagram

Garden Tractor

Parts03 Parts Diagram

  • Title

1

MTD 720-0165

Gear Shift Knob
(Superseded to 920-0232)

$10.99

$

In Stock, Qty 10

0

2

MTD 16154

Speed Selector Cam

$

$

Currently unavailable

3

MTD 711-0778

Hex Stud .250" Dia. x .62"

$

$

Not available

4

MTD 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

5

MTD 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

6

MTD 736-0219

Bell-Wash. .400" I.D. x 1.13" O.D.
(Superseded to 936-0219)

$4.49

$

Usually ships in 3-6 days

0

7

MTD 712-0116

Hex Ins. L-Nut 3/8-24 Thd.

$4.99

$

In Stock, Qty 6

0

8

MTD 712-0181

Hex Top L-Nut 3/8-16 Thd.

$4.49

$

In Stock, only 3 left!

0

9

MTD 710-0642

Hex Wash. Hd. S-Tap Scr. 1/4-20 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

10

MTD 16155

Speed Selector Mtg. Brkt.

$

$

Currently unavailable

11

MTD 16156

Speed Selector Transfer Brkt.

$

$

Currently unavailable

12

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

13

MTD 738-0147

Shld. Bolt .500" Dia. x .170

$

$

Not available

14

MTD 736-0331

Bell-Wash. .39" I.D. x 1.13" O.D.

$3.99

$

In Stock, Qty 20+

0

15

MTD 710-0152

Hex Bolt 3/8-24 x 1.00" Lg.
(Superseded to 710-1039)

$4.49

$

In Stock, Qty 20+

0

16

MTD 736-0267

Fl-Wash. .385" I.D. x .87" O.D.

$4.49

$

In Stock, Qty 20+

0

17

MTD 714-0507

Cotter Pin 3/32" Dia. x .75" Lg.*

$4.49

$

In Stock, Qty 12

0

18

MTD 738-0140

sh3 Bolt .437" Dia. x .180

$5.99

$

In Stock, Qty 15

0

19

MTD 732-0433

Extension Spring .50" Dia. x 2.75" Lg.

$

$

Not available

20

MTD 738-0140

Shld. Bolt .437" Dia. x .180

$5.99

$

In Stock, Qty 15

0

21

MTD 16166

Speed Selector Link

Note: (843, 853 & 863)

$

$

Currently unavailable

MTD 16167

Speed Selector Link

Note: (842, 847, 852, 857, 862 & 867)

$

$

Currently unavailable

22

MTD 712-0241

Hex Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 13

0

23

MTD 736-0331

Bell-Wash .39" I.D. x 1.13" O.D.

$3.99

$

In Stock, Qty 20+

0

24

MTD 747-0504

Rod-Speed Control .312" Dia.

$

$

Not available

25

MTD 738-0347

Shld. Spacer .625" I.D.
(Superseded to 938-0347)

$10.99

$

Usually ships in 3-6 days

0

26

MTD 16163

Speed Cont. Transfer Swivel Brkt.

$

$

Currently unavailable

27

MTD 16161

Speed Control Transfer Ass'y.

$

$

Not available

28

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

29

MTD 712-0267

Hex Nut 5/16-18 Thd.*
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

30

MTD 714-0115

Cotter Pin 1/8" Dia. x 1.00" Lg.

$3.99

$

In Stock, only 2 left!

0

31

MTD 736-0187

Fl-Wash. .640" I.D. x 1.24" O.D.

$4.49

$

In Stock, Qty 20+

0

32

MTD 710-0599

Hex Wash S-Tap Scr. 1/4-20 x .50" Lg.

$4.49

$

In Stock, Qty 20+

0

33

MTD 13822

Idler Mtg. Brkt.

$

$

Not available

34

MTD 741-0295

Flanged Nyliner Brg. .376 I.D. x .437
(Superseded to 941-0591)

$

$

Not available

35

MTD 16174

Mounting Brkt. Ass'y.

$

$

Not available

36

MTD 756-0324

Jack Shaft Ass'y.

$

$

Not available

37

MTD 710-0198

Hex Sems Bolt 5/16-18 x .75" Lg.
(Superseded to 910-0198)

$

$

Not available

38

MTD 756-0328

Engine Pulley 47.5" I.D. x 5.56" O.D.

$

$

Not available

39

MTD 754-0245

"V"-Belt
(Superseded to 954-0245)

$

$

Not available

40

MTD 754-0177

"V"-Belt

$

$

Not available

41

MTD 726-0111

Push Cap

$

$

Not available

42

MTD 747-0655

Rod-3/16" Dia. x 7.12" Lg.

$

$

Currently unavailable

43

MTD 710-0459

Hex Bolt 3/8-24 x 1.50" Lg.
(Superseded to 710-0459A)

$6.99

$

In Stock, Qty 8

0

44

MTD 736-0267

Fl-Wash. .385" I.D. x .87" O.D.

$4.49

$

In Stock, Qty 20+

0

45

MTD 756-0293

Idler Pulley 4.0" O.D. x 518"-"V"
(Superseded to 756-0487)

$48.99

$

In Stock, only 1 left!

0

46

MTD 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

47

MTD 712-0241

Hex Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 13

0

48

MTD 736-0105

Bell-Wash. .40" I.D. x .87" O.D.

$4.49

$

In Stock, Qty 20+

0

49

MTD 748-0303

Spacer .38" I.D. x .62" O.D. x 1.87" Lg.

$

$

Not available

50

MTD 741-0257

Flanged Nyliner Brg.

$

$

Not available

51

MTD 16616

Idler Pivot Brkt. Ass'y.

$

$

Not available

52

MTD 736-0267

Fl-Wash. .38" I.D. x .87" O.D.

$4.49

$

In Stock, Qty 20+

0

53

MTD 710-0151

Hex Bolt 3/8-24 x 2.00" Lg.

$7.49

$

In Stock, only 3 left!

0

54

MTD 732-0185

Extension Spring .56" O.D. x 7'.75" Lg.
(Superseded to 732-0185A)

$

$

Not available

55

MTD 714-0126

#9 Hi-Pro Key .316" x .75" Dia.

$4.99

$

In Stock, Qty 16

0

56

MTD 736-0176

Fl-Wash. .505" I.D. x 1.0" O.D.

$4.99

$

In Stock, only 4 left!

0

57

MTD 710-0642

Hex Wash. Hd. S-Tap Scr. 1/4-20 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

58

MTD 756-0455

Trans. Pulley Fan Ass'y.

$

$

Currently unavailable

59

MTD 16617

Link

$

$

Currently unavailable

60

MTD 720-0187

Ball Knob

$10.99

$

Usually ships in 3-6 days

0

61

MTD 711-0794

Push Rod

$

$

Not available

62

MTD 714-0104

Intern. Cotter Pin

$4.49

$

In Stock, Qty 20+

0

63

MTD 712-0291

Hex L-Nut 1/4-20 Thd.

$4.49

$

In Stock, Qty 8

0

64

MTD 711-0768

Belt Guard Pin
(Superseded to 911-1000)

$10.99

$

In Stock, only 2 left!

0

65

MTD 732-0384

Ext. Spring 6.12 Lg.
(Superseded to 932-0384)

$14.99

$

In Stock, Qty 12

0

66

MTD 711-0696

Stud 3/8-16 x 3.62

$

$

Currently unavailable

67

MTD 712-0181

Hex Top L-Nut 3/8-16 Thd.

$4.49

$

In Stock, only 3 left!

0

68

Part of Hydrostatic Pump

$

$

Not available
