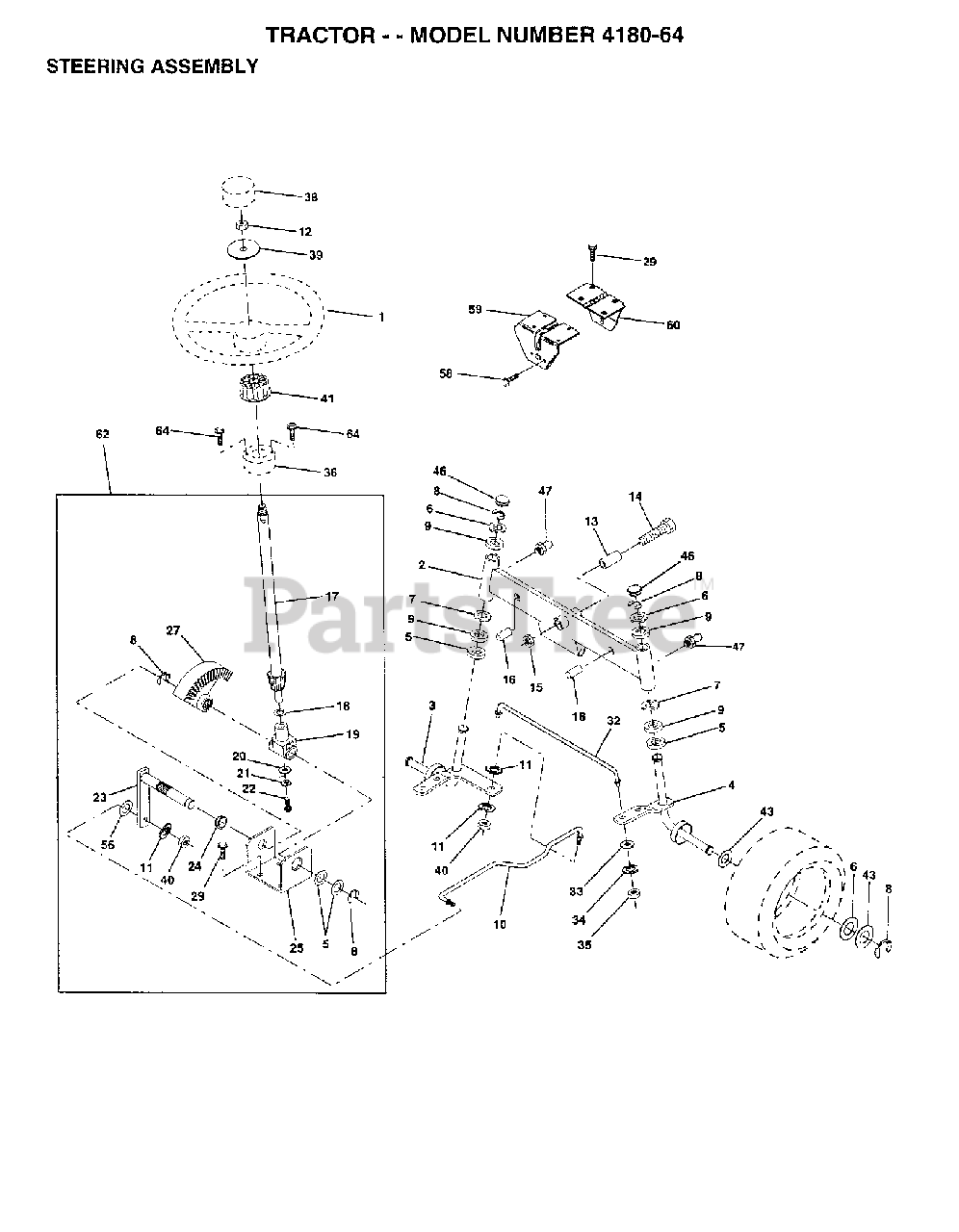

418064 - Poulan Lawn Tractor (2006-06) STEERING Parts Diagram

Lawn Tractor

STEERING Parts Diagram

  • Title
1

Poulan 532121472

Steering Wheel
(Superseded to 532150546)

$78.99

$

Usually ships in 3-10 days

0

2

Poulan 532142033

AXLE ASSY
(Superseded to 142033)

$

$

Not available

$

$

Not available

$

$

Not available

5

Poulan 532006266

WASHER THRUST

$7.49

$

In Stock, Qty 8

0

6

$4.99

$

In Stock, Qty 20+

0

7

$6.49

$

In Stock, only 2 left!

0

8

Poulan 812000029

RING CLIP

$4.99

$

Usually ships in 3-10 days

0

9

Poulan 532003366

BEARING.STEERING.COLUMN

$4.99

$

In Stock, Qty 19

0

10

Poulan 532130468

DRAG LINK

$93.99

$

In Stock, only 1 left!

0

11

Poulan 810040600

WASHER, LOCK 3/8
(Superseded to 539990118)

$1.99

$

Usually ships in 3-10 days

0

12

Poulan 873940800

NUT.HEX.1/2-20

$7.49

$

In Stock, only 4 left!

0

13

Poulan 532110438

(Superseded to 532155134)

$

$

Not available

14

$6.49

$

Usually ships in 3-10 days

0

15

Poulan 873601000

LOCK NUT
(Superseded to 873681000)

$3.49

$

Usually ships in 3-10 days

0

$

$

Not available

17

Poulan 532124043

SHAFT ASS'Y STEER
(Superseded to 532128762)

$91.99

$

Usually ships in 3-10 days

0

18

Poulan 532057079

THRUST WASHER

$6.49

$

In Stock, Qty 10

0

19

Poulan 532124035

SHAFT,SUPPORT
(Superseded to 532160395)

$10.99

$

In Stock, Qty 7

0

20

Poulan 532126684

WASHER
(Superseded to 819091016)

$4.99

$

Usually ships in 3-10 days

0

21

Poulan 810040400

LOCKWASHER
(Superseded to 596029801)

$3.99

$

In Stock, only 2 left!

0

22

Poulan 871100410

SCREW
(Superseded to 871070410)

$6.49

$

In Stock, only 3 left!

0

23

Poulan 532124033

SHAFT,PITMAN
(Superseded to 532127501)

$

$

Not available

24

Poulan 532109816

NYLINER T (7283A)

$6.49

$

In Stock, only 2 left!

0

25

Poulan 532124036

BRKT,STEERING

$

$

Not available

27

Poulan 532136874

GEAR.SECTOR

$80.99

$

In Stock, only 1 left!

0

29

Poulan 817490612

(Superseded to 874780612)

$7.49

$

In Stock, only 2 left!

0

32

Poulan 532130467

(Superseded to 532170162)

$93.99

$

In Stock, only 4 left!

0

33

Poulan 819111216

WASHER M
(Superseded to 734116301)

$3.49

$

Usually ships in 3-10 days

0

34

Poulan 810040500

LOCKWASHER

$4.99

$

Usually ships in 3-10 days

0

35

Poulan 873810500

LOCKNUT
(Superseded to 873610500)

$

$

Not available

36

Poulan 532145207

BUSHING STRG 3/4

$6.49

$

Usually ships in 3-10 days

0

38

Poulan 532126805

INSERT STR WHL
(Superseded to 532150546)

$78.99

$

Usually ships in 3-10 days

0

$

$

Not available

40

Poulan 532007810

NUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

41

Poulan 532100711

(Superseded to 532186737)

$9.49

$

In Stock, Qty 6

0

43

$3.49

$

Usually ships in 3-10 days

0

46

Poulan 532121232

CAP.SPINDLE.BLACK

$4.99

$

In Stock, Qty 8

0

47

Poulan 532006855

ZERK.GREASE.TAPERED
(Superseded to 532183226)

$7.49

$

In Stock, only 2 left!

0

56

Poulan 819131210

WASHER
(Superseded to 819121414)

$1.99

$

Usually ships in 3-10 days

0

58

Poulan 817490508

SCREW LT

$6.49

$

Usually ships in 3-10 days

0

59

Poulan 532105663

SUPPORT-SADDLE LT NLA

$

$

Not available

60

Poulan 532105664

SUP-SADDLE FRT LT

$9.49

$

Usually ships in 3-10 days

0

62

Poulan 532149683

KIT-STEERING
(Superseded to 532167904)

$170.99

$

Usually ships in 3-10 days

0

64

Poulan 532152927

SCREW.TT.#10-32X.5.3/8.FLANGE

$7.49

$

In Stock, only 2 left!

0
