418034 - Poulan Lawn Tractor (2006-01) MOWER DECK / CUTTING DECK Parts Diagram

Lawn Tractor

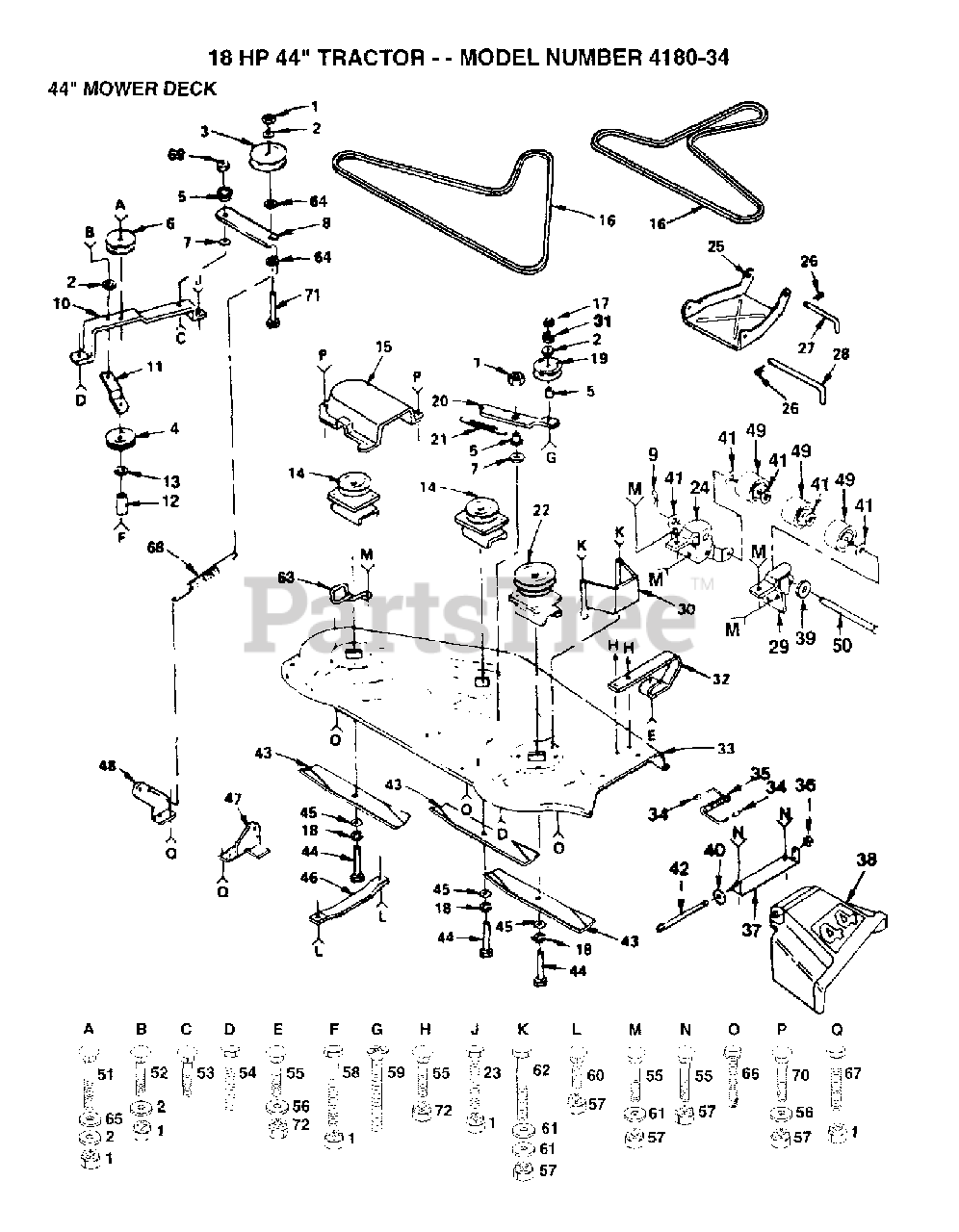

MOWER DECK / CUTTING DECK Parts Diagram

  • Title
1

Poulan 873680600

LOCKNUT
(Superseded to 596322601)

$3.99

$

In Stock, Qty 7

0

2

Poulan 819131614

(Superseded to 819131612)

$6.49

$

Usually ships in 3-10 days

0

3

Poulan 532121316

PULLEY IDLER

$51.99

$

In Stock, only 4 left!

0

4

Poulan 532102403

IDLER-FLAT T

$39.99

$

In Stock, only 1 left!

0

5

Poulan 532106902

SPACER RETAINER

$2.99

$

In Stock, only 2 left!

0

6

Poulan 532124858

IDLER-INSIDE T

$

$

Not available

7

Poulan 532106513

WASHER, WEAR LT (1 2)

$6.99

$

In Stock, only 4 left!

0

8

Poulan 532121425

ARM IDLER

$

$

Not available

9

Poulan 876020412

COTTER PIN
(Superseded to 596029501)

$3.99

$

In Stock, only 1 left!

0

10

Poulan 532106523

BAR-SUPPORT YT

$

$

Not available

11

Poulan 532106522

BRACE-IDLER YT

$2.99

$

Usually ships in 3-10 days

0

12

$

$

Not available

13

$4.99

$

In Stock, Qty 5

0

14

Poulan 532136818

MANDRELL
(Superseded to 532136819)

$

$

Not available

15

Poulan 532106214

GUARD YT
(Superseded to 106214X)

$

$

Not available

16

Poulan 532106085

V-BELT T

$43.99

$

Usually ships in 3-10 days

0

17

Poulan 873220600

NUT.HEX.3/8-16UNC

$6.49

$

In Stock, only 2 left!

0

18

Poulan 810030600

(Superseded to 810040600)

$1.99

$

Usually ships in 3-10 days

0

19

Poulan 532102932

IDLER.FLAT.GTV

$30.99

$

Usually ships in 3-10 days

0

20

Poulan 532106526

ARM-IDLER YT

$18.99

$

Usually ships in 3-10 days

0

21

Poulan 532007644

SPRING T

$

$

Not available

22

Poulan 532121704

JACKSHAFT YT
(Superseded to 532121705)

$

$

Not available

23

Poulan 874760614

BOLT
(Superseded to 874780616)

$6.49

$

Usually ships in 3-10 days

0

24

Poulan 532109599

BRACKET LH YTH

$

$

Not available

25

Poulan 532105662

LINK,PARALLEL

$

$

Not available

26

Poulan 532004921

SPRING.RETAINER

$6.49

$

In Stock, only 2 left!

0

27

Poulan 532105744

ROD,FRT PARALL LT

$

$

Not available

28

Poulan 532109835

HINGE PIN T

$

$

Not available

29

Poulan 532109600

BRACKET RH YTH

$

$

Not available

30

Poulan 532108119

GUARD BELT HYT

$

$

Not available

31

Poulan 810040600

WASHER, LOCK 3/8
(Superseded to 539990118)

$1.99

$

Usually ships in 3-10 days

0

32

Poulan 532124950

RUNNER-RH YTV
(Superseded to 532136321)

$

$

Not available

33

Poulan 532121423

HOUSING
(Superseded to 532144729)

$

$

Not available

34

Poulan 532105304

CAP-SLEEVE LT

$4.99

$

In Stock, Qty 20+

0

35

Poulan 532106734

DEFLECTOR SPRG T
(Superseded to 532123713)

$7.99

$

In Stock, only 1 left!

0

36

Poulan 532110452

NUT PUSH M

$3.99

$

Usually ships in 3-10 days

0

37

Poulan 532137607

BRACKET, DEFLECTOR

$6.49

$

In Stock, only 2 left!

0

38

Poulan 532109785

DEFLECTOR SHIELD

$30.99

$

Usually ships in 3-10 days

0

39

Poulan 819151616

WASHER
(Superseded to 734117801)

$

$

Not available

40

Poulan 819111016

WASHER
(Superseded to 734116301)

$3.49

$

Usually ships in 3-10 days

0

41

Poulan 819151610

(Superseded to 596040101)

$3.99

$

In Stock, Qty 20+

0

42

Poulan 532106735

ROD-HINGE T

$10.99

$

In Stock, only 1 left!

0

43

Poulan 532106635

BLADE
(Superseded to 532025034)

$

$

Not available

44

Poulan 874610624

BOLT.3/8-24X1-1/2

$6.49

$

In Stock, only 1 left!

0

45

Poulan 532061537

WASHER
(Superseded to 819132012)

$1.99

$

Usually ships in 3-10 days

0

46

Poulan 532007631

RUNNER LH

$18.99

$

Usually ships in 3-10 days

0

47

Poulan 532123807

BRKT SUSP REAR RH

$

$

Not available

48

Poulan 532123801

(Superseded to 532123808)

$

$

Not available

49

Poulan 532109729

ROLLER T
(Superseded to 109729X)

$

$

Not available

50

Poulan 532109776

PIVOT PIN T

$8.99

$

Usually ships in 3-10 days

0

51

Poulan 872140614

BOLT
(Superseded to 596987501)

$4.99

$

In Stock, only 3 left!

0

52

Poulan 872140608

(Superseded to 872110608)

$6.49

$

Usually ships in 3-10 days

0

$2.99

$

Usually ships in 3-10 days

0

$7.49

$

Usually ships in 3-10 days

0

55

Poulan 872140506

BOLT
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

56

Poulan 819111116

WASHER
(Superseded to 596204101)

$3.99

$

In Stock, Qty 11

0

57

Poulan 873680500

LOCKNUT
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

58

Poulan 874760648

(Superseded to 874780648)

$

$

Not available

59

Poulan 874110632

SCREW YT

$

$

Not available

60

Poulan 872110505

BOLT
(Superseded to 596039401)

$3.99

$

In Stock, Qty 20+

0

61

Poulan 819111216

WASHER M
(Superseded to 734116301)

$3.49

$

Usually ships in 3-10 days

0

$2.99

$

Usually ships in 3-10 days

0

63

Poulan 532121352

BELT RETIANER

$

$

Not available

64

Poulan 819131210

WASHER
(Superseded to 819121414)

$1.99

$

Usually ships in 3-10 days

0

65

Poulan 819131410

WASHER
(Superseded to 819121414)

$1.99

$

Usually ships in 3-10 days

0

66

Poulan 817490612

(Superseded to 874780612)

$7.49

$

In Stock, only 2 left!

0

$

$

Not available

68

Poulan 532102727

SPRING.EXT.8.5"

$

$

Not available

69

Poulan 532005394

LOCKNUT
(Superseded to 873930600)

$3.99

$

Usually ships in 3-10 days

0

70

Poulan 872110506

BOLT.5/16-18.

$7.49

$

In Stock, Qty 20+

0

71

Poulan 872140620

BOLT
(Superseded to 596337801)

$5.99

$

In Stock, Qty 11

0

72

Poulan 532001685

Lock Nut
(Superseded to 532068478)

$3.99

$

Usually ships in 3-10 days

0

Poulan 532121826

MOWER DECK COMPLE
(Superseded to 532131508)

$

$

Not available
