418024 - Poulan Lawn Tractor (2006-01) STEERING Parts Diagram

Lawn Tractor

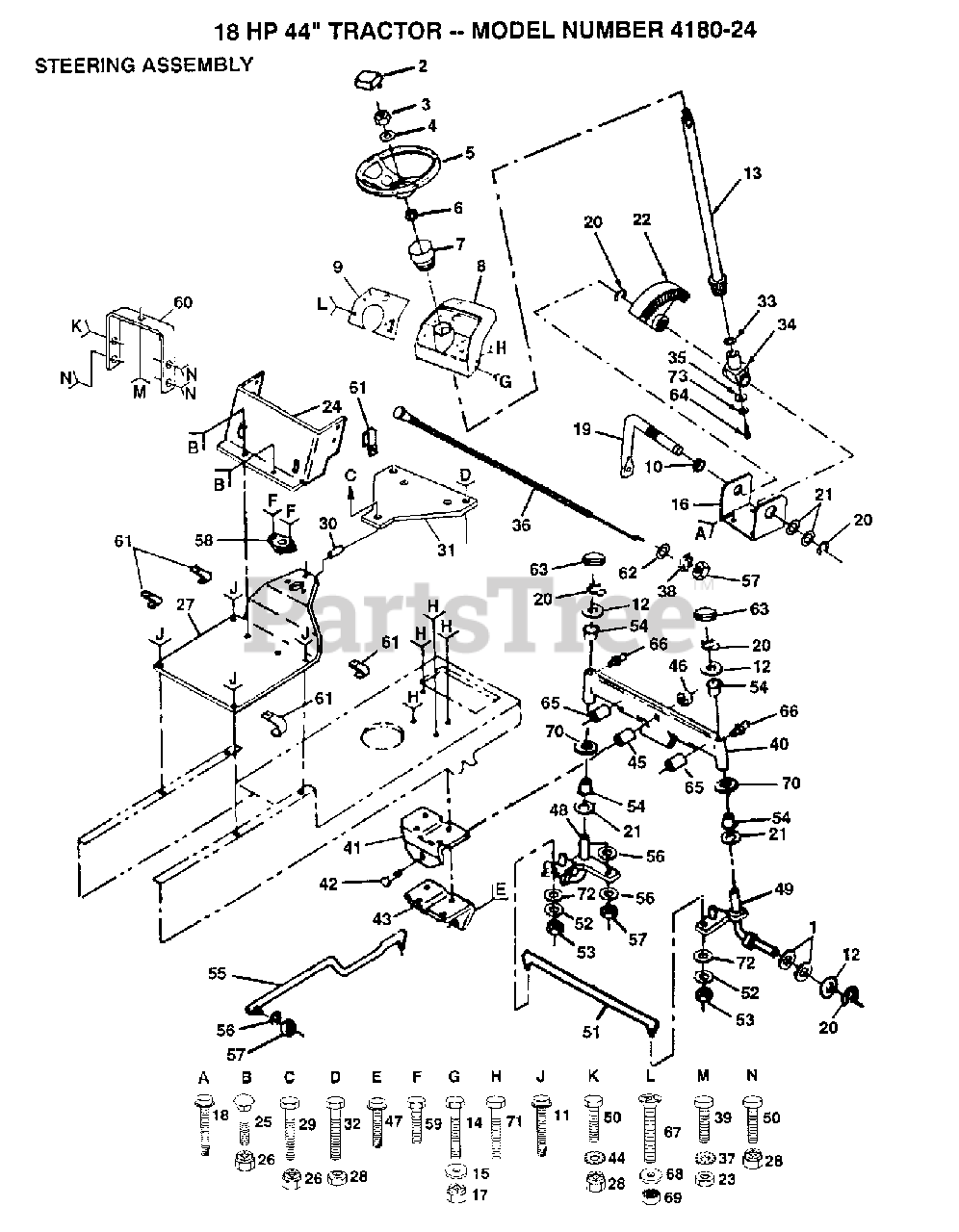

STEERING Parts Diagram

  • Title
1

$3.49

$

Usually ships in 3-10 days

0

2

Poulan 532126805

INSERT STR WHL
(Superseded to 532150546)

$78.99

$

Usually ships in 3-10 days

0

3

Poulan 873940800

NUT.HEX.1/2-20

$7.49

$

In Stock, only 4 left!

0

$

$

Not available

5

Poulan 532121472

Steering Wheel
(Superseded to 532150546)

$78.99

$

Usually ships in 3-10 days

0

6

Poulan 532100711

(Superseded to 532186737)

$9.49

$

In Stock, Qty 8

0

7

Poulan 532110709

(Superseded to 110709X)

$

$

Not available

8

Poulan 532124252

(Superseded to 532140398)

$

$

Not available

$

$

Not available

10

Poulan 532109816

NYLINER T (7283A)

$6.49

$

In Stock, only 2 left!

0

11

Poulan 817490608

SCREW LT

$6.49

$

Usually ships in 3-10 days

0

12

$4.99

$

In Stock, Qty 20+

0

13

Poulan 532124043

SHAFT ASS'Y STEER
(Superseded to 532128762)

$91.99

$

Usually ships in 3-10 days

0

14

Poulan 874760614

BOLT
(Superseded to 874780616)

$6.49

$

Usually ships in 3-10 days

0

15

Poulan 819131312

WASHER
(Superseded to 596133201)

$6.99

$

In Stock, only 1 left!

0

16

Poulan 532124036

BRKT,STEERING

$

$

Not available

17

Poulan 873680600

LOCKNUT
(Superseded to 596322601)

$3.99

$

In Stock, Qty 6

0

18

Poulan 817490612

(Superseded to 874780612)

$7.49

$

In Stock, only 2 left!

0

19

Poulan 532124033

SHAFT,PITMAN
(Superseded to 532127501)

$

$

Not available

20

Poulan 812000029

RING CLIP

$4.99

$

Usually ships in 3-10 days

0

21

Poulan 532006266

WASHER THRUST

$7.49

$

In Stock, Qty 11

0

22

Poulan 532124034

GEAR,SECTOR
(Superseded to 532136874)

$80.99

$

In Stock, only 1 left!

0

23

Poulan 873220400

NUT
(Superseded to 532050675)

$6.49

$

In Stock, only 1 left!

0

24

Poulan 532104805

DASH LOWER YT NLA

$

$

Not available

25

$

$

Not available

26

Poulan 873680500

LOCKNUT
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

27

$

$

Not available

28

Poulan 873680600

LOCKNUT
(Superseded to 596322601)

$3.99

$

In Stock, Qty 6

0

$2.99

$

Usually ships in 3-10 days

0

30

$

$

Not available

31

Poulan 532106965

PLATE SUPPORT T NLA

$

$

Not available

$4.99

$

In Stock, only 1 left!

0

33

Poulan 532057079

THRUST WASHER

$6.49

$

In Stock, Qty 11

0

34

Poulan 532124035

SHAFT,SUPPORT
(Superseded to 532160395)

$10.99

$

In Stock, Qty 8

0

35

Poulan 532126684

WASHER
(Superseded to 819091016)

$4.99

$

Usually ships in 3-10 days

0

36

Poulan 532122926

CONTROL CHOKE
(Superseded to 532132781)

$

$

Not available

37

Poulan 811050400

LOCKWASHER
(Superseded to 810040400)

$3.99

$

In Stock, only 2 left!

0

38

Poulan 811050600

LOCKWASHER
(Superseded to 810040600)

$1.99

$

Usually ships in 3-10 days

0

39

Poulan 874760614

BOLT
(Superseded to 874780616)

$6.49

$

Usually ships in 3-10 days

0

40

Poulan 532108075

AXLE ASSY T

$

$

Not available

41

Poulan 532105663

SUPPORT-SADDLE LT NLA

$

$

Not available

42

$6.49

$

Usually ships in 3-10 days

0

43

Poulan 532105664

SUP-SADDLE FRT LT

$9.49

$

Usually ships in 3-10 days

0

44

Poulan 811050600

LOCKWASHER
(Superseded to 810040600)

$1.99

$

Usually ships in 3-10 days

0

45

Poulan 532110438

(Superseded to 532155134)

$

$

Not available

46

Poulan 873601000

LOCK NUT
(Superseded to 873681000)

$3.49

$

Usually ships in 3-10 days

0

47

Poulan 817490508

SCREW LT

$6.49

$

Usually ships in 3-10 days

0

48

Poulan 532130460

SPINDLE
(Superseded to 532156483)

$26.99

$

Usually ships in 3-10 days

0

49

$

$

Not available

$4.99

$

In Stock, only 1 left!

0

51

Poulan 532130467

(Superseded to 532170162)

$93.99

$

In Stock, only 4 left!

0

52

Poulan 810040500

LOCKWASHER

$4.99

$

Usually ships in 3-10 days

0

53

Poulan 873810500

LOCKNUT
(Superseded to 873610500)

$

$

Not available

54

Poulan 532003366

BEARING.STEERING.COLUMN

$4.99

$

In Stock, Qty 20+

0

55

Poulan 532130468

DRAG LINK

$93.99

$

In Stock, only 1 left!

0

56

Poulan 810040600

WASHER, LOCK 3/8
(Superseded to 539990118)

$1.99

$

Usually ships in 3-10 days

0

57

Poulan 873610600

NUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

58

Poulan 532001554

BUSHING
(Superseded to 532155108)

$7.99

$

In Stock, only 1 left!

0

59

Poulan 817431008

SCREW LT
(Superseded to 98000165)

$2.99

$

Usually ships in 3-10 days

0

60

Poulan 532124130

SUPPORT ASS'Y

$

$

Not available

61

Poulan 532002751

CLIP T
(Superseded to 2751R)

$

$

Not available

62

$4.99

$

In Stock, Qty 5

0

63

Poulan 532121232

CAP.SPINDLE.BLACK

$4.99

$

In Stock, Qty 9

0

64

Poulan 871070410

(Superseded to 532165857)

$6.49

$

In Stock, only 4 left!

0

$

$

Not available

66

Poulan 532006855

ZERK.GREASE.TAPERED
(Superseded to 532183226)

$7.49

$

In Stock, only 2 left!

0

67

$

$

Not available

68

Poulan 819111116

WASHER
(Superseded to 596204101)

$3.99

$

In Stock, Qty 20+

0

$3.99

$

Usually ships in 3-10 days

0

70

$6.49

$

In Stock, only 2 left!

0

71

Poulan 532122819

SCREW SPECIAL

$

$

Not available

72

Poulan 819111216

WASHER M
(Superseded to 734116301)

$3.49

$

Usually ships in 3-10 days

0

73

Poulan 810040400

LOCKWASHER
(Superseded to 596029801)

$3.99

$

In Stock, only 2 left!

0
