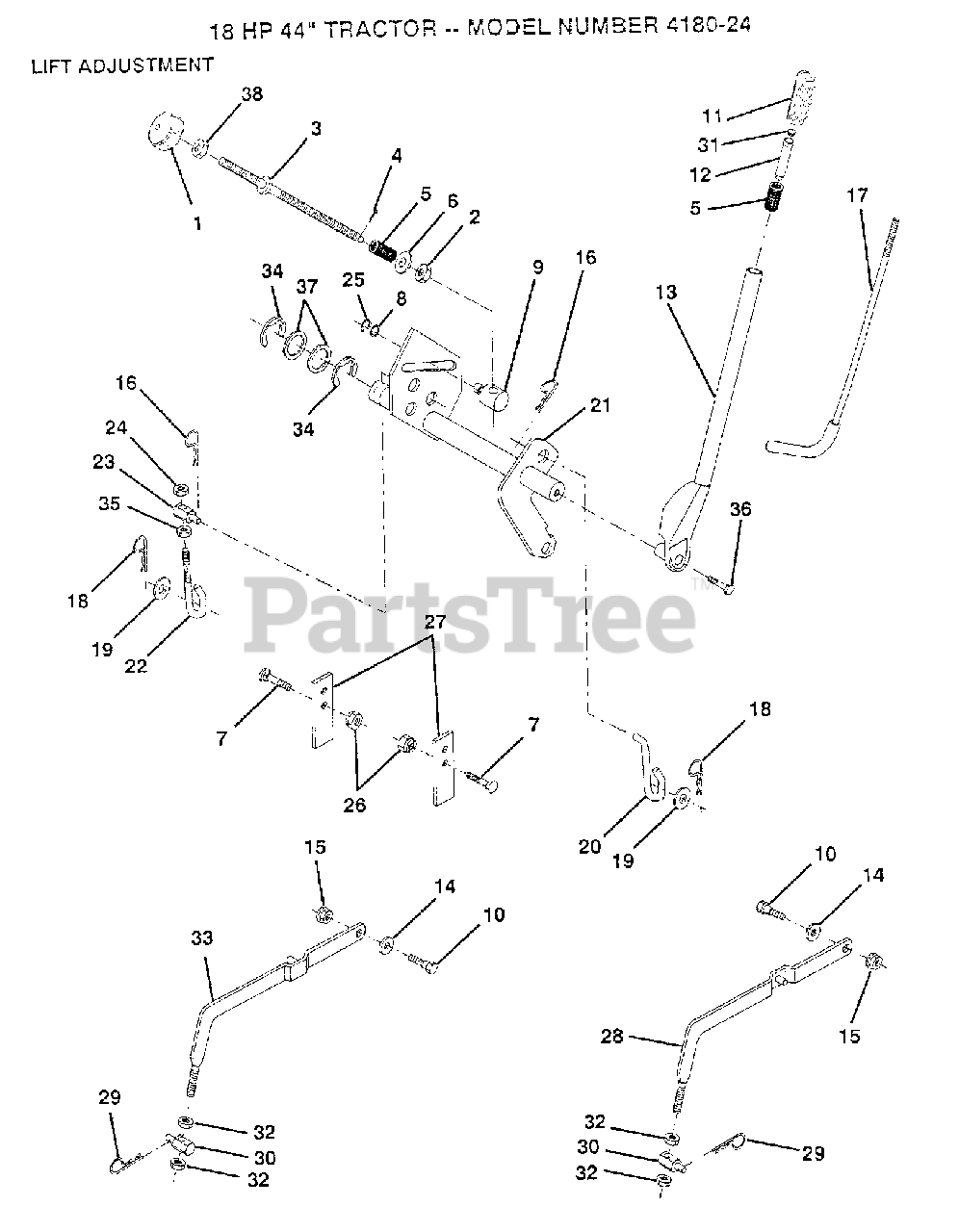

418024 - Poulan Lawn Tractor (2006-01) MOWER LIFT LEVER Parts Diagram

Lawn Tractor

MOWER LIFT LEVER Parts Diagram

  • Title
1

Poulan 532121891

HDLE ADJ LIFT
(Superseded to 121891X)

$

$

Not available

$

$

Not available

3

Poulan 532110729

ROD LIFT LT

$

$

Not available

4

Poulan 876020308

(Superseded to 532003145)

$

$

Not available

5

$7.49

$

Usually ships in 3-10 days

0

6

Poulan 532067510

WASHER
(Superseded to 819131016)

$6.49

$

In Stock, Qty 5

0

7

Poulan 872140608

(Superseded to 872110608)

$6.49

$

Usually ships in 3-10 days

0

8

Poulan 819151216

WASHER
(Superseded to 19151216)

$

$

Not available

9

Poulan 532110810

TRUNION LT

$

$

Not available

10

Poulan 532105848

BOLT, SHOULDER LT

$

$

Not available

11

Poulan 532109413

GRIP
(Superseded to 532125631)

$7.99

$

In Stock, only 1 left!

0

12

Poulan 532122364

PLUNGER BUT KIT
(Superseded to 532125925)

$

$

Not available

13

Poulan 532121002

LIFT LEVER KIT
(Superseded to 532123096)

$

$

Not available

14

Poulan 532110739

WASHER T

$4.99

$

Usually ships in 3-10 days

0

15

Poulan 873980600

(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

16

Poulan 532004939

RETAINER SPRING
(Superseded to 596919601)

$3.99

$

In Stock, Qty 20+

0

17

Poulan 532121006

LEVER ROD LT

$34.99

$

Usually ships in 3-10 days

0

18

Poulan 532004921

SPRING.RETAINER

$6.49

$

In Stock, only 2 left!

0

19

Poulan 819171516

WASHER T
(Superseded to 734117801)

$

$

Not available

20

Poulan 532110029

LIFT LINK LT

$

$

Not available

$

$

Not available

22

Poulan 532110448

LINK ADJ T

$7.99

$

Usually ships in 3-10 days

0

23

Poulan 532110447

TRUNNION T
(Superseded to 532132793)

$

$

Not available

24

Poulan 873710700

NUT LOCK YTH
(Superseded to 73710700)

$2.99

$

Usually ships in 3-10 days

0

25

Poulan 812000037

KLIP RING

$6.49

$

Usually ships in 3-10 days

0

26

Poulan 873680600

LOCKNUT
(Superseded to 596322601)

$3.99

$

In Stock, only 4 left!

0

27

$4.99

$

Usually ships in 3-10 days

0

28

Poulan 532121598

RH SUSP ARM ASM

$

$

Not available

29

Poulan 532009135

SPRING H

$4.99

$

Usually ships in 3-10 days

0

30

Poulan 532106308

(Superseded to 532130171)

$

$

Not available

31

Poulan 532124526

PLUNGER BUT KIT
(Superseded to 532125925)

$

$

Not available

32

Poulan 873220800

(Superseded to 873350800)

$

$

Not available

33

Poulan 532121599

LH SUSP ARM ASM

$

$

Not available

34

$4.99

$

Usually ships in 3-10 days

0

35

$5.99

$

Usually ships in 3-10 days

0

36

Poulan 874780624

Hex Bolt
(Superseded to 874930624)

$7.99

$

Usually ships in 3-10 days

0

37

$7.99

$

Usually ships in 3-10 days

0

38

Poulan 873350600

NUT
(Superseded to 873220600)

$6.49

$

In Stock, only 2 left!

0
