418014 - Poulan Lawn Tractor (2006-01) STEERING Parts Diagram

Lawn Tractor

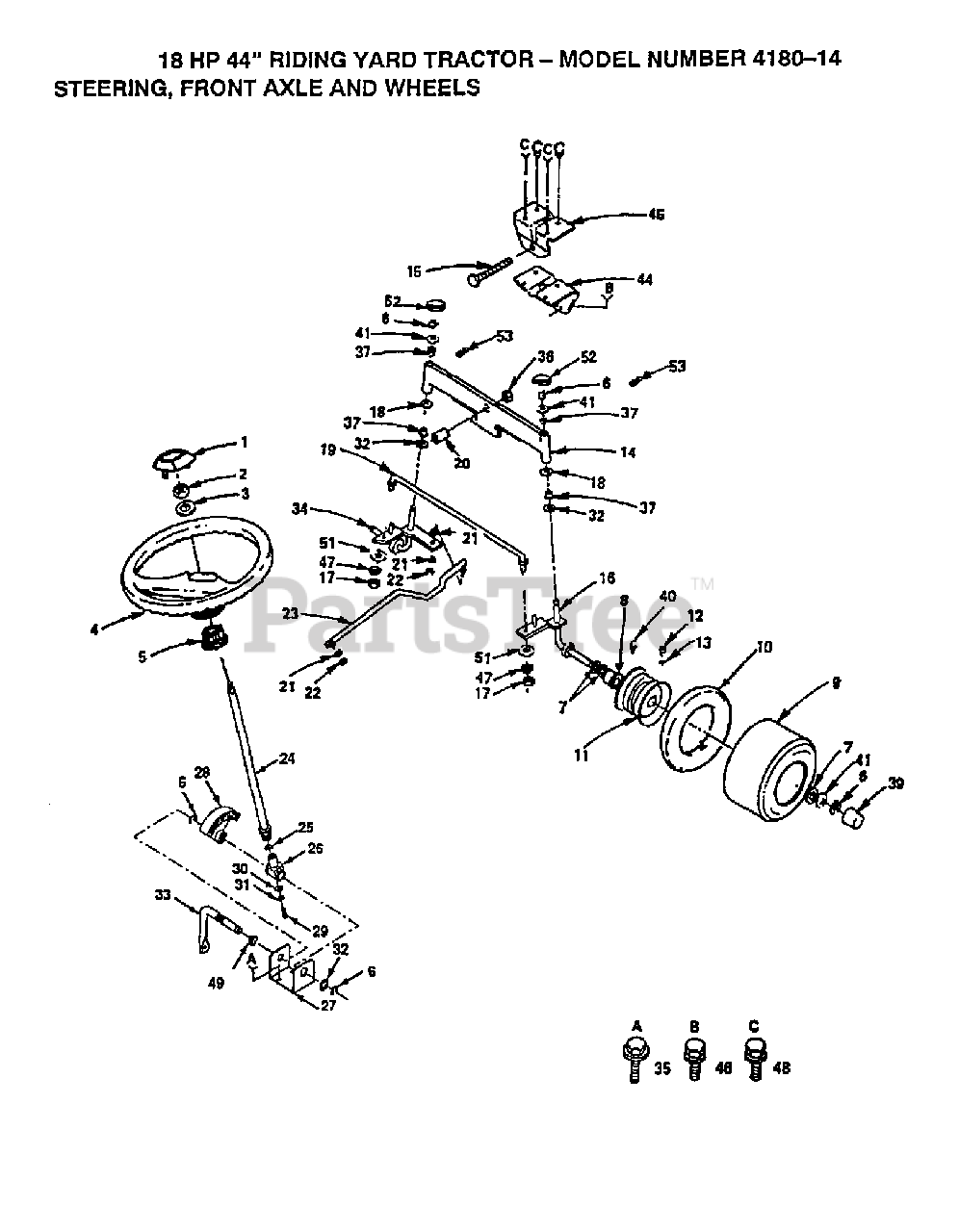

STEERING Parts Diagram

  • Title

1

Poulan 532126805

INSERT STR WHL
(Superseded to 532150546)

$78.99

$

Usually ships in 3-10 days

0

2

Poulan 873940800

NUT.HEX.1/2-20

$7.49

$

In Stock, only 4 left!

0

3

Poulan 532100712

$

$

Not available

4

Poulan 532121472

Steering Wheel
(Superseded to 532150546)

$78.99

$

Usually ships in 3-10 days

0

5

Poulan 532100711

(Superseded to 532186737)

$9.49

$

In Stock, Qty 6

0

6

Poulan 812000029

RING CLIP

$4.99

$

Usually ships in 3-10 days

0

7

Poulan 532121749

WASHER

$3.49

$

Usually ships in 3-10 days

0

8

Poulan 532009040

BEARING T

$7.99

$

In Stock, Qty 20+

0

9

Poulan 532106222

TIRE HEAVY DUTY
(Superseded to 532122073)

$74.99

$

Usually ships in 3-10 days

0

10

Poulan 532059904

TUBE.5.3/4.5/6

$37.99

$

In Stock, Qty 7

0

11

Poulan 532106732

RIM.ASM.6".FRONT.SILVER

$91.99

$

In Stock, only 4 left!

0

12

Poulan 532065139

VALVE STEM LT

$9.99

$

In Stock, only 1 left!

0

13

Poulan 532059192

VALVE CAP

$7.49

$

In Stock, Qty 9

0

14

Poulan 532108075

AXLE ASSY T

$

$

Not available

15

Poulan 874761060

BOLT LT

$6.49

$

Usually ships in 3-10 days

0

16

Poulan 532105654

SPINDLE-RH LT
(Superseded to 532130524)

$

$

Not available

17

Poulan 873810500

LOCKNUT
(Superseded to 873610500)

$

$

Not available

18

Poulan 819272016

WASHER

$6.49

$

In Stock, only 2 left!

0

19

Poulan 532121334

(Superseded to 532130467)

$93.99

$

In Stock, only 4 left!

0

20

Poulan 532110438

(Superseded to 532155134)

$

$

Not available

21

Poulan 810040600

WASHER, LOCK 3/8
(Superseded to 539990118)

$1.99

$

Usually ships in 3-10 days

0

22

Poulan 873610600

NUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

23

Poulan 539128122

$

$

Not available

24

Poulan 532124043

SHAFT ASS'Y STEER
(Superseded to 532128762)

$91.99

$

Usually ships in 3-10 days

0

25

Poulan 532057079

THRUST WASHER

$6.49

$

In Stock, Qty 10

0

26

Poulan 532124035

SHAFT,SUPPORT
(Superseded to 532160395)

$10.99

$

In Stock, Qty 7

0

27

Poulan 532124036

BRKT,STEERING

$

$

Not available

28

Poulan 532124034

GEAR,SECTOR
(Superseded to 532136874)

$80.99

$

In Stock, only 1 left!

0

29

Poulan 871070410

(Superseded to 532165857)

$6.49

$

In Stock, only 3 left!

0

30

Poulan 532126684

WASHER
(Superseded to 819091016)

$4.99

$

Usually ships in 3-10 days

0

31

Poulan 810040400

LOCKWASHER
(Superseded to 596029801)

$3.99

$

In Stock, only 2 left!

0

62

Poulan 532006266

WASHER THRUST

$7.49

$

In Stock, Qty 8

0

33

Poulan 532124033

SHAFT,PITMAN
(Superseded to 532127501)

$

$

Not available

34

Poulan 532105656

SPINDLE-LH LT
(Superseded to 532156483)

$26.99

$

Usually ships in 3-10 days

0

35

Poulan 817490612

(Superseded to 874780612)

$7.49

$

In Stock, only 2 left!

0

36

Poulan 873601000

LOCK NUT
(Superseded to 873681000)

$3.49

$

Usually ships in 3-10 days

0

37

Poulan 532003366

BEARING.STEERING.COLUMN

$4.99

$

In Stock, Qty 19

0

39

Poulan 532104757

CAP.HUB.FRONT.LT.BLACK

$4.99

$

In Stock, Qty 20+

0

40

Poulan 532000278

FITTING LT

$6.99

$

Usually ships in 3-10 days

0

41

Poulan 532121748

WASHER

$4.99

$

In Stock, Qty 20+

0

44

Poulan 532105664

SUP-SADDLE FRT LT

$9.49

$

Usually ships in 3-10 days

0

45

Poulan 532105663

SUPPORT-SADDLE LT NLA

$

$

Not available

46

Poulan 817490508

SCREW LT

$6.49

$

Usually ships in 3-10 days

0

47

Poulan 810040500

LOCKWASHER

$4.99

$

Usually ships in 3-10 days

0

48

Poulan 532122819

SCREW SPECIAL

$

$

Not available

49

Poulan 532109816

NYLINER T (7283A)

$6.49

$

In Stock, only 2 left!

0

51

Poulan 819111216

WASHER M
(Superseded to 734116301)

$3.49

$

Usually ships in 3-10 days

0

52

Poulan 532121232

CAP.SPINDLE.BLACK

$4.99

$

In Stock, Qty 8

0

53

Poulan 532006855

ZERK.GREASE.TAPERED
(Superseded to 532183226)

$7.49

$

In Stock, only 2 left!

0

Poulan 539127544

$

$

Not available
