4180-34 - Electrolux/AYP Lawn Tractor (1993) ELECTRICAL Parts Diagram

Lawn Tractor

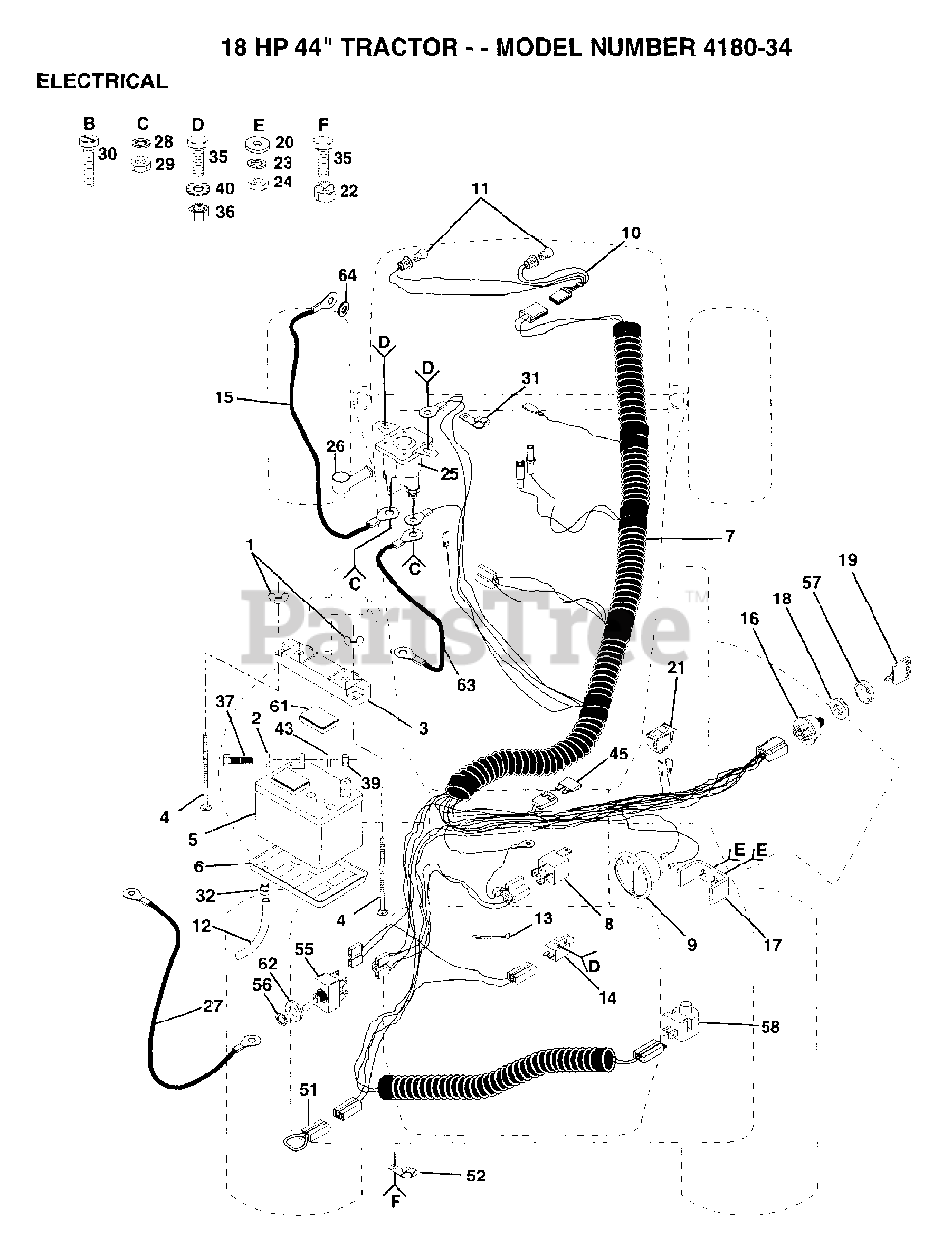

ELECTRICAL Parts Diagram

  • Title
1

Electrolux/AYP 123198X

SUB= 146525
(Superseded to 146525)

$

$

Not available

2

Electrolux/AYP 19091016

WASHER
(Superseded to 819091016)

$4.99

$

Usually ships in 3-10 days

0

3

Electrolux/AYP 102476X

SUB= 150109
(Superseded to 532102476)

$

$

Not available

4

Electrolux/AYP 72240460

BOLT
(Superseded to 872240460)

$6.49

$

Usually ships in 3-10 days

0

5

Electrolux/AYP 121537X

SUB= 123899X

$

$

Not available

6

Electrolux/AYP 7603J

"TRAY T, BATTERY"
(Superseded to 532007603)

$6.99

$

Usually ships in 3-10 days

0

7

Electrolux/AYP 139448

HARNESS.IGN

$

$

Not available

8

Electrolux/AYP 109748X

RELAY ASSY T
(Superseded to 532109748)

$30.99

$

In Stock, only 1 left!

0

9

Electrolux/AYP 9433R

AMMETER T
(Superseded to 532124900)

$45.99

$

Usually ships in 3-10 days

0

10

Electrolux/AYP 136849

SUB= 136850
(Superseded to 532136849)

$

$

Not available

11

Electrolux/AYP 7662J

SUB= 4152J
(Superseded to 532004152)

$4.99

$

Usually ships in 3-10 days

0

12

Electrolux/AYP 7697J

"DRAIN TU T, BATT"

$

$

Not available

13

Electrolux/AYP 7192J

WIRE TIE
(Superseded to 532007192)

$9.49

$

Usually ships in 3-10 days

0

14

Electrolux/AYP 104445X

SWITCH-INTER. GT
(Superseded to 532104445)

$17.99

$

In Stock, only 1 left!

0

15

Electrolux/AYP 4206J

CABLE-BATTERY T
(Superseded to 185464)

$

$

Not available

16

Electrolux/AYP 102972X

SUB= 918102972X
(Superseded to 532102972)

$

$

Not available

17

Electrolux/AYP 131708

SUB= 532131708

$

$

Not available

18

Electrolux/AYP 124211X

NUT IGNITION
(Superseded to 532124211)

$5.99

$

In Stock, only 1 left!

0

19

Electrolux/AYP 122147X

KEY
(Superseded to 532122147)

$

$

Not available

20

Electrolux/AYP 19070818

WASHER
(Superseded to 532004802)

$2.99

$

Usually ships in 3-10 days

0

21

Electrolux/AYP 110712X

SWITCH LT
(Superseded to 532110712)

$9.49

$

In Stock, only 2 left!

0

22

Electrolux/AYP 73680400

SUB= 73690400
(Superseded to 586668901)

$4.99

$

In Stock, Qty 15

0

23

Electrolux/AYP 10101000

SUB= 10071000

$

$

Not available

$

$

Not available

25

Electrolux/AYP 138406

SUB= 146154
(Superseded to 532138406)

$24.99

$

In Stock, only 2 left!

0

26

Electrolux/AYP 131563

SUB= 154336
(Superseded to 532154336)

$8.99

$

In Stock, only 2 left!

0

27

Electrolux/AYP 4207J

CABLE T
(Superseded to 532004207)

$8.99

$

Usually ships in 3-10 days

0

28

Electrolux/AYP 10090400

SUB= 10040400

$

$

Not available

29

Electrolux/AYP 73350400

NUT
(Superseded to 873350400)

$

$

Not available

30

Electrolux/AYP 17021008

SCREW
(Superseded to 817021008)

$4.99

$

In Stock, Qty 14

0

31

Electrolux/AYP 2751R

CLIP T
(Superseded to 532002751)

$

$

Not available

32

Electrolux/AYP 109596X

HOSE CLAMP T
(Superseded to 532109596)

$4.99

$

Usually ships in 3-10 days

0

35

Electrolux/AYP 74780408

BOLT
(Superseded to 874780408)

$3.99

$

Usually ships in 3-10 days

0

36

Murray 73510400

NUT
(Superseded to 873640400)

$

$

Not available

37

Electrolux/AYP 74760412

BOLT LT
(Superseded to 874760412)

$7.49

$

In Stock, only 1 left!

0

39

Electrolux/AYP 73220400

SUB= 50675
(Superseded to 532050675)

$6.49

$

In Stock, only 1 left!

0

40

$2.49

$

Usually ships in 3-10 days

0

43

Electrolux/AYP 10040400

LOCKWASHER
(Superseded to 810040400)

$3.99

$

In Stock, only 2 left!

0

45

Electrolux/AYP 108824X

FUSE HYT
(Superseded to 532108824)

$6.49

$

Usually ships in 3-10 days

0

51

Electrolux/AYP 102501X

SUB= 141940
(Superseded to 532141940)

$7.49

$

Usually ships in 3-10 days

0

52

Electrolux/AYP 235R

CLIPT
(Superseded to 583730001)

$2.99

$

Usually ships in 3-10 days

0

55

$

$

Not available

56

Electrolux/AYP 4022J

HEX NUT T
(Superseded to 532004022)

$

$

Not available

57

Electrolux/AYP 123620X

SUB= 141226
(Superseded to 532141226)

$5.99

$

Usually ships in 3-10 days

0

58

Electrolux/AYP 121305X

SWITCH SEAT
(Superseded to 532421062)

$14.99

$

In Stock, only 1 left!

0

61

Electrolux/AYP 121264X

"CAP,BATTERY "
(Superseded to 532121264)

$

$

Not available

62

Electrolux/AYP 19171216

WASHER
(Superseded to 819171216)

$

$

Not available

63

Electrolux/AYP 4799J

"CABLE T, BATTERY"
(Superseded to 532004799)

$10.99

$

Usually ships in 3-10 days

0

64

Electrolux/AYP 11150400

LOCKWASHER
(Superseded to 811150400)

$2.99

$

Usually ships in 3-10 days

0
