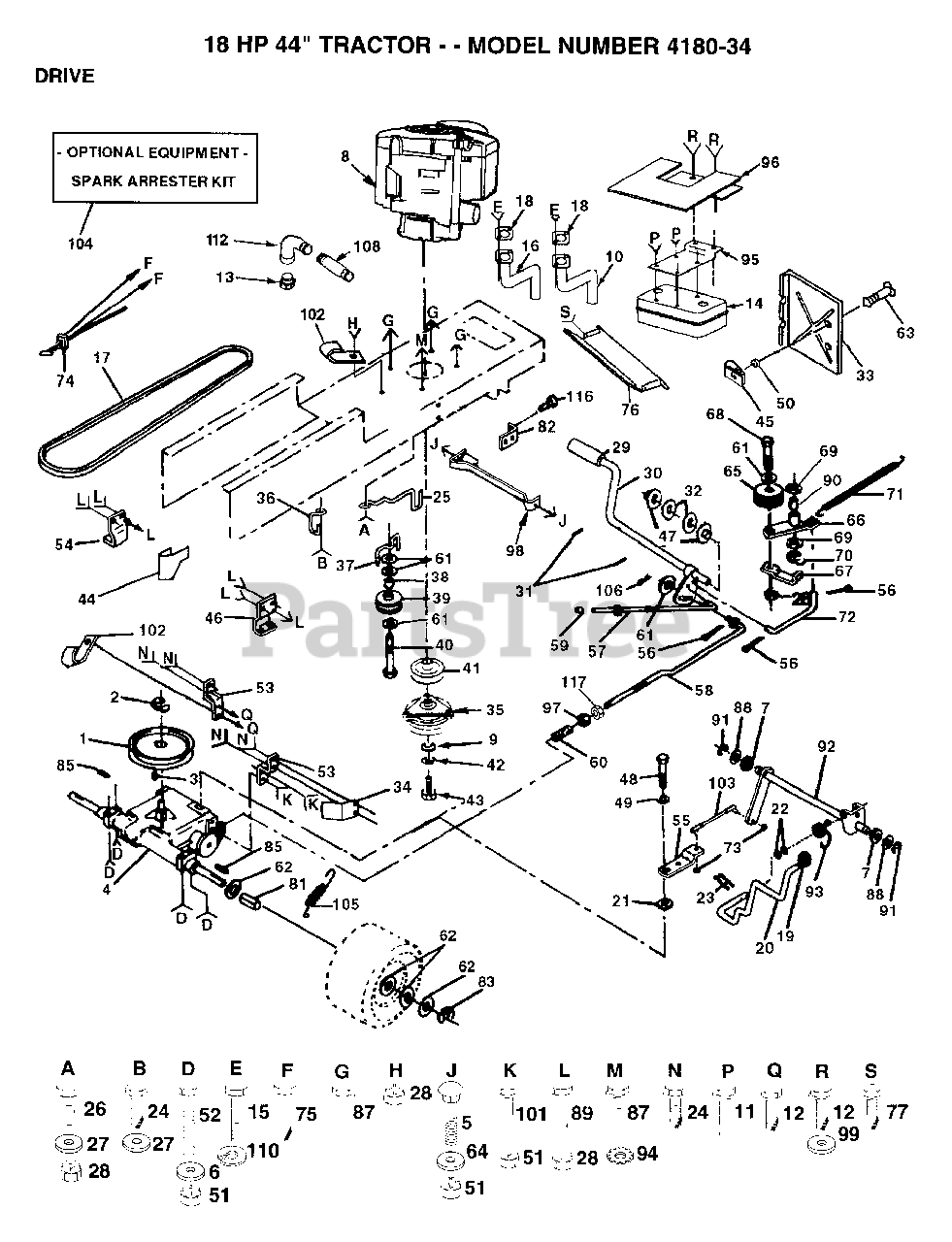

4180-34 - Electrolux/AYP Lawn Tractor (1993) DRIVE Parts Diagram

Lawn Tractor

DRIVE Parts Diagram

  • Title
1

Electrolux/AYP 121327X

PULLEY TRANSAXLE
(Superseded to 532121327)

$

$

Not available

3

Murray 2228M

SUB= 2228M1

$

$

Not available

4

Electrolux/AYP 138788

TRANSAX. PRLES.

$

$

Not available

5

Electrolux/AYP 72140506

BOLT
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

6

Electrolux/AYP 19111214

WASHER
(Superseded to 819111214)

$

$

Not available

7

Electrolux/AYP 71208

BUSHING
(Superseded to 532071208)

$3.99

$

Usually ships in 3-10 days

0

$

$

Not available

9

Electrolux/AYP 126197X

WASHER
(Superseded to 532126197)

$8.99

$

In Stock, only 3 left!

0

10

Electrolux/AYP 136988

SUB= 144068

$

$

Not available

11

Electrolux/AYP 17190408

SCREW ST
(Superseded to 817240408)

$7.49

$

Usually ships in 3-10 days

0

12

Electrolux/AYP 17490512

SCREW
(Superseded to 583607701)

$7.49

$

In Stock, only 2 left!

0

13

CHECK WITH SUPPLIER

$

$

Not available

14

Electrolux/AYP 137978

SUB= 149723

$

$

Not available

15

Electrolux/AYP 74780412

SUB= 74780414
(Superseded to 874780412)

$

$

Not available

16

Electrolux/AYP 136989

EXHAUST ASM LH
(Superseded to 532144069)

$37.99

$

Usually ships in 3-10 days

0

17

Electrolux/AYP 123796X

BELT.GRDRV.94.75
(Superseded to 532123796)

$

$

Not available

18

Electrolux/AYP 8545J

SUB= 272250

$

$

Not available

19

Electrolux/AYP 106933X

KNOB T (1/2-HOLE)
(Superseded to 532106933)

$7.99

$

In Stock, only 1 left!

0

20

Electrolux/AYP 123781X

SUB= 141002
(Superseded to 141002)

$

$

Not available

21

Electrolux/AYP 105701X

WASH-SHFT PLT LT
(Superseded to 532105701)

$6.49

$

Usually ships in 3-10 days

0

22

Electrolux/AYP 19171216

WASHER
(Superseded to 819171216)

$

$

Not available

23

Electrolux/AYP 76020416

PIN COTTER 1/8
(Superseded to 876020416)

$3.99

$

Usually ships in 3-10 days

0

24

Electrolux/AYP 17490612

SCREW
(Superseded to 817000612)

$4.99

$

In Stock, only 2 left!

0

25

Electrolux/AYP 129921

KEEPER.BELT.ENG.L
(Superseded to 532129921)

$

$

Not available

26

Electrolux/AYP 74760616

BOLT
(Superseded to 874780616)

$6.49

$

Usually ships in 3-10 days

0

27

Electrolux/AYP 19131312

WASHER
(Superseded to 596133201)

$6.99

$

In Stock, Qty 5

0

28

Electrolux/AYP 73680600

SUB= 73690600
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

29

Electrolux/AYP 8883R

PEDAL COVER T
(Superseded to 532008883)

$6.49

$

Usually ships in 3-10 days

0

30

Electrolux/AYP 122424X

SUB= 149001
(Superseded to 532122424)

$

$

Not available

31

Murray 1572H

SUB= 2882J

$

$

Not available

32

Electrolux/AYP 19211616

WASHER LT
(Superseded to 819211616)

$6.49

$

Usually ships in 3-10 days

0

33

Electrolux/AYP 133746

HEAT SHIELD
(Superseded to 133747)

$

$

Not available

34

Electrolux/AYP 123792X

"KEEPER,BELT RH"
(Superseded to 532123792)

$

$

Not available

35

Electrolux/AYP 137140

SUB= 142600
(Superseded to 532142600)

$

$

Not available

36

Electrolux/AYP 136715

SUB= 140312

$

$

Not available

37

Electrolux/AYP 109070X

BELT KEEPER LT
(Superseded to 532109070)

$6.49

$

Usually ships in 3-10 days

0

38

Electrolux/AYP 4470J

SPACER T
(Superseded to 532124965)

$6.49

$

Usually ships in 3-10 days

0

39

Electrolux/AYP 123674X

PULLEY.IDLER.FLAT
(Superseded to 532123674)

$31.99

$

In Stock, only 1 left!

0

40

Electrolux/AYP 74760644

BOLT
(Superseded to 874760644)

$6.49

$

Usually ships in 3-10 days

0

41

Electrolux/AYP 136906

PULLEY ENGINE
(Superseded to 532123795)

$

$

Not available

42

Electrolux/AYP 10040700

LOCKWASHER
(Superseded to 810040700)

$3.99

$

In Stock, Qty 20+

0

43

$

$

Not available

44

Electrolux/AYP 123791X

KEEPER BELT LH
(Superseded to 532123791)

$

$

Not available

45

Electrolux/AYP 105839X

RECEPTACLE LT
(Superseded to 532105839)

$3.99

$

In Stock, only 1 left!

0

46

Electrolux/AYP 123776X

BRKT TRANS RH
(Superseded to 532123776)

$

$

Not available

47

Electrolux/AYP 120183X

NYLON BEARING
(Superseded to 532120183)

$6.99

$

In Stock, only 3 left!

0

48

Electrolux/AYP 71040412

SUB= 74550412

$

$

Not available

49

Electrolux/AYP 19091216

WASHER PM
(Superseded to 819091216)

$4.99

$

In Stock, only 1 left!

0

50

Electrolux/AYP 105838X

RETAINER LT
(Superseded to 532105838)

$6.49

$

Usually ships in 3-10 days

0

51

Murray 73680500

SUB= 73690500
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

52

Electrolux/AYP 74760540

BOLT
(Superseded to 874760540)

$2.99

$

Usually ships in 3-10 days

0

53

Electrolux/AYP 123787X

STRAP TORQUE
(Superseded to 532123787)

$4.99

$

Usually ships in 3-10 days

0

54

Electrolux/AYP 123780X

BRKT TRANS LH
(Superseded to 532123780)

$4.99

$

Usually ships in 3-10 days

0

55

Electrolux/AYP 123794X

"ARM,SHIFT"
(Superseded to 532123794)

$

$

Not available

56

Electrolux/AYP 76020412

COTTER PIN
(Superseded to 596029501)

$3.99

$

In Stock, only 1 left!

0

57

Electrolux/AYP 133261

BRAKE PARK ROD
(Superseded to 532133261)

$

$

Not available

58

Electrolux/AYP 123786X

ROD BRAKE
(Superseded to 532123786)

$

$

Not available

59

Electrolux/AYP 71673

PLUNGER CAP T
(Superseded to 532071673)

$5.99

$

Usually ships in 3-10 days

0

60

Electrolux/AYP 126909X

"SPRING,ROD BRAKE"
(Superseded to 532126909)

$5.99

$

Usually ships in 3-10 days

0

61

Electrolux/AYP 19131316

WASHER
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

62

Electrolux/AYP 123800X

WASHER
(Superseded to 532123800)

$7.49

$

In Stock, only 1 left!

0

63

Electrolux/AYP 123650X

STUD.1/4.TURN
(Superseded to 532123650)

$6.49

$

Usually ships in 3-10 days

0

64

Electrolux/AYP 19111012

WASHER T
(Superseded to 819111012)

$6.49

$

Usually ships in 3-10 days

0

65

Murray 127783

SUB= 139245

$

$

Not available

66

Electrolux/AYP 123789X

ARM IDLER
(Superseded to 532123789)

$

$

Not available

67

Electrolux/AYP 123205X

RETAIN BELT
(Superseded to 532123205)

$6.49

$

Usually ships in 3-10 days

0

68

Electrolux/AYP 74760624

SUB= 74930624
(Superseded to 874760624)

$7.99

$

Usually ships in 3-10 days

0

69

Electrolux/AYP 110812X

WASHER LT
(Superseded to 532110812)

$

$

Not available

70

Electrolux/AYP 12000039

KLIP RING
(Superseded to 812000039)

$6.49

$

In Stock, Qty 7

0

71

Electrolux/AYP 105709X

"SPRING, RETURN LT"
(Superseded to 532105709)

$11.99

$

Usually ships in 3-10 days

0

72

Electrolux/AYP 105710X

"LINK, CLUTCH T"
(Superseded to 532199652)

$13.99

$

Usually ships in 3-10 days

0

73

Electrolux/AYP 73530400

NUT 1/4-28
(Superseded to 873530400)

$5.99

$

Usually ships in 3-10 days

0

74

Electrolux/AYP 132748

SUB= 532132748

$

$

Not available

75

Electrolux/AYP 17720410

SCREW LT
(Superseded to 817720410)

$

$

Not available

76

Electrolux/AYP 128953

HEAT SHIELD
(Superseded to 532128953)

$

$

Not available

77

Electrolux/AYP 17021008

SCREW
(Superseded to 817021008)

$4.99

$

In Stock, Qty 14

0

81

Electrolux/AYP 108097X

SPACER HYT
(Superseded to 532108097)

$6.49

$

Usually ships in 3-10 days

0

82

Electrolux/AYP 108236X

BRACKET LT
(Superseded to 532108236)

$2.99

$

Usually ships in 3-10 days

0

83

Electrolux/AYP 12000053

E RING HYT
(Superseded to 812000053)

$7.49

$

Usually ships in 3-10 days

0

85

Electrolux/AYP 9396E

SQ KEY STD
(Superseded to 532009396)

$3.99

$

Usually ships in 3-10 days

0

87

Electrolux/AYP 17490624

SCREW LT
(Superseded to 817060624)

$7.49

$

In Stock, only 1 left!

0

88

Electrolux/AYP 19212016

WASHER D
(Superseded to 819212016)

$6.49

$

Usually ships in 3-10 days

0

89

Electrolux/AYP 74760612

SUB= 74780612
(Superseded to 874760612)

$4.99

$

In Stock, only 3 left!

0

90

Electrolux/AYP 105706X

"LY, BEARING"
(Superseded to 532105706)

$7.49

$

Usually ships in 3-10 days

0

91

Electrolux/AYP 12000008

KLIP RING
(Superseded to 812000008)

$6.49

$

Usually ships in 3-10 days

0

92

Electrolux/AYP 123772X

"SHAFT,SHIFTER"
(Superseded to 532123772)

$

$

Not available

93

Electrolux/AYP 123782X

"SPRING,TORSION"
(Superseded to 532123782)

$

$

Not available

94

Electrolux/AYP 11050600

LOCKWASHER
(Superseded to 810040600)

$1.99

$

Usually ships in 3-10 days

0

95

Electrolux/AYP 122439X

BRACKET MUFFLER
(Superseded to 532122439)

$

$

Not available

96

Electrolux/AYP 128199

SUB= 145552

$

$

Not available

97

Electrolux/AYP 73800600

NUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

98

Electrolux/AYP 137141

BRACKET.ASM.MTG
(Superseded to 532137141)

$

$

Not available

99

Electrolux/AYP 19132012

WASHER
(Superseded to 819132012)

$1.99

$

Usually ships in 3-10 days

0

101

Electrolux/AYP 74760640

BOLT
(Superseded to 874760640)

$

$

Not available

102

Electrolux/AYP 2751R

CLIP T
(Superseded to 532002751)

$

$

Not available

103

Electrolux/AYP 123793X

"ROD,TIE "
(Superseded to 532166230)

$28.99

$

Usually ships in 3-10 days

0

104

Electrolux/AYP 121851X

SUB= 532137180

$

$

Not available

105

$

$

Not available

106

Electrolux/AYP 4497H

RETAINER M
(Superseded to 532004497)

$9.99

$

In Stock, Qty 12

0

108

Electrolux/AYP 13280336

PIPE NIPPLE LT
(Superseded to 532428287)

$18.99

$

In Stock, Qty 5

0

110

Electrolux/AYP 10040400

LOCKWASHER
(Superseded to 810040400)

$3.99

$

In Stock, only 2 left!

0

112

Electrolux/AYP 13200300

ELBOW
(Superseded to 532428287)

$18.99

$

In Stock, Qty 5

0

116

Electrolux/AYP 17021008

SCREW
(Superseded to 817021008)

$4.99

$

In Stock, Qty 14

0

117

Electrolux/AYP 73350600

NUT
(Superseded to 873220600)

$6.49

$

In Stock, only 2 left!

0
