418 (217-418-100) - Cub Cadet Rear-Tine Tiller Engine (1987) KOL 8.0 HP-K181t Ps 301005-Group 15-Fuel Tank Parts Diagram

Rear-Tine Tiller Engine

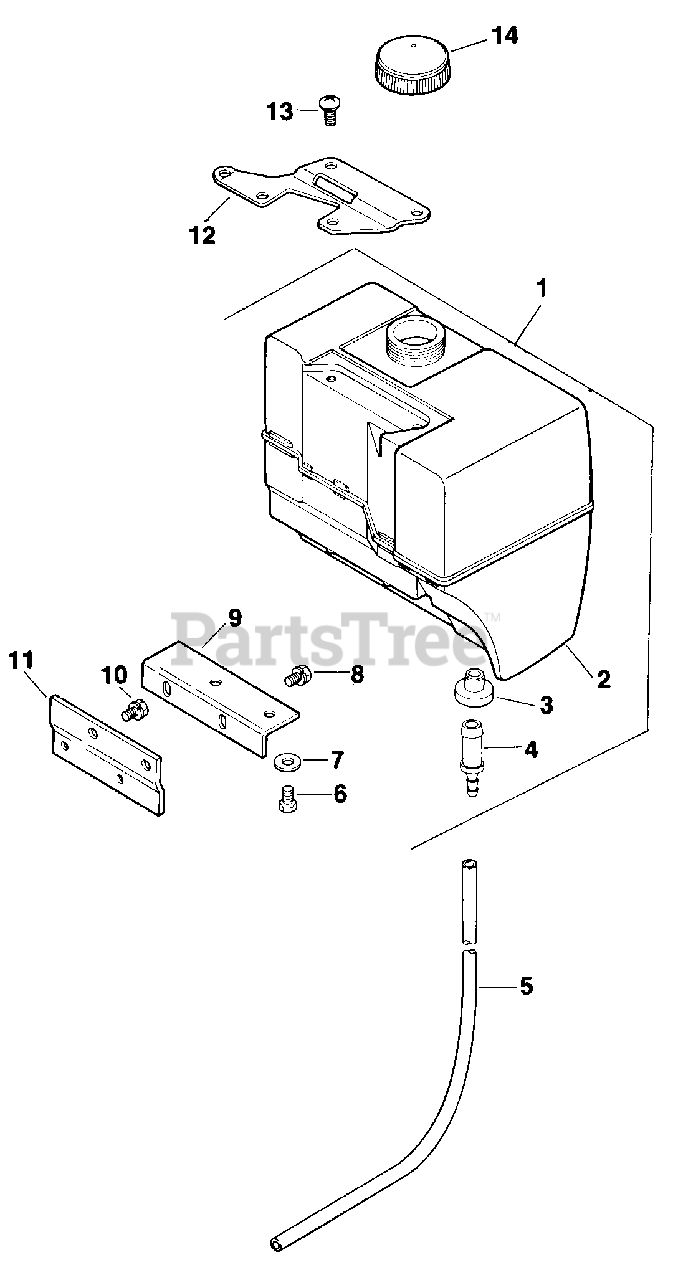

KOL 8.0 HP-K181t Ps 301005-Group 15-Fuel Tank Parts Diagram

  • Title

1

Cub Cadet KH-41-721-03

Kit, Fuel Tank (Includes 2-4 & 9)

$

$

Not available

2

Cub Cadet KH-41-065-11

Fuel Tank Assembly (Includes 3 & 4)

$

$

Not available

3

Cub Cadet KH-41-158-03

Bushing, Fuel Tank

$

$

Not available

4

Cub Cadet KH-41-294-01

Fitting, Straight Fuel

$

$

Currently unavailable

5

Cub Cadet KH-41-353-12

Line, Fuel

$

$

Not available

6

Cub Cadet KH-X-5-1

Screw, H.C. 1/4-20 x 5/8

$

$

Currently unavailable

7

Cub Cadet KH-X-25-53

Washer, Plain 1/4

$

$

Not available

8

Cub Cadet KH-X-132-1

Screw, H.C. Sems 1/4-20 x 3/8

$

$

Currently unavailable

9

Cub Cadet KH-41-126-29

Bracket, Fuel Tank

$

$

Currently unavailable

10

Cub Cadet KH-X-132-2

Screw, H.C. Sems 1/4-20 x 3/4

$

$

Not available

11

Cub Cadet KH-41-126-33

Bracket, Lower Tank

$

$

Currently unavailable

12

Cub Cadet KH-41-126-26

Bracket, Upper Tank Support

$

$

Currently unavailable

13

Cub Cadet KH-41-086-18

Screw, Pozidrive T.H. 1/4-20 x 5/8

$

$

Not available

14

Cub Cadet KH-41-173-06

Cap, Fuel Tank
(Superseded to KH-25-173-02)

$

$

Not available
