418 (212-418-100) - Cub Cadet Rear-Tine Tiller (1982) Handle Panel, Tine Shield and Tine Assemblies Parts Diagram

Rear-Tine Tiller

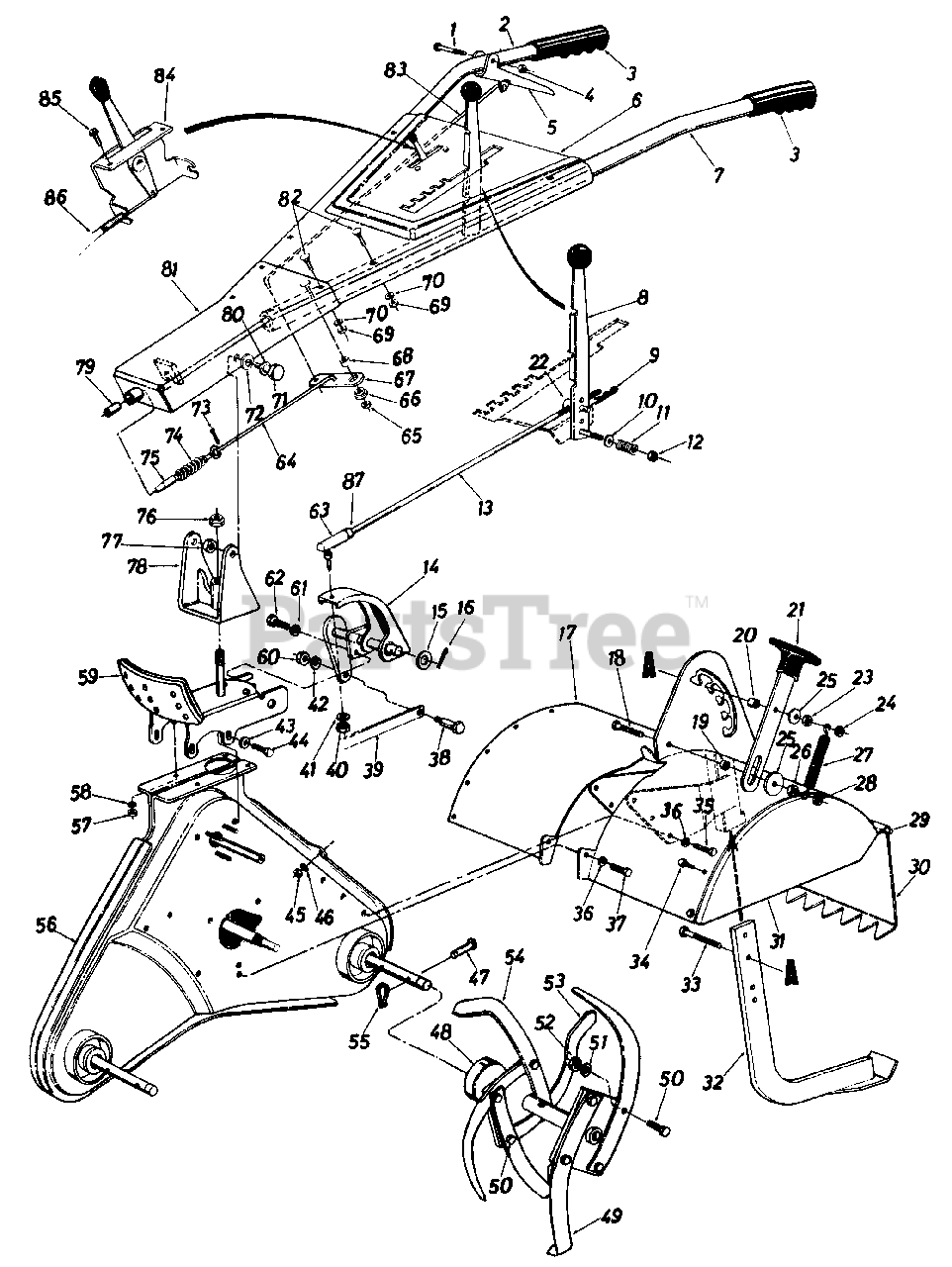

Handle Panel, Tine Shield and Tine Assemblies Parts Diagram

  • Title

1

Cub Cadet 710-0136

Hex Bolt 1/4-20 x 1.75" Lg.

$3.99

$

In Stock, Qty 20+

0

2

Cub Cadet 749-0268

Handle - R.H.

$

$

Not available

3

Cub Cadet 720-0180

Grip
(Superseded to 720-04083)

$14.99

$

In Stock, only 2 left!

0

4

Cub Cadet 712-0107

Hex Cent. L-Nut 1/4-20 Thd.
(Superseded to 912-0107)

$4.99

$

In Stock, only 1 left!

0

5

Cub Cadet 04830

Clutch Grip

$

$

Currently unavailable

6

Cub Cadet 04831

Handle Panel Ass'y.

Note: Color Code - 499

$

$

Currently unavailable

7

Cub Cadet 749-0269

Handle - L.H.

$

$

Not available

8

Cub Cadet 04810

Clutch Handle Ass'y.

$

$

Currently unavailable

9

Cub Cadet 714-0149

Hairpin Cotter
(Superseded to 914-0149B)

$

$

Not available

10

Cub Cadet 736-0105

Belleville Wash. .38" I.D.

$4.49

$

In Stock, Qty 20+

0

11

Cub Cadet 732-0193

Compression Spring .88" O.D. x .81" Lg.

$4.99

$

In Stock, Qty 6

0

12

Cub Cadet 712-0214

Hex Cent. L-Nut 3/8-24 Thd.

$6.49

$

In Stock, only 3 left!

0

13

Cub Cadet 747-0278

Gear Shift Rod

$

$

Currently unavailable

14

Cub Cadet 14734

Pivot Horn Ass'y.

Note: Color Code - 499; New Part

$

$

Currently unavailable

15

Cub Cadet 736-0290

Fl-Wash. .630 I.D. x 1.0" O.D. x .063

$6.99

$

In Stock, Qty 20+

0

16

Cub Cadet 714-0474

Cotter Pin 1/8" Dia. x .75" Lg.

$4.99

$

In Stock, Qty 13

0

17

Cub Cadet 14725

Tine Shield Ass'y.

Note: Color Code - 499; New Part

$

$

Currently unavailable

18

Cub Cadet 710-0347

Hex Bolt 3/8-16 x 1.75" Lg.

$5.49

$

In Stock, Qty 20+

0

19

Cub Cadet 750-0527

Spacer .38 I.D. x .50 O.D. x .18 Lg.

Note: New Part

$

$

Not available

20

Cub Cadet 750-0528

Spacer .38 I.D. x .50 O.D. x .38 Lg.
(Superseded to 950-0528)

Note: New Part

$

$

Not available

21

Cub Cadet 14843

Depth Bar Handle Ass'y. w/Knob

Note: New Part

$

$

Currently unavailable

22

Cub Cadet 711-0198

Ferrule
(Superseded to 911-0198)

$13.99

$

In Stock, Qty 17

0

23

Cub Cadet 712-0798

Hex Nut 3/8-16 Thd.

$4.49

$

In Stock, Qty 12

0

24

Cub Cadet 712-0130

Hex Ins. L-Nut 3/8-16 Thd.

$3.99

$

In Stock, Qty 11

0

25

Cub Cadet 736-0227

Fl-Wash .38 I.D. x 1.50 O.D. x .13

$6.49

$

In Stock, Qty 13

0

26

Cub Cadet 712-0798

Hex Nut 3/8-16 Thd.

$4.49

$

In Stock, Qty 12

0

27

Cub Cadet 732-0416

Spring - Depth Bar

Note: New Part

$

$

Not available

28

Cub Cadet 712-0130

Hex Ins. L-Nut 3/8-16 Thd.

$3.99

$

In Stock, Qty 11

0

29

Cub Cadet 747-0252

Hinge Rod

$

$

Currently unavailable

30

Cub Cadet 04804

Tine Shield Hinge Flap Ass'y.

$

$

Currently unavailable

31

Cub Cadet 14739

Side Cover Tine Shield - L.H.

Note: New Part

$

$

Currently unavailable

Cub Cadet 14738

Side Cover Tine Shield - R.H.

Note: (Not Shown); New Part

$

$

Currently unavailable

32

Cub Cadet 14731

Depth/Drag Bar Ass'y.

Note: Color Code - 499; New Part

$

$

Currently unavailable

33

Cub Cadet 710-0347

Hex Bolt 3/8-16 x 1.75" Lg.

$5.49

$

In Stock, Qty 20+

0

34

Cub Cadet 710-0599

Hex Wash. Hd. Self-Tap Scr. 1/4-20 x .50" Lg.

$4.49

$

In Stock, Qty 20+

0

35

Cub Cadet 710-0623

Hex Wash. Hd. Self-Tap Scr.

$4.49

$

In Stock, Qty 20+

0

36

Cub Cadet 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

37

Cub Cadet 710-0623

Hex Wash. Hd. Self-Tap Scr.

$4.49

$

In Stock, Qty 20+

0

38

Cub Cadet 738-0258

Shoulder Bolt .50" Dia. x .25" Lg.
(Superseded to 938-0258)

$

$

Not available

39

Cub Cadet 04841

Control Bracket

$

$

Currently unavailable

40

Cub Cadet 712-0116

Hex Ins. L-Nut 3/8-24 Thd.

$4.99

$

In Stock, Qty 6

0

41

Cub Cadet 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

42

Cub Cadet 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

43

Cub Cadet 736-0105

Belleville Wash.

$4.49

$

In Stock, Qty 20+

0

44

Cub Cadet 710-0623

Hex Wash. Hd. Self-Tap Scr.

$4.49

$

In Stock, Qty 20+

0

45

Cub Cadet 712-0241

Hex Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 13

0

46

Cub Cadet 736-0169

L-Wash. 3/8" Scr.

$3.99

$

In Stock, Qty 20+

0

47

Cub Cadet 711-0679

Clevis Pin
(Superseded to 711-0679A)

$14.99

$

In Stock, only 2 left!

0

48

Cub Cadet 15231

Tine Adapter Ass'y.

$

$

Currently unavailable

49

Cub Cadet 15229

L.H. Tine Ass'y. Comp.

$

$

Currently unavailable

Cub Cadet 15230

R.H. Tine Ass'y. Comp.

Note: (Not Shown)

$

$

Not available

50

Cub Cadet 710-0152

Hex Bolt 3/8-24 x 1.00" Lg.
(Superseded to 710-1039)

$4.49

$

In Stock, Qty 20+

0

51

Cub Cadet 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

52

Cub Cadet 712-0241

Hex Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 13

0

53

Cub Cadet 742-0174

Tine - R.H.
(Superseded to 742-0244-0637)

$29.99

$

Usually ships in 3-6 days

0

54

Cub Cadet 742-0175

Tine - L.H.
(Superseded to 742-0243-0637)

$

$

Not available

55

Cub Cadet 714-0149

Hairpin Cotter
(Superseded to 914-0149B)

$

$

Not available

56

Cub Cadet 14735

Chain Case Ass'y. Comp.

Note: New Part

$

$

Currently unavailable

57

Cub Cadet 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

58

Cub Cadet 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

59

Cub Cadet 14744

Handle Positioner Ass'y.

Note: Color Code - 499; New Part

$

$

Currently unavailable

60

Cub Cadet 712-0130

Hex Ins. L-Nut 3/8-16 Thd.

$3.99

$

In Stock, Qty 11

0

61

Cub Cadet 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

62

Cub Cadet 710-0601

Hex Wash. Hd. Self-Tap Scr.
(Superseded to 710-1260A)

$3.99

$

In Stock, Qty 20+

0

63

Cub Cadet 723-0156

Rod End 3/8-24 Thd.
(Superseded to 923-0156)

$16.99

$

In Stock, Qty 20+

0

64

Cub Cadet 747-0254

Lower Handle Control Rod

$

$

Currently unavailable

65

Cub Cadet 712-0158

Hex Nut 5/16-18 Thd.
(Superseded to 912-0158)

$3.49

$

In Stock, Qty 18

0

66

Cub Cadet 748-0516

Pivot Handle Brg.

$

$

Currently unavailable

67

Cub Cadet 04819

Pivot Handle Link

$

$

Currently unavailable

68

Cub Cadet 736-0289

Bushing Wash.
(Superseded to 936-0289)

$6.99

$

In Stock, only 1 left!

0

69

Cub Cadet 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

70

Cub Cadet 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

71

Cub Cadet 738-0148

Shld. Bolt .500" Dia. x .660
(Superseded to 938-0148)

$16.99

$

Usually ships in 3-6 days

0

72

Cub Cadet 736-0253

Belleville Wash. .505" I.D. x 1.00" O.D.

$3.99

$

In Stock, Qty 20+

0

73

Cub Cadet 714-0474

Cotter Pin 1/8" Dia. x .75" Lg.

$4.99

$

In Stock, Qty 13

0

74

Cub Cadet 732-0132

Compression Spring

$

$

Not available

75

Cub Cadet 711-0663

Locking Pin

$

$

Currently unavailable

76

Cub Cadet 712-0221

Hex Ins. L-Nut 5/8-16 Thd.

$

$

Not available

77

Cub Cadet 712-0181

Hex Top L-Nut 3/8-16 Thd.

$4.49

$

In Stock, only 3 left!

0

78

Cub Cadet 04812

Pivot Brkt. Ass'y.

$

$

Currently unavailable

79

Cub Cadet 748-0150

Sleeve Brg. .50" I.D. x .62" O.D. x 1.12" Lg.

$

$

Not available

80

Cub Cadet 736-0192

Fl-Wash. .50" I.D. x 1.00" O.D. x .090

$4.49

$

In Stock, Qty 18

0

81

Cub Cadet 04792

Handle Mtg. Brkt. Ass'y.

Note: Color Code - 499

$

$

Currently unavailable

82

Cub Cadet 710-0458

Carriage Bolt 5/16-18 x 1.75" Lg.

$4.49

$

In Stock, only 4 left!

0

83

Cub Cadet 747-0255

Handle Lock Rod

$

$

Currently unavailable

84

Cub Cadet 746-0444

Throttle Control Ass'y. Comp.

Note: New Part

$

$

Not available

85

Cub Cadet 710-0227

Hex Wash. Hd. Tap Scr. #8 x .50" Lg.

$4.49

$

In Stock, Qty 20+

0

86

Cub Cadet 746-0445

Conduit and Wire 63.5" Lg.

Note: New Part

$

$

Not available

87

Cub Cadet 712-0711

Hex Jam Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 20+

0
