418 (212-418-100) - Cub Cadet Rear-Tine Tiller (1982) Chain Case Assembly 14735 Parts Diagram

Rear-Tine Tiller

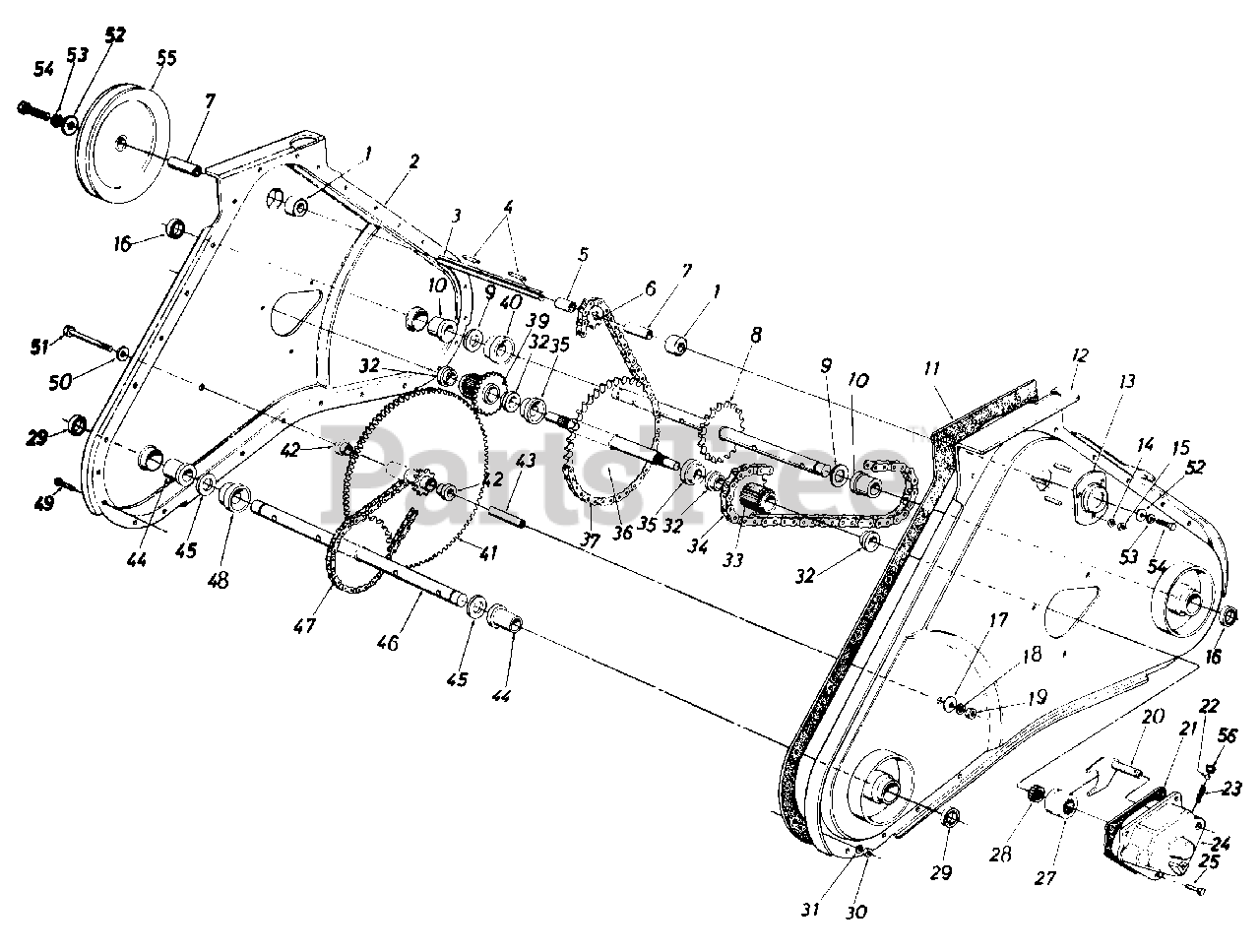

Chain Case Assembly 14735 Parts Diagram

  • Title

Cub Cadet 14735

Chain Case Assembly

$

$

Currently unavailable

1

Cub Cadet 741-0155

Ball Bearing .62" I.D. x 1.38" O.D. x .44
(Superseded to 941-0155)

$23.99

$

In Stock, Qty 15

0

2

Cub Cadet 14818

Chain Case R.H. Half

Note: Code N

$

$

Currently unavailable

3

Cub Cadet 738-0379

Input Shaft .62" Dia.

$

$

Not available

4

Cub Cadet 714-0122

Sq. Key 3/16" x 3/16" x .75" Lg.

$3.99

$

In Stock, Qty 20+

0

5

Cub Cadet 750-0379

Spacer .637" I.D. x .781" O.D. x .85" Lg.

$

$

Not available

6

Cub Cadet 717-0210

Sprocket 9 Tooth x .62" Shaft

$

$

Currently unavailable

7

Cub Cadet 750-0378

Spacer .637" I.D. x .781" O.D. x 1.44" Lg.

$

$

Not available

8

Cub Cadet 04867

Tine Shaft Ass'y.

$

$

Not available

9

Cub Cadet 736-0259

Fl-Wash. 1.0" I.D. x 1.62" O.D.
(Superseded to 936-0259)

$

$

Not available

10

Cub Cadet 741-0189

Flange Bearing 1.0" I.D.

$

$

Currently unavailable

11

Cub Cadet 721-0163

Gasket - Housing
(Superseded to 921-0163)

$

$

Not available

12

Cub Cadet 14817

Chain Case L.H. Half

Note: Code N

$

$

Currently unavailable

13

Cub Cadet 05034

Bearing Housing 1-3/8" O.D.
(Superseded to 05034A)

$

$

Not available

14

Cub Cadet 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

15

Cub Cadet 712-0138

Hex Nut 1/4-28 Thd.

$6.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 721-0102

Seal 1.0" I.D. x 1.38" O.D.
(Superseded to 921-0102)

$19.99

$

In Stock, only 1 left!

0

17

Cub Cadet 736-0219

Belleville Wash.
(Superseded to 936-0219)

$4.49

$

Usually ships in 3-6 days

0

18

Cub Cadet 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

19

Cub Cadet 712-0214

Hex Cent. L-Nut 3/8-24 Thd.

$6.49

$

In Stock, only 3 left!

0

20

Cub Cadet 04859

Shift Yoke Ass'y. - L.H.

$

$

Not available

Cub Cadet 04858

Shift Yoke Ass'y. - R.H.

Note: (Not Shown)

$

$

Not available

21

Cub Cadet 721-0162

Gasket - Shift Housing

$

$

Not available

22

Cub Cadet 741-0862

Ball Detent .250 Dia.

$4.49

$

In Stock, Qty 20+

0

23

Cub Cadet 732-0863

Compression Spring
(Superseded to 932-0863)

$4.49

$

In Stock, only 2 left!

0

24

Cub Cadet 719-0237

Shift Housing - L.H.

$

$

Not available

Cub Cadet 719-0238

Shift Housing - R.H.

Note: (Not Shown)

$

$

Not available

25

Cub Cadet 710-0601

Hex Self-Tap Scr. 5/16-18 x .75" Lg.
(Superseded to 710-1260A)

$3.99

$

In Stock, Qty 20+

0

27

Cub Cadet 717-0383

Clutch Dog

$

$

Not available

28

Cub Cadet 717-0382

Clutch Dog Driver

$

$

Currently unavailable

29

Cub Cadet 721-0102

Seal 1.0" x 1.38" O.D.
(Superseded to 921-0102)

$19.99

$

In Stock, only 1 left!

0

30

Cub Cadet 712-0138

Hex Nut 1/4-28 Thd.

$6.99

$

Usually ships in 3-6 days

0

31

Cub Cadet 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

32

Cub Cadet 741-0229

Flange Brg. 1.00" I.D.

$

$

Not available

33

Cub Cadet 14746

Sprocket Brg. Sleeve Ass'y.

Note: Code N

$

$

Not available

34

Cub Cadet 713-0313

#50 Chain - 5/8" Pitch x 50 Links - Endless
(Superseded to 913-0313)

Note: Code N

$

$

Not available

35

Cub Cadet 750-0352

Stepped Spacer 1.0" I.D. x 1.75" O.D.

$

$

Not available

36

Cub Cadet 04823

Clutch Shaft Ass'y.

$

$

Currently unavailable

37

Cub Cadet 713-0250

#420 Chain 1/2" Pitch x 58 Links - Endless
(Superseded to 913-0250)

$

$

Not available

39

Cub Cadet 717-0494

Gear Bearing - Sleeve Ass'y.

Note: Code N

$

$

Not available

40

Cub Cadet 750-0314

Spacer 1.0" I.D. x 2.0" O.D. x .68" Lg.

$

$

Not available

41

Cub Cadet 717-0495

Sprocket and Gear Ass'y.

Note: Code N

$

$

Currently unavailable

42

Cub Cadet 748-0184

Flange Brg. .628" I.D. x .753" O.D.

$7.49

$

Usually ships in 3-6 days

0

43

Cub Cadet 750-0374

Hub Sleeve .38" I.D. x .625" O.D.

$

$

Not available

44

Cub Cadet 741-0189

Flange Brg. 1.00" I.D. x 1.188" O.D.

$

$

Currently unavailable

45

Cub Cadet 736-0259

Fl-Wash. 1.0" I.D. x 1.62" O.D.
(Superseded to 936-0259)

$

$

Not available

46

Cub Cadet 04835

Axle Shaft Ass'y.

$

$

Currently unavailable

47

Cub Cadet 713-0312

#420 Chain 1/2" Pitch 46 Links - Endless
(Superseded to 913-0312)

Note: Code N

$46.99

$

Usually ships in 3-6 days

0

48

Cub Cadet 750-0314

Spacer 1.0" I.D. x 2.0" O.D.

$

$

Not available

49

Cub Cadet 710-0195

Hex Bolt 1/4-28 x .62" Lg.
(Superseded to 910-0195)

$3.99

$

In Stock, only 1 left!

0

50

Cub Cadet 736-0219

Belleville Wash.
(Superseded to 936-0219)

$4.49

$

Usually ships in 3-6 days

0

51

Cub Cadet 710-0629

Hex Bolt 3/8-24 x 2.75" Lg.

$

$

Not available

52

Cub Cadet 736-0159

Fl-Wash. 5/16" I.D.

$4.49

$

In Stock, Qty 20+

0

53

Cub Cadet 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

54

Cub Cadet 710-0627

Hex L-Bolt 5/16-24 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

55

Cub Cadet 756-0297

Input Pulley - Chain Case

$

$

Not available

56

Cub Cadet 721-0165

Cap Plug .250" Dia.

$

$

Currently unavailable

Cub Cadet 737-0133

Plastilube-#0-14 oz
(Superseded to 737-0300A)

$34.99

$

In Stock, Qty 20+

0
