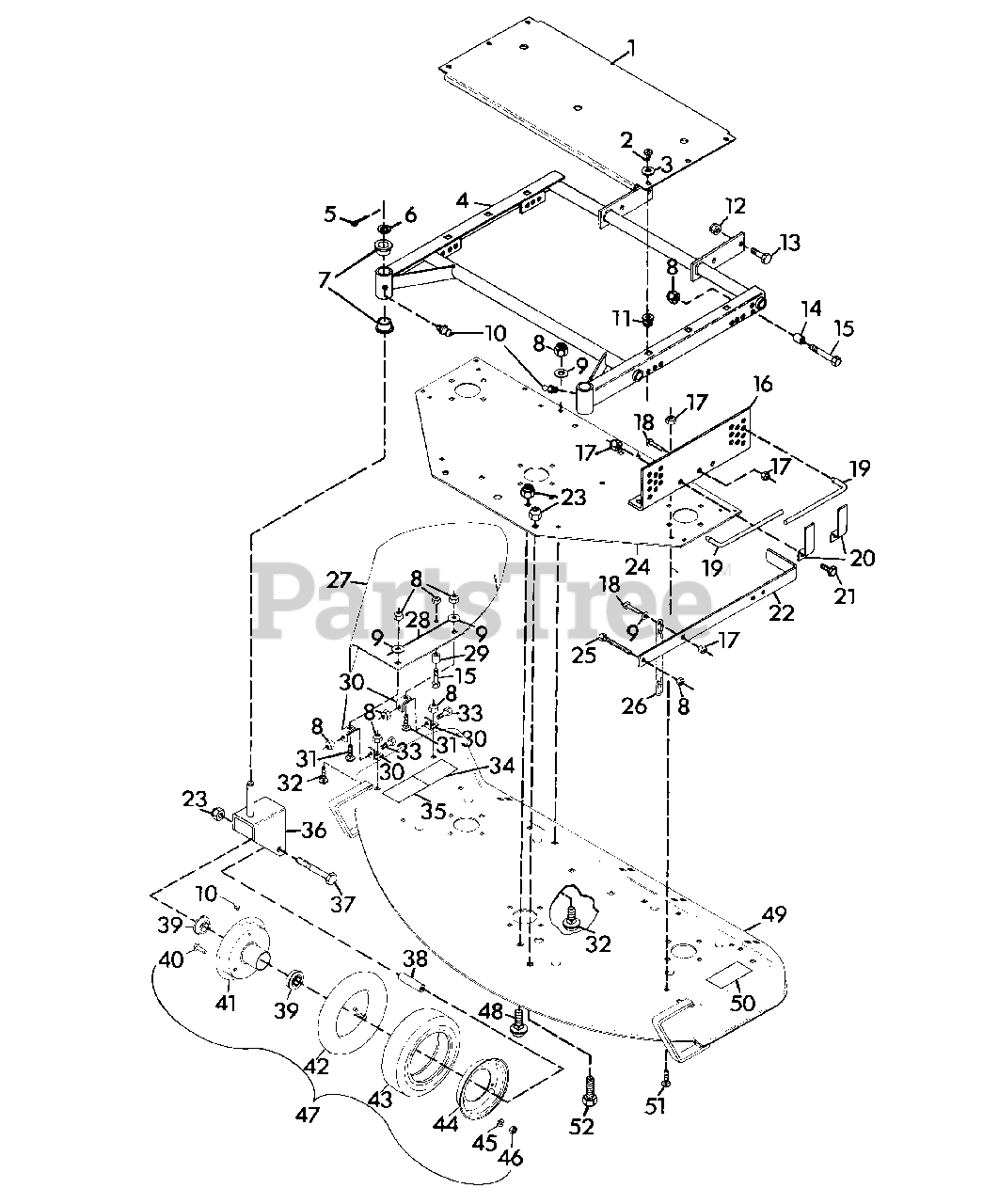

41769 - Gravely 50" Deck for Pro-Walk Mower MOWER FRAME Parts Diagram

50" Deck for Pro-Walk Mower

MOWER FRAME Parts Diagram

  • Title
1

Gravely 038573

GUARD, 50" MOWER BELT
(Superseded to 08960400)

$98.99

$

Usually ships in 4-12 days

0

2

Gravely 167260

SCREW, TAPPING 1/4-20X.625 P/HD
(Superseded to 07410400)

$2.49

$

In Stock, Qty 13

0

3

Gravely 120392

WASHER, FLAT .281X.625X.065
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

4

Gravely 041732

WELDMENT, MOWER FRAME
(Superseded to 21261100)

$

$

Not available

5

Gravely 103409

PIN, COTTER .187X1.50
(Superseded to 06712800)

$1.99

$

In Stock, only 2 left!

0

6

Gravely 019340

RACE, BEARING THRUST
(Superseded to 06435300)

$4.99

$

In Stock, only 3 left!

0

7

Gravely 018355

BUSHING, PIVOT
(Superseded to 05520100)

$11.99

$

In Stock, Qty 18

0

8

Gravely 456004

NUT, LOCK 3/8-16
(Superseded to 06500831)

$2.49

$

In Stock, only 3 left!

0

9

Gravely 120394

WASHER, FLAT .406X.812X.065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

10

Gravely 411027

FITTING, LUBE 1/4-28
(Superseded to 07012600)

$

$

Not available

11

Gravely 011777

GROMMET, PLASTIC
(Superseded to 07538100)

$1.49

$

In Stock, Qty 20+

0

12

Gravely 418692

NUT, LOCK 5/8-11
(Superseded to 06540700)

$3.99

$

In Stock, only 2 left!

0

13

Gravely 271547

BOLT, HEX 5/8-11X1.50
(Superseded to 05968700)

$3.99

$

In Stock, only 3 left!

0

14

Gravely 021076

BUSHING .391X.622X.670
(Superseded to 08902300)

$27.99

$

In Stock, only 2 left!

0

15

Gravely 180126

BOLT, HEX 3/8-16X1.50
(Superseded to 05901928)

$1.49

$

In Stock, Qty 14

0

16

Gravely 038516

BRACKET, MOWER SUPPORT L.H.
(Superseded to 08927953)

$103.99

$

Usually ships in 4-12 days

0

16

Gravely 038515

BRACKET, MOWER SUPPORT R.H.
(Superseded to 08927853)

$103.99

$

Usually ships in 4-12 days

0

17

Gravely 419455

NUT, LOCK 5/16-18
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0

18

Gravely 180079

BOLT, HEX 5/16-18X1.00
(Superseded to 05901701)

$1.49

$

In Stock, Qty 20+

0

19

Gravely 038514

PIN, MOWER LOCKING
(Superseded to 08875900)

$18.99

$

Usually ships in 4-12 days

0

20

Gravely 038513

TAB, PIN LOCKING
(Superseded to 21246153)

$

$

Not available

21

Gravely 180077

BOLT, HEX 5/16-18X.75
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

22

Gravely 035684

BAR, LIFT
(Superseded to 08923700)

$

$

Not available

23

Gravely 435507

NUT, LOCK 1/2-13
(Superseded to 06500830)

$2.49

$

In Stock, Qty 5

0

24

Gravely 038774

ASSEMBLY, 50" SUPPORT PLATE

$

$

Not available

25

Gravely 034402

BOLT, HEX 3/8-16X2.00
(Superseded to 05942200)

$2.99

$

In Stock, only 1 left!

0

26

Gravely 038620

CHAIN, HEIGHT ADJUSTMENT
(Superseded to 08867400)

$

$

Not available

27

Gravely 038675

SHIELD, SAFETY EXT. 50" MOWER

$

$

Not available

28

Gravely 038769

STRIPE
(Superseded to 07852100)

$9.99

$

Usually ships in 4-12 days

0

29

Gravely 038696

STOP, CHUTE
(Superseded to 05525700)

$7.49

$

In Stock, only 1 left!

0

30

Gravely 034894

TAB, SPRING
(Superseded to 08804200)

$

$

Not available

31

Gravely 120915

BOLT, 3/8-16X1.00 RD HD SQ NK

$

$

Not available

32

Gravely 126227

BOLT, CARRIAGE 3/8-16X.75
(Superseded to 06200312)

$1.49

$

In Stock, only 4 left!

0

33

Gravely 180121

BOLT, HEX 3/8-16X.875
(Superseded to 05932600)

$2.49

$

In Stock, only 1 left!

0

34

Gravely 033926

DECAL, DANGER HAND
(Superseded to 05350300)

$31.99

$

Usually ships in 4-12 days

0

35

Gravely 033928

DECAL, WARNING EYE
(Superseded to 05350200)

$31.99

$

Usually ships in 4-12 days

0

36

Gravely 037811

WELDMENT, CASTER FORK
(Superseded to 21244500)

$

$

Not available

37

Gravely 433163

BOLT, HEX 1/2-13X5.00
(Superseded to 05901905)

$4.99

$

In Stock, Qty 20+

0

38

Gravely 011950

BUSHING, WHEEL .520X.750X3.312
(Superseded to 09023500)

$25.99

$

Usually ships in 4-12 days

0

39

Gravely 037823

BEARING, GAUGE WHEEL
(Superseded to 05408900)

$18.99

$

In Stock, only 3 left!

0

40

Gravely 181635

BOLT, HEX 3/8-24X.75
(Superseded to 05962600)

$

$

Not available

41

Gravely 037825

WHEEL, HALF WITH TUBE
(Superseded to 20637900)

$

$

Not available

42

Gravely 037826

TUBE, INNER
(Superseded to 20638000)

$43.99

$

In Stock, only 2 left!

0

43

Gravely 037827

TIRE, GAUGE WHEEL
(Superseded to 20638100)

$

$

Not available

44

Gravely 037824

WHEEL, HALF PLAIN
(Superseded to 20637800)

$

$

Not available

45

Gravely 131099

WASHER, LOCK 3/8 SP HEAVY
(Superseded to 06300120)

$3.49

$

In Stock, only 1 left!

0

46

Gravely 120369

NUT, HEX 3/8-24
(Superseded to 06522900)

$2.49

$

In Stock, only 2 left!

0

47

Gravely 037797

WHEEL, GAUGE
(Superseded to 20636900)

$

$

Not available

48

Gravely 126475

BOLT, 1/2-13X1.00 RD HD SQ NK
(Superseded to 06224600)

$3.99

$

In Stock, only 3 left!

0

49

Gravely 040528

WELDMENT, 50" DECK
(Superseded to 58810100)

$775.99

$

Usually ships in 4-12 days

0

50

Gravely 033927

DECAL, DANGER FOOT
(Superseded to 05350100)

$

$

Not available

51

Gravely 126358

BOLT, CARRIAGE 5/16-18X1.00
(Superseded to 06200231)

$1.49

$

In Stock, Qty 20+

0

52

Gravely 180175

BOLT, HEX 1/2-13X1.25
(Superseded to 05901637)

$3.49

$

In Stock, only 1 left!

0

NS

Gravely 024608

DECAL, GRAVELY LOGO
(Superseded to 02460800)

$28.99

$

Usually ships in 4-12 days

0

NS

Gravely 034951

DECAL, PRO-50
(Superseded to 05212400)

$

$

Not available

NS

Gravely 010967

BAFFLE
(Superseded to 21335100)

$

$

Not available
