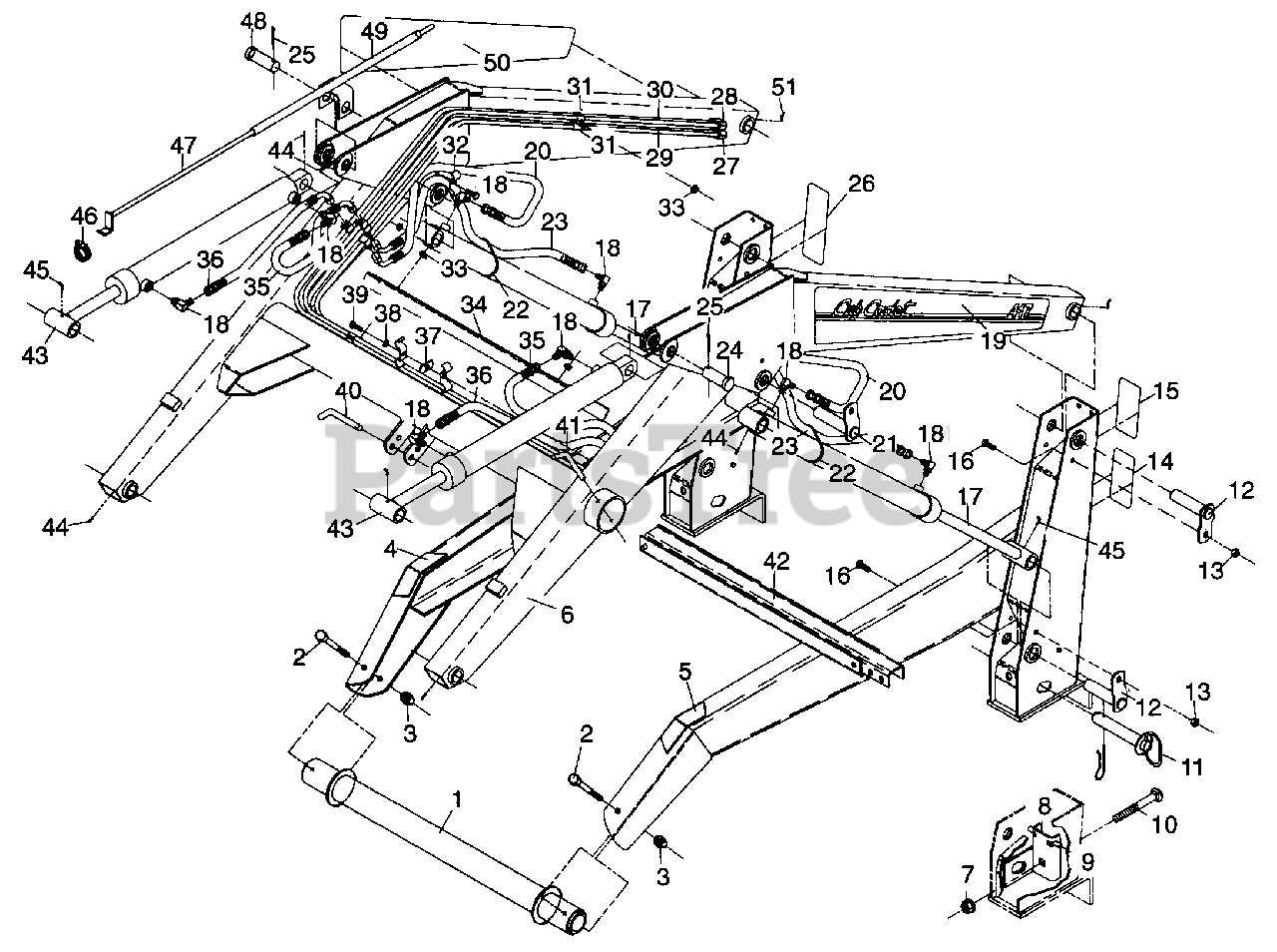

417 (590-417-100) - Cub Cadet Loader Frame Parts Diagram

Loader

Frame Parts Diagram

  • Title

1

Cub Cadet WM-32018

Crossbar Weldment

$

$

Not available

2

Cub Cadet WM-30-0457

5/8 NC x 3-3/4 Capscrew

$

$

Not available

3

Cub Cadet WM-30-2179

5/8 NC Locknut

$

$

Not available

4

Cub Cadet WM-32588

Main frame assembly - RH

$

$

Not available

5

Cub Cadet WM-32587

Main frame assembly - LH
(Superseded to WM-32587-1)

$

$

Not available

6

Cub Cadet WM-32589

Boom frame assembly

$

$

Not available

7

Cub Cadet WM-30-2186

5/8 NC Locknut - Flange Head

$

$

Not available

8

Cub Cadet WM-32013

Retainer Channel
(Superseded to WM-32013-1)

$

$

Not available

9

Cub Cadet WM-32014

Pin (Must be Welded)

$

$

Not available

10

Cub Cadet WM-30-1135

5/8 NC x 5 Carriage bolt, plated

$

$

Not available

11

Cub Cadet WM-48-9075

Handle Hitch Pin

$

$

Not available

12

Cub Cadet WM-32059

Pin weldment
(Superseded to WM-32059-1)

$

$

Not available

13

Cub Cadet WM-30-2077

3/8 NC Lockpin
(Superseded to 712-0375)

$4.49

$

In Stock, Qty 6

0

14

Cub Cadet WM-26-0346

Danger decal

$

$

Currently unavailable

15

Cub Cadet WM-26-0200

Decal - Caution

$

$

Not available

16

Cub Cadet WM-30-0152

3/8 NC x 1 Capscrew
(Superseded to 910-0253)

$4.49

$

In Stock, Qty 20+

0

17

Cub Cadet WM-32371

Cylinder Assembly Lift

$

$

Not available

18

Cub Cadet WM-31-3036

90° Adjustable elbow
(Superseded to WM-63558)

$

$

Not available

19

Cub Cadet WM-26-0344

Decal - 417

$

$

Not available

20

Cub Cadet WM-36-0143

Pressure Hose - L-28

$

$

Not available

21

Cub Cadet WM-32060

Pin weldment

$

$

Not available

22

Cub Cadet WM-39-5017

Plastic Tie

$

$

Not available

23

Cub Cadet WM-36-0144

Pressure Hose - L-40

$

$

Not available

24

Cub Cadet WM-30-4062

Clevis Pin - 1 x 2-19/64

$

$

Not available

25

Cub Cadet WM-48-0004

3/16 x 1-1/2 Cotter pin

$

$

Not available

26

Cub Cadet WM-26-0324

Instruction Decal

$

$

Not available

27

Cub Cadet WM-21-5252

Feedline #3

$

$

Not available

28

Cub Cadet WM-21-5250

Feedline #1

$

$

Not available

29

Cub Cadet WM-21-5253

Feedline #4

$

$

Not available

30

Cub Cadet WM-21-5251

Feedline #2

$

$

Not available

31

Cub Cadet WM-48-0258

Feedline Clamp

$

$

Not available

32

Cub Cadet WM-48-0252

Feedline Clamp

$

$

Not available

33

Cub Cadet WM-30-2055

5/16 NC Locknut, flange head

$

$

Not available

34

Cub Cadet WM-37181

Feedline Cover

$

$

Not available

35

Cub Cadet WM-36-0141

Pressure Hose L-15

$

$

Not available

36

Cub Cadet WM-36-0142

Pressure Hose L-20

$

$

Not available

37

Cub Cadet WM-30-5000

Tab Weld Nut

$

$

Not available

38

Cub Cadet WM-30-3100

5/16 Lockwasher
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

39

Cub Cadet WM-30-0100

5/16 NC x 3/4 Capscrew
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

40

Cub Cadet WM-21-5291

Bent Pull Pin w/Hair Pin Cotter
(Superseded to WM-215291)

$

$

Not available

41

Cub Cadet WM-21-5299

Bent Pull Pin w/Hair Pin Cotter

$

$

Not available

42

Cub Cadet WM-30381

Stand Weldment

$

$

Not available

43

Cub Cadet WM-32368

Cylinder Assembly - Tilt

$

$

Not available

44

Cub Cadet WM-48-7501

1/4-28 Lube fitting

$

$

Not available

45

Cub Cadet WM-48-7500

1/4-28 x 90° Lube fitting

$

$

Not available

46

Cub Cadet WM-48-0263

Hose Clamp - 5/8 - 1-1/2
(Superseded to 726-0132)

$15.99

$

Usually ships in 3-6 days

0

47

Cub Cadet WM-31215

Rod weldment
(Superseded to WM-31215-1)

$

$

Not available

48

Cub Cadet WM-30-4078

Clevis Pin - 1 x 2-35/64

$

$

Not available

49

Cub Cadet WM-31217

Tube Weldment
(Superseded to WM-31217-1)

$

$

Not available

50

Cub Cadet WM-26-0345

Decal 417

$

$

Not available

51

Cub Cadet WM-48-7503

1/4-28 x 45 Lube fitting
(Superseded to WM-7503)

$

$

Not available
