41641 - Gravely Grass Bagger Cart for 4-Wheel Tractor VAC CART KIT Parts Diagram

Grass Bagger Cart for 4-Wheel Tractor

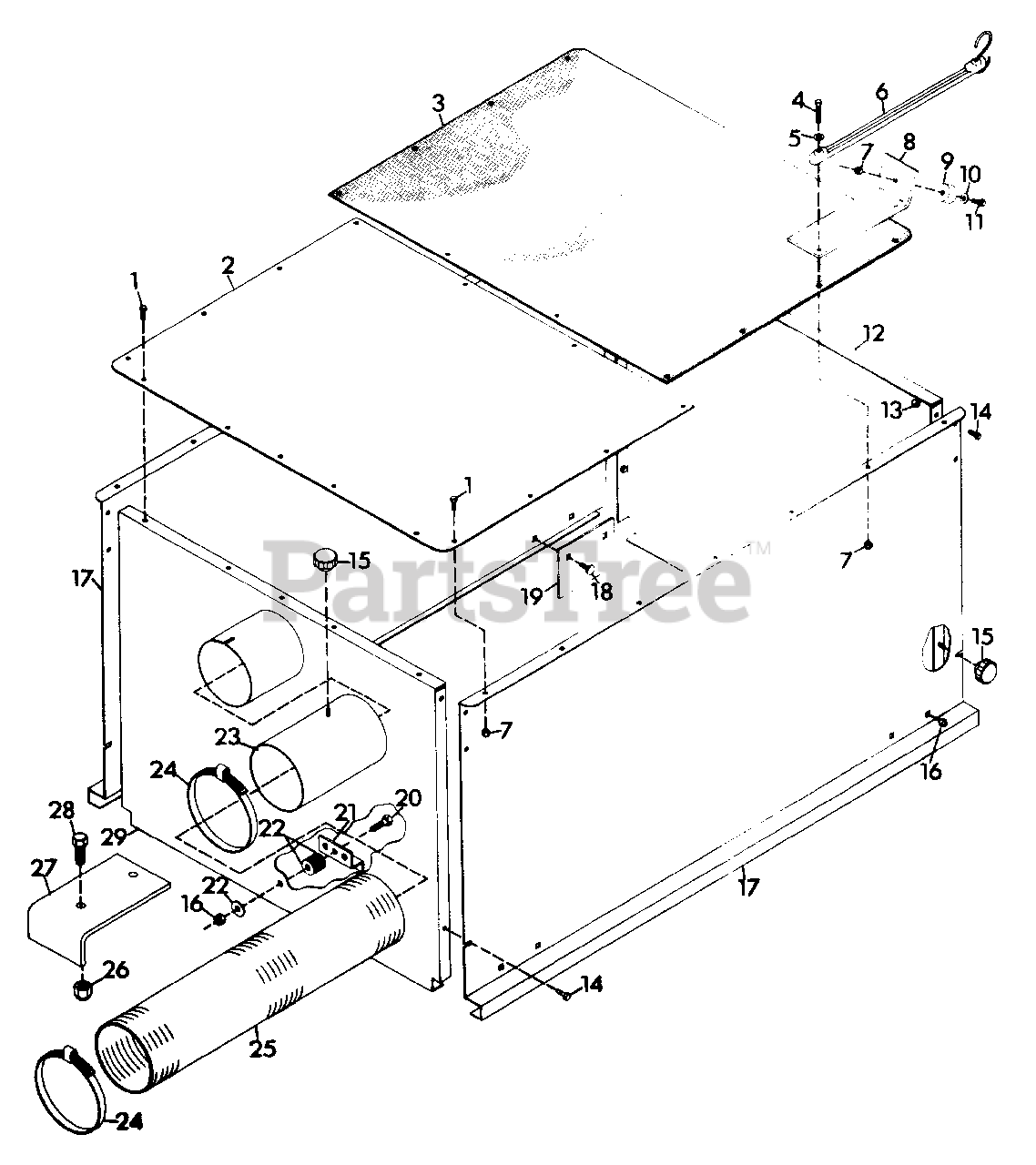

VAC CART KIT Parts Diagram

  • Title
1

Gravely 180020

BOLT, HEX 1/4-20X.75
(Superseded to 05901716)

$0.99

$

In Stock, Qty 20+

0

2

Gravely 037875

COVER, TOP FRONT
(Superseded to 08740300)

$

$

Not available

3

Gravely 037874

COVER, TOP REAR
(Superseded to 08740200)

$

$

Not available

4

Gravely 180033

BOLT, HEX 1/4-20X1.375
(Superseded to 05934100)

$

$

Not available

5

Gravely 422845

WASHER, FLAT .281X.625X.065
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

6

Gravely 038089

STRAP, HOLD DOWN
(Superseded to 07524600)

$

$

Not available

7

Gravely 419454

NUT, LOCK 1/4-20
(Superseded to 06500832)

$4.99

$

Usually ships in 4-12 days

0

8

Gravely 041617

BRACKET
(Superseded to 08755000)

$

$

Not available

9

Gravely 024357

BUMPER, SEAT
(Superseded to 07521800)

$14.99

$

Usually ships in 4-12 days

0

10

Gravely 120386

WASHER, FLAT .312X.734X.065
(Superseded to 06401124)

$0.99

$

In Stock, Qty 20+

0

11

Gravely 180021

BOLT, HEX 1/4-20X.875
(Superseded to 05934000)

$1.99

$

Usually ships in 4-12 days

0

12

Gravely 037869

WELDMENT, REAR GATE
(Superseded to 08740000)

$

$

Not available

13

Gravely 419455

NUT, LOCK 5/16-18
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0

14

Gravely 180077

BOLT, HEX 5/16-18X.75
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

15

Gravely 037884

KNOB
(Superseded to 20639000)

$

$

Not available

16

Gravely 456004

NUT, LOCK 3/8-16
(Superseded to 06500831)

$2.49

$

In Stock, only 3 left!

0

17

Gravely 037868

PANEL, SIDE
(Superseded to 08739953)

$

$

Not available

18

Gravely 126227

BOLT, CARRIAGE 3/8-16X.75
(Superseded to 06200312)

$1.49

$

In Stock, only 4 left!

0

19

Gravely 037877

RETAINER, CART TOP
(Superseded to 08740400)

$

$

Not available

20

Gravely 180124

BOLT, HEX 3/8-16X1.25
(Superseded to 05901724)

$1.49

$

In Stock, Qty 20+

0

21

Gravely 041640

BRACKET

$

$

Not available

22

Gravely 446470

WASHER, FLAT .375X1.125X.065
(Superseded to 06401139)

$2.49

$

In Stock, only 2 left!

0

23

Gravely 037879

WELDMENT, CONNECTOR TUBE
(Superseded to 08740600)

$

$

Not available

24

Gravely 036996

CLAMP
(Superseded to 03022400)

$17.99

$

Usually ships in 4-12 days

0

25

Gravely 037876

HOSE, BLOWER TO CART
(Superseded to 08705000)

$

$

Not available

26

Gravely 418692

NUT, LOCK 5/8-11
(Superseded to 06540700)

$3.99

$

In Stock, only 2 left!

0

27

Gravely 037878

EXTENSION, TONGUE
(Superseded to 08740500)

$

$

Not available

28

Gravely 271547

BOLT, HEX 5/8-11X1.50
(Superseded to 05968700)

$3.99

$

In Stock, only 3 left!

0

29

Gravely 041633

GATE, FRONT WELDMENT
(Superseded to 08755200)

$

$

Not available

NS

Gravely 024608

DECAL, GRAVELY LOGO
(Superseded to 02460800)

$28.99

$

Usually ships in 4-12 days

0
