416 S (1600260) - AGCO Lawn Tractor, 16hp Transmission Group - Hydrostatic (1506I11) Parts Diagram

Lawn Tractor, 16hp

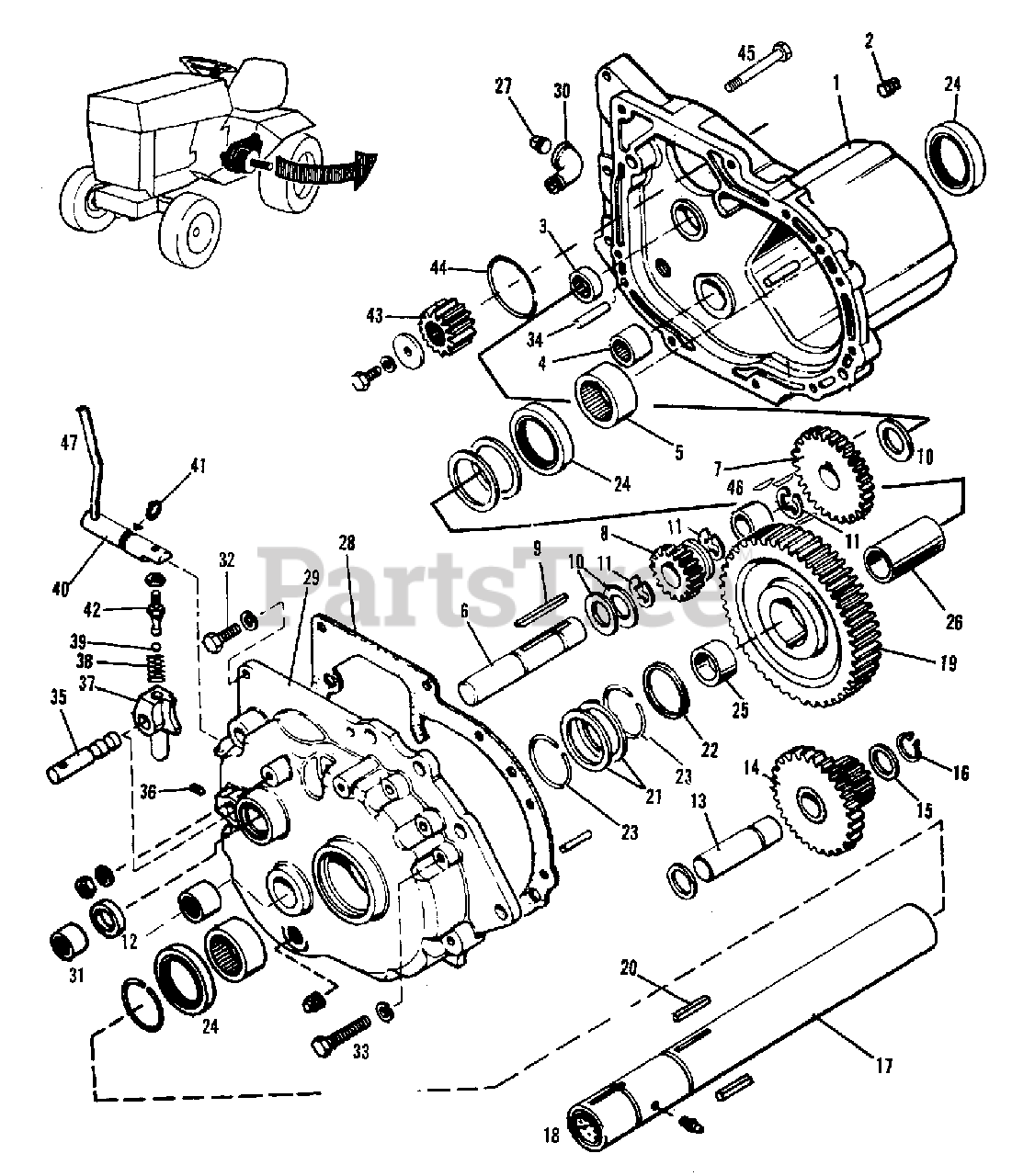

Transmission Group - Hydrostatic (1506I11) Parts Diagram

  • Title

-

Simplicity 1608283

TRANSMISSION ASSEMBLY, Complete

$

$

Not available

1

Simplicity 2027411

CASE ASSEMBLY, Gear (Includes Items 3,4, & 5)

$

$

Not available

2

Simplicity 2801652SM

PLUG, Pipe, 1/4 Standard Square Head

$4.49

$

Usually ships in 2-12 days

0

3

Simplicity 2025639

BEARING, Needle

$

$

Not available

4

Simplicity 2027412

BEARING, Needle

$

$

Not available

5

Simplicity 2027360

BEARING, Needle

$

$

Not available

6

Simplicity 2029250

SHAFT, Brake

$

$

Not available

7

Simplicity 2029249

GEAR, 1st Intermediate

$

$

Not available

8

Simplicity 2029247

PINION, Sliding

$

$

Not available

9

Simplicity 2029248

KEY

$

$

Not available

10

Simplicity 2027417

WASHER

$

$

Not available

11

Simplicity 1610507

RING, Retaining

$

$

Not available

12

Simplicity 2027419

SEAL, Oil

$

$

Not available

13

Simplicity 2027420

SHAFT, Intermediate

$

$

Not available

14

Simplicity 2029240

PINION & GEAR ASSEMBLY

$

$

Not available

15

Simplicity 2027422

WASHER

$

$

Not available

16

Simplicity 2027423

RING, Retaining

$

$

Not available

17

Simplicity 2027424

TUBE ASSEMBLY, Axle

$

$

Not available

17

Simplicity 9002040

FITTING, Lube (Package Of 10)

$

$

Not available

18

Simplicity 2027210

BUSHING

$

$

Not available

19

Simplicity 2027426

GEAR, Drive

$

$

Not available

20

Simplicity 2025552

KEY

$

$

Not available

21

Simplicity 2025822

WASHER

$

$

Not available

22

Simplicity 1173913

WASHER

$

$

Not available

23

Simplicity 2025636

RING, Snap

$

$

Not available

24

Simplicity 2025637

SEAL

$

$

Not available

25

Simplicity 2027428

SPACER, R.H., Axle

$

$

Not available

26

Simplicity 2027429

SPACER, L.H., Axle

$

$

Not available

27

Simplicity 2801653

PLUG, Pipe, 3/8 Standard Square Head

$

$

Not available

28

Simplicity 2027430

GASKET, Gear Case

$

$

Not available

29

Simplicity 2027431

COVER ASSEMBLY, Gear Case (Includes Items 4, 5, 31 & 34)

$

$

Not available

30

Simplicity 921419

ELBOW, Street, 3/8 x 90 Degrees, Standard

$

$

Not available

31

Simplicity 2027432

BEARING, Needle

$

$

Not available

32

Simplicity 2821333

CAPSCREW, Hexagon Head, 5/16NC x 1

$

$

Not available

32

Simplicity 1917356SM

LOCKWASHER, 5/16, Regular
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

33

Simplicity 2821978

CAPSCREW, Hexagon Head, 5/16NC x 2

$

$

Not available

33

Simplicity 1917356SM

LOCKWASHER, 5/16, Regular
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

34

Simplicity 918390

PIN, Roll

$

$

Not available

35

Simplicity 2029243

SHAFT, Shifter

$

$

Not available

36

Simplicity 917231

SCREW, Set, Socket Head, 5/16NC x 1/2

$

$

Not available

37

Simplicity 2029238

FORK, Shift

$

$

Not available

38

Simplicity 2025672

SPRING

$

$

Not available

39

Simplicity 2025630

BALL, Shift Lock

$

$

Not available

40

Simplicity 2029342

SHAFT ASSEMBLY, Shift

$

$

Not available

41

Simplicity 923548

RING, O

$

$

Not available

42

Simplicity 2027438

STEM, Shift

$

$

Not available

42

Simplicity 2087553

LOCTITE

$

$

Not available

43

Simplicity 2027440

PINION, Motor Shaft

$

$

Not available

43

Simplicity 2027583

WASHER

$

$

Not available

43

Simplicity 921980

CAPSCREW, 5/16NF x 5/8

$

$

Not available

43

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

44

Simplicity 2027441

O-RING

$

$

Not available

45

Simplicity 1605497

CAPSCREW, 7/16NC x 4 Gr8

$

$

Not available

45

Simplicity 2818199

LOCKWASHER, 7/16

$

$

Not available

45

Simplicity 2818213

NUT, 7/16NC

$

$

Not available

46

Simplicity 2029246

FLANGE ASSEMBLY, Drive

$

$

Not available

46

Simplicity 2029245

PIN, Dowel

$

$

Not available

47

Simplicity 2029241

HANDLE, Shift Control

$

$

Not available
