416 S (1600260) - AGCO Lawn Tractor, 16hp Sickle Group - Frame & Drive (1506I41) Parts Diagram

Lawn Tractor, 16hp

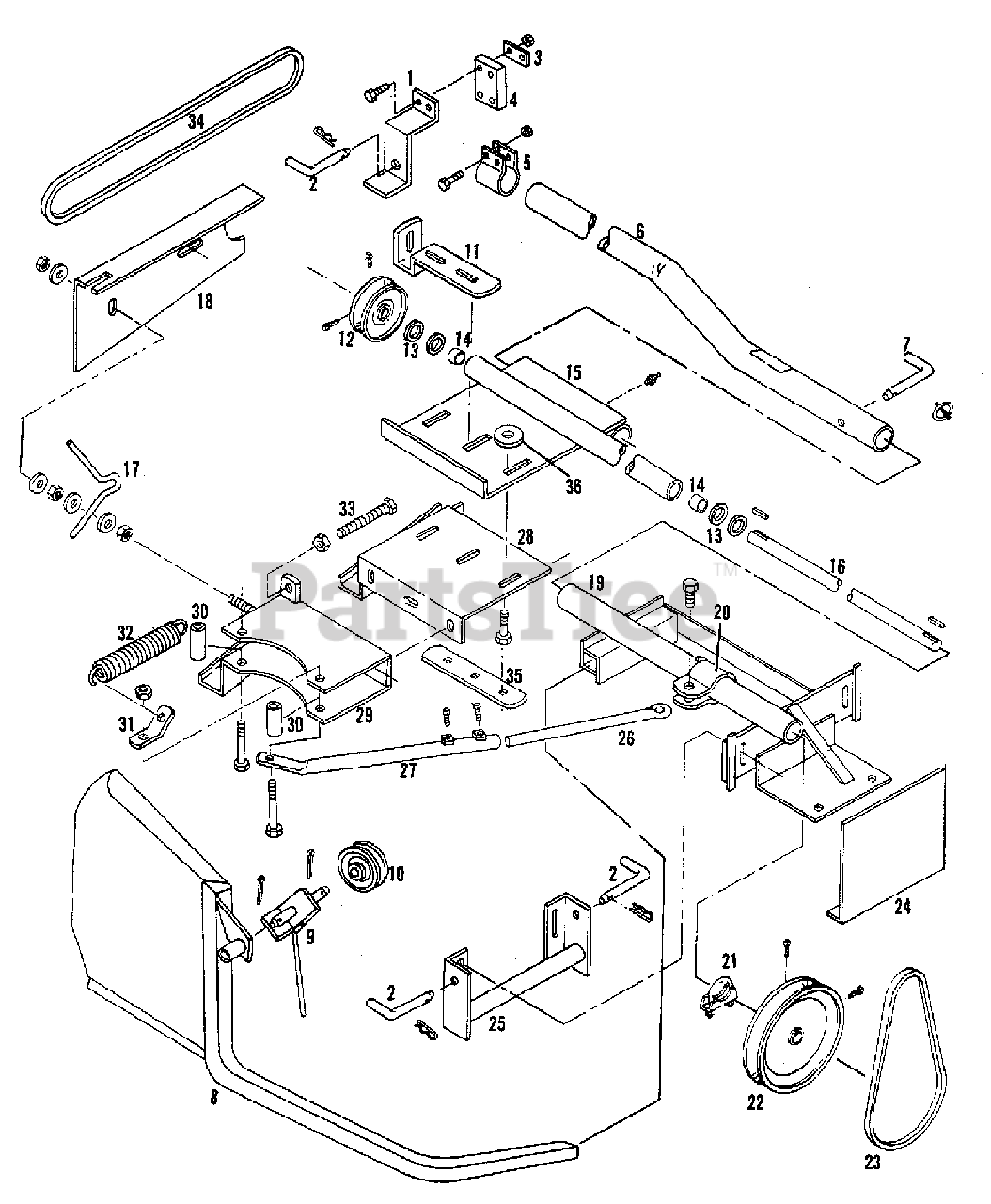

Sickle Group - Frame & Drive (1506I41) Parts Diagram

  • Title

1

Simplicity 2068010

BAR ASSEMBLY, Hitch

$

$

Not available

1

Simplicity 2821961

CAPSCREW, 1/4NC x 1-1/4

$

$

Not available

1

Simplicity 920435

NUT, 1/4NC - Lock

$

$

Not available

2

Simplicity 2068011

PIN, Locating

$

$

Not available

2

Simplicity 2068015

PIN, Quick

$

$

Not available

2

Simplicity 2068037

PIN, Quick

$

$

Not available

3

Simplicity 2068013

STRAP, Clamp

$

$

Not available

4

Simplicity 2068014

BLOCK, Rubber

$

$

Not available

5

Simplicity 2068016

CLAMP

$

$

Not available

5

Simplicity 2821961

CAPSCREW, 1/4NC x 1-1/4

$

$

Not available

5

Simplicity 920435

NUT, 1/4NC - Lock

$

$

Not available

6

Simplicity 2068017

PIPE, Pivot

$

$

Not available

7

Simplicity 2068018

PIN, Hitch

$

$

Not available

7

Simplicity 2068038

PIN, Quick Clip

$

$

Not available

8

Simplicity 2068019

FRAME ASSEMBLY, Carrier

$

$

Not available

9

Simplicity 2098020

BRACKET ASSEMBLY, Pulley Mount

$

$

Not available

9

Simplicity 925719

PIN, 1/8 x 2 (Cut To 1-1/4)

$

$

Not available

10

Simplicity 2068021

PULLEY, Lift

$

$

Not available

11

Simplicity 2068022

BRACKET, Guard Mount

$

$

Not available

12

Simplicity 2068023

PULLEY, 3-1/2" O.D.

$

$

Not available

12

Simplicity 2823085

SETSCREW, 5/16NC x 1/2, Square Head, Cup Point

$

$

Not available

13

Simplicity 2818433

WASHER, 3/4 Plain

$

$

Not available

14

Simplicity 2068025

BEARING, Housing

$

$

Not available

15

Simplicity 2068026

BRACKET ASSEMBLY, Pivot

$

$

Not available

15

Simplicity 9002040

FITTING, 1/4NF - Lube (Package Of 10)

$

$

Not available

16

Simplicity 2068030

SHAFT, Jack (Main Drive)

$

$

Not available

16

Simplicity 2805850SM

KEY, 3/16 Square x 1

$

$

Not available

17

Simplicity 2068029

RETAINER, Belt

$

$

Not available

17

Simplicity 2818430

WASHER, 1/2 x 1-1/4

$

$

Not available

17

Simplicity 2816951

NUT, 1/2NC

$

$

Not available

18

Simplicity 2068048

GUARD, Belt

$

$

Not available

18

Simplicity 2068028

WASHER, 2-3/8

$

$

Not available

18

Simplicity 2821965

CAPSCREW, 3/8NC x 3/4

$

$

Not available

18

Simplicity 2816950SM

NUT, 3/8NC
(Superseded to 703457)

$4.49

$

In Stock, Qty 7

0

19

Simplicity 2068031

FRAME ASSEMBLY, Front Hanger

$

$

Not available

19

Simplicity 2821210

CAPSCREW, 3/8NC x 1

$

$

Not available

19

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 17

0

20

Simplicity 2068032

CLAMP, Sleeve

$

$

Not available

20

Simplicity 2821176

CAPSCREW, 1/2NC x 1-1/4

$

$

Not available

20

Simplicity 2813744

NUT, 1/2NC - Lock

$

$

Not available

21

Simplicity 2068033

U-BOLT ASSEMBLY

$

$

Not available

22

Simplicity 2068034

PULLEY, 7" O.D.

$

$

Not available

22

Simplicity 901277

SETSCREW, 5/16NC x 1/2, Square Head, Cup Point

$

$

Not available

23

Simplicity 2068035

BELT, Engine To Jackshaft

$

$

Not available

24

Simplicity 2068036

GUARD, Pulley

$

$

Not available

25

Simplicity 2068039

BRACKET ASSEMBLY, Hanger Mounting

$

$

Not available

25

Simplicity 922099

BOLT, 1/2NC x 1-1/4 Carriage

$

$

Not available

25

Simplicity 2816966

LOCKWASHER, 1/2

$

$

Not available

25

Simplicity 2816951

NUT, 1/2NC

$

$

Not available

26

Simplicity 2068040

ROD, Stabilizer

$

$

Not available

27

Simplicity 2068041

ROD ASSEMBLY, Stabilizer Extension

$

$

Not available

27

Simplicity 901277

SETSCREW, 3/8NC x 3/4, Square Head Cup Point

$

$

Not available

27

Simplicity 920990

CAPSCREW, 1/2NC x 3-1/2

$

$

Not available

27

Simplicity 2816966

LOCKWASHER, 1/2

$

$

Not available

27

Simplicity 2816951

NUT, 1/2NC

$

$

Not available

28

Simplicity 2068042

PLATE ASSEMBLY, Carrier Adjust

$

$

Not available

29

Simplicity 2068043

HOUSING, Breakaway

$

$

Not available

29

Simplicity 922099

BOLT, 1/2NC x 1-1/4 Carriage

$

$

Not available

29

Simplicity 2818431

WASHER, 1/2

$

$

Not available

30

Simplicity 2068044

SPACER

$

$

Not available

30

Simplicity 920990

CAPSCREW, 1/2NC x 3-1/2

$

$

Not available

30

Simplicity 923320

CAPSCREW, 1/2NC x 3

$

$

Not available

31

Simplicity 2068045

ANCHOR, Spring

$

$

Not available

32

Simplicity 2068046

SPRING

$

$

Not available

33

Simplicity 2068047

CAPSCREW, 1/2NC x 4, Anchor

$

$

Not available

33

Simplicity 2816951

NUT, 1/2NC

$

$

Not available

34

Simplicity 2068049

BELT, Jackshaft To Sickle

$

$

Not available

35

Simplicity 2068050

STRAP

$

$

Not available

35

Simplicity 922146

BOLT, 1/2NC x 1-1/2, Carriage

$

$

Not available

36

Simplicity 2818432

WASHER, 1-3/4

$

$

Not available
