416 S (1600260) - AGCO Lawn Tractor, 16hp Sheet Metal & Frame Group - Front (1506I33) Parts Diagram

Lawn Tractor, 16hp

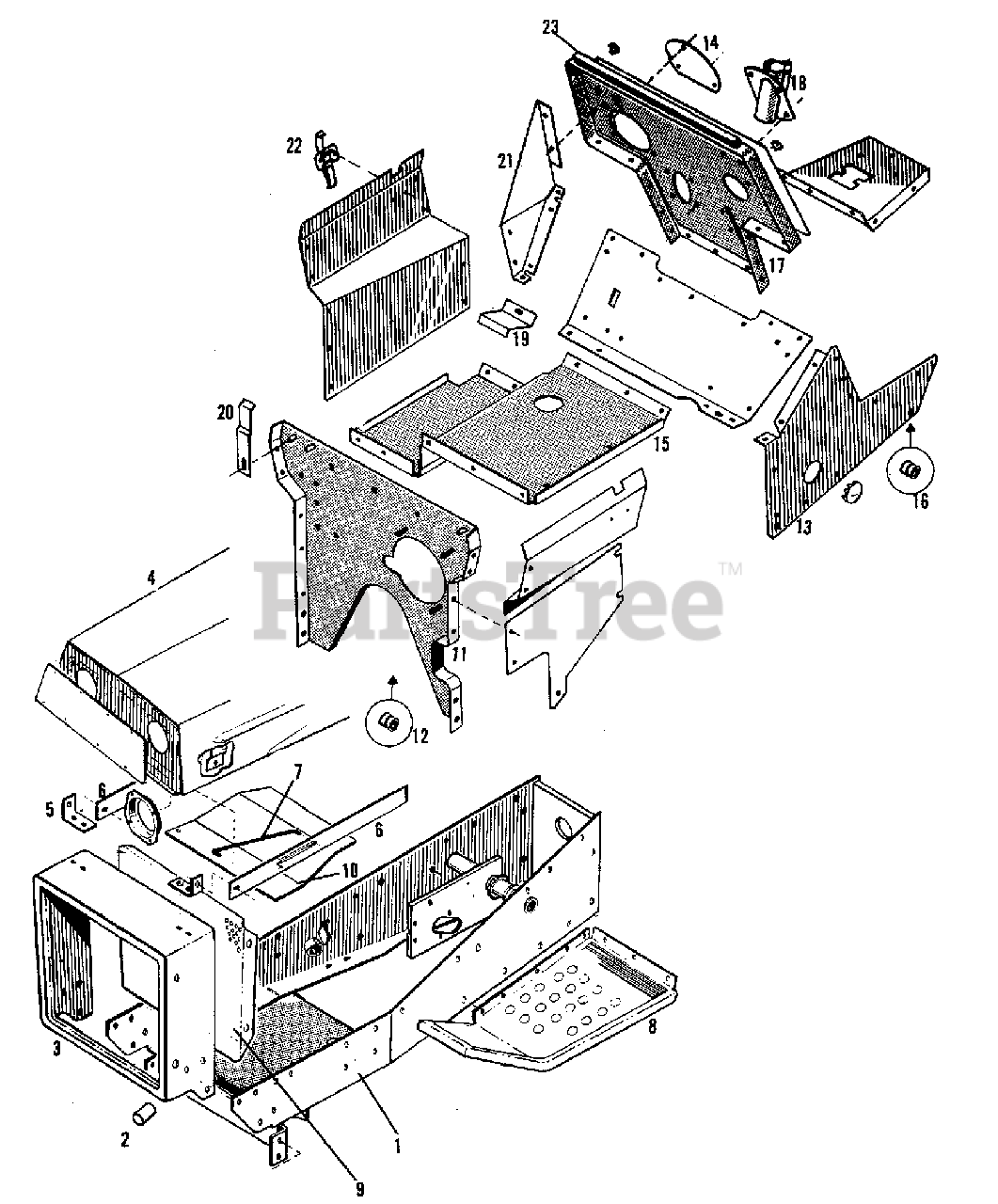

Sheet Metal & Frame Group - Front (1506I33) Parts Diagram

  • Title

1

Simplicity 1608393

FRAME ASSEMBLY, Main (Prior S/N 25841001, 26041001, 26141001, &, 29941001)

$

$

Not available

1

Simplicity 1608791

FRAME ASSEMBLY, Main (Eff. S/N 25841001 & Up, 26041001 & Up, 26141001 & Up, 29941001 & Up)

$

$

Not available

1

Simplicity 2821133SM

FITTING, Drive
(Superseded to 703907)

$4.99

$

In Stock, Qty 20+

0

2

Simplicity 1608341SM

BEARING, Sleeve

$21.99

$

Usually ships in 2-12 days

0

3

Simplicity 1607857

HOUSING ASSEMBLY, Grille

$

$

Not available

3

Simplicity 928697

SCREW, 5/16NC x 1" Taptite

$

$

Not available

4

Simplicity 1603185

HOOD ASSEMBLY

$

$

Not available

4

Simplicity 2825160SM

RIVET, 3/16 x .527 Pop Type

$4.49

$

In Stock, Qty 8

0

5

Simplicity 1603214

BRACKET, Grille Brace

$

$

Not available

5

Simplicity 2819318

CAPSCREW, 5/16NC x 5/8

$

$

Not available

5

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

5

Simplicity 1917372SM

NUT, 5/16NC
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

6

Simplicity 1603219

BRACE, Grille

$

$

Not available

6

Simplicity 2819318

CAPSCREW, 5/16NC x 5/8

$

$

Not available

6

Simplicity 2821332

CCAPSCREW, 5/16NC x 3/4

$

$

Not available

6

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

6

Simplicity 1917372SM

NUT, 5/16NC
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

6

Simplicity 2817642

WASHER, 5/16

$

$

Not available

7

Simplicity 1603208

ROD, Hood Lift

$

$

Not available

7

Simplicity 2821319SM

WASHER, 7/64 x 5/8 x 18 Ga
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

7

Simplicity 919313

PIN, 3/32 x 1/2 Cotter

$

$

Not available

8

Simplicity 1607678

FOOTREST, R.H.

$

$

Not available

8

Simplicity 1607679

FOOTREST, L.H.

$

$

Not available

8

Simplicity 2824856

SCREW, 1/4NC x 5/8

$

$

Not available

9

Simplicity 1603275

INSERT, Grille

$

$

Not available

9

Simplicity 2807727

CAPSCREW, 1/4NC x 5/8

$

$

Not available

9

Simplicity 923753

WASHER, 17/64 x 1 x 16 Ga

$

$

Not available

9

Simplicity 2816964SM

LOCKWASHER, 1/4
(Superseded to 704133)

$3.99

$

In Stock, Qty 11

0

9

Simplicity 2816622SM

NUT, 1/4NC
(Superseded to 703127)

$3.49

$

In Stock, Qty 20+

0

10

Simplicity 1603986

SHIELD, Engine

$

$

Not available

11

Simplicity 1607674

WALL, Front Support

$

$

Not available

11

Simplicity 2821332

CAPSCREW, 5/16NC x 3/4

$

$

Not available

11

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

11

Simplicity 1917372SM

NUT, 5/16NC
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

11

Simplicity 2824856

SCREW, 5/16NC x 1/2 Taptite

$

$

Not available

12

Simplicity 1602102

GROMMET, Rubber

$

$

Not available

13

Simplicity 1607669

SHEET, R.H. Side

$

$

Not available

13

Simplicity 1607670

SHEET, L.H. Side

$

$

Not available

13

Simplicity 922858

NUT, J-Type Retainer

$

$

Not available

13

Simplicity 9287-03

NUT, U-Type Speed

$

$

Not available

13

Simplicity 2817867

NUT, 1/4NC Cage Retainer

$

$

Not available

14

Simplicity 1607675

COVER, Control Linkage

$

$

Not available

14

Simplicity 1604556

RIVET, Pop 1/4NC x .472

$

$

Not available

15

Simplicity 1608352

FLOOR, Fuel Tank

$

$

Not available

15

Simplicity 1604556

RIVET, Pop 1/4NC x .472

$

$

Not available

16

Simplicity 2025650

GROMMET, Rubber

$

$

Not available

17

Simplicity 1607671

PANEL, Instrument

$

$

Not available

17

Simplicity 1604556

RIVET, Pop 1/4NC x .472

$

$

Not available

17

Simplicity 924280

RIVET, Pop 3/16 x .402 (Black)

$

$

Not available

17

Simplicity 2807727

CAPSCREW, 1/4NC x 5/8

$

$

Not available

17

Simplicity 2816964SM

LOCKWASHER, 1/4
(Superseded to 704133)

$3.99

$

In Stock, Qty 11

0

17

Simplicity 2817867

NUT, 1/4NC Cage Retainer

$

$

Not available

17

Simplicity 925146

CAPSCREW, 1/4NC x 1-1/4 (Full Thread)

$

$

Not available

17

Simplicity 2816622SM

NUT, 1/4NC
(Superseded to 703127)

$3.49

$

In Stock, Qty 20+

0

17

Simplicity 2825003

SCREW, 1/4NC x 1/2 Taptite

$

$

Not available

18

Simplicity 1607976

CLAMP ASSEMBLY, Steering Post

$

$

Not available

18

Simplicity 2807727

CAPSCREW, 1/4NC x 5/8

$

$

Not available

19

Simplicity 1607642

STOP, Battery

$

$

Not available

19

Simplicity 2823346

BOLT, 5/16NC x 5/8, Carriage

$

$

Not available

19

Simplicity 2817642

WASHER, 5/16, Standard

$

$

Not available

20

Simplicity 1607641

CLAMP, Battery

$

$

Not available

20

Simplicity 2820562

BOLT, 5/16NC x 3/4, Carriage

$

$

Not available

21

Simplicity 1607633

PANEL, Side

$

$

Not available

21

Simplicity 2825003

SCREW, 1/4NC x 1/2, Taptite

$

$

Not available

21

Simplicity 9286-89

SCREW, 1/4NC x 5/8, Taptite

$

$

Not available

22

Simplicity 1603278SM

LATCH, Hood

$55.99

$

Usually ships in 2-12 days

0

22

Simplicity 916079

SCREW, #10NC x 3/8 Round Head, Machine

$

$

Not available

22

Simplicity 2822711

LOCKWASHER, #10 Ext. Tooth

$

$

Not available

22

Simplicity 2816621

NUT, #10NC

$

$

Not available

23

Simplicity 1602301

TAPE, Foam (14-1/2" Length)

$

$

Not available

24

Simplicity 2026073

INSULATOR, Instrument

$

$

Not available
