416 S (1600260) - AGCO Lawn Tractor, 16hp Mower Housing Group (1506I40) Parts Diagram

Lawn Tractor, 16hp

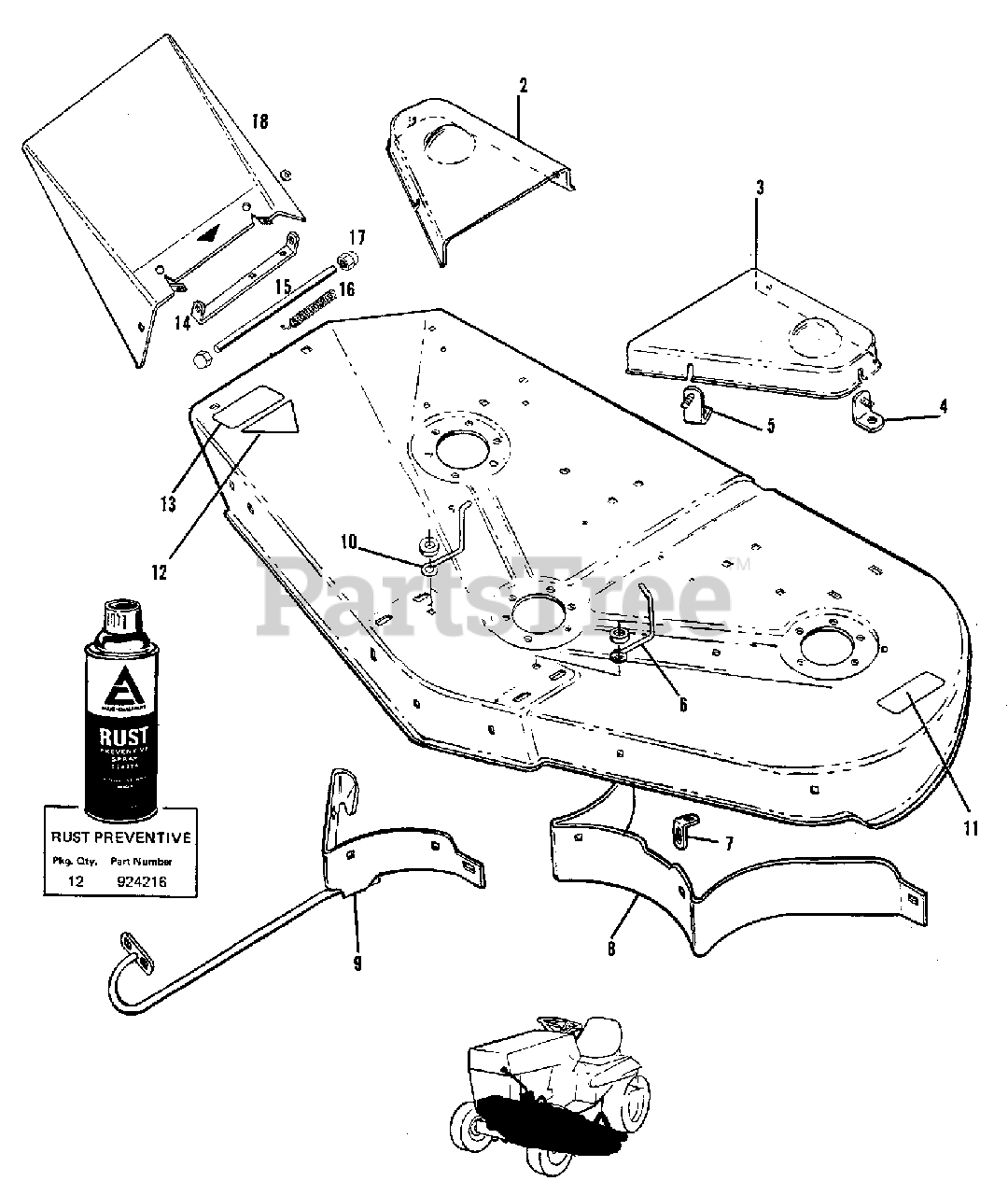

Mower Housing Group (1506I40) Parts Diagram

  • Title

1

Simplicity 1685107SM

HOUSING, Main, (42" Mower)

$

$

Not available

1

Simplicity 1608400

HOUSING, Main, (48" Mower)

$

$

Not available

2

Simplicity 1604275

COVER, Arbor, R.H.

$

$

Not available

3

Simplicity 1607274

COVER, Arbor, L.H.

$

$

Not available

4

Simplicity 1607277

LEG ASSEMBLY, Cover, Outer

$

$

Not available

4

Simplicity 2823346

BOLT, Carriage, 5/16NC x 3/4

$

$

Not available

4

Simplicity 2817642

WASHER, Plain, 5/16NC x 3/4

$

$

Not available

4

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

4

Simplicity 1917372SM

NUT, 5/16NC
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

4

Simplicity 1916965SM

LOCKWASHER, 1/4
(Superseded to 703454)

$3.49

$

In Stock, Qty 15

0

4

Simplicity 2816622SM

NUT, 1/4NC
(Superseded to 703127)

$3.49

$

In Stock, Qty 20+

0

4

Simplicity 2818264

WASHER, Plain, 9/32 x 5/8 x 1/16 Thickness

$

$

Not available

5

Simplicity 1604278

LEG ASSEMBLY, Cover, Inner

$

$

Not available

5

Simplicity 2823346

BOLT, Carriage, 5/16NC x 3/4

$

$

Not available

5

Simplicity 2817642

WASHER, Plain, 3/8 x 7/8 x #16

$

$

Not available

5

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

5

Simplicity 1917372SM

NUT, 5/16NC
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

5

Simplicity 2816964SM

LOCKWASHER, 1/4
(Superseded to 704133)

$3.99

$

In Stock, Qty 11

0

5

Simplicity 2816622SM

NUT, 1/4NC
(Superseded to 703127)

$3.49

$

In Stock, Qty 20+

0

5

Simplicity 2818264

WASHER, Plain, 9/32 x 5/8 x 1/16 Thickness

$

$

Not available

6

Simplicity 1604279

GUIDE, Belt, L.H.

$

$

Not available

6

Simplicity 2823346

BOLT, Carriage, 5/16NC x 3/4

$

$

Not available

6

Simplicity 2817642

WASHER, Plain, 3/8 x 7/8 x #16

$

$

Not available

6

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

6

Simplicity 1917372SM

NUT, 5/16NC
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

7

Simplicity 2025355

CLIP, Baffle (42" Mower)

$

$

Not available

7

Simplicity 1608331SM

CLIP, Baffle (48" Mower)
(Superseded to 1608331ASM)

$10.99

$

Usually ships in 2-12 days

0

7

Simplicity 2823333

BOLT, Carriage, 1/4NC x 5/8

$

$

Not available

7

Simplicity 2821959

CAPSCREW, 1/4NC x 3/4

$

$

Not available

7

Simplicity 2819381

WASHER, .344 x 1 x 10 Ga.

$

$

Not available

7

Simplicity 2817377

WASHER, Plain, 5/16 x 3/4 x #16

$

$

Not available

7

Simplicity 1916965SM

LOCKWASHER, 1/4
(Superseded to 703454)

$3.49

$

In Stock, Qty 15

0

7

Simplicity 2816622SM

NUT, 1/4NC
(Superseded to 703127)

$3.49

$

In Stock, Qty 20+

0

8

Simplicity 1608135SM

BAFFLE, Housing (42" Mower)
(Superseded to 1608135ASM)

$98.99

$

Usually ships in 2-12 days

0

8

Simplicity 1608327ASM

BAFFLE, Housing (48" Mower)

$195.99

$

Usually ships in 2-12 days

0

8

Simplicity 2822110

BOLT, Carriage, 3/8NC x 3/4

$

$

Not available

8

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 15

0

8

Simplicity 2816950SM

NUT, 3/8NC
(Superseded to 703457)

$4.49

$

In Stock, Qty 7

0

9

Simplicity 1685263SM

GUARD ASSEMBLY, Discharge (42" Mower)

$139.99

$

Usually ships in 2-12 days

0

9

Simplicity 1685263SM

GUARD ASSEMBLY, Discharge (48" Mower)

$139.99

$

Usually ships in 2-12 days

0

9

Simplicity 2821158

BOLT, Carriage, 5/16NC x 1

$

$

Not available

9

Simplicity 2822110

BOLT, Carriage, 3/8NC x 3/4

$

$

Not available

9

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

9

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 15

0

9

Simplicity 1917372SM

NUT, 5/16NC
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

9

Simplicity 2816950SM

NUT, 3/8NC
(Superseded to 703457)

$4.49

$

In Stock, Qty 7

0

10

Simplicity 1604280

GUIDE, Belt, R.H.

$

$

Not available

10

Simplicity 2823346

BOLT, Carriage, 5/16NC x 3/4

$

$

Not available

10

Simplicity 2817642

WASHER, Plain, 3/8 x 7/8 x #16

$

$

Not available

10

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

10

Simplicity 1917372SM

NUT, 5/16NC
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

11

Simplicity 2029278

TRANSFER (Caution)

$

$

Not available

12

Simplicity 2029277

DECAL, Danger

$

$

Not available

13

Simplicity 2029237

DECAL, Safety

$

$

Not available

14

Simplicity 1608281

HINGE, Support (Eff. S/N 41101 & Up)

$

$

Not available

14

Simplicity 2823346

BOLT, Carriage, 5/16NC x 5/8 (Eff. S/N 41101 & Up)

$

$

Not available

14

Simplicity 1917356SM

LOCKWASHER, 5/16 (Eff. S/N 41101 & Up)
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

14

Simplicity 1917372SM

NUT, 5/16NC (Eff. S/N 41101 & Up)
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

15

Simplicity 1608293

PIN, Hinge (Eff. S/N 41101 & Up)

$

$

Not available

16

Simplicity 1608348

HINGE, Spring (Eff. S/N 41101 & Up)

$

$

Not available

17

Simplicity 2029192

FASTENER, Pushnut (Eff. S/N 41101 & Up)

$

$

Not available

18

Simplicity 1656049

DEFLECTOR (Eff. S/N 41101 & Up)
(Superseded to 1656049ASM)

$

$

Not available

18

Simplicity 2822110

BOLT, Carriage, 3/8NC x 3/4 (Eff. S/N 41101 & Up)

$

$

Not available

18

Simplicity 2824356

WASHER, 13/32 x 1-1/2 (Eff. S/N 41101 & Up)

$

$

Not available

18

Simplicity 1916965SM

LOCKWASHER, 3/8 (Eff. S/N 41101 & Up)
(Superseded to 703454)

$3.49

$

In Stock, Qty 15

0

18

Simplicity 2816950SM

NUT, 3/8NC (Eff. S/N 41101 & Up)
(Superseded to 703457)

$4.49

$

In Stock, Qty 7

0
