416 S (1600260) - AGCO Lawn Tractor, 16hp Hydrostatic Cooling Group (1506I15) Parts Diagram

Lawn Tractor, 16hp

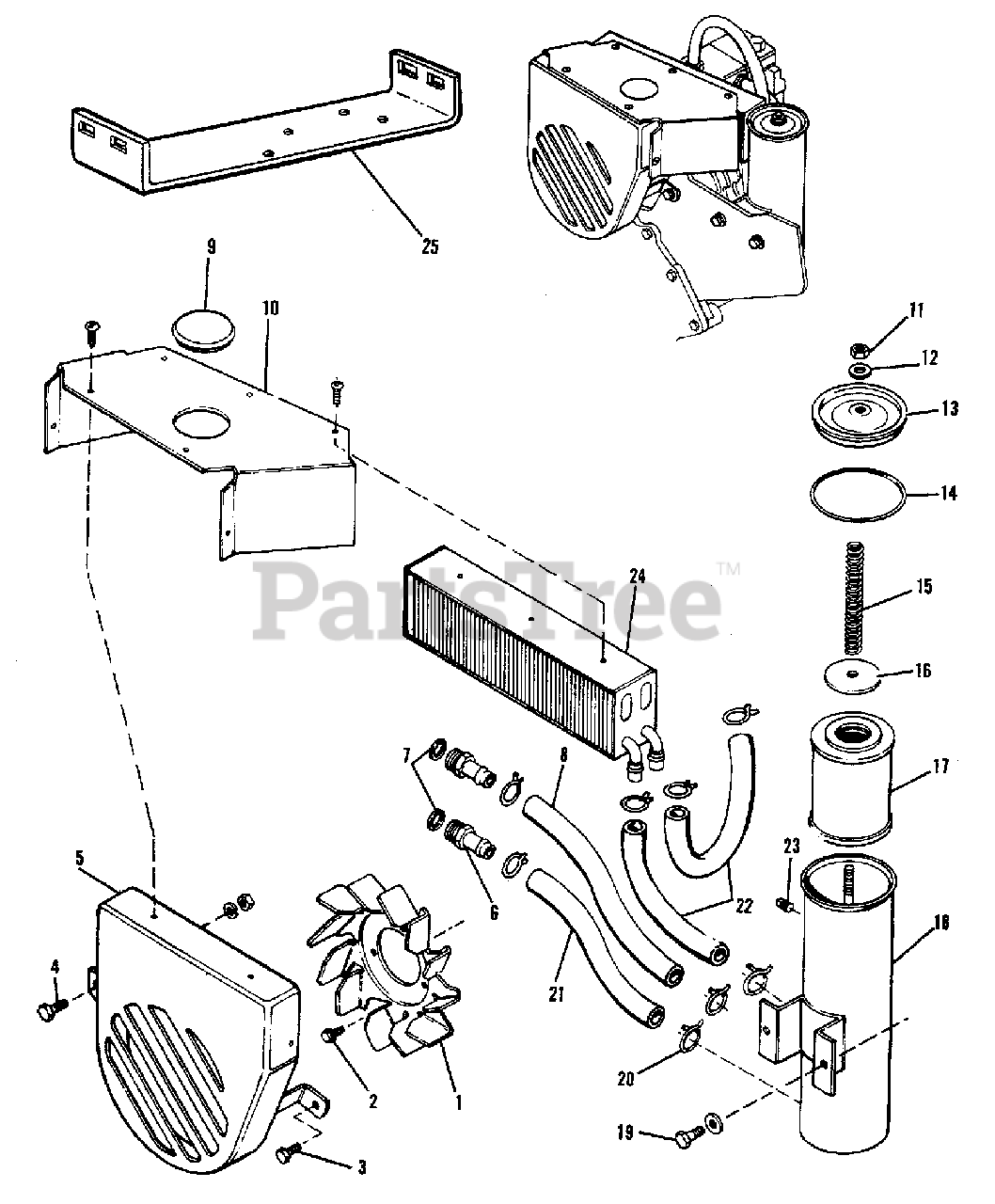

Hydrostatic Cooling Group (1506I15) Parts Diagram

  • Title
1

Simplicity 2027471

FAN, Pulley

$

$

Not available

2

Simplicity 2825003

SCREW, Washer Head, Tapping, 1/4NC x 1/2

$

$

Not available

3

Simplicity 922854

SCREW, Self Tapping, 5/16NC x 5/8

$

$

Not available

4

Simplicity 1605497

CAPSCREW, 7/16NC x 4

$

$

Not available

4

Simplicity 2818199

LOCKWASHER, 7/16

$

$

Not available

4

Simplicity 2818213

NUT, 7/16NC

$

$

Not available

5

Simplicity 2027472

SHROUD ASSEMBLY, Fan

$

$

Not available

6

Simplicity 2027480

INSERT, Bead

$

$

Not available

$

$

Not available

8

Simplicity 2027477

HOSE, Hydraulic

$

$

Not available

$

$

Not available

10

Simplicity 1603495

DEFLECTOR, Cooler

$

$

Not available

10

Simplicity 2823735

SCREW, Self-Tapping, #10 x 3/8

$

$

Not available

11

Simplicity 2824433

NUT, Esna Lock, 5/16NC

$

$

Not available

12

Simplicity 2027487

WASHER, Nylon

$

$

Not available

13

Simplicity 2027485

COVER, Reservoir

$

$

Not available

$

$

Not available

15

$

$

Not available

16

$

$

Not available

17

Simplicity 2027483

ELEMENT, Filter

$

$

Not available

18

Simplicity 2027482

RESERVOIR ASSEMBLY

$

$

Not available

19

Simplicity 2821333

CAPSCREW, Hexagon Head, 5/16NC x 1

$

$

Not available

19

Simplicity 1917372SM

NUT, Hexagon, 5/16NC
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

19

Simplicity 1917356SM

LOCKWASHER, 5/16 Medium
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

19

Simplicity 2817642

WASHER, 5/16 Standard

$

$

Not available

20

Simplicity 921911

CLAMP, Hose

$

$

Not available

21

Simplicity 2027476

HOSE, Hydraulic

$

$

Not available

22

Simplicity 2027478

HOSE, Hydraulic

$

$

Not available

23

Simplicity 2027488

PLUG, 1/4 Square Head, Plastic

$

$

Not available

24

Simplicity 2027475

COOLER, Oil

$

$

Not available

25

Simplicity 1604580

BRACKET, Cooler Support

$

$

Not available

25

Simplicity 2823735

SCREW, Self-Tap, #10 x 3/8

$

$

Not available

25

Simplicity 917452

SCREW, #10NF x 1/2 (Round Head)

$

$

Not available
