Lawn Tractor, 16hp

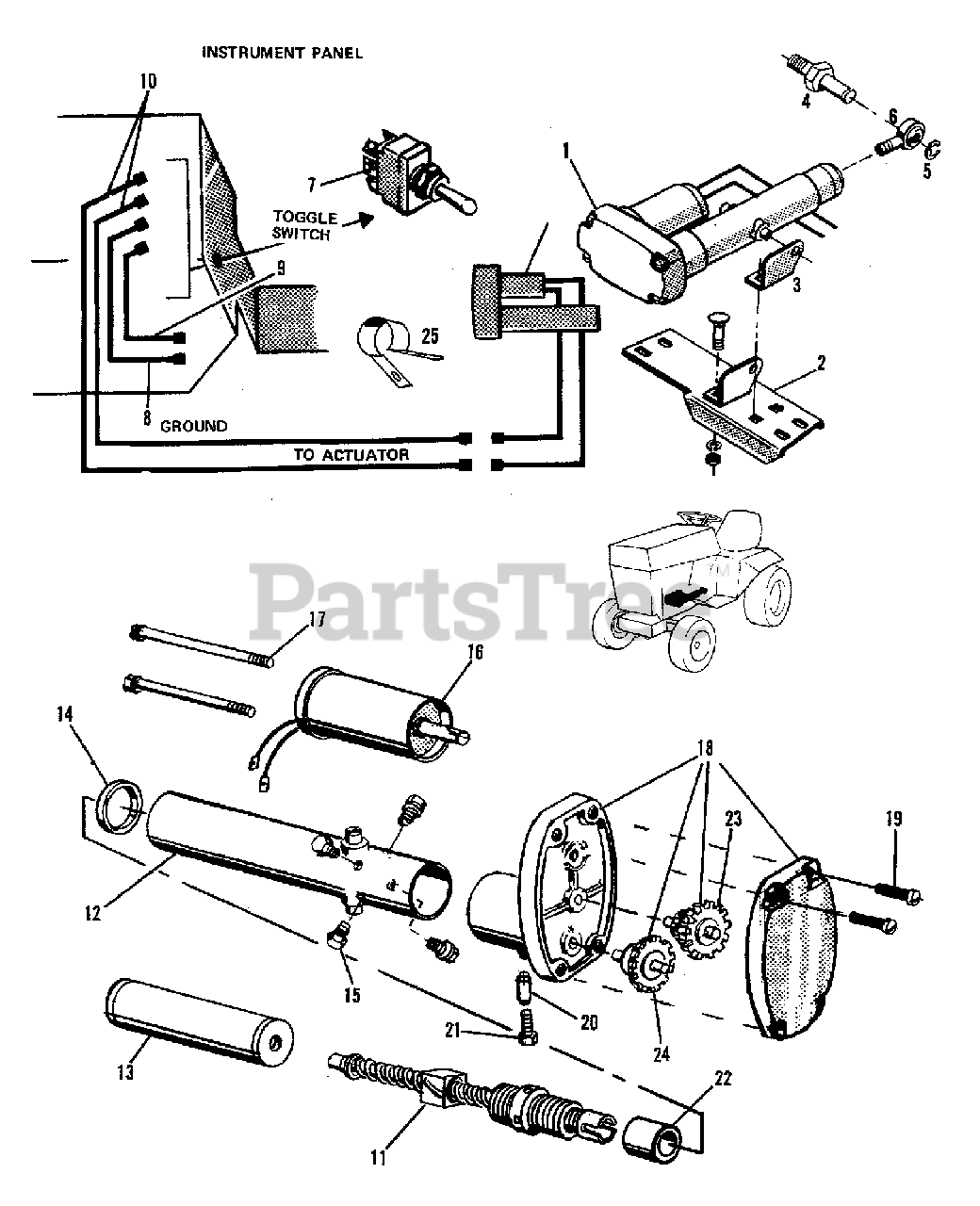

Electrical Group - Implement Lift (1506I24) Parts Diagram

  • Title

1

Simplicity 1603334

ACTUATOR, Electric

$

$

Not available

2

Simplicity 1604142

SUPPORT, Actuator

$

$

Not available

2

Simplicity 2821210

CAPSCREW, 3/8NC x 1

$

$

Not available

2

Simplicity 2824940

WASHER, 13/32 x 7/8 x 14 GA

$

$

Not available

2

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 15

0

2

Simplicity 2816950SM

NUT, 3/8NC
(Superseded to 703457)

$4.49

$

In Stock, Qty 7

0

3

Simplicity 1603337

BRACKET, Support

$

$

Not available

3

Simplicity 2823232

BOLT, 3/8NC x 1, Carriage

$

$

Not available

3

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 15

0

3

Simplicity 2816950SM

NUT, 3/8NC
(Superseded to 703457)

$4.49

$

In Stock, Qty 7

0

4

Simplicity 1607996

PIN, Pivot

$

$

Not available

4

Simplicity 2816966

LOCKWASHER, 1/2

$

$

Not available

4

Simplicity 2816951

NUT, 1/2NC

$

$

Not available

4

Simplicity 2816960

WASHER, 17/32 x 1-1/4 x 16 Ga.

$

$

Not available

5

Simplicity 227976

RING, External 1/2" Shaft "E"

$

$

Not available

6

Simplicity 1604324

ROD, End

$

$

Not available

6

Simplicity 2819262

NUT, 1/2NF-Jam

$

$

Not available

7

Simplicity 1607243

SWITCH, Toggle

$

$

Not available

8

Simplicity 1607372

LEAD, Switch Connector & Ground

$

$

Not available

9

Simplicity 1606768

LEAD, Lift Switch To PTO Switch

$

$

Not available

10

Simplicity 1606769

HARNESS, Switch to Actuator

$

$

Not available

11

Simplicity 1605769

SCREW & BRAKE ASSEMBLY, Ball Bearing

$

$

Not available

12

Simplicity 1605770

TUBE ASSEMBLY, Outer

$

$

Not available

13

Simplicity 1605771

TUBE ASSEMBLY, Inner

$

$

Not available

14

Simplicity 1605772

SEAL, Quadrant Ring

$

$

Not available

15

Simplicity 1605775

SCREW, Thread Cutting

$

$

Not available

16

Simplicity 1663966

MOTOR

$

$

Not available

17

Simplicity 1605777

SCREW, Motor

$

$

Not available

18

Simplicity 1605774

GEAR BOX ASSEMBLY

$

$

Not available

19

Simplicity 1605780

SCREW, Filister Head, #10-32 Thread

$

$

Not available

20

Simplicity 1605778SM

PIN, Drive

$6.99

$

Usually ships in 2-12 days

0

21

Simplicity 1605773

SCREW, Thread Forming

$

$

Not available

22

Simplicity 1605779

SLEEVE, Coupling

$

$

Not available

23

Simplicity 2066521

GEAR ASSEMBLY

$

$

Not available

24

Simplicity 2066522

GEAR ASSEMBLY

$

$

Not available

25

Simplicity 924663

CLIP, Closed, 3/8

$

$

Not available

25

Simplicity 2821969

CAPSCREW, 3/8NC x 1-1/2

$

$

Not available

25

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 15

0

25

Simplicity 2816950SM

NUT, 3/8NC
(Superseded to 703457)

$4.49

$

In Stock, Qty 7

0
