416 S (1600260) - AGCO Lawn Tractor, 16hp Controls Group - Clutch & Brake (1506I30) Parts Diagram

Lawn Tractor, 16hp

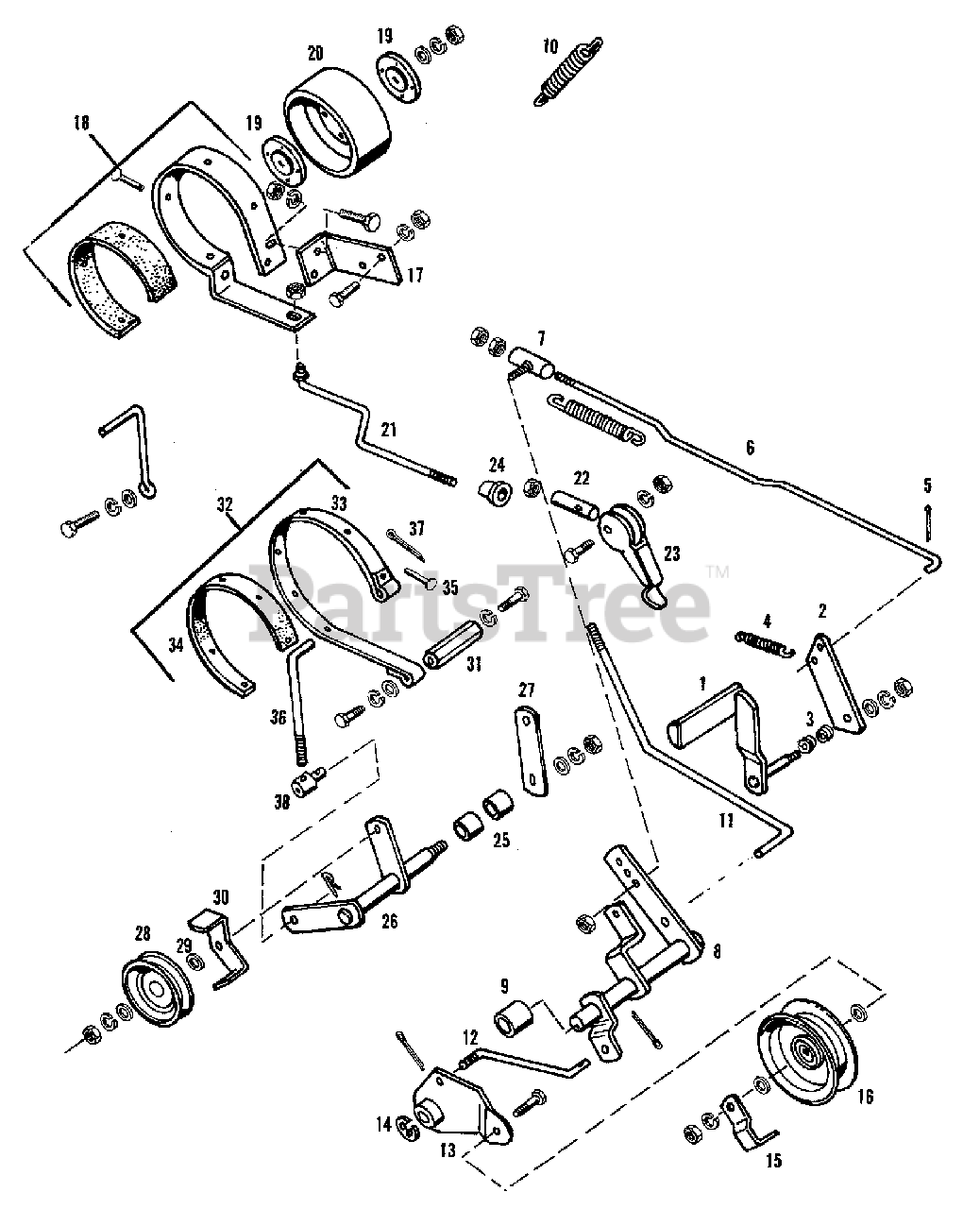

Controls Group - Clutch & Brake (1506I30) Parts Diagram

  • Title

1

Simplicity 2029193

PEDAL ASSEMBLY, Foot

$

$

Not available

2

Simplicity 1602480

ARM, Foot Pedal

$

$

Not available

2

Simplicity 1924940SM

WASHER, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

2

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 15

0

2

Simplicity 2816950SM

NUT, 3/8NC
(Superseded to 703457)

$4.49

$

In Stock, Qty 7

0

3

Simplicity 1663114SM

BUSHING, Flanged

$4.49

$

In Stock, only 3 left!

0

4

Simplicity 2026529

SPRING

$

$

Not available

5

Simplicity 2818448

PIN, Cotter, 3/32 x 3/4

$

$

Not available

6

Simplicity 1602708

ROD, Clutch & Brake

$

$

Not available

6

Simplicity 2817642

WASHER, 5/16

$

$

Not available

7

Simplicity 2164094SM

GUIDE ASSEMBLY, Rod

$45.99

$

Usually ships in 2-12 days

0

7

Simplicity 1917372SM

NUT, 5/16NC
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

7

Simplicity 2823362

NUT, 5/16NC-Lock

$

$

Not available

8

Simplicity 1602466

LEVER ASSEMBLY, Pivot

$

$

Not available

9

Simplicity 1604207

SPACER

$

$

Not available

10

Simplicity 2029186

SPRING

$

$

Not available

10

Simplicity 2821221

CAPSCREW, 5/16NC x 1-1/2

$

$

Not available

10

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

10

Simplicity 1917372SM

NUT, 5/16NC
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

11

Simplicity 1602712

ROD, Brake

$

$

Not available

11

Simplicity 2818448

PIN, Cotter 3/32 x 1

$

$

Not available

11

Simplicity 2816950SM

NUT, 3/8NC
(Superseded to 703457)

$4.49

$

In Stock, Qty 7

0

12

Simplicity 1602779

LINK, Clutch

$

$

Not available

12

Simplicity 2818448

PIN, Cotter 3/32 x 1

$

$

Not available

13

Simplicity 2029184

LEVER ASSEMBLY, Idler

$

$

Not available

14

Simplicity 2827793SM

RING, External Snap (5/8" Shaft)
(Superseded to 703977)

$4.99

$

In Stock, Qty 14

0

15

Simplicity 2026719

STOP, Belt Idler

$

$

Not available

16

Simplicity 2028453

PULLEY, Idler

$

$

Not available

16

Simplicity 2821969

CAPSCREW, 3/8NC x 1-1/2

$

$

Not available

16

Simplicity 1924940SM

WASHER, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

16

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 15

0

16

Simplicity 2816950SM

NUT, 3/8NC
(Superseded to 703457)

$4.49

$

In Stock, Qty 7

0

17

Simplicity 2027039

BRACKET, Brake Band

$

$

Not available

17

Simplicity 2821210

CAPSCREW, 3/8NC x 1

$

$

Not available

17

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 15

0

17

Simplicity 2816950SM

NUT, 3/8NC
(Superseded to 703457)

$4.49

$

In Stock, Qty 7

0

18

Simplicity 2029185

BAND ASSEMBLY, Brake (Includes LINING)

$

$

Not available

18

Simplicity 2025570

LINING, Brake

$

$

Not available

18

Simplicity 928308

RIVITS

$

$

Not available

18

Simplicity 2823341SM

CAPSCREW, 1/4NC x 3/4
(Superseded to 703925)

$4.49

$

In Stock, Qty 7

0

18

Simplicity 2816964SM

LOCKWASHER, 1/4
(Superseded to 704133)

$3.99

$

In Stock, Qty 11

0

18

Simplicity 2816622SM

NUT, 1/4NC
(Superseded to 703127)

$3.49

$

In Stock, Qty 20+

0

19

Simplicity 2026535

WASHER, Special

$

$

Not available

20

Simplicity 2026534

DRUM, Brake

$

$

Not available

20

Simplicity 2818213

NUT, 7/16NC

$

$

Not available

20

Simplicity 2818430

WASHER, 7/16

$

$

Not available

20

Simplicity 2818199

LOCKWASHER, 7/16

$

$

Not available

21

Simplicity 1607720

ROD, Parking Brake

$

$

Not available

21

Simplicity 2823362

NUT, 5/16NC-Lock

$

$

Not available

21

Simplicity 1917372SM

NUT, 5/16NC
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

22

Simplicity 2028005

END, Rod

$

$

Not available

23

Simplicity 2028006

LEVER, Parking Brake

$

$

Not available

23

Simplicity 2828745

CAPSCREW, 1/4NC x 1-1/4 Gr8

$

$

Not available

23

Simplicity 2823358

NUT, 1/4NC-Lock

$

$

Not available

23

Simplicity 2816960

WASHER, .531 x 1.25 x 16 Ga.

$

$

Not available

24

Simplicity 1602137

BEARING, Flanged

$

$

Not available

25

Simplicity 2029343

BUSHING

$

$

Not available

26

Simplicity 2029344

LEVER ASSEMBLY

$

$

Not available

27

Simplicity 2029345

LEVER

$

$

Not available

27

Simplicity 1924940SM

WASHER, Plain, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

27

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 15

0

27

Simplicity 2816950SM

NUT, 3/8-16
(Superseded to 703457)

$4.49

$

In Stock, Qty 7

0

28

Simplicity 2029346

PULLEY, Idler

$

$

Not available

28

Simplicity 2821969

CAPSCREW, 3/8NC x 1-1/2

$

$

Not available

28

Simplicity 2817642

WASHER, Plain, 5/16

$

$

Not available

29

Simplicity 2029347

SPACER

$

$

Not available

30

Simplicity 2029349

GUIDE, Belt

$

$

Not available

30

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 15

0

30

Simplicity 2816950SM

NUT, 3/8NC
(Superseded to 703457)

$4.49

$

In Stock, Qty 7

0

31

Simplicity 2029352

ANCHOR, Brake

$

$

Not available

31

Simplicity 2821210

CAPSCREW, 3/8NC x 1

$

$

Not available

31

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 15

0

32

Simplicity 2029353

BAND ASSEMBLY, Brake

$

$

Not available

32

Simplicity 2821969

CAPSCREW, 3/8NC x 1-1/2

$

$

Not available

32

Simplicity 2817642

WASHER, Plain, 5/16

$

$

Not available

32

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 15

0

33

BAND, Brake (Not Serviced)

$

$

Not available

34

LINING, Brake (Not Serviced)

$

$

Not available

35

RIVET, #7 x 1/2 (Not Serviced)

$

$

Not available

36

Simplicity 2029354

ROD

$

$

Not available

37

Simplicity 2818448

PIN, Cotter, 3/32 x 3/4

$

$

Not available

38

Simplicity 2025351

PIVOT

$

$

Not available
