416 S (1600260) - AGCO Lawn Tractor, 16hp Controls Group - Clutch & Brake (1506I29) Parts Diagram

Lawn Tractor, 16hp

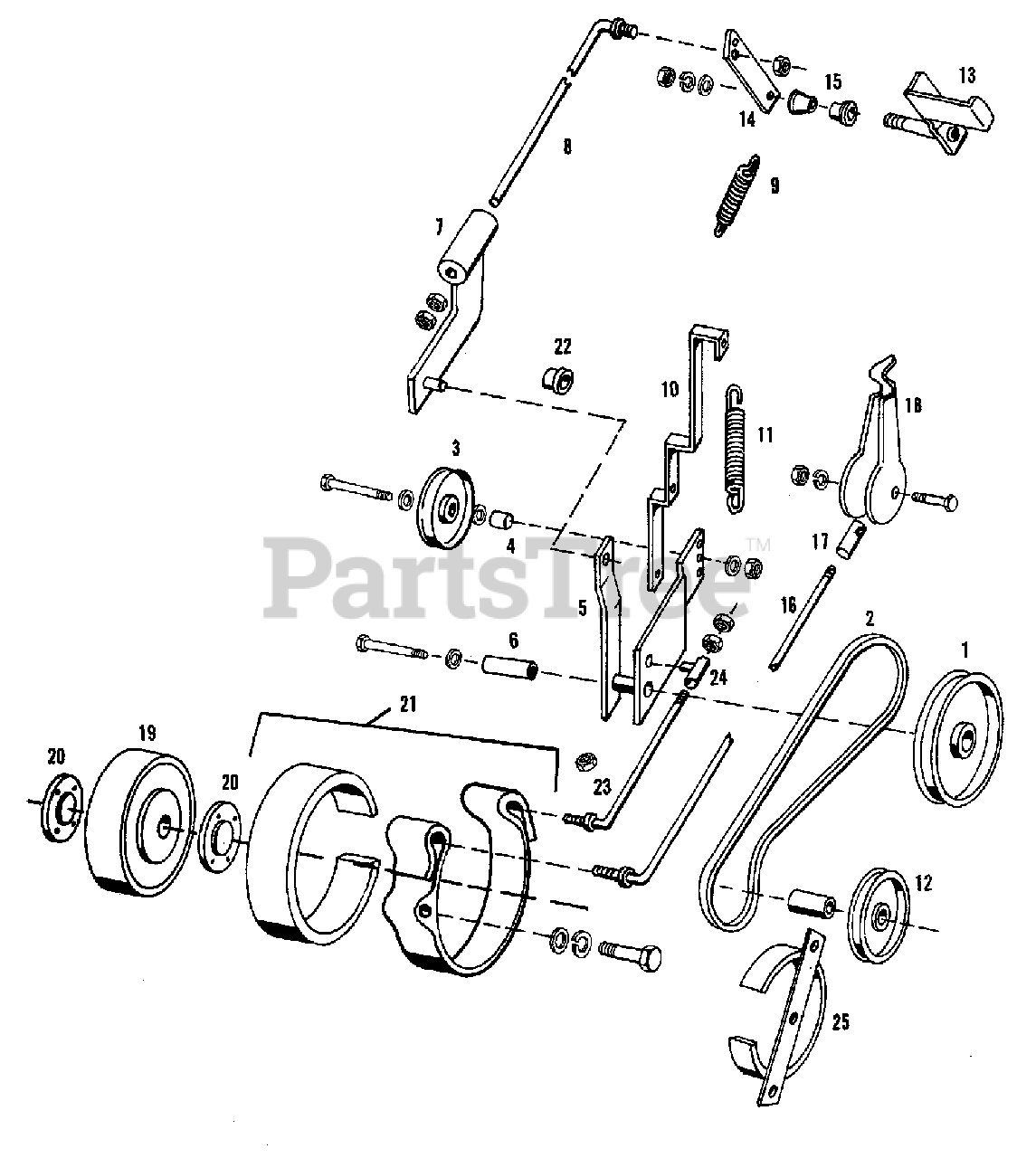

Controls Group - Clutch & Brake (1506I29) Parts Diagram

  • Title

1

Simplicity 1606206

PULLEY

$

$

Not available

2

Simplicity 2108248SM

BELT, Hydrostatic Drive

$31.99

$

In Stock, only 1 left!

0

3

Simplicity 1685144SM

PULLEY, Idler

$

$

Not available

3

Simplicity 1924940SM

WASHER, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

4

Simplicity 2026002

SPACER

$

$

Not available

4

Simplicity 2822130

CAPSCREW, 3/8NC x 2-1/4

$

$

Not available

4

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 15

0

4

Simplicity 2816950SM

NUT, 3/8NC
(Superseded to 703457)

$4.49

$

In Stock, Qty 7

0

4

Simplicity 2823428

NUT, 3/8NC-Lock

$

$

Not available

5

Simplicity 1604295

LEVER ASSEMBLY, Idler

$

$

Not available

5

Simplicity 2825084

WASHER, .781 x 1.25 x 7 Ga

$

$

Not available

5

Simplicity 2822133

NUT, 3/4NF-Jam Lock

$

$

Not available

6

Simplicity 1604290

SPACER

$

$

Not available

6

Simplicity 2818430

WASHER, 7/16

$

$

Not available

6

Simplicity 2828295

CAPSCREW, 7/16NC x 3-3/4 Gr8

$

$

Not available

6

Simplicity 2818199

LOCKWASHER, 7/16

$

$

Not available

7

Simplicity 1602958

GUIDE ASSEMBLY, Rod

$

$

Not available

7

Simplicity 2818213

NUT, 7/16NC

$

$

Not available

7

Simplicity 923262

NUT, 5/16NC-Lock

$

$

Not available

8

Simplicity 1607677

ROD, Clutch & Brake

$

$

Not available

8

Simplicity 1917372SM

NUT, 5/16NC
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

9

Simplicity 2026529

SPRING

$

$

Not available

10

Simplicity 1608250

BRACKET, Spring

$

$

Not available

11

Simplicity 1608395SM

SPRING, Extension

$17.99

$

Usually ships in 2-12 days

0

12

Simplicity 2027662

PULLEY, Driven

$

$

Not available

12

Simplicity 2026464

KEY

$

$

Not available

12

Simplicity 2823683

SCREW, 3/8NC x 3/4 "Taptite"

$

$

Not available

12

Simplicity 2811712

SETSCREW, 5/16NC x 5/16

$

$

Not available

13

Simplicity 2029193

PEDAL ASSEMBLY, Foot

$

$

Not available

14

Simplicity 1602480

ARM, Foot Pedal

$

$

Not available

14

Simplicity 1924940SM

WASHER, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

14

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 15

0

14

Simplicity 2816950SM

NUT, 3/8NC
(Superseded to 703457)

$4.49

$

In Stock, Qty 7

0

15

Simplicity 1663114SM

BUSHING, Flanged

$4.49

$

In Stock, only 3 left!

0

16

Simplicity 1607683

ROD, Parking Brake

$

$

Not available

16

Simplicity 2823362

NUT, 5/16NC-Lock

$

$

Not available

16

Simplicity 1917372SM

NUT, 5/16NC
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

17

Simplicity 2028005

END, Rod

$

$

Not available

18

Simplicity 2028006

LEVER, Parking Brake

$

$

Not available

18

Simplicity 2828745

CAPSCREW, 1/4NC x 1-1/4 Gr8

$

$

Not available

18

Simplicity 2823358

NUT, 1/4NC-Lock

$

$

Not available

19

Simplicity 2027575

DRUM, Brake

$

$

Not available

20

Simplicity 2026535

WASHER, Special

$

$

Not available

20

Simplicity 2818430

WASHER, 7/16

$

$

Not available

20

Simplicity 2818007

NUT, 7/16NC-Lock

$

$

Not available

21

Simplicity 2029187

BAND ASSEMBLY, Brake (Includes LINING)

$

$

Not available

21

Simplicity 1924940SM

WASHER
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

21

Simplicity 1916965SM

LOCKWASHER
(Superseded to 703454)

$3.49

$

In Stock, Qty 15

0

21

Simplicity 2821971

CAPSCREW, 3/8NC x 1-3/4

$

$

Not available

21

Simplicity 2816960

WASHER, .531 x 1.25 x 16 Ga.

$

$

Not available

22

Simplicity 1602137

BEARING, Flanged

$

$

Not available

23

Simplicity 2029188

ROD ASSEMBLY, Brake

$

$

Not available

23

Simplicity 2816950SM

NUT, 3/8NC
(Superseded to 703457)

$4.49

$

In Stock, Qty 7

0

23

Simplicity 2823428

NUT, 3/8NC-Lock

$

$

Not available

24

Simplicity 2166119SM

GUIDE ASSEMBLY, Rod

$51.99

$

In Stock, only 1 left!

0

24

Simplicity 2823362

NUT, 5/16NC-Lock

$

$

Not available

25

Simplicity 1607457

RETAINER ASSEMBLY, Belt

$

$

Not available
