416 S (1600260) - AGCO Lawn Tractor, 16hp Bevel Gear Box Group (1506I06) Parts Diagram

Lawn Tractor, 16hp

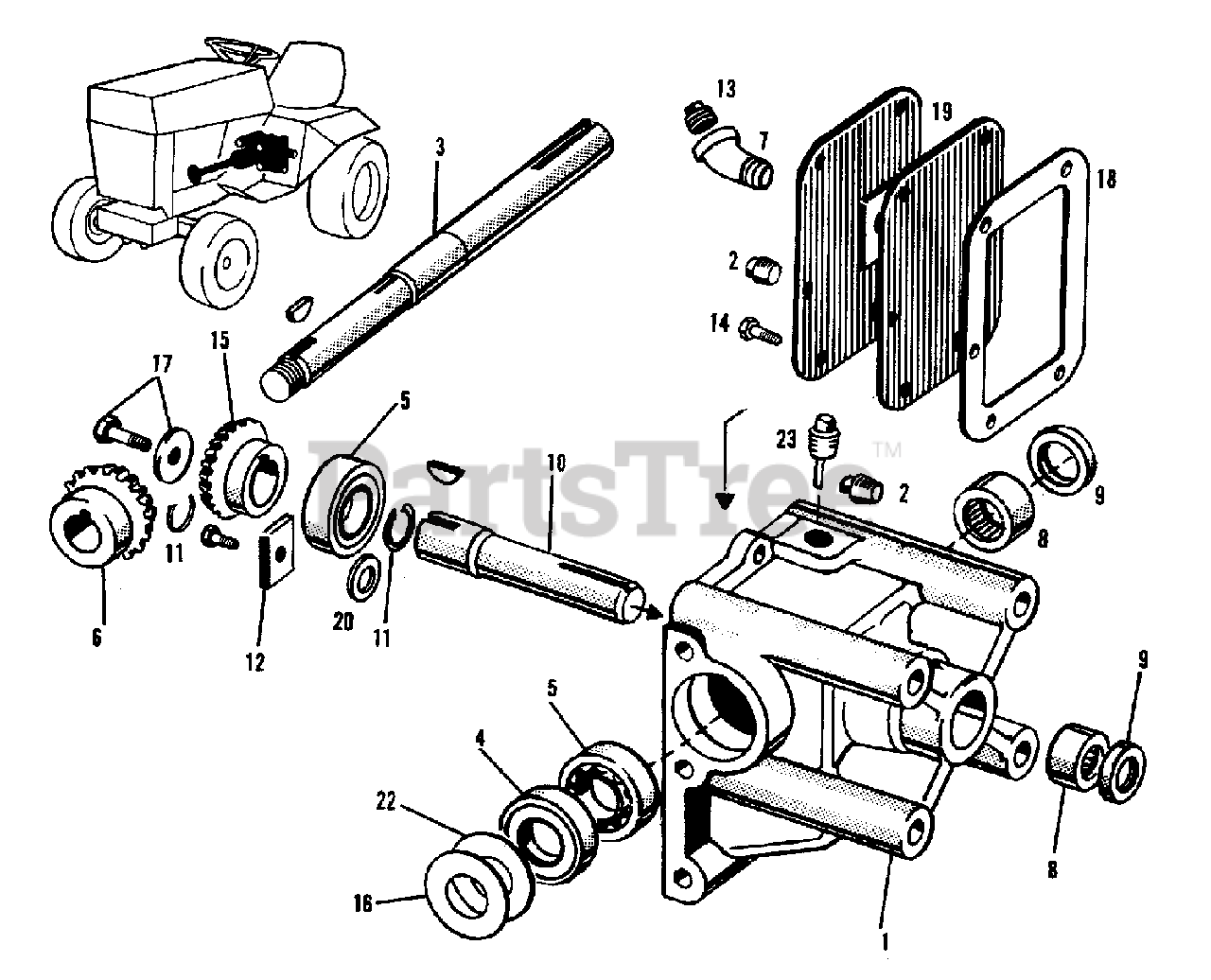

Bevel Gear Box Group (1506I06) Parts Diagram

  • Title

-

Simplicity 1606207SM

GEAR BOX ASSEMBLY, Bevel

$1071.99

$

Usually ships in 2-12 days

0

-

Simplicity 2821212

CAPSCREW, 7/16NC x 1-1/2

$

$

Not available

-

Simplicity 2818199

LOCKWASHER, 7/16

$

$

Not available

1

Simplicity 2027985

HOUSING, Bevel Gear Box (For Tractor Prior S/N 25841001, 2604100, 26141001, & 29941001, Order Items 21, 22, 23)

$

$

Not available

2

Simplicity 2801652SM

PLUG, Pipe, 1/4 Standard (Square Head)

$4.49

$

Usually ships in 2-12 days

0

3

Simplicity 2027986

SHAFT, Driven

$

$

Not available

3

Simplicity 2822139

KEY, Hi-Pro, #606

$

$

Not available

4

Simplicity 2027988

SEAL, Oil

$

$

Not available

5

Simplicity 2027989

BEARING, Ball

$

$

Not available

6

Simplicity 2027990

GEAR, Bevel (Driven)

$

$

Not available

7

Simplicity 2801723

ELBOW, Street, 3/8 x 90 Degrees (Prior S/N 25841001, 26041001 &; 26141001 & 29941001)

$

$

Not available

8

Simplicity 2025645

BEARING, Needle

$

$

Not available

9

Simplicity 2025432

SEAL, Oil

$

$

Not available

10

Simplicity 2027992

SHAFT, Driven

$

$

Not available

10

Simplicity 2805123SM

KEY, Woodruff, 3/16 x 3/4
(Superseded to 7010211YP)

$3.49

$

In Stock, Qty 18

0

11

Simplicity 2027991

RING, Retaining

$

$

Not available

12

Simplicity 2025515

PLATE, Bearing Clamping

$

$

Not available

12

Simplicity 2819318

CAPSCREW, 5/16NC x 5/8

$

$

Not available

12

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

13

Simplicity 2801653

PLUG, Pipe, 3/8 Standard (Square Head)(Prior S/N 25841001, 26061001, 26141001, & 29941001)

$

$

Not available

14

Simplicity 1930526SM

CAPSCREW, 1/4NC x 5/8 (w/Intermediate Tooth Washer)

$1.99

$

Usually ships in 2-12 days

0

15

Simplicity 2027996

GEAR, Bevel (Driven)

$

$

Not available

16

Simplicity 2027997

SHIM, Inner (Use As Required)

$

$

Not available

17

Simplicity 2822126

CAPSCREW, 5/16NC x 3/4, Gr8

$

$

Not available

17

Simplicity 2087505

WASHER

$

$

Not available

18

Simplicity 2025647

GASKET

$

$

Not available

19

Simplicity 2027232

COVER, Housing (Prior S/N 25841001, 26041001, 26141001, & 29941001)

$

$

Not available

19

Simplicity 2029725

COVER, Housing (Eff. S/N 25841001 & Up, 26041001 & Up, 26141001 & Up, & 29941001 & Up)

$

$

Not available

20

Simplicity 2027994

WASHER

$

$

Not available

20

Simplicity 2026128

WASHER

$

$

Not available

20

Simplicity 2818430

WASHER, 7/16, Standard

$

$

Not available

21

Simplicity 2029726

PLUG ASSEMBLY, Oil Fill

$

$

Not available

22

Simplicity 2027998

SHIM, Outer

$

$

Not available

23

Simplicity 2029729

PLUG, Vent (Eff. S/N 25841001 & Up, 26041001 & Up, 26141001 & Up, & 29941001 & Up)

$

$

Not available
