416 H (1600261) - AGCO Lawn Tractor, 16hp Vacuum Collector Group - Hitch, Blower & Adapter (1506I46) Parts Diagram

Lawn Tractor, 16hp

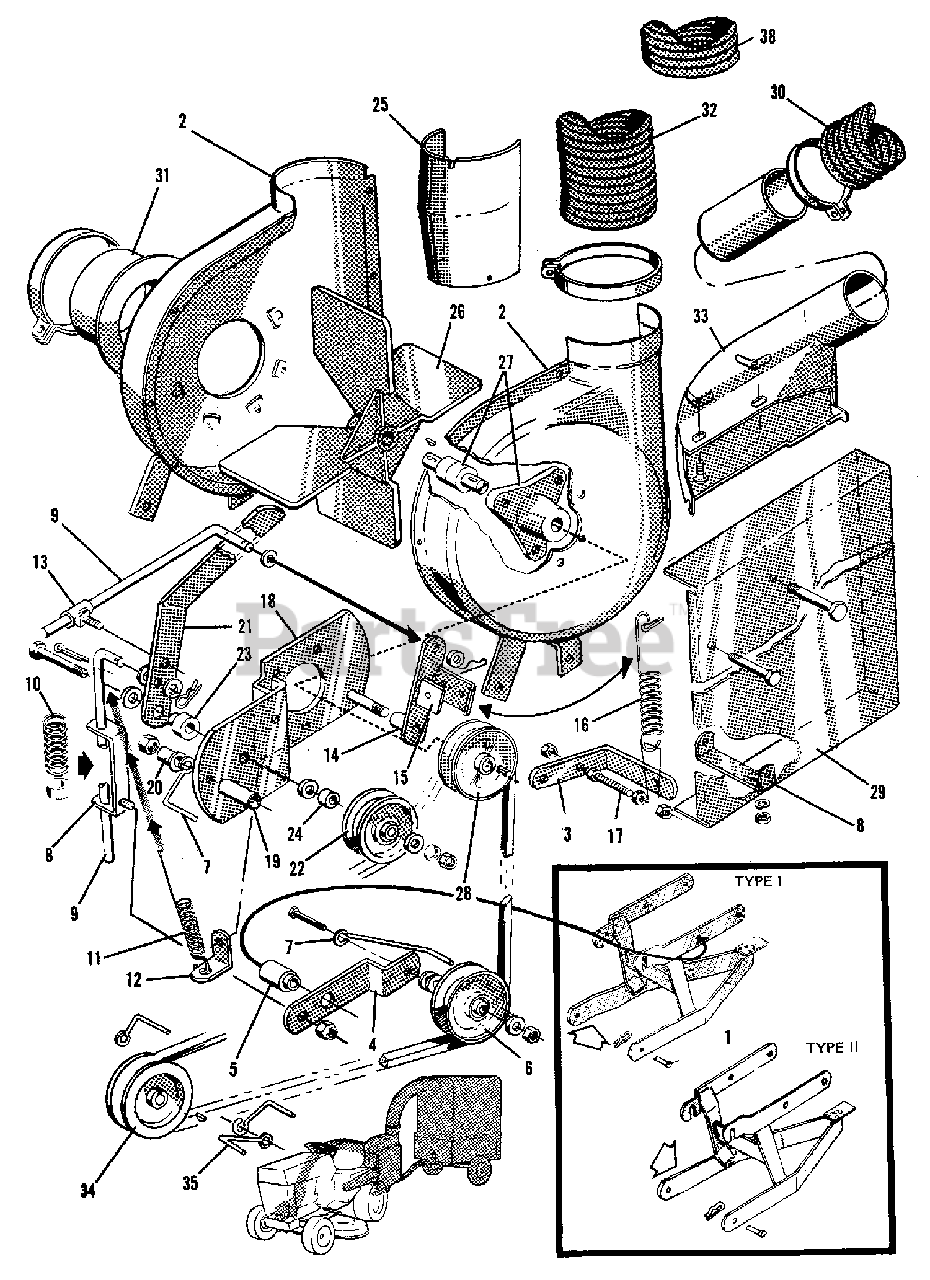

Vacuum Collector Group - Hitch, Blower & Adapter (1506I46) Parts Diagram

  • Title

1

Simplicity 2026307

SUPPORT ASSEMBLY, Blower Housing (Type 2)

$

$

Not available

1

Simplicity 1605790

SUPPORT ASSEMBLY, Blower Housing (Type 1)

$

$

Not available

1

Simplicity 2821210

CAPSCREW, 3/8NC x 1-1/4

$

$

Not available

1

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 17

0

1

Simplicity 2816950SM

NUT, 3/8NC
(Superseded to 703457)

$4.49

$

In Stock, Qty 7

0

2

Simplicity 1605797

HOUSING ASSEMBLY, Inlet Half (L.H.)

$

$

Not available

2

Simplicity 1605800

HOUSING ASSEMBLY, Blower Half (R.H.)

$

$

Not available

2

Simplicity 2821958

CAPSCREW, 1/4NC x 1/2

$

$

Not available

2

Simplicity 2816964SM

LOCKWASHER, 1/4
(Superseded to 704133)

$3.99

$

In Stock, Qty 11

0

2

Simplicity 2816622SM

NUT, 1/4NC
(Superseded to 703127)

$3.49

$

In Stock, Qty 20+

0

3

Simplicity 1605660

BRACKET, Cover

$

$

Not available

3

Simplicity 2821332

CAPSCREW, 5/16NC x 3/4

$

$

Not available

3

Simplicity 1920415SM

CAPSCREW, 3/8NC x 1-1/4
(Superseded to 703871)

$4.99

$

Usually ships in 2-12 days

0

3

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

3

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 17

0

3

Simplicity 1917372SM

NUT, 5/16NC
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

3

Simplicity 2816950SM

NUT, 3/8NC
(Superseded to 703457)

$4.49

$

In Stock, Qty 7

0

4

Simplicity 1605814

ARM, Idler Support

$

$

Not available

4

Simplicity 2820161

NUT, 5/16NC, Lock

$

$

Not available

5

Simplicity 1605815

PIVOT, Idler Arm

$

$

Not available

5

Simplicity 2823903

CAPSCREW, 3/8NC x 3

$

$

Not available

5

Simplicity 2824356

WASHER, 13/32 x 1-1/2 x 11 Ga

$

$

Not available

5

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 17

0

5

Simplicity 2816950SM

NUT, 3/8NC
(Superseded to 703457)

$4.49

$

In Stock, Qty 7

0

6

Simplicity 2026320

PULLEY, Idler

$

$

Not available

6

Simplicity 2821971

CAPSCREW, 3/8NC x 1-3/4

$

$

Not available

6

Simplicity 2824940

WASHER, 13/32 x 7/8 x 14 GA

$

$

Not available

6

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 17

0

6

Simplicity 2816950SM

NUT, 3/8NC
(Superseded to 703457)

$4.49

$

In Stock, Qty 7

0

7

Simplicity 1605962

STOP, Belt

$

$

Not available

7

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

7

Simplicity 2820161

NUT, 5/16

$

$

Not available

8

Simplicity 2027157

BRACKET ASSEMBLY, Support

$

$

Not available

8

Simplicity 2821332

CAPSCREW, 5/16NC x 3/4

$

$

Not available

8

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

8

Simplicity 1917372SM

NUT, 5/16NC
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

9

Simplicity 1605811

ROD, Control

$

$

Not available

9

Simplicity 2818448

PIN, Cotter

$

$

Not available

9

Simplicity 2025752

COLLAR, Set

$

$

Not available

9

Simplicity 2803807

SETSCREW, 1/4NC x 3/8, Square Head

$

$

Not available

9

Simplicity 2026903

CLIP, Spring

$

$

Not available

9

Simplicity 2824874

WASHER, 11/32 x 7/8 x 16 Ga

$

$

Not available

10

Simplicity 1602405

SPRING, Compression

$

$

Not available

11

Simplicity 1602894

SPRING, Tension

$

$

Not available

11

Simplicity 2818448

PIN, Cotter

$

$

Not available

12

Simplicity 2025355

BRACKET, Spring Mounting

$

$

Not available

12

Simplicity 2821960

CAPSCREW, 1/4NC x 1

$

$

Not available

12

Simplicity 924353

WASHER, #10

$

$

Not available

12

Simplicity 2816964SM

LOCKWASHER, 1/4
(Superseded to 704133)

$3.99

$

In Stock, Qty 11

0

12

Simplicity 2816622SM

NUT, 1/4NC
(Superseded to 703127)

$3.49

$

In Stock, Qty 20+

0

13

Simplicity 2164094SM

GUIDE ASSEMBLY, Rod

$45.99

$

Usually ships in 2-12 days

0

13

Simplicity 2823362

NUT, 5/16NC, Lock

$

$

Not available

14

Simplicity 1605961

LEVER ASSEMBLY, Brake

$

$

Not available

15

Simplicity 1610590SM

PAD, Brake

$48.99

$

Usually ships in 2-12 days

0

15

Simplicity 2826267SM

SCREW, #10NC x 5/8

$2.99

$

Usually ships in 2-12 days

0

15

Simplicity 2817365

LOCKWASHER, #10

$

$

Not available

15

Simplicity 923112

NUT, #10NC

$

$

Not available

16

Simplicity 1603348

SPRING, Tension

$

$

Not available

16

Simplicity 2818458

PIN, Cotter

$

$

Not available

17

Simplicity 2027963

STUD, Spring Retaining

$

$

Not available

17

Simplicity 2823428

NUT, 3/8NC, Lock

$

$

Not available

17

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 17

0

17

Simplicity 2816950SM

NUT, 3/8NC
(Superseded to 703457)

$4.49

$

In Stock, Qty 7

0

18

Simplicity 1608346

BRACKET ASSEMBLY, Idler Support

$

$

Not available

18

Simplicity 2824940

WASHER, 13/32 x 7/8 x 14 GA

$

$

Not available

18

Simplicity 2823428

NUT, 3/8NC, Lock

$

$

Not available

18

Simplicity 2821210

CAPSCREW, 3/8NC x 1

$

$

Not available

18

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 17

0

19

Simplicity 2026250

SPACER, Long

$

$

Not available

19

Simplicity 925691

CAPSCREW, 5/16NC x 4

$

$

Not available

19

Simplicity 2821719SM

CAPSCREW, 5/16NC x 2-1/2

$2.99

$

Usually ships in 2-12 days

0

19

Simplicity 2824874

WASHER, 11/32 x 7/8 x 16 Ga

$

$

Not available

19

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

19

Simplicity 1917372SM

NUT, 5/16NC
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

20

Simplicity 2027964

SPACER, Short

$

$

Not available

21

Simplicity 1605810

LEVER, P.T.O.

$

$

Not available

22

Simplicity 2026357

PULLEY, Idler

$

$

Not available

22

Simplicity 2821972

CAPSCREW, 3/8NC x 2-1/2 (Type 1)

$

$

Not available

22

Simplicity 2821971

CAPSCREW, 3/8NC x 1-3/4 (Type 2)

$

$

Not available

22

Simplicity 2824356

WASHER, 13/32 x 1-1/2 x 11 Ga

$

$

Not available

22

Simplicity 2824940

WASHER, 13/32 x 7/8 x 14 GA

$

$

Not available

22

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 17

0

22

Simplicity 2816950SM

NUT, 3/8NC
(Superseded to 703457)

$4.49

$

In Stock, Qty 7

0

23

Simplicity 1606233

SPACER, Pivot

$

$

Not available

24

Simplicity 1610416

SPACER

$

$

Not available

25

Simplicity 2026432

DEFLECTOR

$

$

Not available

25

Simplicity 919804

SCREW, #10NC x 3/8, Self-Tap

$

$

Not available

26

Simplicity 2026310

FAN ASSEMBLY, Blower

$

$

Not available

26

Simplicity 2823085

SETSCRE, 5/16NC x 1/2, Square Head

$

$

Not available

26

Simplicity 2805123SM

KEY, #9, Woodruff
(Superseded to 7010211YP)

$3.49

$

In Stock, Qty 18

0

27

Simplicity 2026355

FLANGE ASSEMBLY

$

$

Not available

28

Simplicity 1602881SM

PULLEY, Blower Drive

$98.99

$

Usually ships in 2-12 days

0

28

Simplicity 2811712

SETSCREW, 5/16NC x 5/16

$

$

Not available

28

Simplicity 2805123SM

KEY, #9, Woodruff
(Superseded to 7010211YP)

$3.49

$

In Stock, Qty 18

0

29

Simplicity 1605659

COVER, Belt Drive

$

$

Not available

30

Simplicity 2028297

HOSE, Intake

$

$

Not available

30

Simplicity 2026332

CLAMP, Hose

$

$

Not available

30

Simplicity 917456

SCREW, 1/4NC x 2-3/4, Round Head

$

$

Not available

30

Simplicity 2816964SM

LOCKWASHER, 1/4
(Superseded to 704133)

$3.99

$

In Stock, Qty 11

0

30

Simplicity 2816622SM

NUT, 1/4NC
(Superseded to 703127)

$3.49

$

In Stock, Qty 20+

0

31

Simplicity 2027085

FLANGE, Hose

$

$

Not available

32

Simplicity 2028298

HOSE, Exhaust

$

$

Not available

32

Simplicity 2026334

CLAMP, Hose

$

$

Not available

32

Simplicity 917456

SCREW, 1/4NC x 2-3/4, Round Head

$

$

Not available

32

Simplicity 2816964SM

LOCKWASHER, 1/4
(Superseded to 704133)

$3.99

$

In Stock, Qty 11

0

32

Simplicity 2816622SM

NUT, 1/4NC
(Superseded to 703127)

$3.49

$

In Stock, Qty 20+

0

33

Simplicity 1605687

ADAPTER ASSEMBLY, Vacuum Collector

$

$

Not available

33

Simplicity 2026329

NUT ASSEMBLY, Wing

$

$

Not available

33

Simplicity 2822249

BOLT, 3/8NC x 1

$

$

Not available

33

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 17

0

33

Simplicity 2816950SM

NUT, 3/8NC
(Superseded to 703457)

$4.49

$

In Stock, Qty 7

0

34

Simplicity 2027164

PULLEY, P.T.O.

$

$

Not available

34

Simplicity 2805850SM

KEY, 3/16 x 3/16 x 1, Parallel

$

$

Not available

35

Simplicity 1606014

STOP, Belt

$

$

Not available

35

Simplicity 921967

CASPCREW, 38NC x 1-1/4

$

$

Not available

35

Simplicity 2824940

WASHER, 13/32 x 7/8 x 14 Ga.

$

$

Not available

35

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 17

0

35

Simplicity 2816950SM

NUT, 3/8NC
(Superseded to 703457)

$4.49

$

In Stock, Qty 7

0

36

Simplicity 2026010

PIN, Round Head

$

$

Not available

36

Simplicity 9002801

CLIP, Spring

$

$

Not available

37

Simplicity 1604406SM

V-BELT, Blower Drive (Type 1)

$44.99

$

Usually ships in 2-12 days

0

37

Simplicity 2028035

V-BELT, Blower Drive (Type 2)

$

$

Not available

38

Simplicity 2027099

HOSE, Extension

$

$

Not available
