416 H (1600261) - AGCO Lawn Tractor, 16hp Vacuum Collector Group - Cart Cover (1506I49) Parts Diagram

Lawn Tractor, 16hp

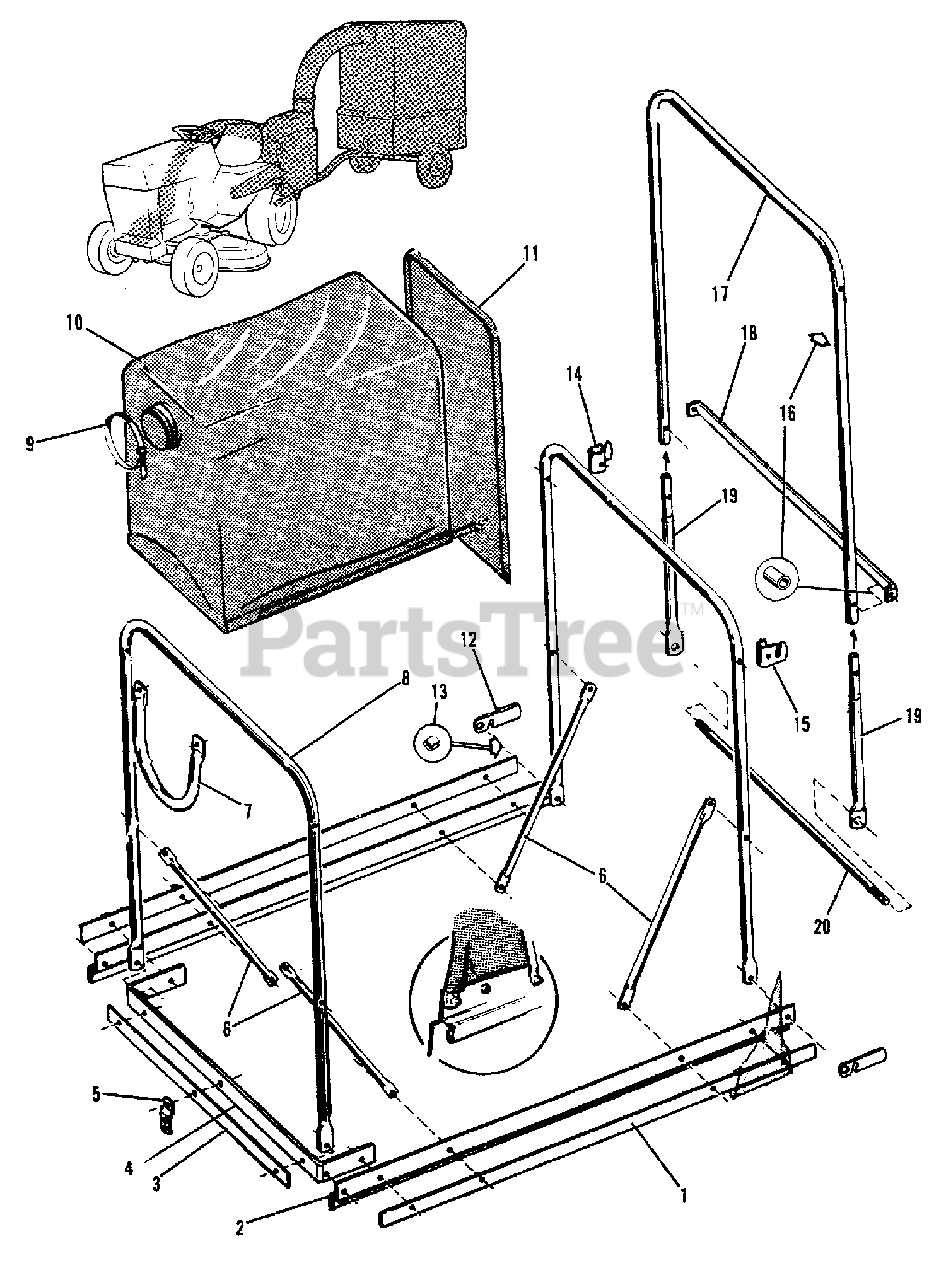

Vacuum Collector Group - Cart Cover (1506I49) Parts Diagram

  • Title

1

Simplicity 2026342

STRIP, Hold Down Side

$

$

Not available

1

Simplicity 2823341SM

CAPSCREW, 1/4NC x 3/4
(Superseded to 703925)

$4.49

$

In Stock, Qty 7

0

1

Simplicity 2816622SM

NUT, 1/4NC
(Superseded to 703127)

$3.49

$

In Stock, Qty 20+

0

1

Simplicity 2816964SM

LOCKWASHER, 1/4
(Superseded to 704133)

$3.99

$

In Stock, Qty 11

0

1

Simplicity 2821333

CAPSCREW, 5/16NC x 1

$

$

Not available

1

Simplicity 2817642

WASHER, 3/8 x 16 Ga

$

$

Not available

1

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

1

Simplicity 1917372SM

NUT, 5/16NC
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

2

Simplicity 2026336

BAR, "2" Side

$

$

Not available

3

Simplicity 2026337

BAR, Front

$

$

Not available

4

Simplicity 2026343

STRIP, Hold Down Front

$

$

Not available

4

Simplicity 2823341SM

CAPSCREW, 1/4NC x 3/4
(Superseded to 703925)

$4.49

$

In Stock, Qty 7

0

4

Simplicity 2817377

WASHER, 5/16 x 3/4 x 16 Ga

$

$

Not available

4

Simplicity 2816964SM

LOCKWASHER, 1/4
(Superseded to 704133)

$3.99

$

In Stock, Qty 11

0

4

Simplicity 2816622SM

NUT, 1/4NC
(Superseded to 703127)

$3.49

$

In Stock, Qty 20+

0

5

Simplicity 2025412

BRACKET

$

$

Not available

5

Simplicity 2821210

CAPSCREW, 3/8NC x 1

$

$

Not available

5

Simplicity 1924940SM

WASHER, 7/16 x 1 x 14 Ga.
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

5

Simplicity 2818006

NUT, Lock, 3/8NC

$

$

Not available

6

Simplicity 2026344

TUBE, Cross Brace

$

$

Not available

6

Simplicity 2821961

CAPSCREW, 1/4NC x 1-1/4 (Top)

$

$

Not available

6

Simplicity 2816964SM

LOCKWASHER, 1/4
(Superseded to 704133)

$3.99

$

In Stock, Qty 11

0

6

Simplicity 2816622SM

NUT, 1/4NC
(Superseded to 703127)

$3.49

$

In Stock, Qty 20+

0

7

Simplicity 2026339

SUPPORT, Hose

$

$

Not available

7

Simplicity 2821961

CAPSCREW, 1/4NC x 1-1/4

$

$

Not available

7

Simplicity 2816964SM

LOCKWASHER, 1/4
(Superseded to 704133)

$3.99

$

In Stock, Qty 11

0

7

Simplicity 2816622SM

NUT, 1/4NC
(Superseded to 703127)

$3.49

$

In Stock, Qty 20+

0

8

Simplicity 2026338

UPRIGHT, Front and Rear

$

$

Not available

9

Simplicity 2026353

STRAP, Hose

$

$

Not available

10

Simplicity 2026352

HOOD, Cart

$

$

Not available

11

Simplicity 2025354

COVER, Door

$

$

Not available

12

Simplicity 2026340

LATCH, Rear Door

$

$

Not available

12

Simplicity 2819319

CAPSCREW, 5/16NC x 7/8

$

$

Not available

12

Simplicity 2817642

WASHER, 3/8 x 7/8 x 16 Ga.

$

$

Not available

12

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

12

Simplicity 1917372SM

NUT, 5/16NC
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

13

Simplicity 2026341

SPACER, Latch

$

$

Not available

14

Simplicity 2026350

CATCH, Door R.H.

$

$

Not available

14

Simplicity 2821961

CAPSCREW, 1/4ND x 1-1/4

$

$

Not available

14

Simplicity 2816964SM

LOCKWASHER, 1/4
(Superseded to 704133)

$3.99

$

In Stock, Qty 11

0

14

Simplicity 2816622SM

NUT, 1/4NC
(Superseded to 703127)

$3.49

$

In Stock, Qty 20+

0

15

Simplicity 2026351

CATCH, Door L.H.

$

$

Not available

15

Simplicity 2821961

CAPSCREW, 1/4NC x 1-1/4

$

$

Not available

15

Simplicity 2816964SM

LOCKWASHER, 1/4
(Superseded to 704133)

$3.99

$

In Stock, Qty 11

0

15

Simplicity 2816622SM

NUT, 1/4NC
(Superseded to 703127)

$3.49

$

In Stock, Qty 20+

0

16

Simplicity 2026348

SPACER

$

$

Not available

17

Simplicity 2026349

TOP, Rear Door

$

$

Not available

17

Simplicity 2821962

CAPSCREW, 1/4NC x 1-3/4 (Top Spacer)

$

$

Not available

17

Simplicity 2817377

WASHER, 5/16 x 3/4 x 16 Ga

$

$

Not available

17

Simplicity 2816964SM

LOCKWASHER, 1/4
(Superseded to 704133)

$3.99

$

In Stock, Qty 11

0

17

Simplicity 2816622SM

NUT, 1/4
(Superseded to 703127)

$3.49

$

In Stock, Qty 20+

0

18

Simplicity 2026347

BAR, Rear door

$

$

Not available

18

Simplicity 2822837

CAPSCREW, 1/4NC x 1-1/2

$

$

Not available

18

Simplicity 2817377

WASHER, 5/16 x 3/4 x 16 Ga

$

$

Not available

18

Simplicity 2816964SM

LOCKWASHER, 1/4
(Superseded to 704133)

$3.99

$

In Stock, Qty 11

0

18

Simplicity 2816622SM

NUT, 1/4
(Superseded to 703127)

$3.49

$

In Stock, Qty 20+

0

19

Simplicity 2026345

TUBE, Rear Door

$

$

Not available

20

Simplicity 2026346

ROD, Rear Door

$

$

Not available

20

Simplicity 2816951

NUT, 1/2NC

$

$

Not available

20

Simplicity 2816966

LOCKWASHER, 1/2

$

$

Not available
