416 H (1600261) - AGCO Lawn Tractor, 16hp Steering Group (1506I18) Parts Diagram

Lawn Tractor, 16hp

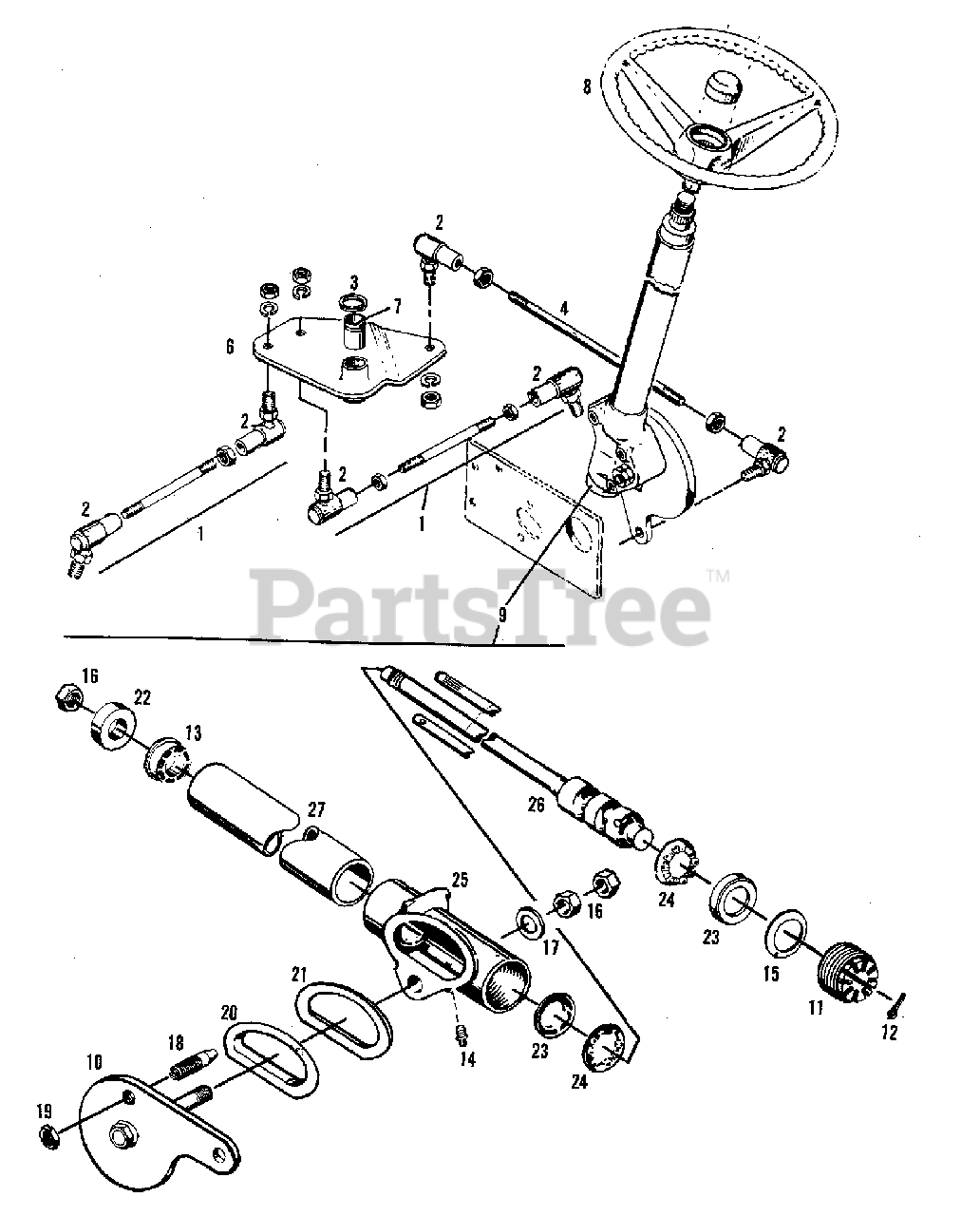

Steering Group (1506I18) Parts Diagram

  • Title

1

Simplicity 1601891

LINK ASSEMBLY, L.H. (Includes BALL JOINTS & NUTS)

$

$

Not available

1

Simplicity 1603462

LINK ASSEMBLY, R.H. (Includes BALL JOINTS & NUTS)

$

$

Not available

1

Simplicity 2819262

NUT, 1/4NF, Jam Lock

$

$

Not available

1

Simplicity 2830245

NUT, 1/2NF, Centerlock

$

$

Not available

2

Simplicity 1677206SM

JOIN, Ball

$49.99

$

Usually ships in 2-12 days

0

2

Simplicity 2816966

LOCKWASHER, 1/2

$

$

Not available

2

Simplicity 919423

NUT, 1/2NF

$

$

Not available

2

Simplicity 2819262

NUT, 1/2NF, Jam Lock

$

$

Not available

3

Simplicity 1605187

RING, External Retaining

$

$

Not available

3

Simplicity 919393

WASHER, 1.015 x 1-5/8 x 12 Ga

$

$

Not available

4

Simplicity 1601862

ROD, Drag

$

$

Not available

5

Simplicity 1608032

GREAR BOX, Steering

$

$

Not available

5

Simplicity 2821210

CAPSCREW, 3/8NC x 1

$

$

Not available

5

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 15

0

5

Simplicity 2821977

CAPSCREW, 5/16NC x 1-1/4 (See NOTE)

$

$

Not available

5

Simplicity 2823362

NUT, 5/16NC (See NOTE)

$

$

Not available

6

Simplicity 1607704

BELLCRANK ASSEMBLY

$

$

Not available

7

Simplicity 1601831SM

BEARING, Sleeve

$

$

Not available

7

Simplicity 1606342SM

WHEEL, Steering (W/o Spline)

$

$

Not available

8

Simplicity 1601842

WHEEL, Steering (W/ Spline)(Bolted Type)

$

$

Not available

8

Simplicity 1608032

GEAR ASSEMBLY, Steering (Includes Items 10-27)

$

$

Not available

9

Simplicity 1604116

LEVER & BOLT ASSEMBLY

$

$

Not available

10

Simplicity 1609364

-

$

$

Not available

11

Simplicity 1604117

PLUG, Adjustment

$

$

Not available

12

Simplicity 918449

PIN, Cotter, 1/8 x 1/2

$

$

Not available

13

Simplicity 1604119

BEARING

$

$

Not available

14

Simplicity 1604120

FITTING, Grease

$

$

Not available

15

Simplicity 1604121

WASHER, Bellville

$

$

Not available

16

Simplicity 2822014

NUT, Jam, 5/8-18, Hexagon (1 Nut Used w/Spline Type)

$

$

Not available

17

Simplicity 1604123

WASHER

$

$

Not available

18

Simplicity 1604124

STUD

$

$

Not available

19

Simplicity 1604125

NUT, Adjustment

$

$

Not available

20

Simplicity 1604126

RETAINER, Seal

$

$

Not available

21

Simplicity 1604127

SEAL

$

$

Not available

22

Simplicity 1604128

SEAL, Dust

$

$

Not available

23

Simplicity 1604129

CUP, Ball (Includes Item 14)

$

$

Not available

24

Simplicity 1604170

BALL & RETAINER

$

$

Not available

25

HOUSING (Not Serviced)

$

$

Not available

26

CAM (Not Serviced)

$

$

Not available

27

TUBE, Jacket (Not Serviced)

$

$

Not available
