416 H (1600261) - AGCO Lawn Tractor, 16hp Sheet Metal & Frame Group - Rear (1506I34) Parts Diagram

Lawn Tractor, 16hp

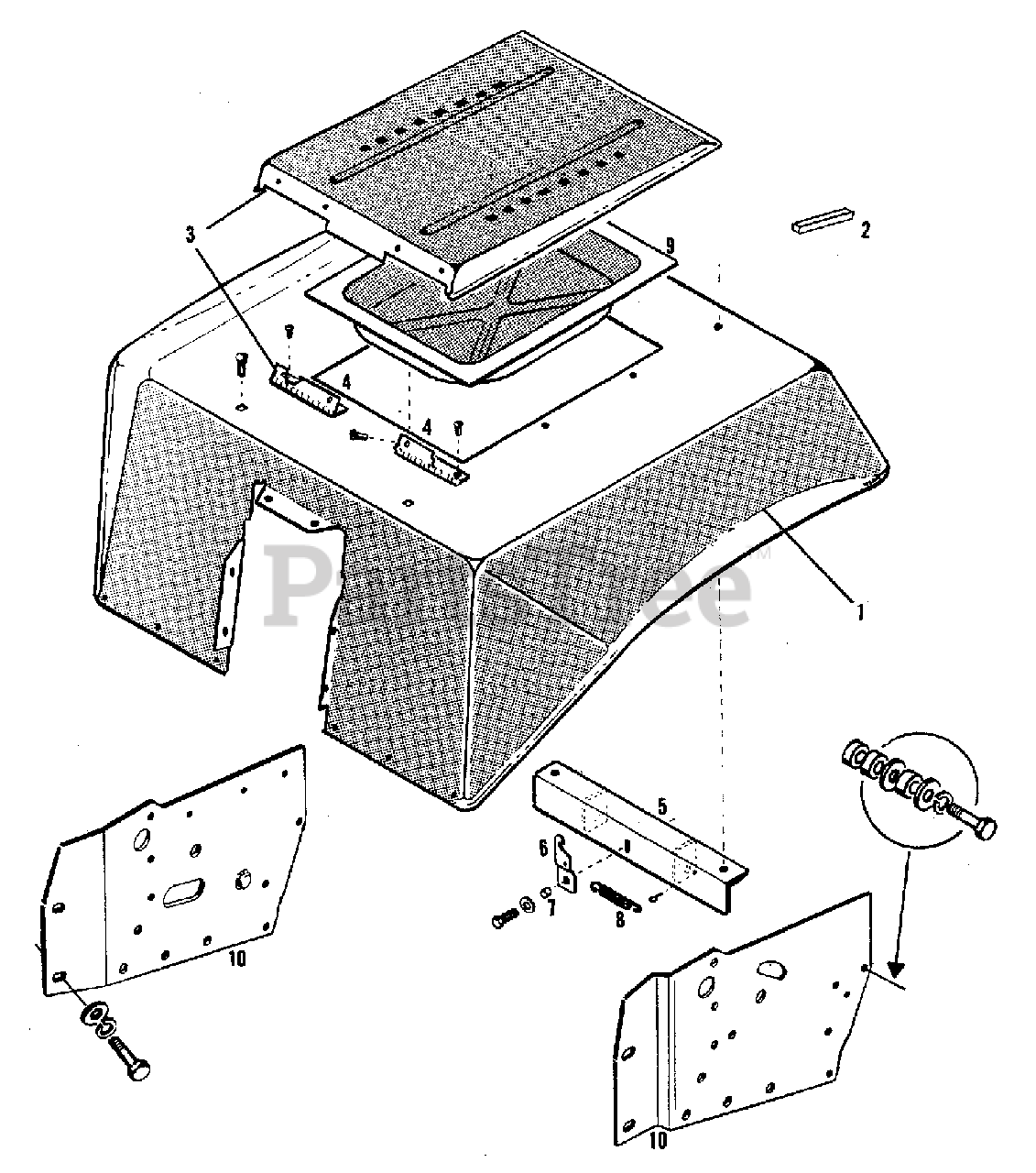

Sheet Metal & Frame Group - Rear (1506I34) Parts Diagram

  • Title

1

Simplicity 1607680

DECK, Seat

$

$

Not available

1

Simplicity 2819318

CAPSCREW, 5/16NC x 5/8

$

$

Not available

1

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

1

Simplicity 1917372SM

NUT, 5/16NC
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

1

Simplicity 2824856

SCREW, 5/16NC x 1/2 Taptite

$

$

Not available

1

Simplicity 2807727

CAPSCREW, 1/4NC x 1/2

$

$

Not available

1

Simplicity 2816964SM

LOCKWASHER, 1/4
(Superseded to 704133)

$3.99

$

In Stock, Qty 11

0

2

Simplicity 1602301

TAPE, Foam (Use 3 Strips-12" Long)

$

$

Not available

3

Simplicity 1607619

SUPPORT, Seat

$

$

Not available

4

Simplicity 1603539

HINGE

$

$

Not available

4

Simplicity 1602093

RIVET, 3/16 x .402 Pop

$

$

Not available

5

Simplicity 1603786

SUPPORT ASSEMBLY, Seat Deck

$

$

Not available

5

Simplicity 2821333

CAPSCREW, 5/16NC x 1

$

$

Not available

5

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

5

Simplicity 1917372SM

NUT, 5/16NC
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

5

Simplicity 2817642

WASHER, 5/16 Standard

$

$

Not available

6

Simplicity 1604135

LATCH, Seat

$

$

Not available

6

Simplicity 1604323

WASHER .381 x 1 x 16 Ga

$

$

Not available

7

Simplicity 1601750

SPACER

$

$

Not available

7

Simplicity 2821333

CAPSCREW, 5/16NC x 1

$

$

Not available

7

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

7

Simplicity 1917372SM

NUT, 5/16NC
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

7

Simplicity 2824940

WASHER, 13/32 x 7/8 x 14 GA

$

$

Not available

8

Simplicity 2025435

SPRING

$

$

Not available

8

Simplicity 2818458

PIN, 3/16 x 1 Cotter

$

$

Not available

9

Simplicity 1604453

TRAY, Tool

$

$

Not available

10

Simplicity 1607707

PLATE, L.H. Side (Not for Hydrostatic Model)

$

$

Not available

10

Simplicity 1602952

PLATE, L.H. Side (Hydrostatic Model Only)

$

$

Not available

10

Simplicity 1607709

PLATE, R.H. Side (410 Without Shuttle)

$

$

Not available

10

Simplicity 1607710

PLATE, R.H. Side (All Shuttle Clutch Models)

$

$

Not available

10

Simplicity 1608282

PLATE, R.H. Side (Hydrostatic Model Only)

$

$

Not available

10

Simplicity 2820676SM

CAPSCREW, 7/16NC x 1-Gr5

$4.49

$

In Stock, Qty 6

0

10

Simplicity 2823491

CAPSCREW, 7/16NC x 1-Gr8 (Used w/1607709 Only)
(Superseded to 703579)

$4.49

$

In Stock, Qty 20+

0

10

Simplicity 2818213

NUT, 7/16NC

$

$

Not available

10

Simplicity 2818199

LOCKWASHER, 7/16

$

$

Not available

10

Simplicity 2820677

CAPSCREW, 7/16NC x 1-1/4 (w/ Hydrostatic Only)

$

$

Not available

10

Simplicity 1924940SM

WASHER, 7/16, Plain
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

11

Simplicity 1605753

REFLECTOR, Rear

$

$

Not available

11

Simplicity 2823341SM

CAPSCREW, 1/4NC x 3/4
(Superseded to 703925)

$4.49

$

In Stock, Qty 7

0

11

Simplicity 2816622SM

NUT, 1/4NC
(Superseded to 703127)

$3.49

$

In Stock, Qty 20+

0

11

Simplicity 919292

WASHER, 9/32 x 5/8 x 1/16

$

$

Not available
