416 H (1600261) - AGCO Lawn Tractor, 16hp Controls Group - Shuttle Clutch (1506I28) Parts Diagram

Lawn Tractor, 16hp

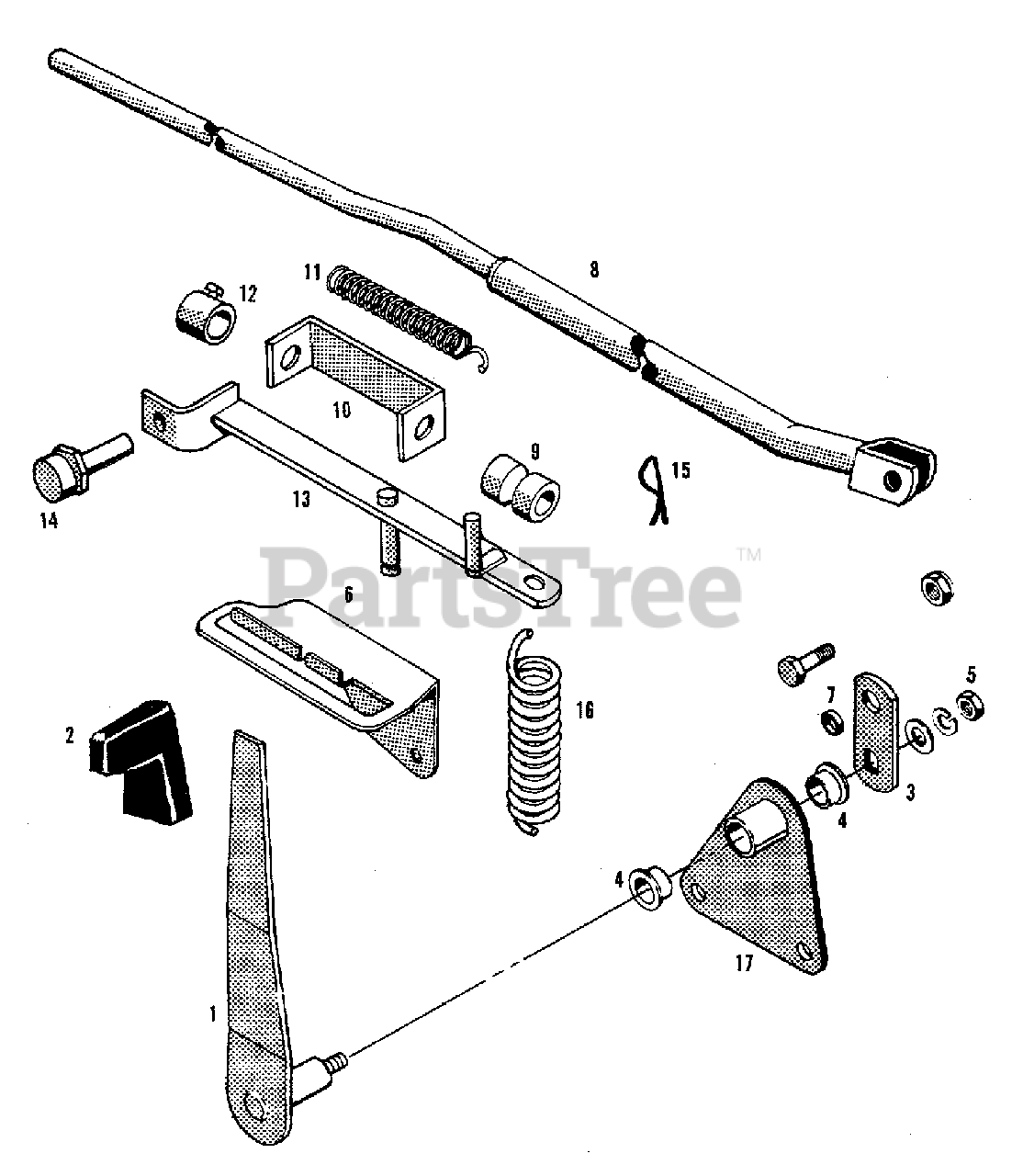

Controls Group - Shuttle Clutch (1506I28) Parts Diagram

  • Title

1

Simplicity 1607982

LEVER ASSEMBLY, Control

$

$

Not available

1

Simplicity 2822125

SCREW, 1/4NC x 3/4, Thread Forming

$

$

Not available

2

Simplicity 2028579

KNOB

$

$

Not available

3

Simplicity 1602460

LINK

$

$

Not available

4

Simplicity 1663114SM

BUSHING, Flanged

$4.49

$

In Stock, only 3 left!

0

4

Simplicity 1924940SM

WASHER, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

4

Simplicity 1916965SM

LOCKWASHER
(Superseded to 703454)

$3.49

$

In Stock, Qty 17

0

5

Simplicity 2816950SM

NUT, 3/8NC
(Superseded to 703457)

$4.49

$

In Stock, Qty 7

0

6

Simplicity 1607723

QUADRANT

$

$

Not available

6

Simplicity 2821959

CAPSCREW, 1/4NC x 5/8

$

$

Not available

6

Simplicity 2816964SM

LOCKWASHER, 1/4
(Superseded to 704133)

$3.99

$

In Stock, Qty 11

0

6

Simplicity 2817867

NUT, Cage, 1/4NC

$

$

Not available

7

Simplicity 1604501

SPACER

$

$

Not available

7

Simplicity 2821210

CAPSCREW, 3/8NC x 1

$

$

Not available

7

Simplicity 2818006

NUT, 3/8NC, Lock

$

$

Not available

8

Simplicity 1607714

ROD ASSEMBLY

$

$

Not available

9

Simplicity 2029788

BRAKE, Detent

$

$

Not available

9

Simplicity 2828804

SETSCREW, 1/4NC x 3/8, GR8

$

$

Not available

10

Simplicity 2029802

GUIDE ASSEMBLY, Rod

$

$

Not available

10

Simplicity 923809

WASHER, .281 x 5/8, 18GA

$

$

Not available

11

Simplicity 2027160

SPRING

$

$

Not available

11

Simplicity 2823428

NUT, 3/8NC, Lock

$

$

Not available

12

Simplicity 1602435

COLLAR SET

$

$

Not available

12

Simplicity 2828804

SETSCREW, 1/4NC x 3/8, GR8

$

$

Not available

13

Simplicity 1607717

LEVER ASSEMBLY, Brake

$

$

Not available

14

Simplicity 2029710

PAD ASSEMBLY, Brake

$

$

Not available

14

Simplicity 2820161

NUT, 5/16NC

$

$

Not available

15

Simplicity 2818448

PIN, 3/32 x 3/4, Cotter

$

$

Not available

16

Simplicity 1607718

SPRING

$

$

Not available

16

Simplicity 2817642

WASHER, 5/16

$

$

Not available

17

Simplicity 1607974

BRACKET ASSEMBLY, Support

$

$

Not available

17

Simplicity 2824856

SETSCREW, 5/16NC x 1/2

$

$

Not available

17

Simplicity 2821332

CAPSCREW, 5/16NC x 3/4

$

$

Not available

17

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

17

Simplicity 2817642

WASHER, 5/16

$

$

Not available

17

Simplicity 1917372SM

NUT, 5/16NC
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0
