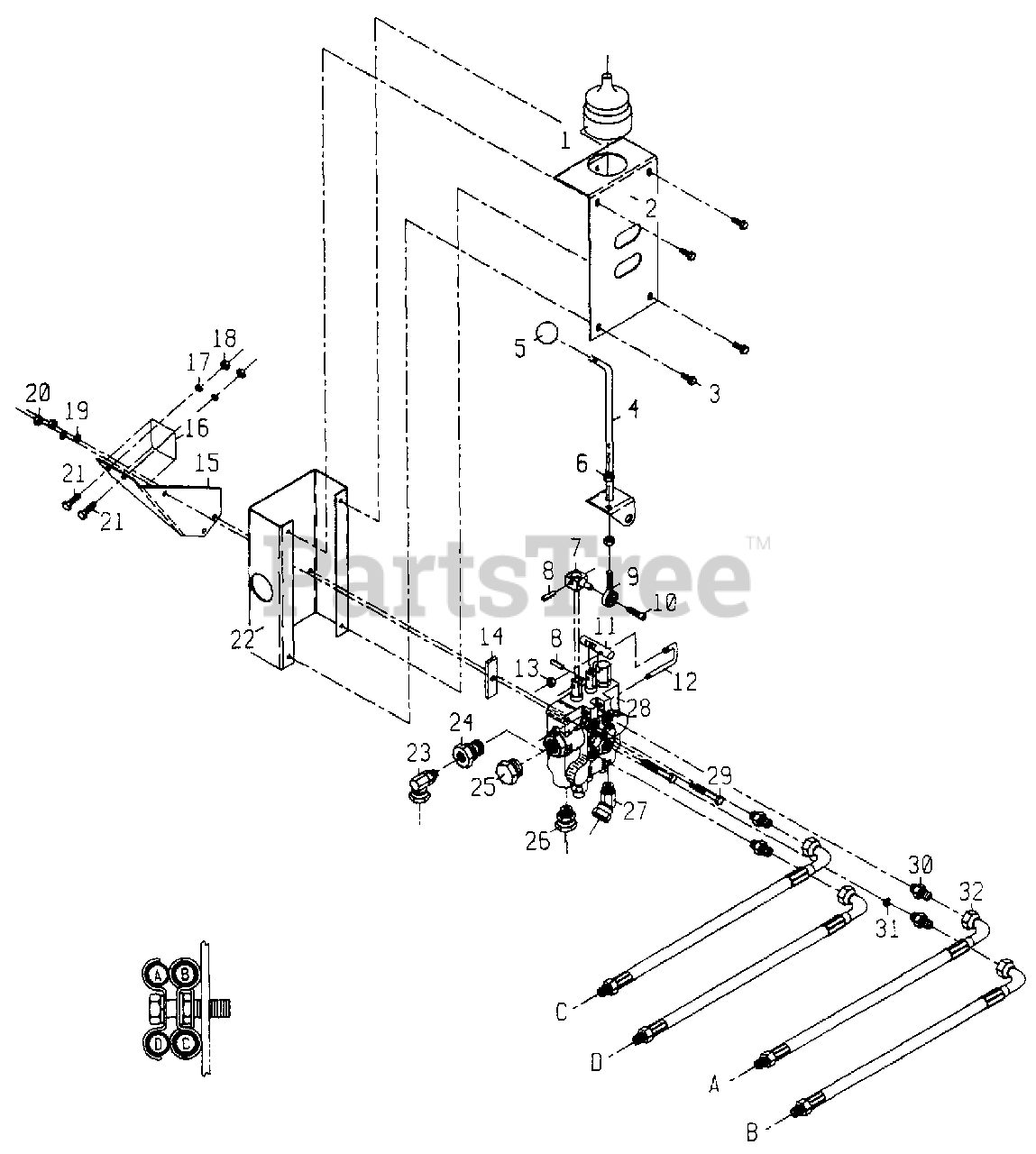

416 (590-416-100) - Cub Cadet Loader att Single Handle Control Valve Parts Diagram

Loader

Single Handle Control Valve Parts Diagram

  • Title
1

Cub Cadet WM-31-6121

Rubber Boot
(Superseded to WM-34-6121)

$

$

Not available

2

Cub Cadet WM-30321

End Cover

$

$

Not available

3

Cub Cadet WM-30-0708

1/4 NC x 3/4 Self-tap screw

$

$

Not available

4

Cub Cadet WM-4959

Handle
(Superseded to WM-4959-1)

$

$

Not available

5

Cub Cadet WM-48-8005

Clip Ball
(Superseded to WM-488005)

$

$

Not available

6

Cub Cadet WM-30-2054

5/16 NF Hex nut
(Superseded to 912-3057)

$6.99

$

In Stock, only 1 left!

0

7

Cub Cadet WM-21-5281

Pivot block
(Superseded to WM-215281)

$

$

Not available

8

Cub Cadet WM-48-1769

1/4 x 7/8 Roll Pin
(Superseded to WM-481769)

$

$

Not available

9

Cub Cadet WM-48-9089

Rod End Ball Joint
(Superseded to WM-489089)

$

$

Not available

10

Cub Cadet WM-30-0067

1/4 x 1 Socket Capscrew
(Superseded to WM-300067)

$

$

Not available

11

Cub Cadet WM-21-5213

Pin
(Superseded to WM-215213)

$

$

Not available

$

$

Not available

13

Cub Cadet WM-30-2025

1/4 NC Self-lock hex nut
(Superseded to 912-0117)

$2.49

$

In Stock, only 2 left!

0

$

$

Not available

15

Cub Cadet WM-6841

Valve Mounting Bracket

$

$

Not available

16

Cub Cadet WM-26-0274

Decal - Control Valve
(Superseded to WM-260274)

$5.49

$

In Stock, only 1 left!

0

17

Cub Cadet WM-30-3150

3/8 Lockwasher
(Superseded to 936-0169)

$3.99

$

In Stock, Qty 20+

0

18

Cub Cadet WM-30-2076

3/8 NC Hex nut
(Superseded to 912-3017)

$4.49

$

In Stock, Qty 20+

0

19

Cub Cadet WM-30-3050

1/4 Lockwasher

$

$

Not available

20

Cub Cadet WM-30-2026

1/4 NC Hex nut

$

$

Not available

21

Cub Cadet WM-30-0152

3/8 NC x 1 Capscrew
(Superseded to 910-0253)

$4.49

$

In Stock, Qty 20+

0

22

Cub Cadet WM-30320

Valve Cover

$

$

Not available

23

Cub Cadet WM-31-3043

90ø Elbow
(Superseded to WM-313043)

$

$

Not available

24

Cub Cadet WM-34-6083

Power Beyond Sleeve
(Superseded to WM-346083)

$

$

Not available

25

Cub Cadet WM-31-0012

Cap Plug
(Superseded to WM-310012)

$

$

Not available

26

Cub Cadet WM-31-5050

Straight Adapter
(Superseded to WM-315050)

$15.99

$

In Stock, only 1 left!

0

27

Cub Cadet WM-31-3047

45ø Adjustable Female Pipe Swivel
(Superseded to WM-313047)

$68.99

$

In Stock, only 1 left!

0

28

Cub Cadet WM-34-6081

Valve
(Superseded to WM-346081P)

$

$

Not available

29

Cub Cadet WM-30-0068

1/4 NC x 2-1/4 Capscrew

$

$

Not available

30

Cub Cadet WM-31-5044

Straight adapter

$

$

Not available

31

Cub Cadet WM-34-6166

Plate orifice
(Superseded to WM-346166)

$

$

Not available

32

Cub Cadet WM-36-0214

Hydraulic hose - L18
(Superseded to WM-360214)

$71.99

$

Usually ships in 3-6 days

0
