416 (590-416-100) - Cub Cadet Loader att Lift Cylinder Parts Diagram

Loader

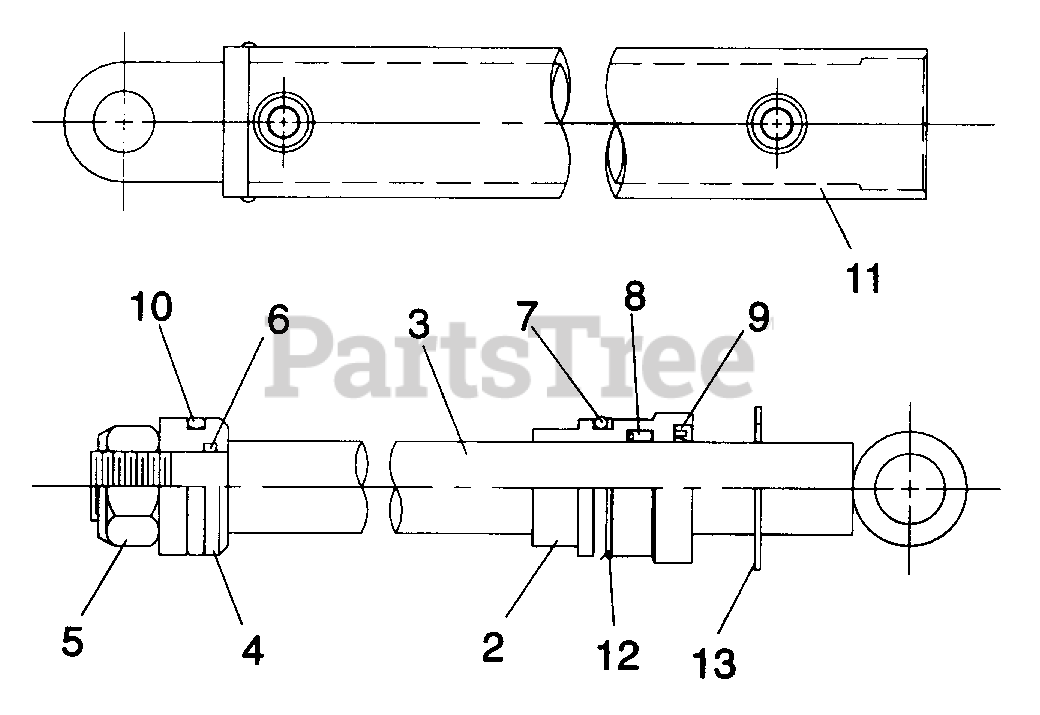

Lift Cylinder Parts Diagram

  • Title

Cub Cadet WM-21-0036

Complete cylinder

$

$

Not available

?1

Retainer nut

Note: Not Serviced

$

$

Not available

2

Seal retainer

Note: Not Serviced

$

$

Not available

3

Rod

Note: Not Serviced

$

$

Not available

4

Piston

Note: Not Serviced

$

$

Not available

5

Locknut

Note: Not Serviced

$

$

Not available

6

O-Ring

Note: Included in Seal Kit(14)

$

$

Not available

7

O-Ring

Note: Included in Seal Kit(14)

$

$

Not available

8

U-Ring

Note: Included in Seal Kit(14)

$

$

Not available

9

Wiper ring

Note: Included in Seal Kit(14)

$

$

Not available

10

Piston seal

Note: Included in Seal Kit(14)

$

$

Not available

11

Tube

Note: N/A

$

$

Not available

12

Back-up ring

Note: Included in Seal Kit(14)

$

$

Not available

13

Snap ring

Note: Included in Seal Kit(14)

$

$

Not available

?14

$

$
